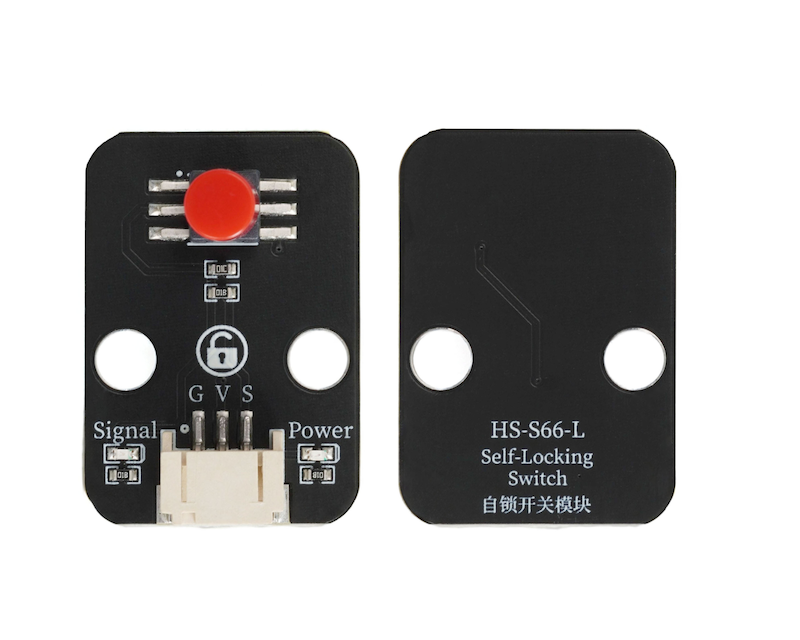

HS-S66-L Lockable Switch Module

1. Introduction

The lockout switch module, after pressing the switch, keeps the switch state locked in place by means of a mechanical lock or electronic circuit, even if the external force disappears, the switch can still remain in the closed or open state until a specific operation is applied to change its state.

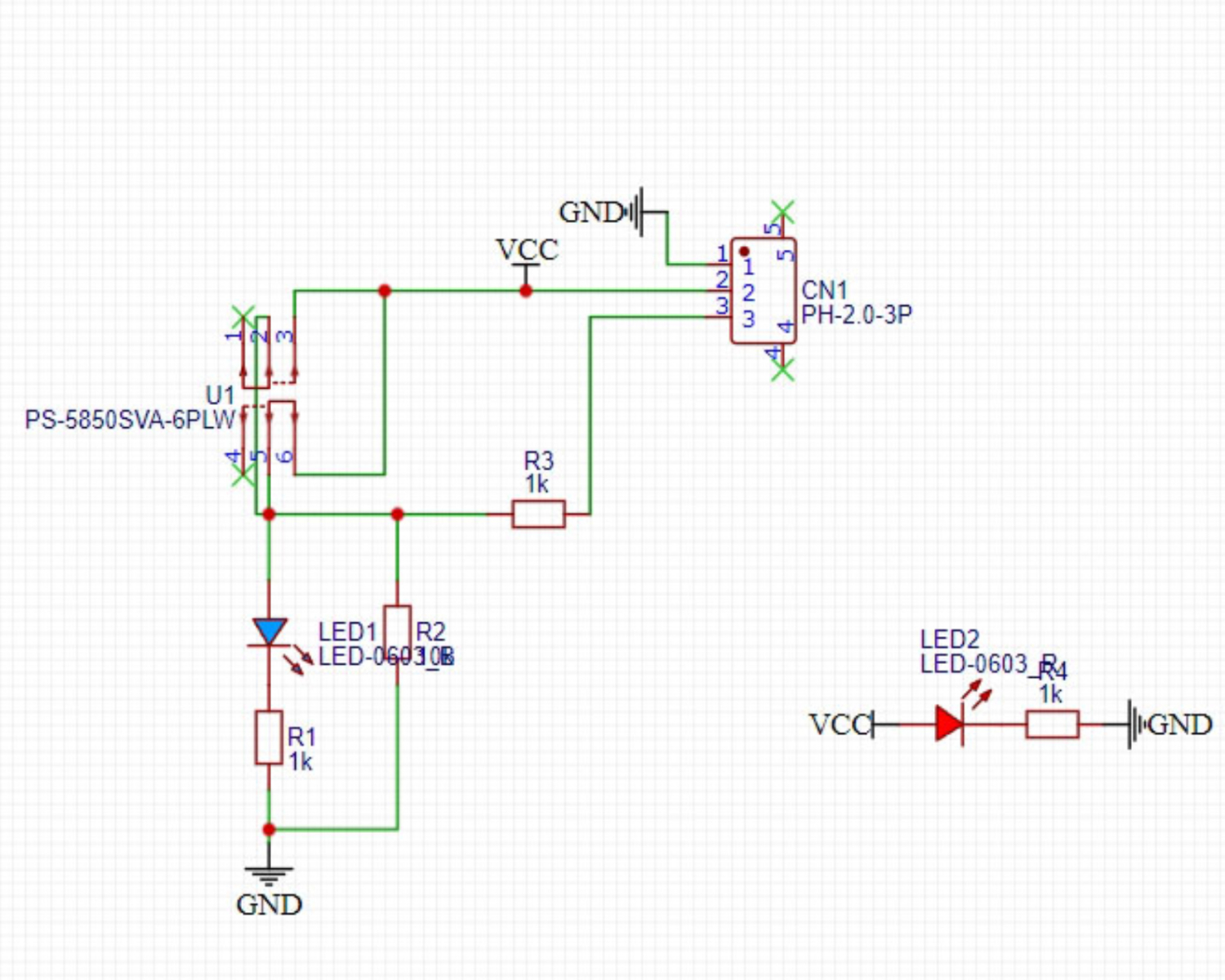

2. Schematic

Module Parameters

Pin Name	description
G	GND (Negative Power Input)
V	VCC (Positive Power Input)
S	Digital Signal Pin

Power Supply Voltage: 3.3V / 5V
Connection method: PH2.0 terminal wire
Installation method: Lego block fixed

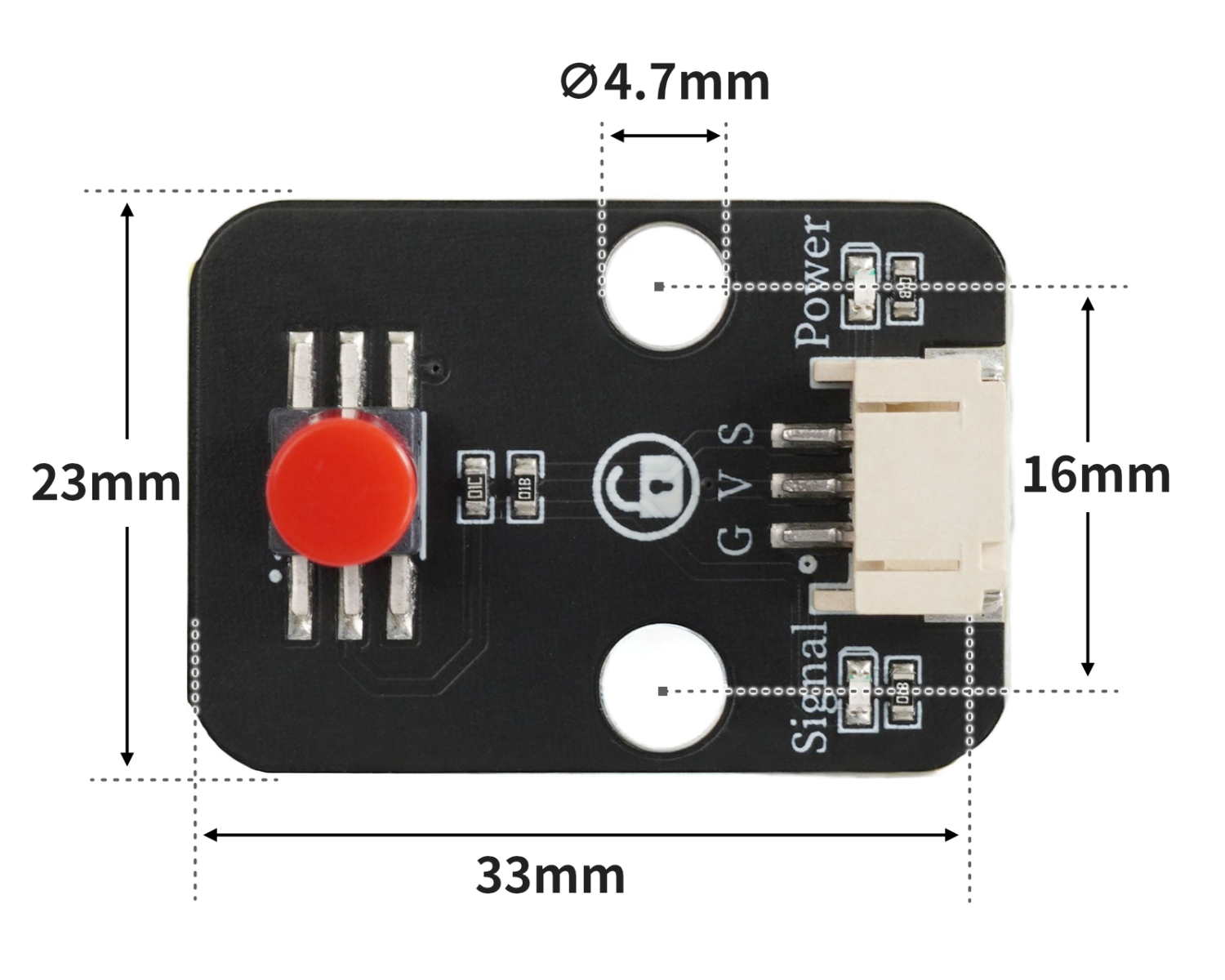

4, Circuit Board Size

5 of Arduino IDE example program

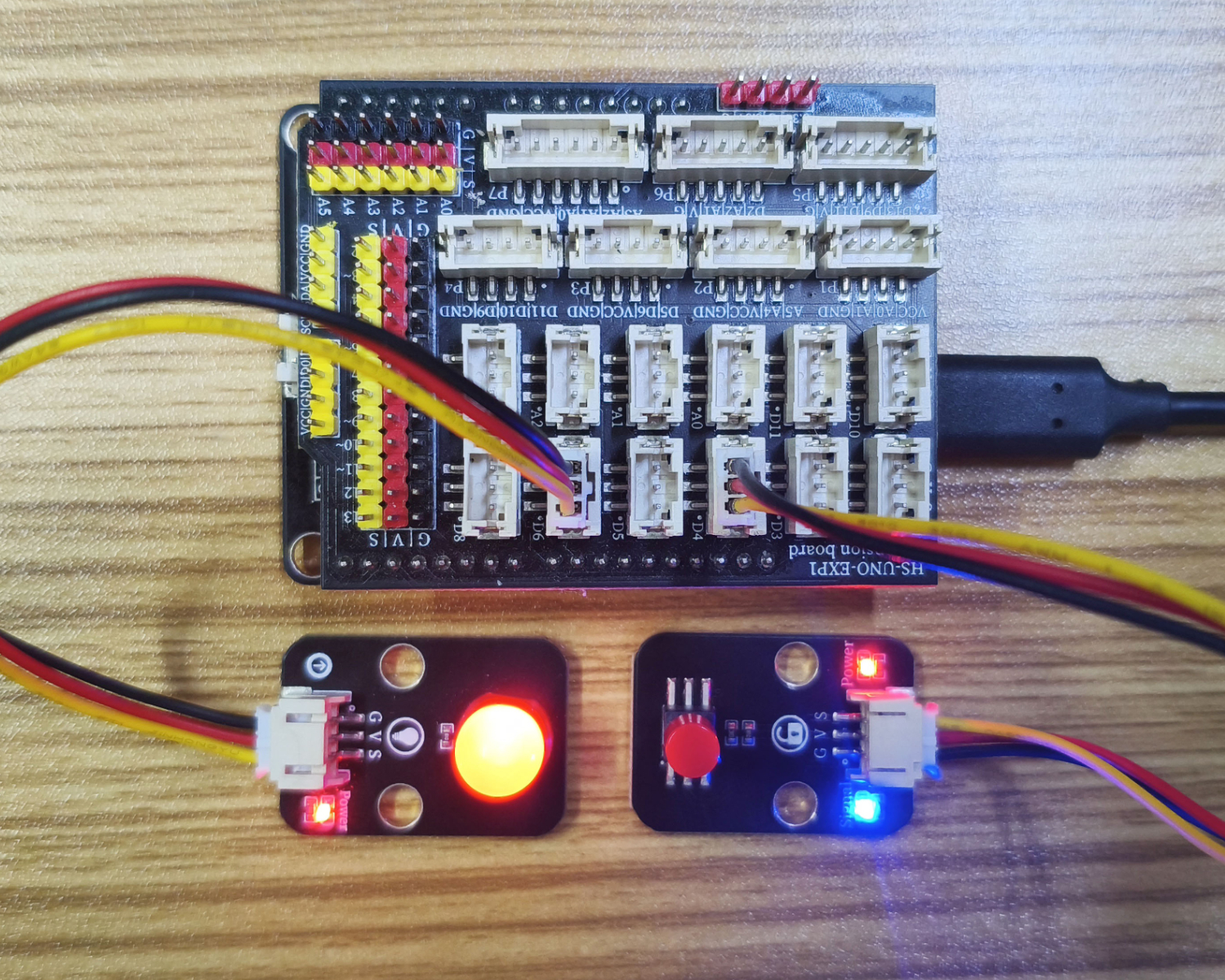

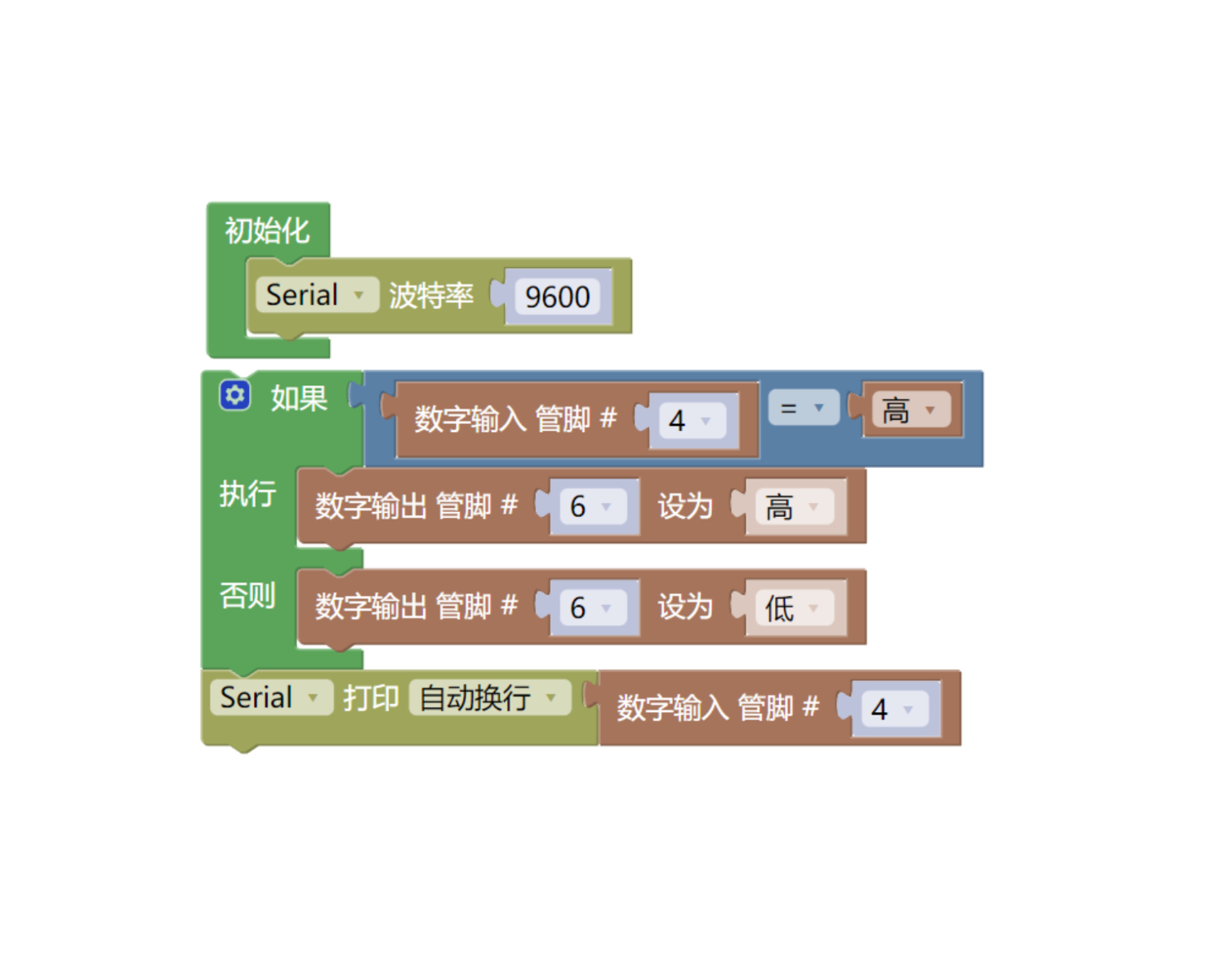

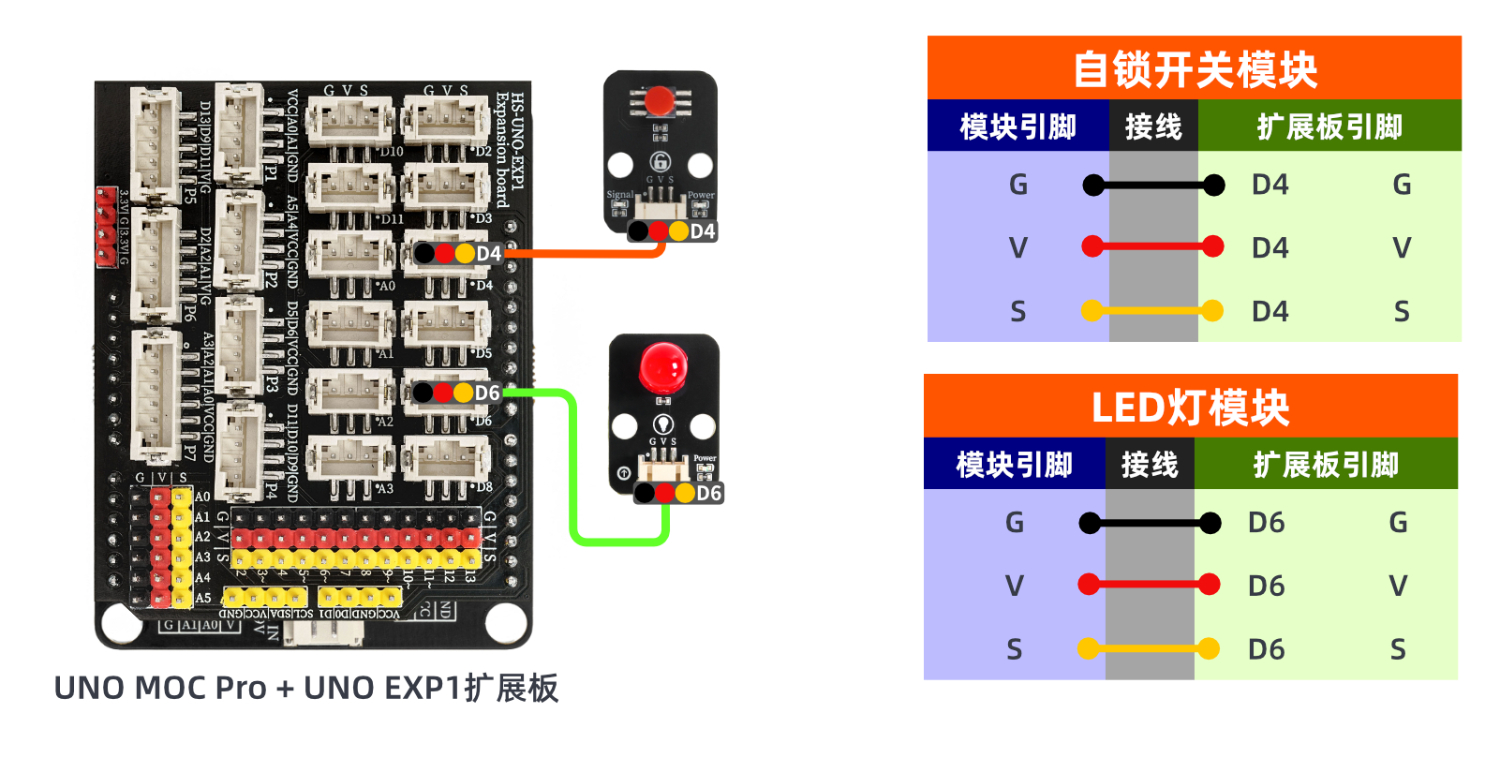

Arduino UNO Example (for Mixly IDE, Arduino IDE):

void setup(){
  Serial.begin(9600);
  pinMode(4, INPUT);
  pinMode(6, OUTPUT);
}

void loop(){
  if (digitalRead(4) == HIGH) {
    digitalWrite(6,HIGH);

  } else {
    digitalWrite(6,LOW);

  }
  Serial.println(digitalRead(4));

}

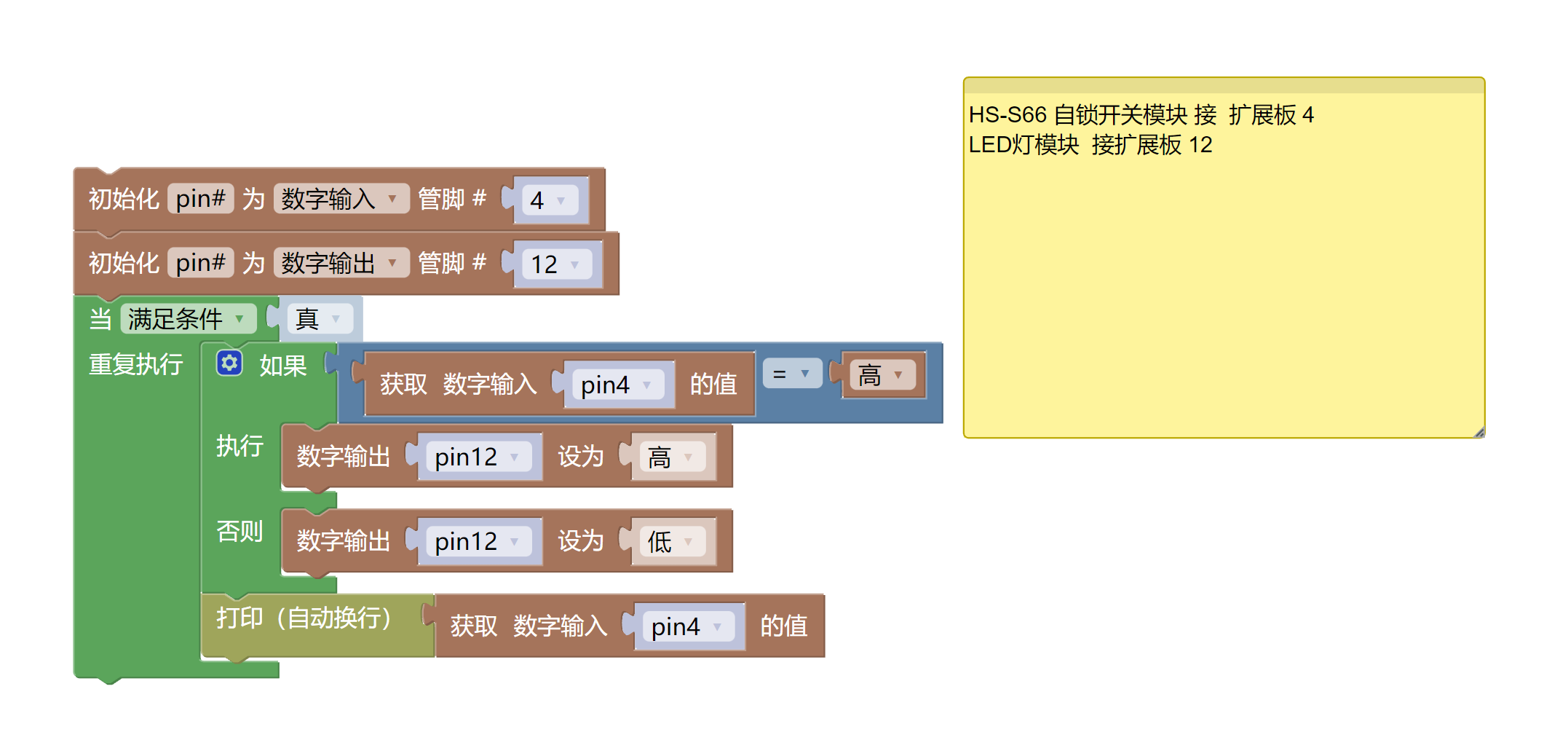

ESP32 Python Example (for Mixly IDE / Micskit)
(Choose the Python ESP32 [ESP32 Generic(4MB)] to switch to code mode upload):

import machine


pin4 = machine.Pin(4, machine.Pin.IN)
pin12 = machine.Pin(12, machine.Pin.OUT)
while True:
    if pin4.value() == 1:
        pin12.value(1)
    else:
        pin12.value(0)
    print(pin4.value())
