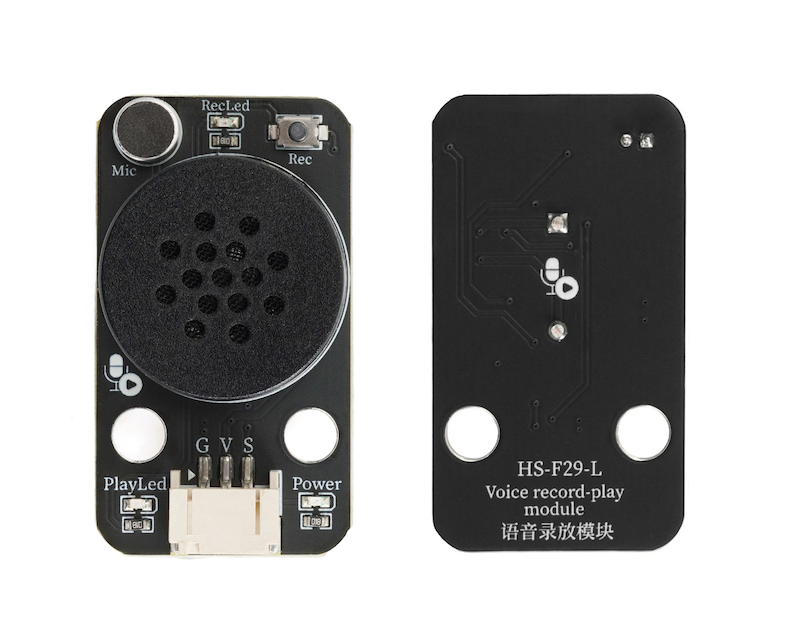

HS-F29-L Voice Recording and Playback Module

1. Introduction

An audio playback module is an electronic module that integrates the functions of voice signal collection, storage, and playback, equipped with buttons for easy start and stop recording.Built-in microphone, can record directly.With its powerful voice processing capabilities, it is widely used in fields such as smart devices, security systems, and educational products.

2. Schematic

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection method: PH2.0 terminal wire

• Installation method: Modular fixed

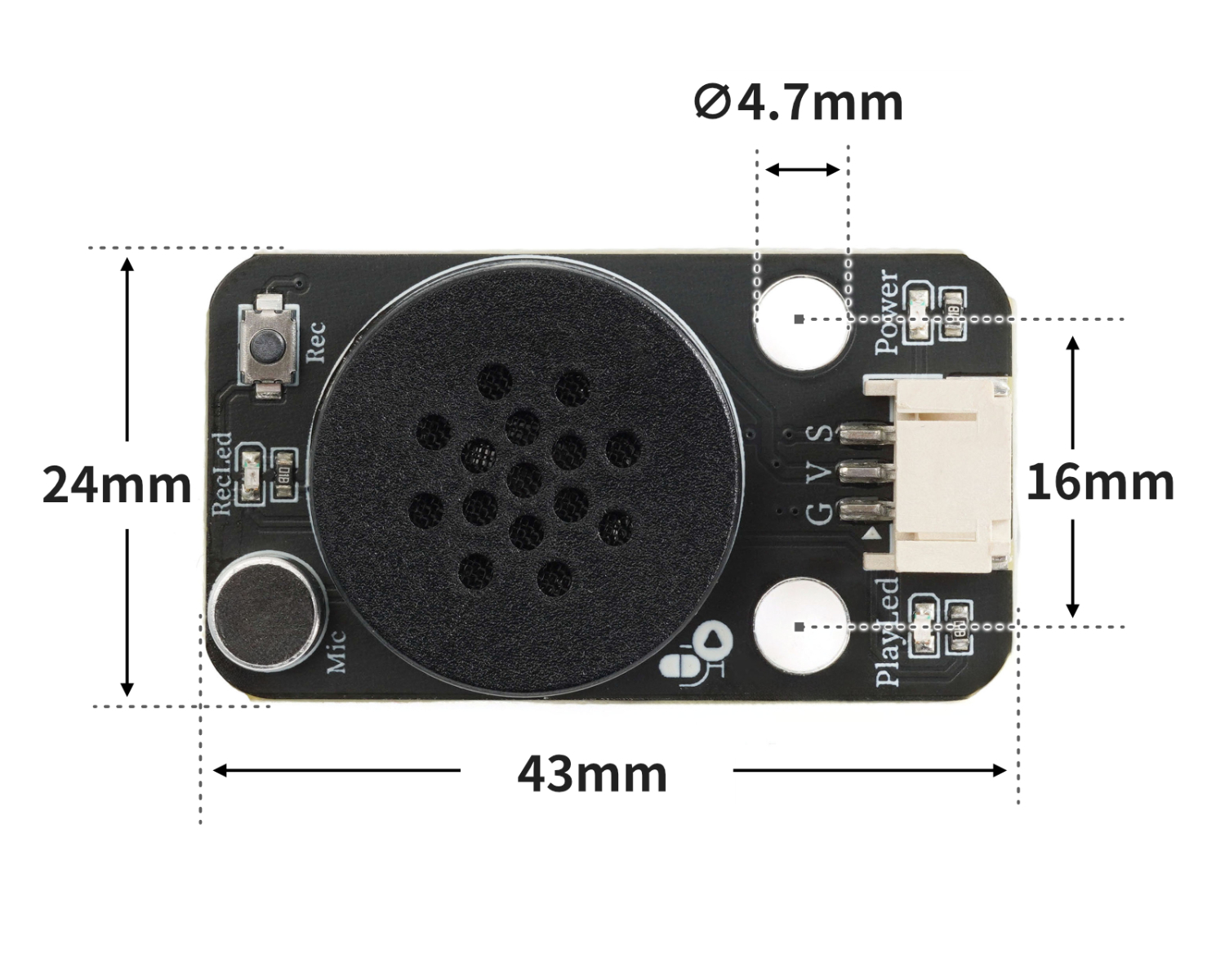

4, Circuit Board Size

5 of Arduino IDE example program

Arduino UNO Example (for Mixly IDE, Arduino IDE):

void setup(){
  pinMode(2, INPUT);
  pinMode(3, OUTPUT);
}

void loop(){
  if (digitalRead(2) == LOW) {
    digitalWrite(3,HIGH);

  } else {
    digitalWrite(3,LOW);

  }

}

ESP32 Python Example (for Mixly IDE / Micskit)
(Choose the Python ESP32 [ESP32 Generic(4MB)] to switch to code mode upload):

import machine


pin4 = machine.Pin(4, machine.Pin.IN)
pin12 = machine.Pin(12, machine.Pin.OUT)
while True:
    if pin4.value() == 0:
        pin12.value(0)
    else:
        pin12.value(1)

6, Miciqi Mixly Example Program (Graphical Language)

Example program (UNO development board):Click to download

Example Program (ESP32 Development Board):Click to download

7, Test Environment Setup

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO R3 P EXPANSION BOARD *1

• USB TYPE-C DATA CABLE *1

• Audio Recording and Playback Module (HS-F29L) *1

• Push-button switch module (HS-KEY1L) *1

• PH2.0 3P Dupont wire *2

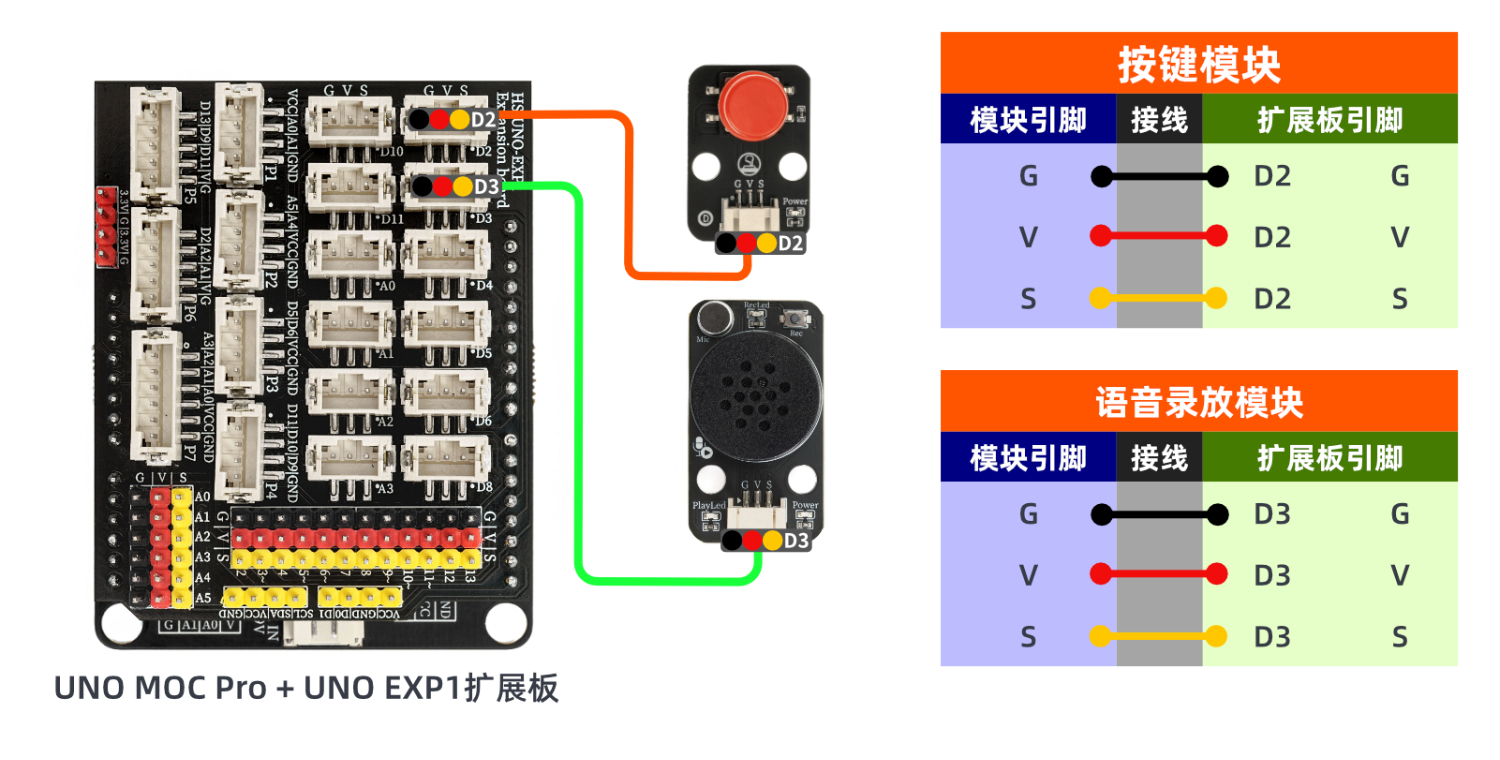

Circuit wiring diagram:

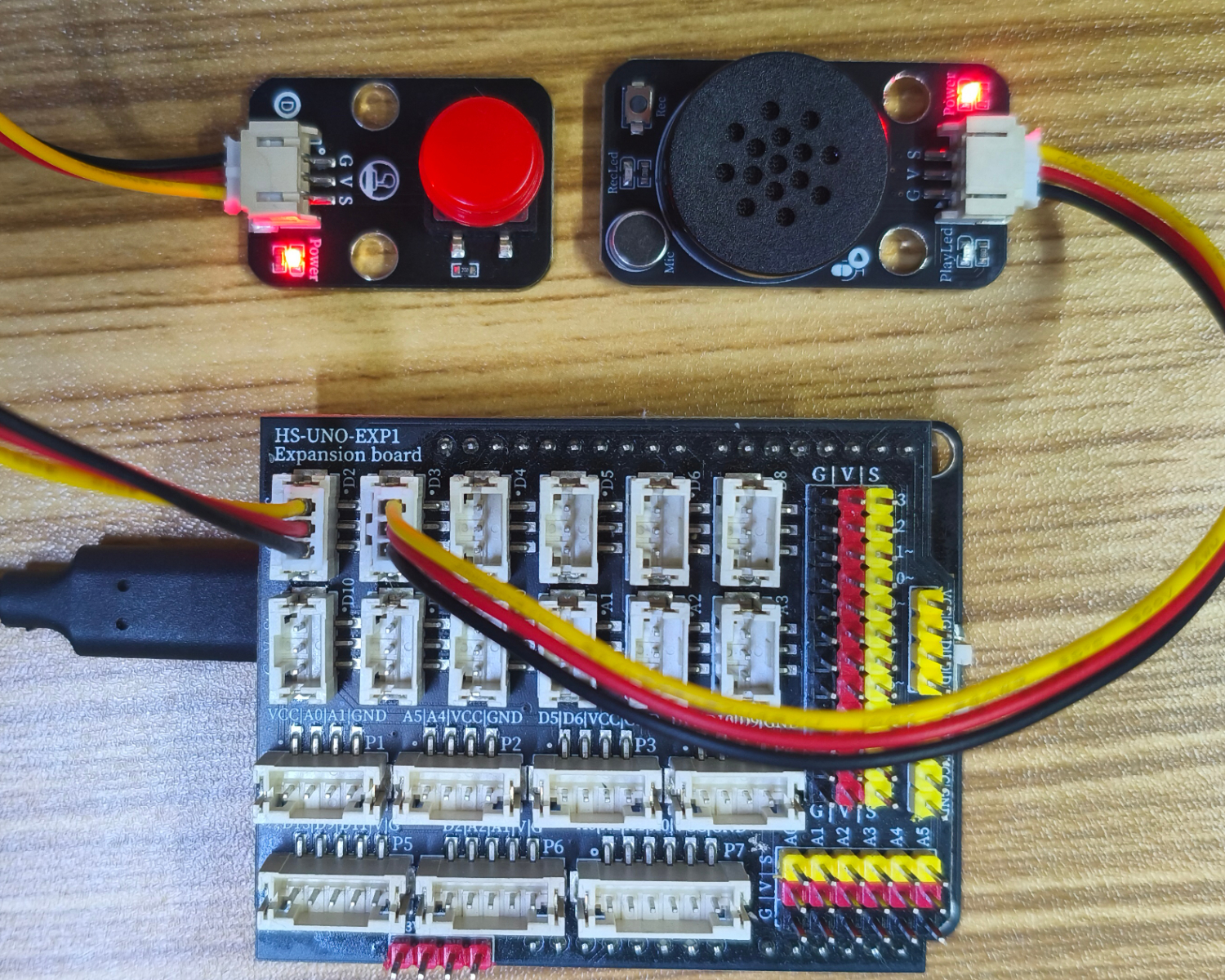

ESP32 Python test environment setup

8. Video tutorial

Arduino UNO video tutorial: Click to view

ESP32 Python Video Tutorial:

9. Test conclusion

Arduino UNO Test Conclusion:

After connecting the device, after burning the above program to the development board, press the button on the voice playback module first, record the voice to be saved, and then press the button to end the recording.Press the button module to play the saved recording.

ESP32 Python test conclusion:
