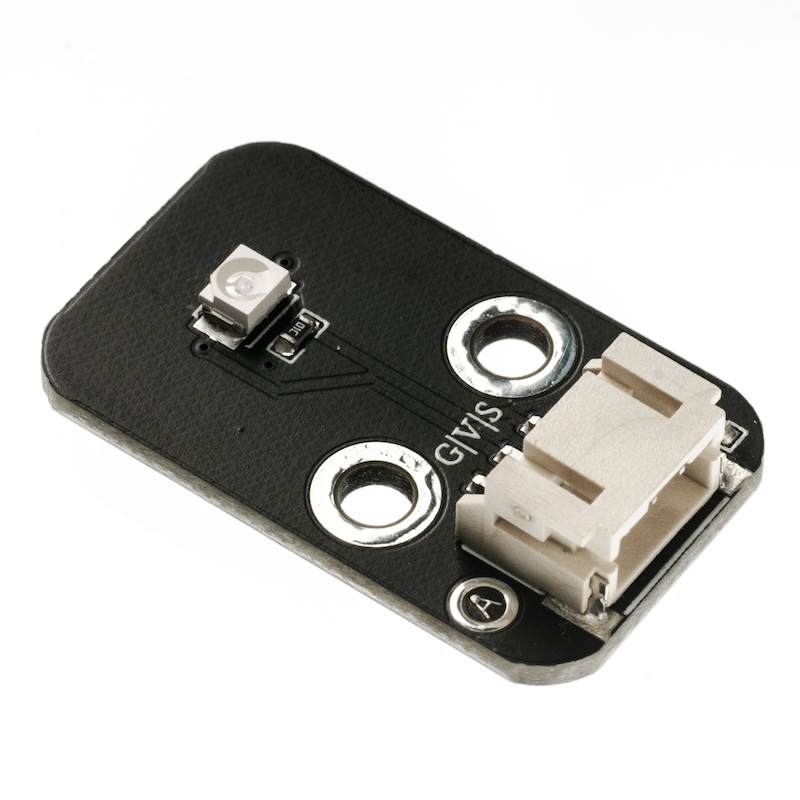

HS-S20P Environmental Light Sensor

1. Introduction

2. Schematic

Environmental Light Sensor-HS-S20P SchematicClick to view

Module Parameters

Pin Name	description
G	GND (Negative Power Input)
V	VCC (Positive Power Input)
S	Analog Signal Pin

Power Supply Voltage: 3.3V / 5V
Connection method: PH2.0 terminal wire
Installation Method: Double Screw Fixed

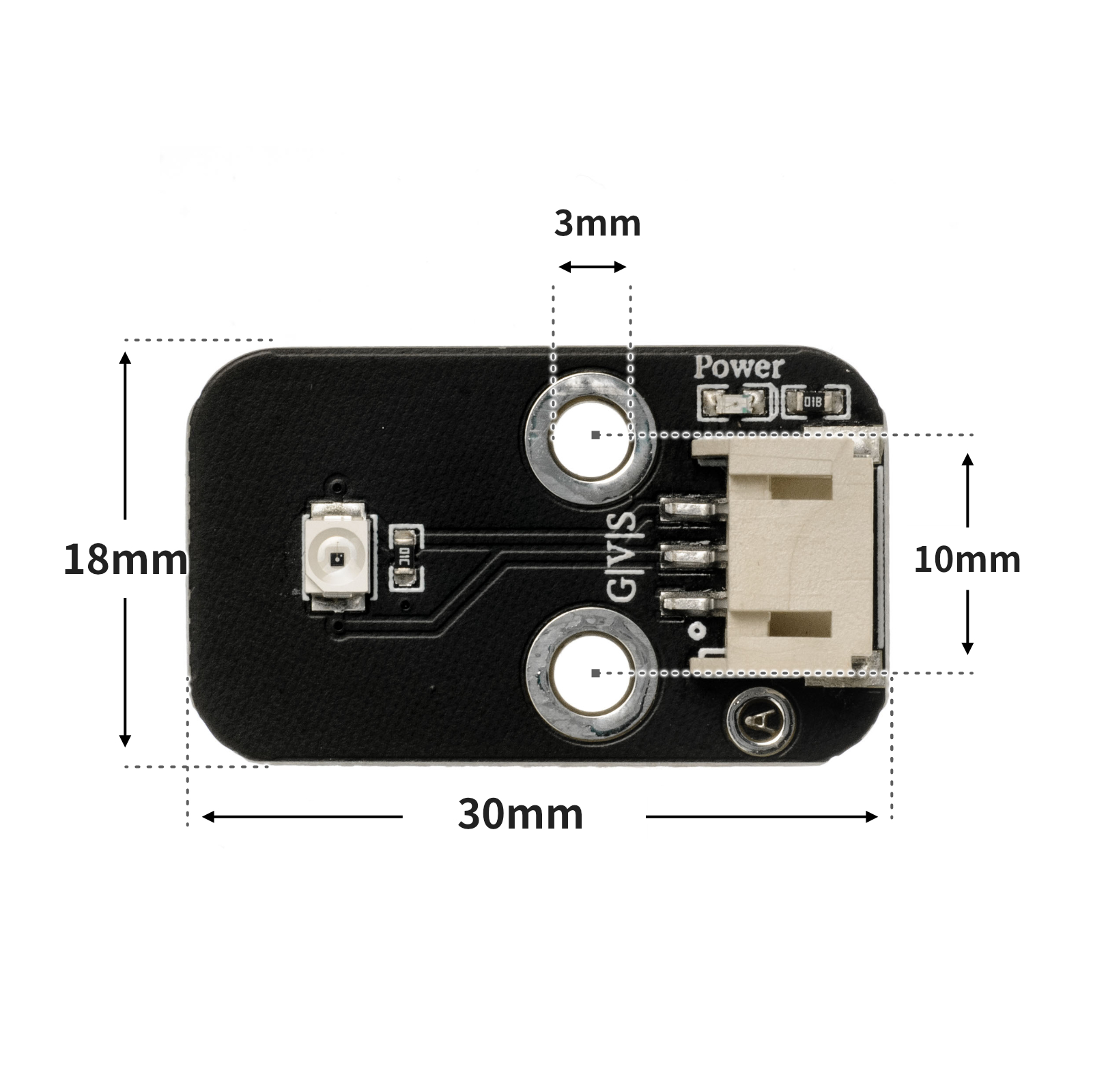

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

volatile int sensorValue;
volatile int light;

void setup(){
  sensorValue = 0;
  light = 0;
  Serial.begin(9600);
  pinMode(A0, INPUT);
  pinMode(6, OUTPUT);
}

void loop(){

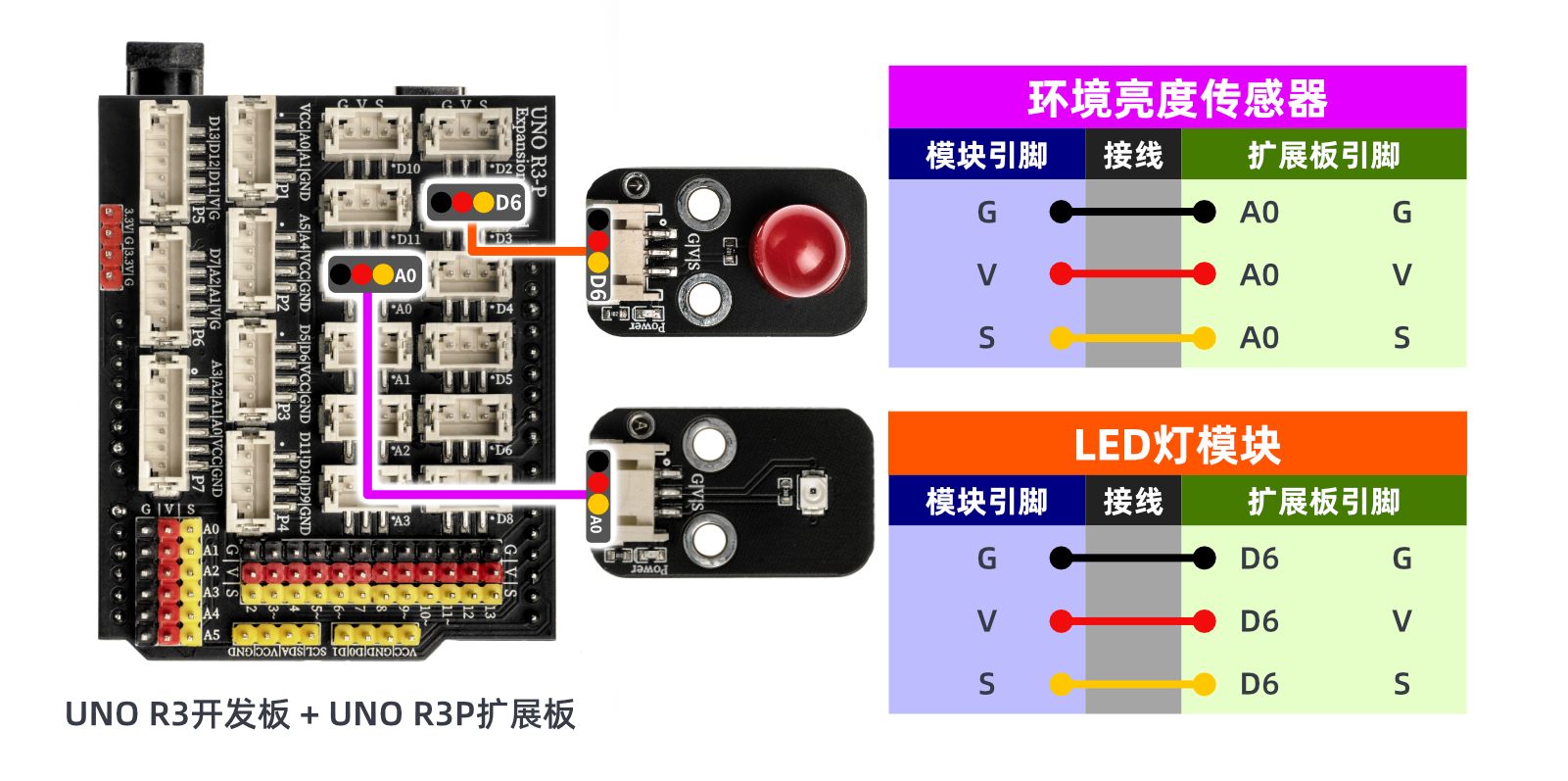

  //环境亮度传感器接A0；led灯模块接D6；

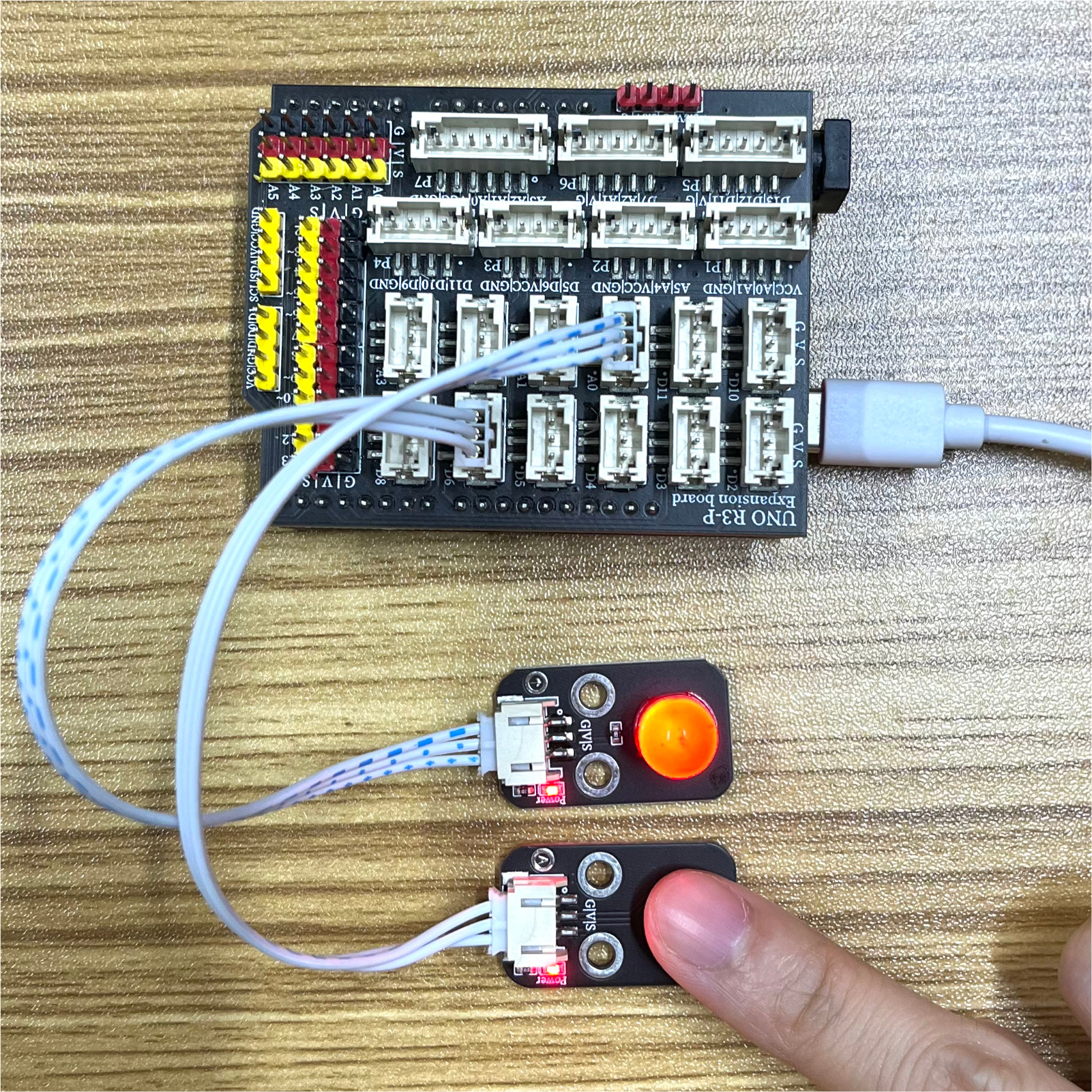

  //当手遮住光敏传感器时，显示数值将变小，led灯变亮；当光线变强时，显示数值将变大，led灯变暗；

  sensorValue = analogRead(A0);
  light = (map(sensorValue, 0, 1010, 255, 0));
  Serial.print("  A0=");
  Serial.print(sensorValue);
  Serial.print("  light=");
  Serial.println(light);
  delay(5);
  analogWrite(6, light);

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine
from mixpy import math_map


value = 0
light = 0

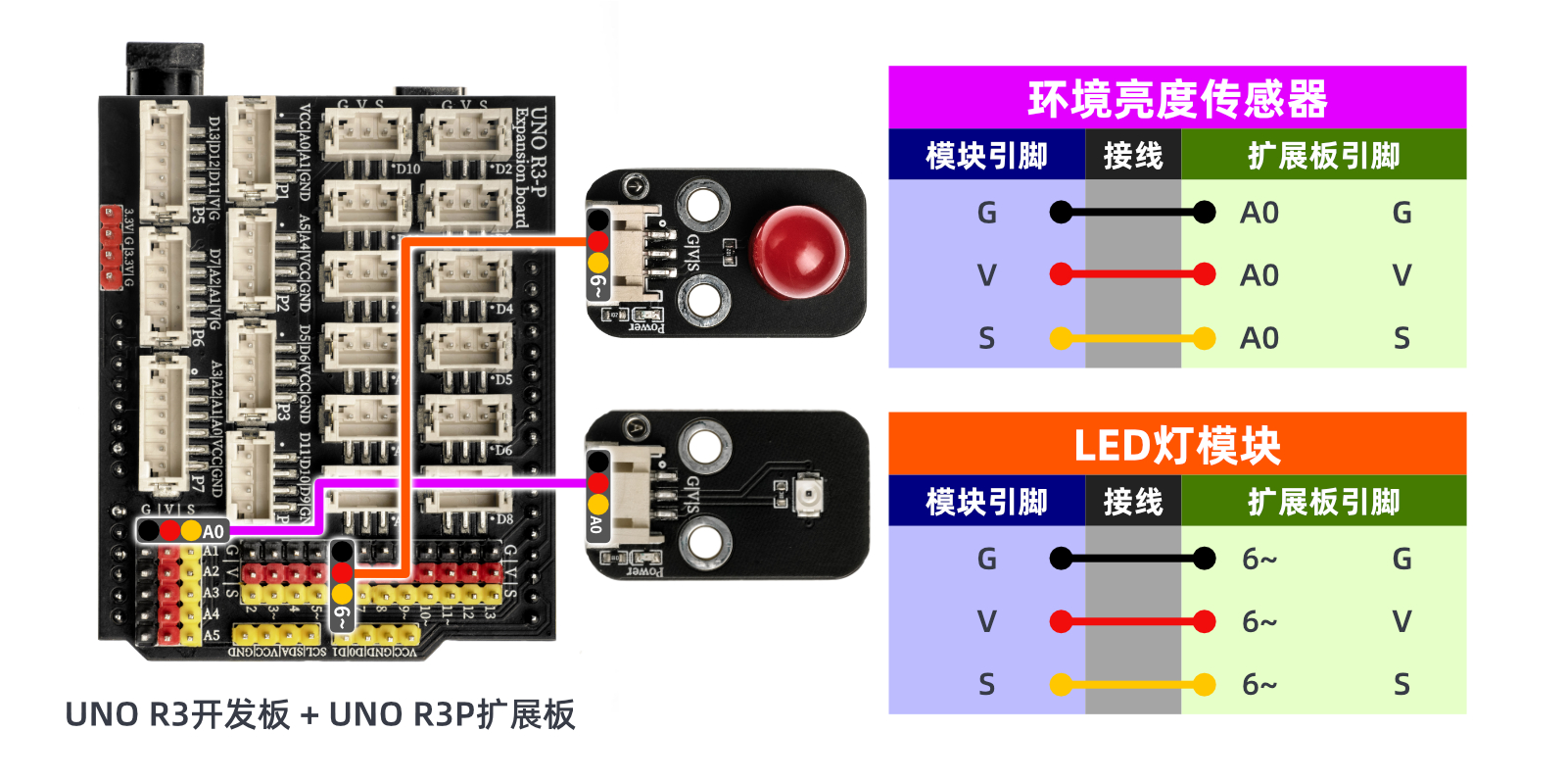

adc32 = machine.ADC(machine.Pin(32))
pwm2 = machine.PWM(machine.Pin(2))
while True:
value = adc32.read_u16()
light = (math_map(value, 0, 65535, 65535, 0))
pwm2.duty_u16(int(light))

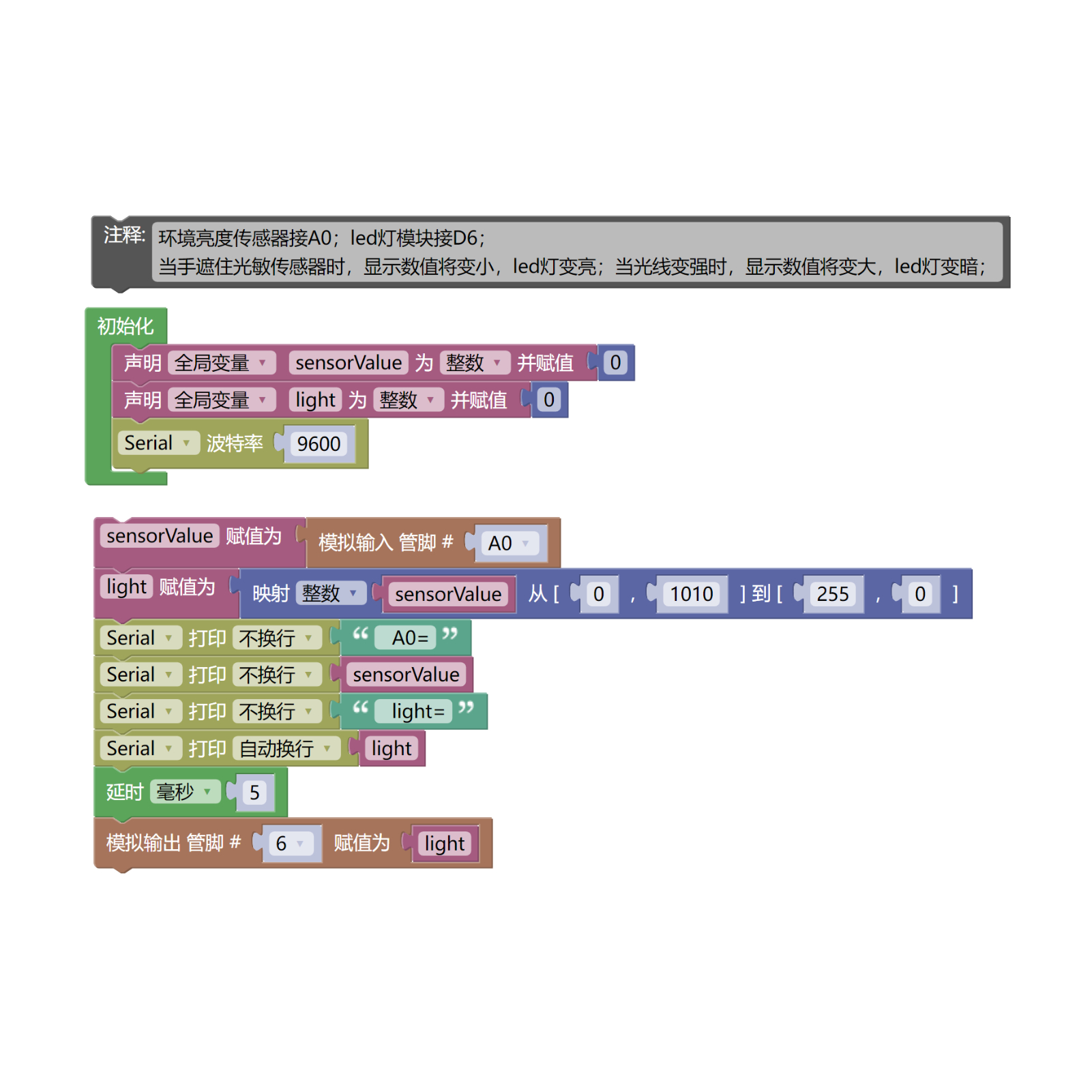

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view
