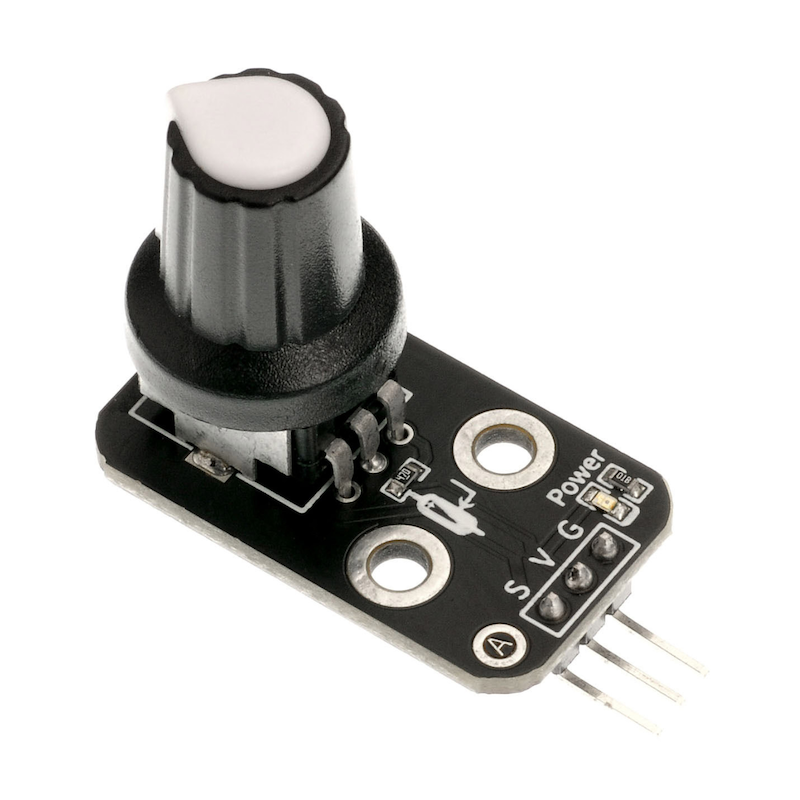

HS-S28A rotary potentiometer

1. Introduction

2. Schematic

Rotary potentiometer-HS-S28A schematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection Type: 2.54mm Header

• Installation Method: Double Screw Fixed

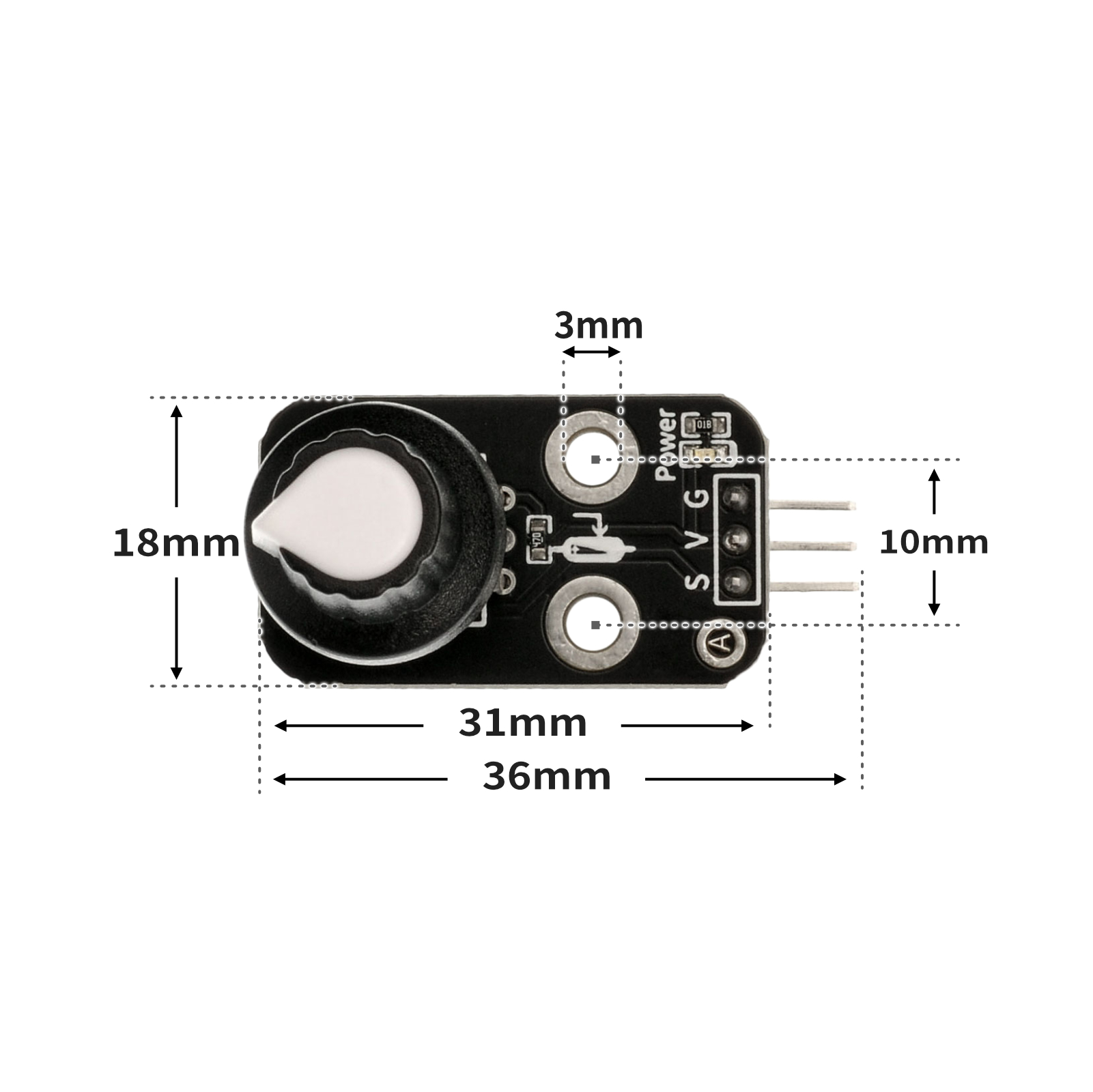

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

volatile float Voltage;
volatile float data;
volatile int light;

void setup(){
  Serial.begin(9600);
  Voltage = 0;
  data = 0;
  light = 0;
  pinMode(A0, INPUT);
  pinMode(9, OUTPUT);
}

void loop(){
  //电位器接A0；led灯接D9

  data = analogRead(A0);
  Voltage = (data / 978) * 5;
  light = (map(constrain(analogRead(A0), 0, 978), 0, 978, 0, 255));
  Serial.print("Voltage is:");
  Serial.print(Voltage);
  Serial.print("V");
  Serial.print("    light is:");
  Serial.println(light);
  analogWrite(9, light);
  delay(100);

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine
from mixpy import math_map


value = 0
light = 0
adc32 = machine.ADC(machine.Pin(32))
pwm2 = machine.PWM(machine.Pin(2))
while True:
    value = adc32.read_u16()
    light = (math_map(value, 0, 65535, 65535, 0))
    pwm2.duty_u16(int(light))

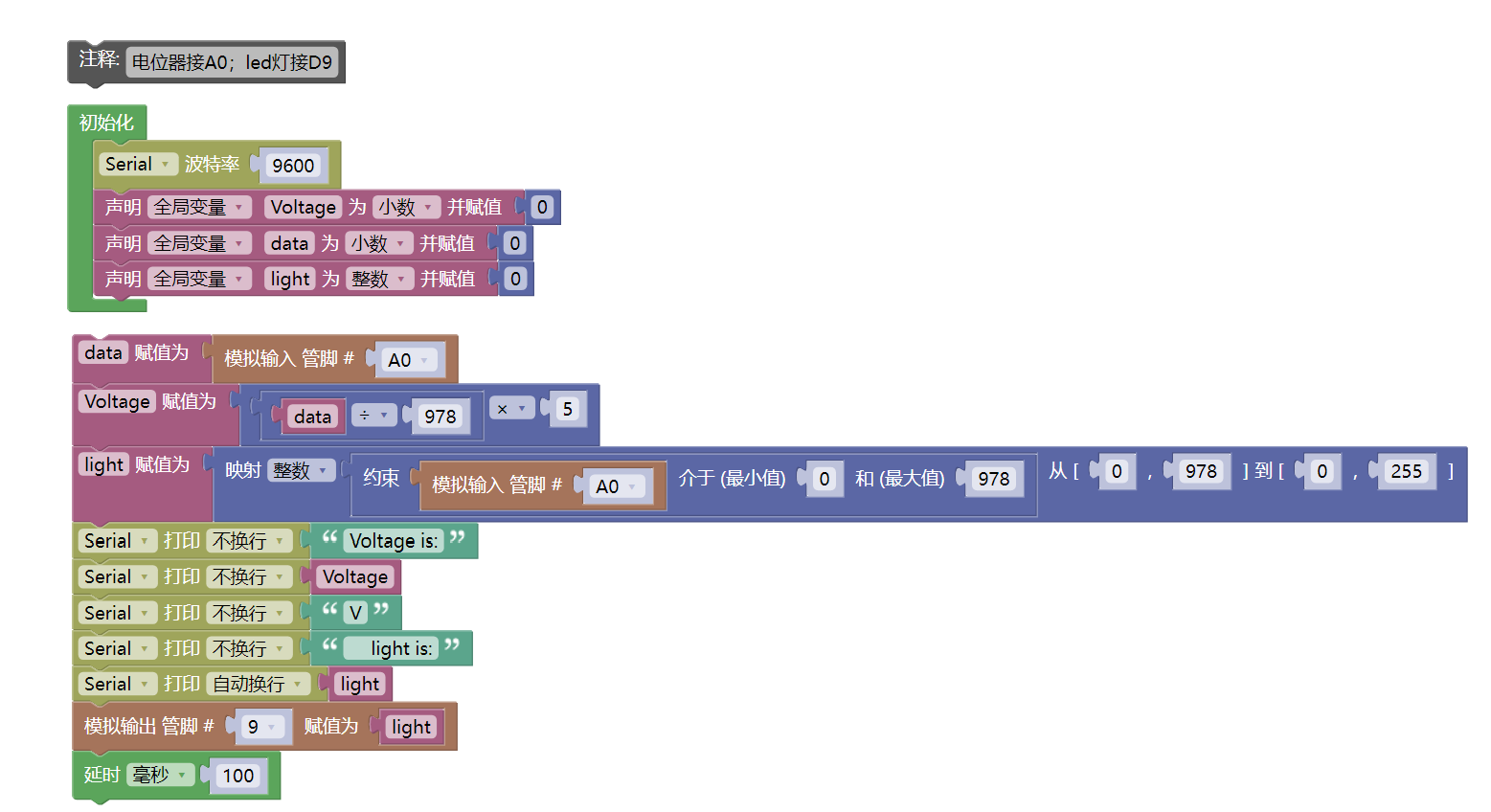

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 PRO DEVELOPMENT BOARD *1

• USB TYPE-C DATA CABLE *1

• LED light module (HS-F08A) *1

• Rotating Potentiometer Module (HS-S28A) *1

• 1P female to female Dupont wire *6 pieces or 3P female to female Dupont wire *2 pieces

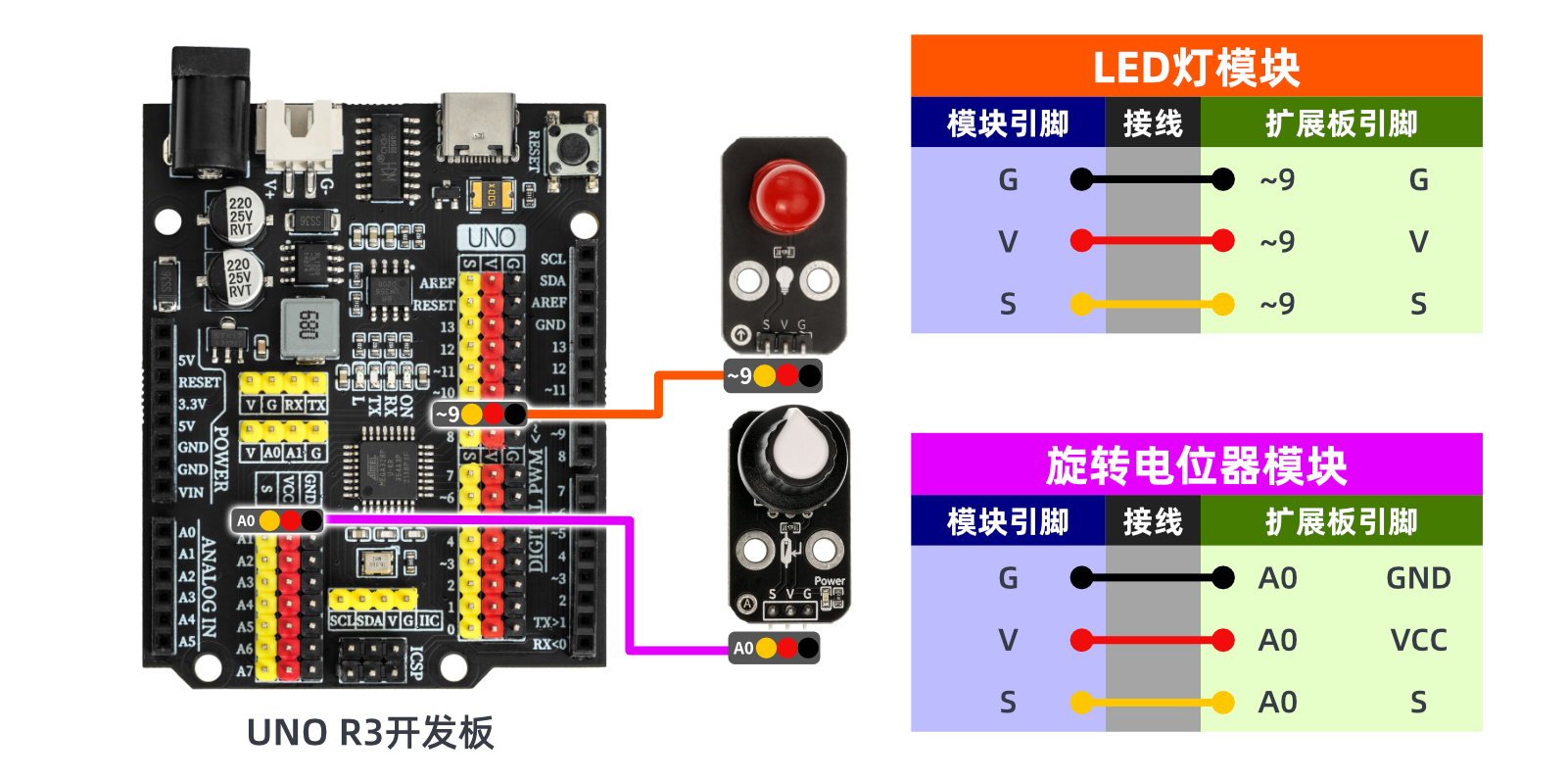

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Video tutorial:Click to view

10, Test results

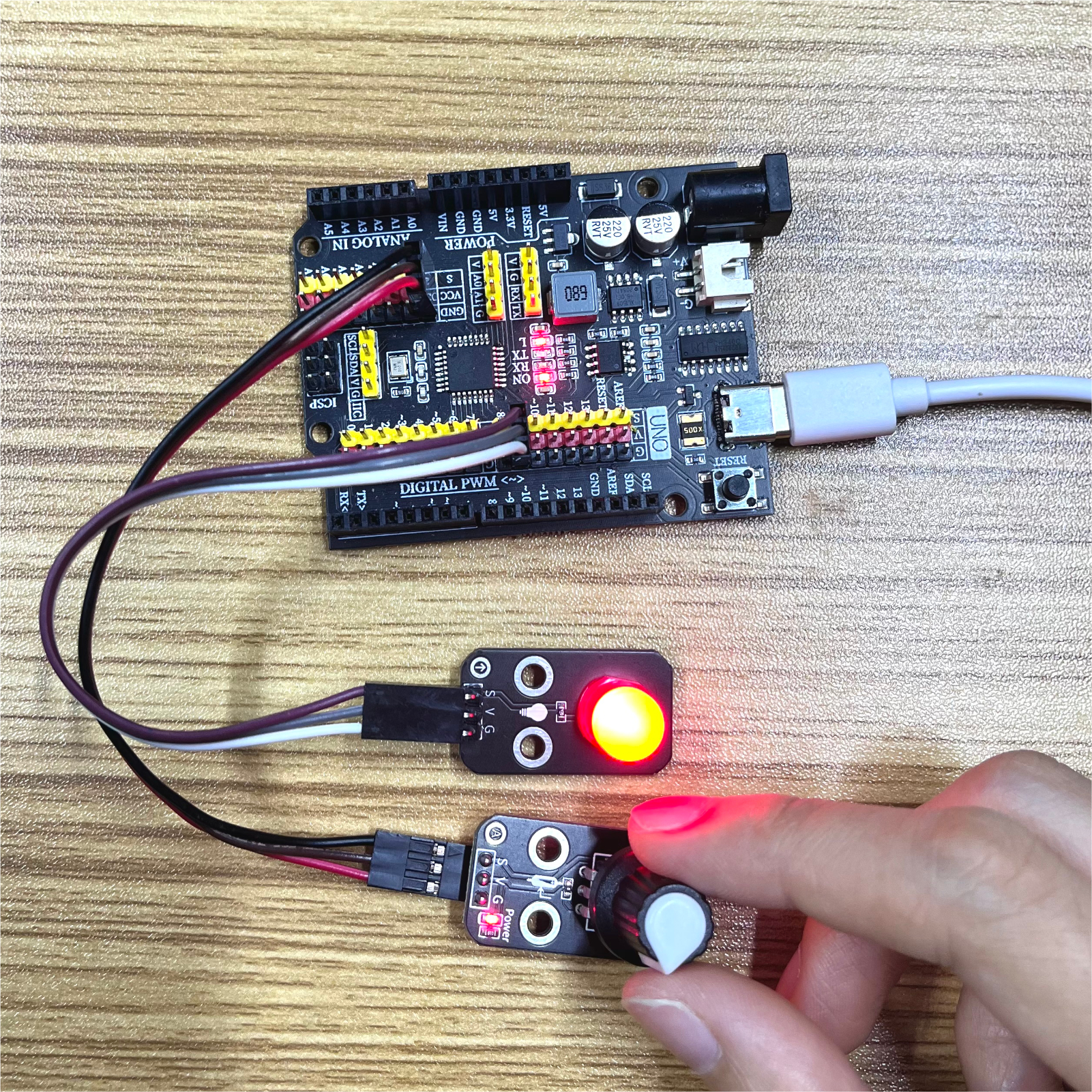

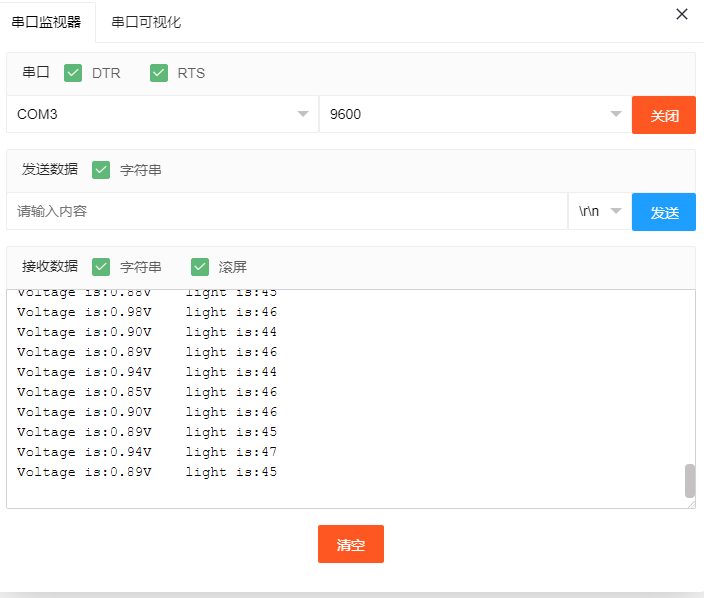

Arduino UNO test results:
