HS-F07P Active Buzzer

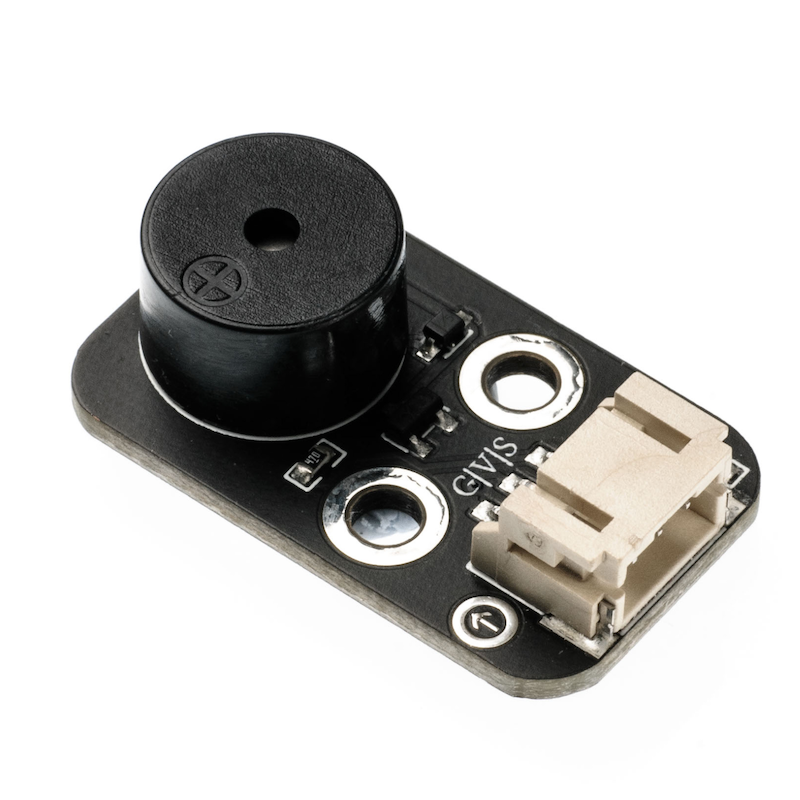

1. Introduction

Some appliances often emit a buzzing sound in electrical state, which actually comes from a buzzer, and the讨厌的铃声disliked bell in school is just a bigger buzzer.There are two types of buzzers, one is an active buzzer and the other is a passive buzzer.The terms 'active' and 'passive' do not refer to whether power needs to be supplied, but rather to whether the buzzer has an internal oscillator or not.If you power it on, the active buzzer will make a buzzing sound, but the frequency is fixed.A passive buzzer is a buzzer without an internal oscillator, which does not produce a buzzing sound when powered on. It requires a 2~5 kHz square wave drive, and then different frequency waveforms will produce corresponding sounds.The buzzer module has three pins, where the pin marked '-' is grounded (GND), the middle pin is connected to 5V, and the pin marked "S" is connected to the signal (digital I/O).

2. Schematic

Active Buzzer-HS-F07P SchematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection method: PH2.0 3P terminal

• Installation Method: Double Screw Fixed

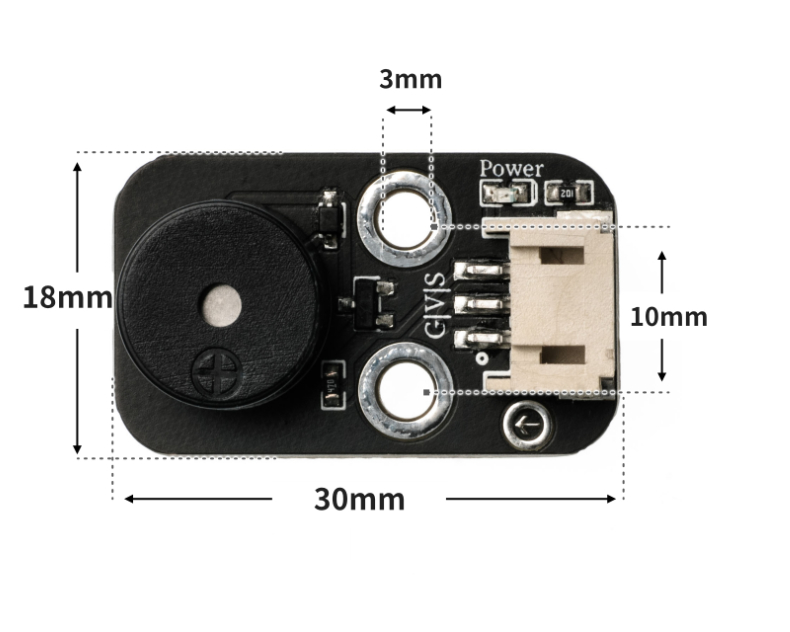

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

int buzzerPin = 6; //定义数字D6引脚为控制蜂鸣器的引脚
void setup(){
  pinMode(buzzerPin, OUTPUT);//设置数字D6口模式，OUTPUT为输出
}


void loop(){

  my_3duan();//蜂鸣器频率快响三次
  delay(500);//设置延迟时间，500ms
  my_3chang();//蜂鸣器频率慢响三次
  delay(500);//设置延迟时间，500ms
  my_3duan();//蜂鸣器频率快响三次
  delay(500);//设置延迟时间，500ms

}
void my_3duan() {
  //蜂鸣器频率快响三次函数
  for (int i = 1; i <= 3; i = i + (1)) {
    digitalWrite(buzzerPin,HIGH);
    delay(200);
    digitalWrite(buzzerPin,LOW);
    delay(200);
  }
}

void my_3chang() {
  //蜂鸣器频率慢响三次函数
  for (int i = 1; i <= 3; i = i + (1)) {
    digitalWrite(buzzerPin, HIGH);
    delay(400);
    digitalWrite(buzzerPin, LOW);
    delay(400);
  }
}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import music
import time


midi = music.MIDI(2)
while True:
    midi.pitch_time(440, 1000)
    time.sleep_ms(100)
    midi.pitch_time(880, 3000)
    time.sleep_ms(100)

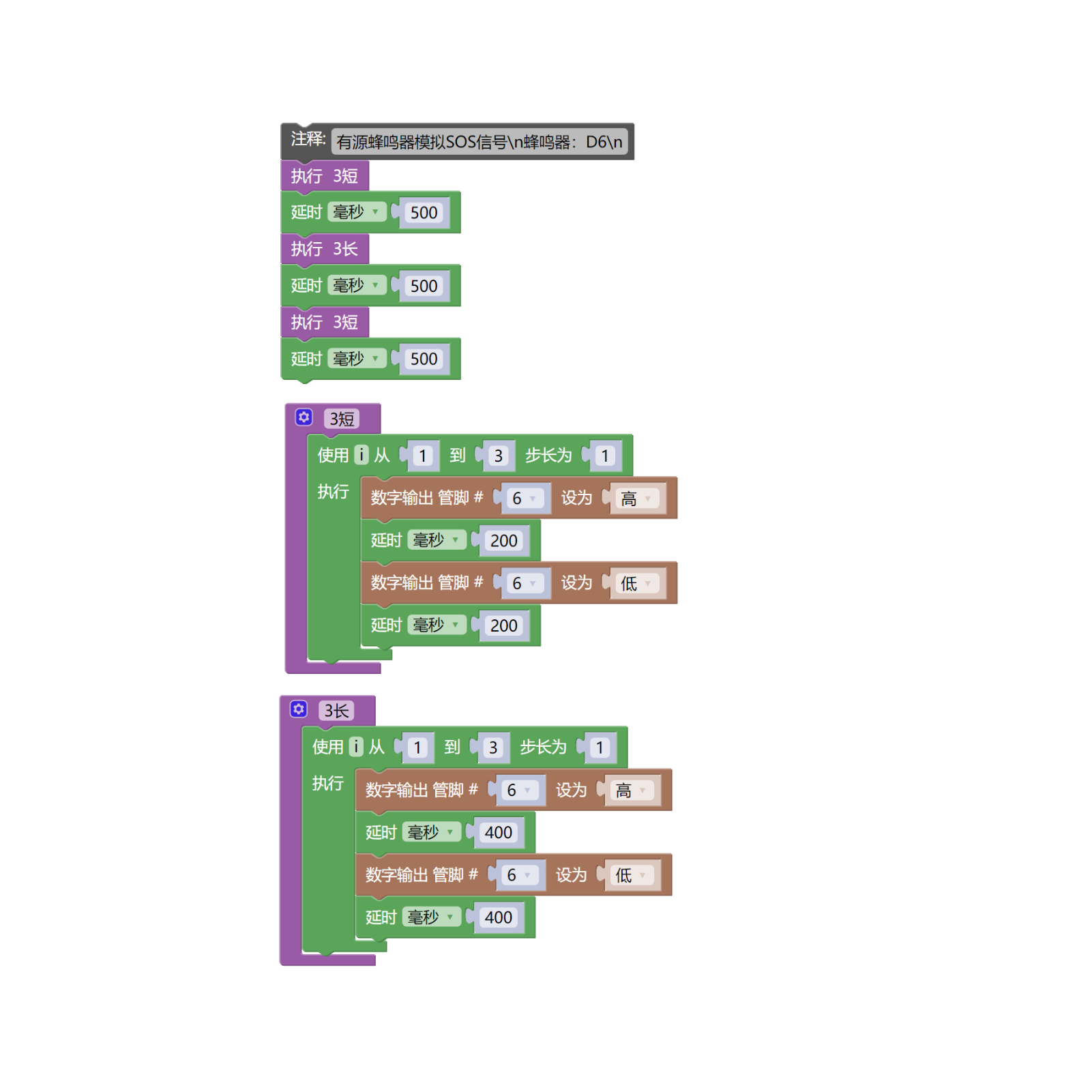

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO R3 P EXPANSION BOARD *1

• USB TYPE-C DATA CABLE *1

• Active buzzer module (HS-F07P) *1

• PH2.0 4P socket to Dupont wire *1 or PH2.0 4P double-ended socket wire *1

Circuit wiring diagram:

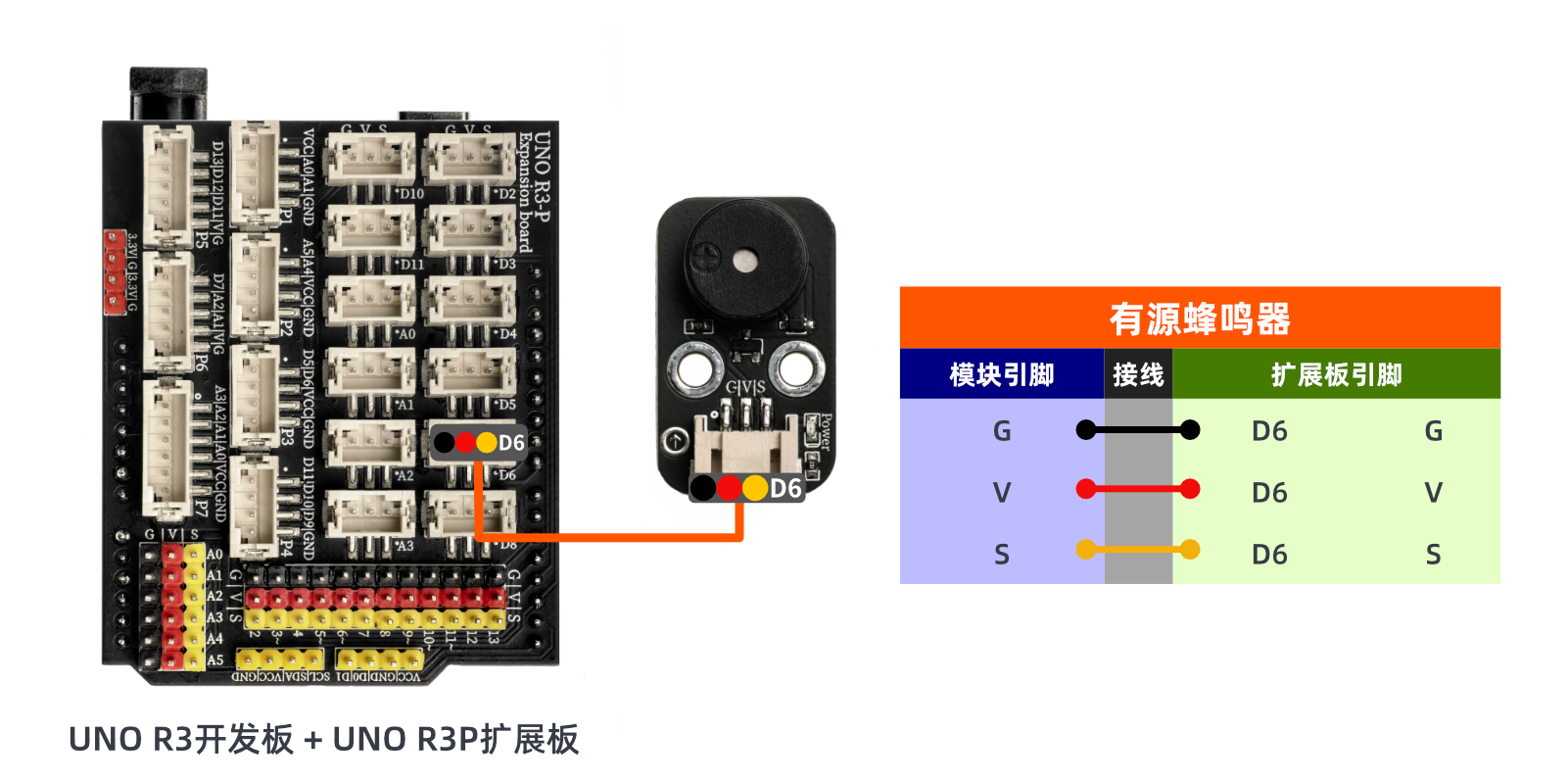

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Video tutorial:Click to view

10, Test conclusion

Arduino UNO test results:

After connecting the device, upload the above program to the Arduino UNO development board, then power on the U+ program cartoon, and the active buzzer will emit SOS distress sounds.

ESP32 Test Results:

Pending update...
