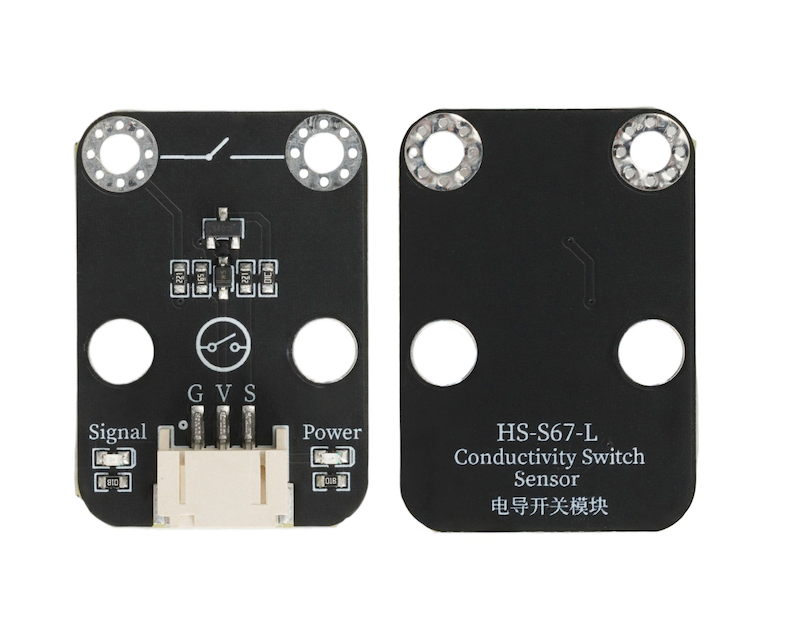

HS-S67-L Conductivity Switch Module

1. Introduction

2. Schematic

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection method: PH2.0 terminal wire

• Installation method: Modular fixed

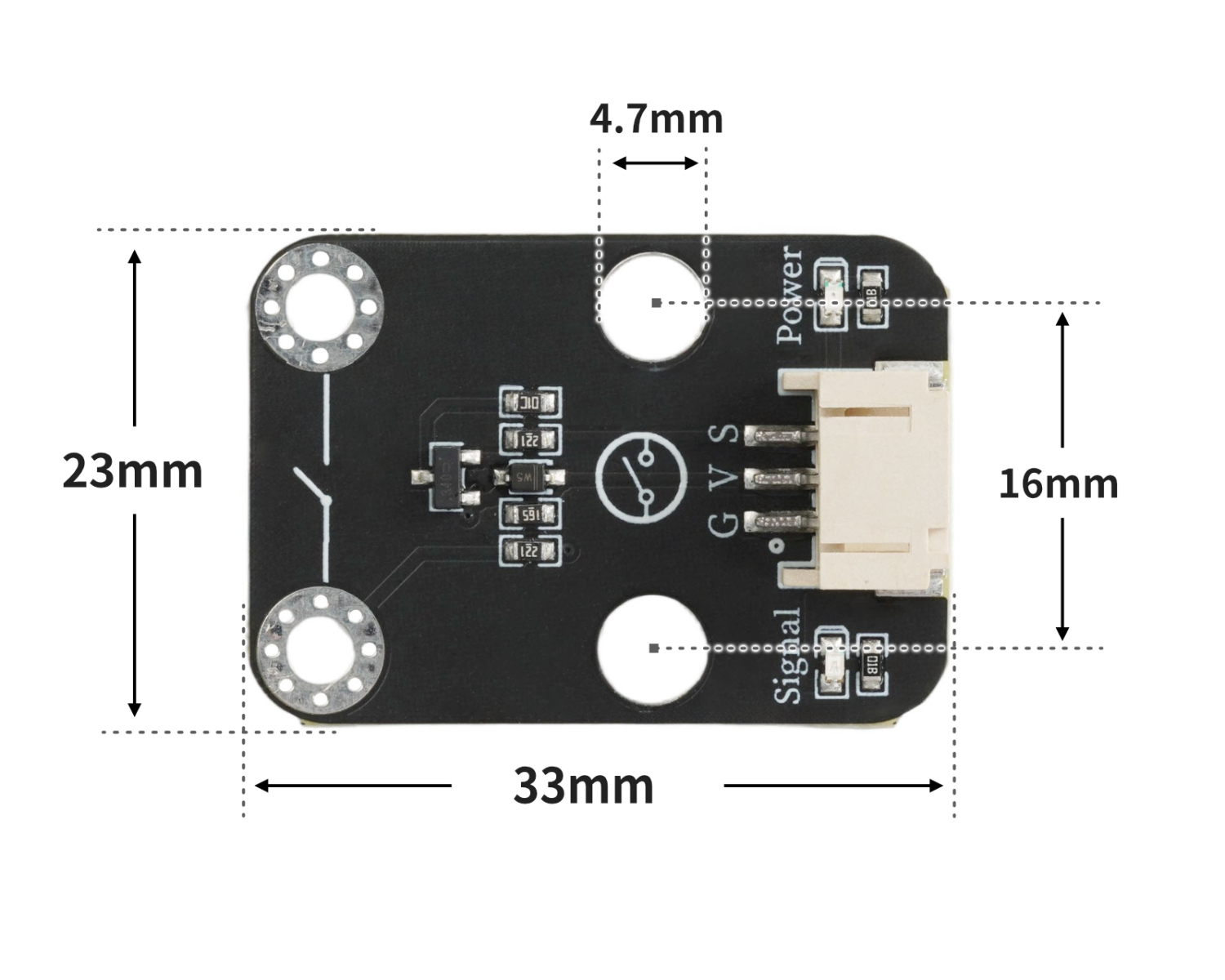

4, Circuit Board Size

5 of Arduino IDE example program

Arduino UNO Example (for Mixly IDE, Arduino IDE):

void setup(){
  Serial.begin(9600);
  pinMode(4, INPUT);
  pinMode(9, OUTPUT);
}

void loop(){
  //有源蜂鸣器模块接UNO开发板D9，电导开关模块接UNO开发板D4；
  //电导开关模块在连接到导体时，会产生一个高电平（1），使蜂鸣器响起；
  //当未检测到导体连接时，蜂鸣器不响。
  if (digitalRead(4) == 1) {
    digitalWrite(9,HIGH);
    Serial.println(String("导体连接：") + String(digitalRead(4)));

  } else if (digitalRead(4) == 0) {
    Serial.println(String("断开：") + String(digitalRead(4)));
    digitalWrite(9,LOW);
  }

}

ESP32 Python Example (for Mixly IDE / Micskit)
(Choose the Python ESP32 [ESP32 Generic(4MB)] to switch to code mode upload):

import machine


pin4 = machine.Pin(4, machine.Pin.IN)
pin12 = machine.Pin(12, machine.Pin.OUT)
while True:
    if pin4.value() == 1:
        pin12.value(1)
    else:
        pin12.value(0)

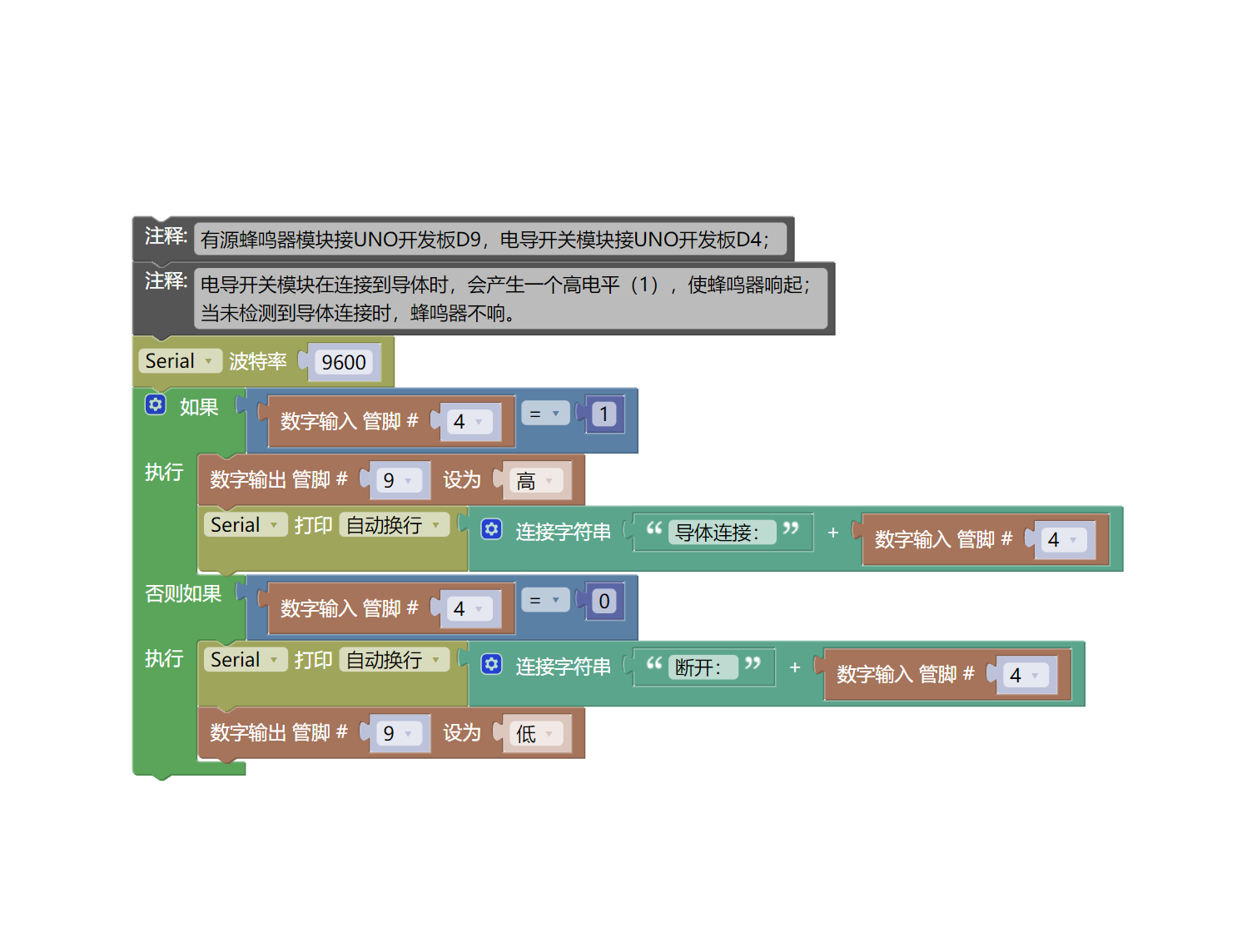

6, Miciqi Mixly Example Program (Graphical Language)

Example program (UNO development board):Click to download

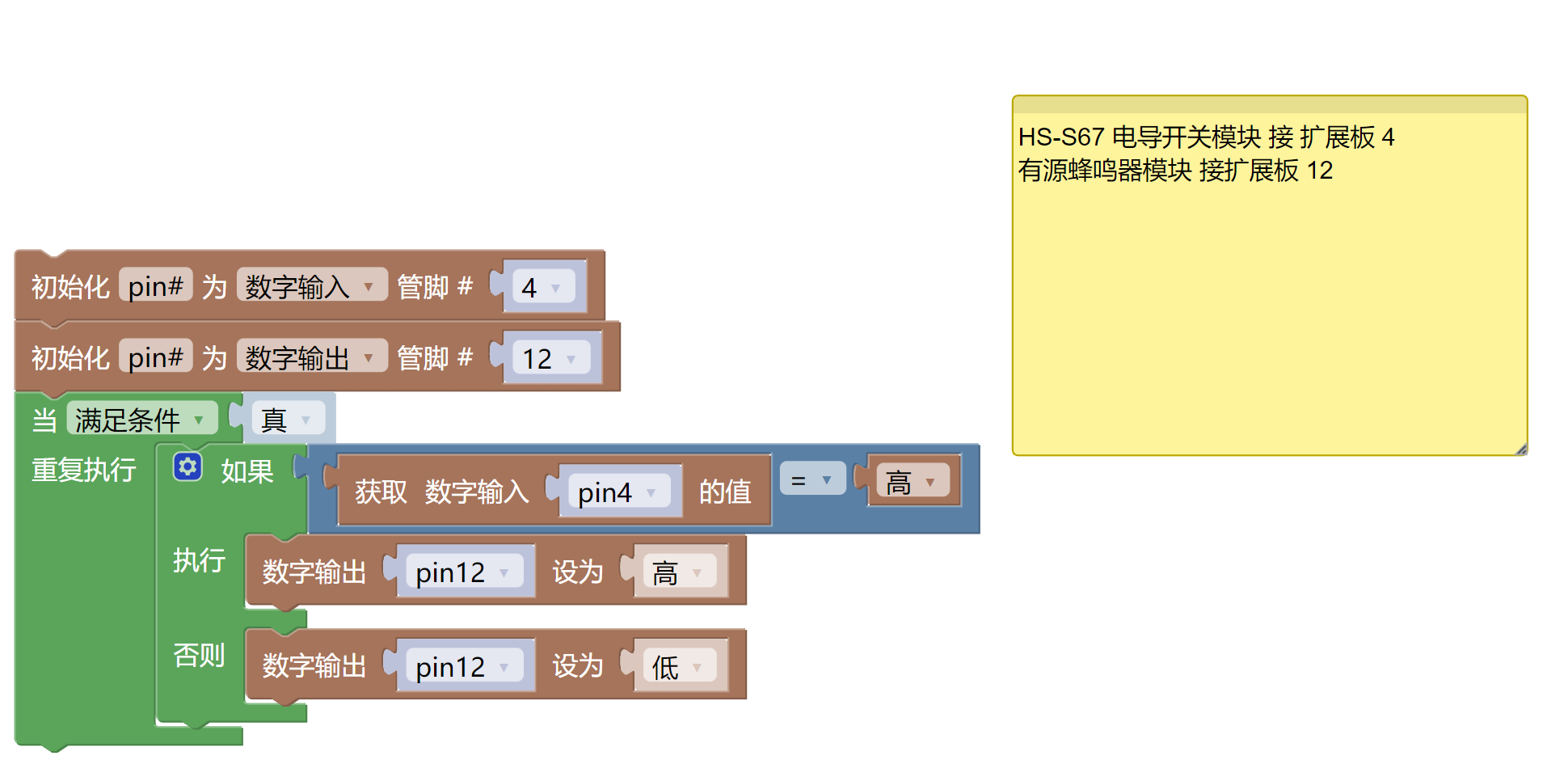

Example Program (ESP32 Development Board):Click to download

7, Test Environment Setup

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO R3 P EXPANSION BOARD *1

• USB TYPE-C DATA CABLE *1

• Active Buzzer Module (HS-F07L) *1

• Conductivity Switch Module (HS-S67-L) *1

• PH2.0 3P Dupont wire *2

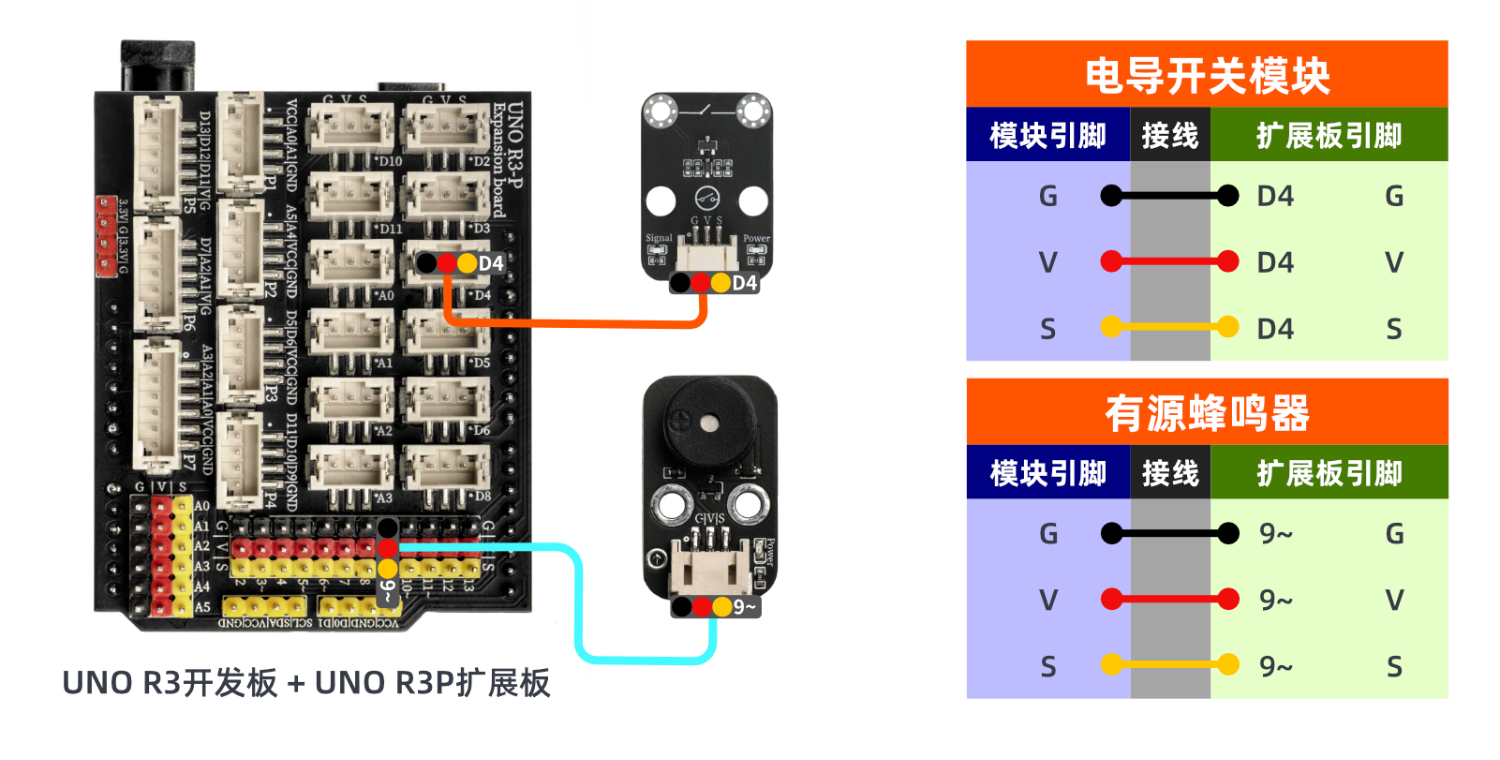

Circuit wiring diagram:

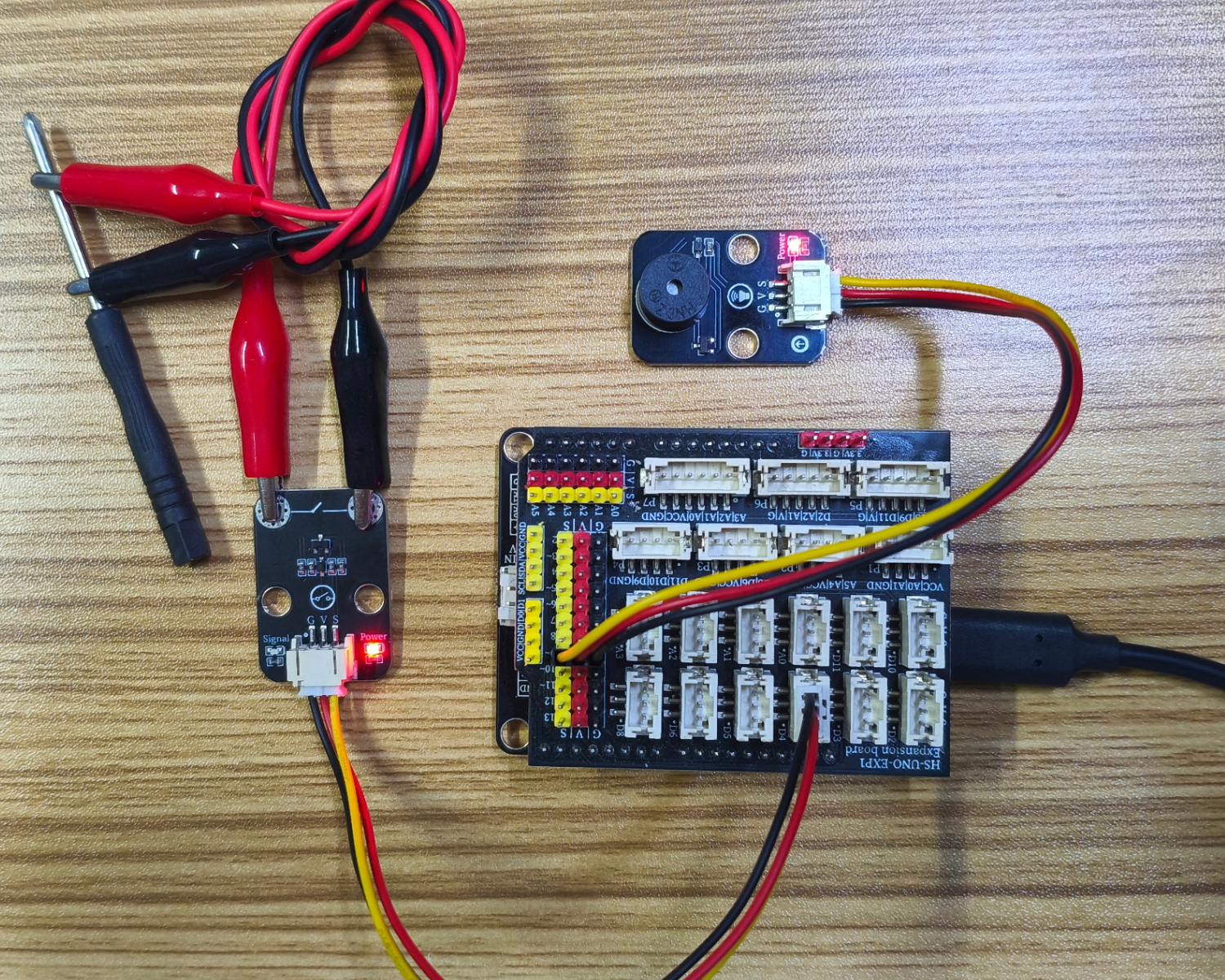

ESP32 Python test environment setup

8. Video tutorial

Arduino UNO video tutorial: Click to view

ESP32 Python Video Tutorial:

9. Test conclusion

Arduino UNO Test Conclusion:

After the device is connected to the wire, after the above program is burned to the development board, the buzzer sounds when the tested object conducts.

ESP32 Python test conclusion:

After the device is connected to the wire, after the above program is burned to the development board, the buzzer sounds when the tested object conducts.
