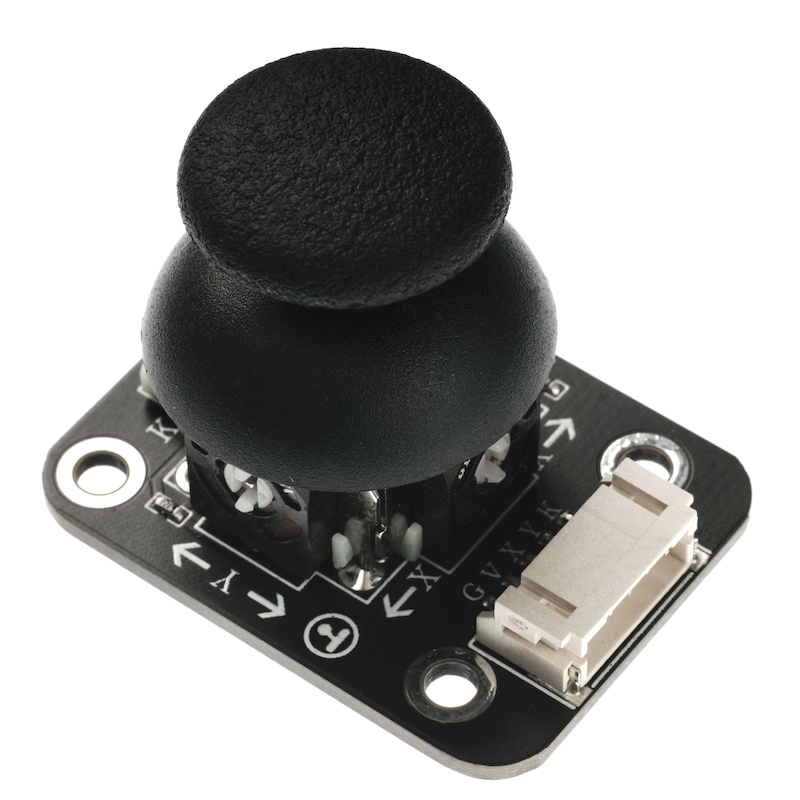

HS-S34P dual-axis joystick module

HS-S34P Dual-axis Joystick Module

1. Introduction

2. Schematic

Dual-axis joystick module-HS-S34P schematicClick to view

Module Parameters

Pin Name	description
G	GND (Negative Power Input)
V	VCC (Positive Power Input)
X	Analog Signal Pin
Y	Analog Signal Pin
K	Digital Signal Pin

Power Supply Voltage: 3.3V / 5V
Connection method: PH2.0 terminal wire
Installation method: Fixed with four screws

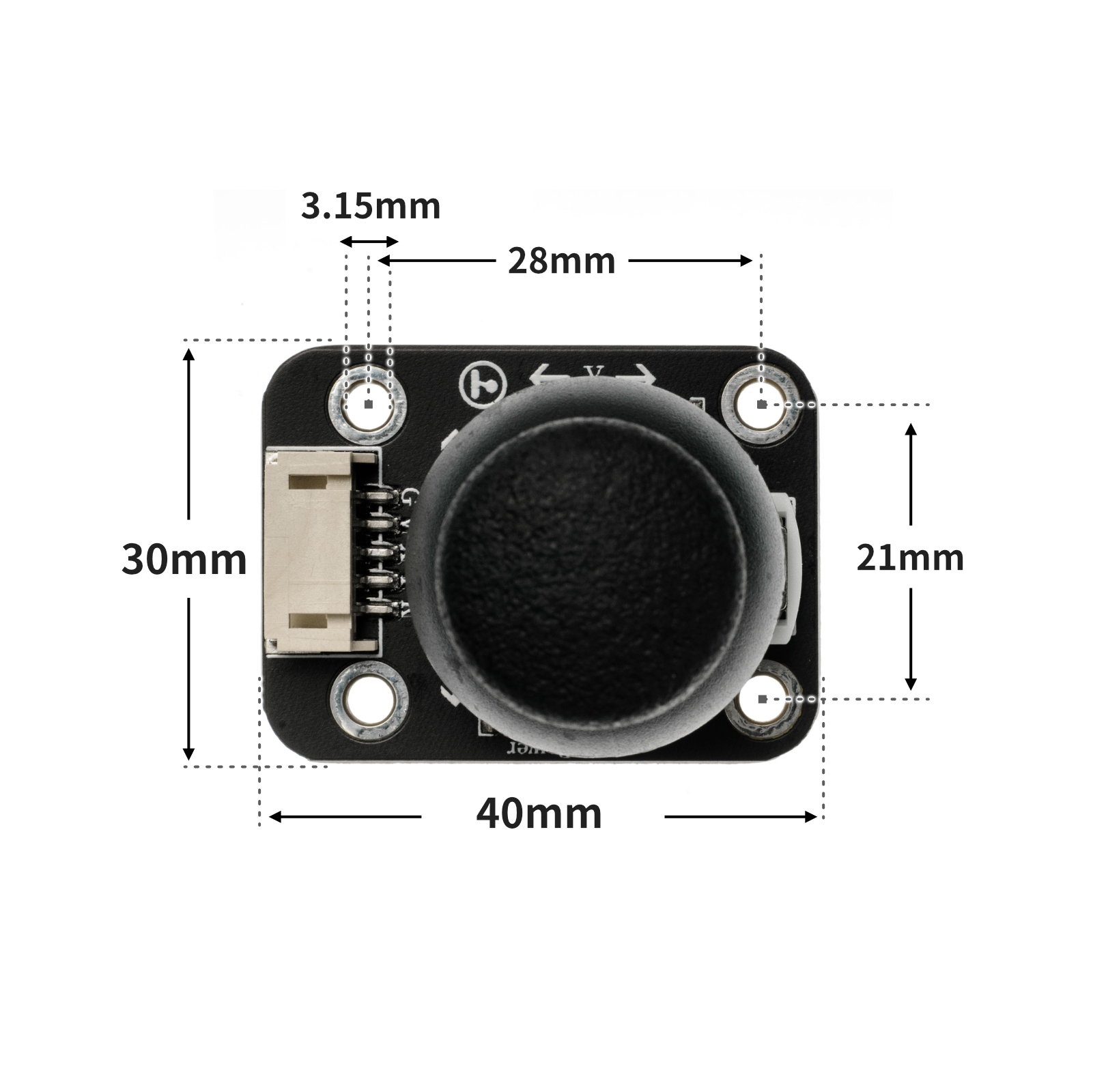

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

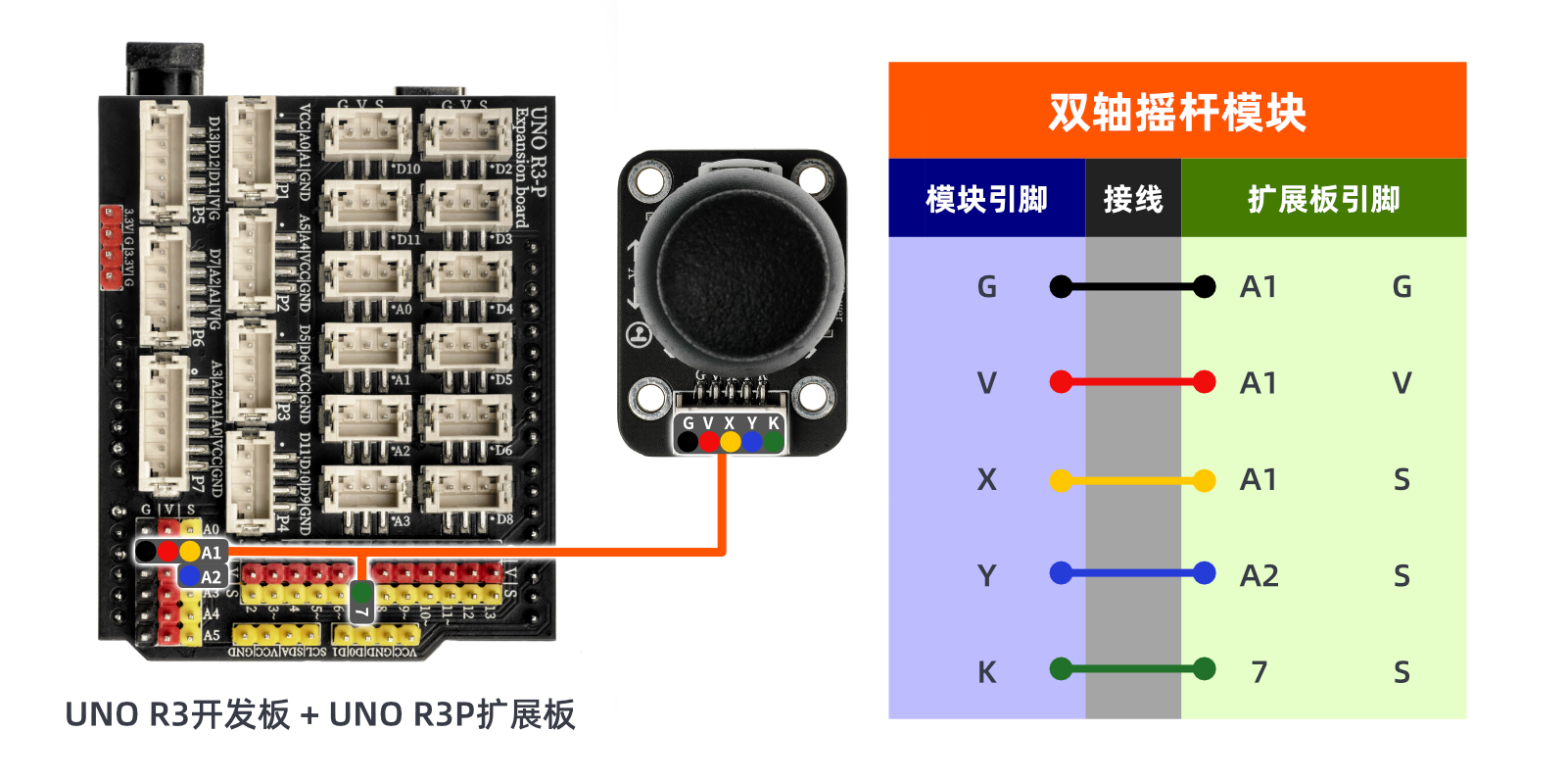

Example program (UNO development board):

int limitswitchPin = 4;//设置碰撞开关接D4引脚
int led = 6;//设置led灯接D6引脚
void setup() {

  Serial.begin(9600);//设置串口波特率
  pinMode(limitswitchPin, INPUT);//设置碰撞开关为输入模式
  pinMode(led, OUTPUT);//设置led为输出模式
}

void loop() {
  //碰撞开关接uno开发板D4引脚；LED灯模块接D6引脚

  if (digitalRead(limitswitchPin) == LOW) {//按下碰撞开关
    Serial.println("触发开关，点亮led1秒");
    digitalWrite(led, HIGH);//点亮led
    delay(1000);//延时1S

  } else {
    Serial.println("没有触发开关，熄灭led");
   digitalWrite(led, LOW);//熄灭led

  }
  delay(500);

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine
import time


adc35 = machine.ADC(machine.Pin(35))
adc34 = machine.ADC(machine.Pin(34))
pin15 = machine.Pin(15, machine.Pin.IN)
while True:
    print('X ',end ="")
    print(adc35.read_u16(),end ="")
    print('Y ',end ="")
    print(adc34.read_u16(),end ="")
    print('Z ',end ="")
    print(pin15.value())
    time.sleep_ms(100)

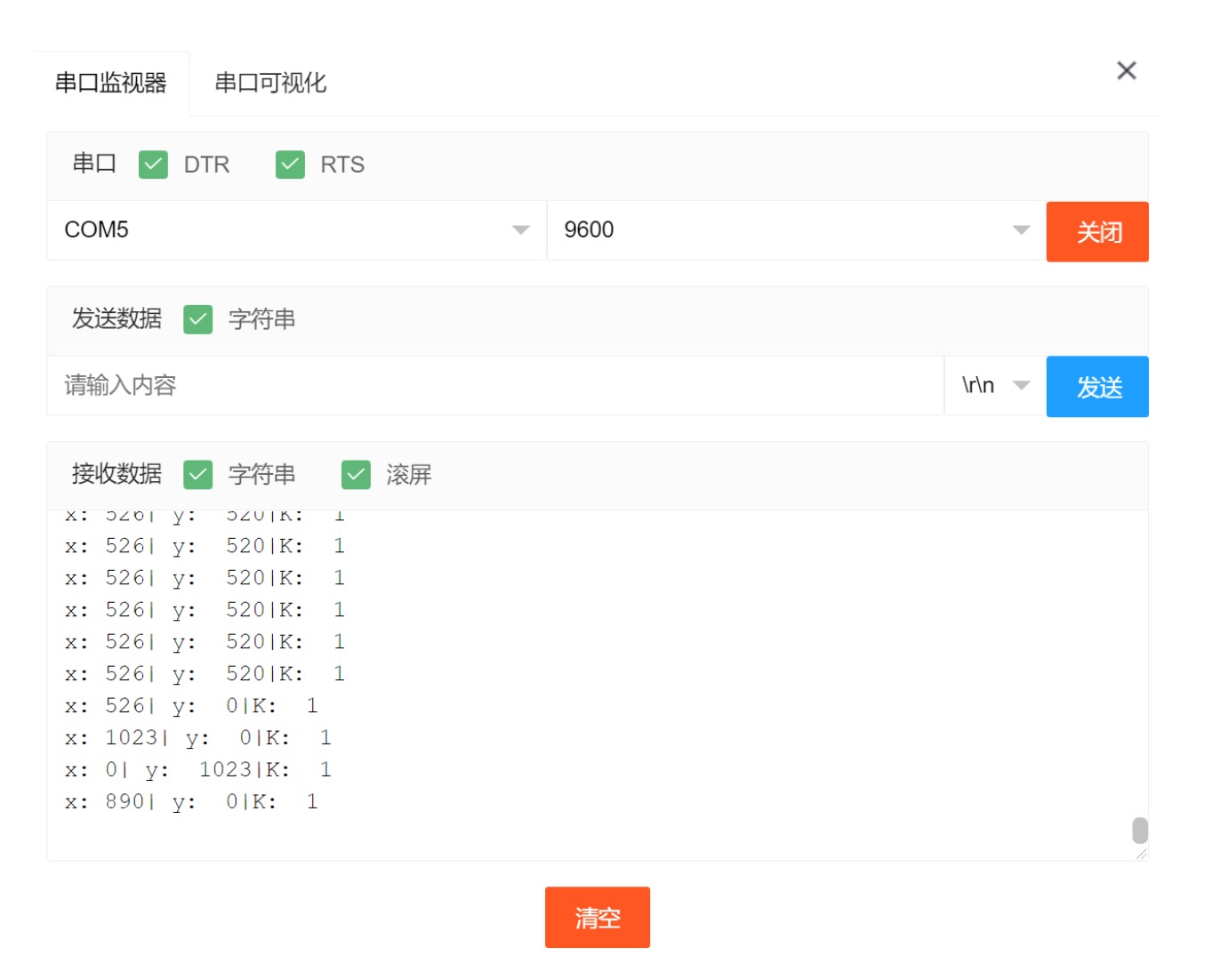

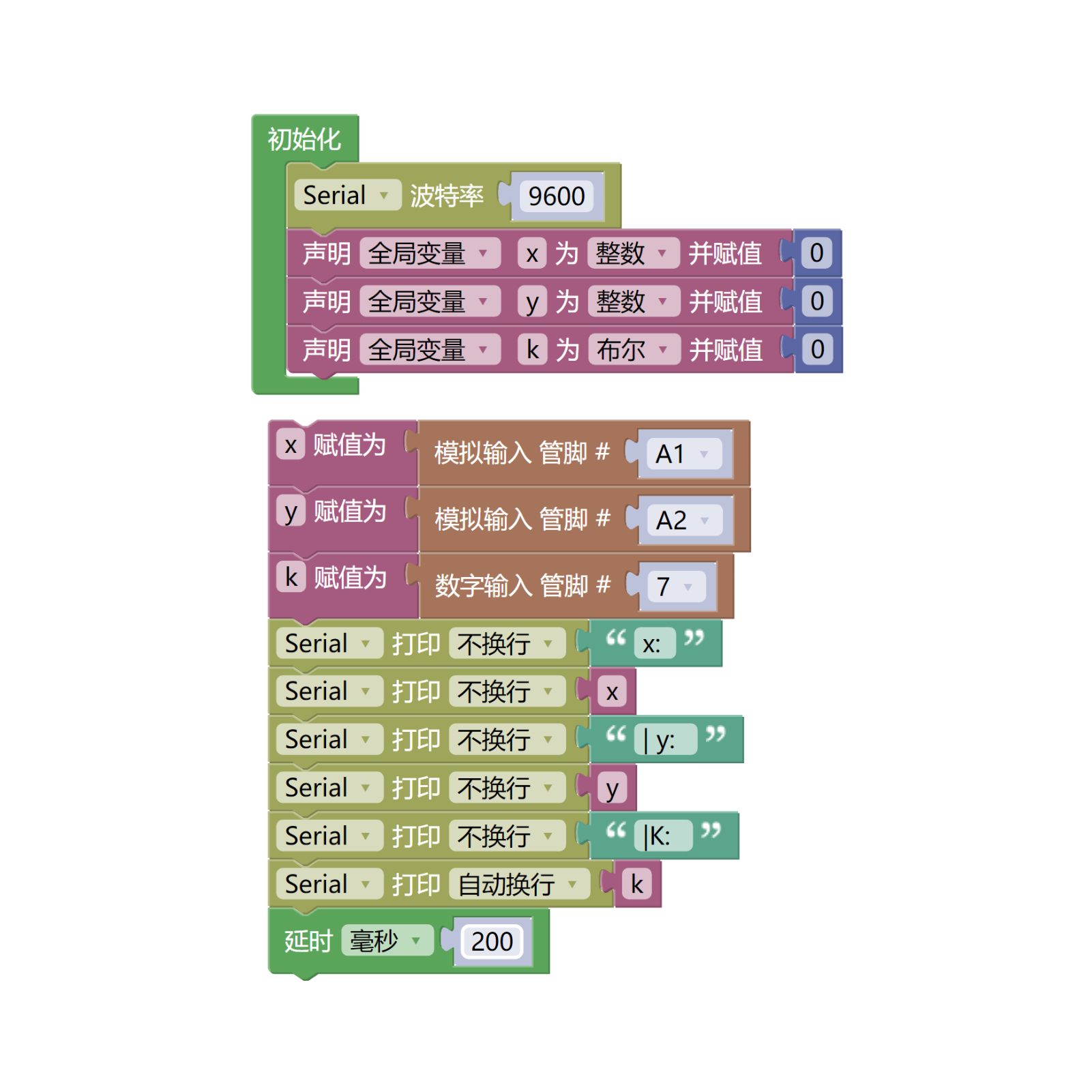

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view
