HS-S65P Angular Position Sensor

1. Introduction

2. Schematic

Angular Position Sensor-HS-S65P SchematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection method: PH2.0 3P terminal

• Installation method: Screw fixed

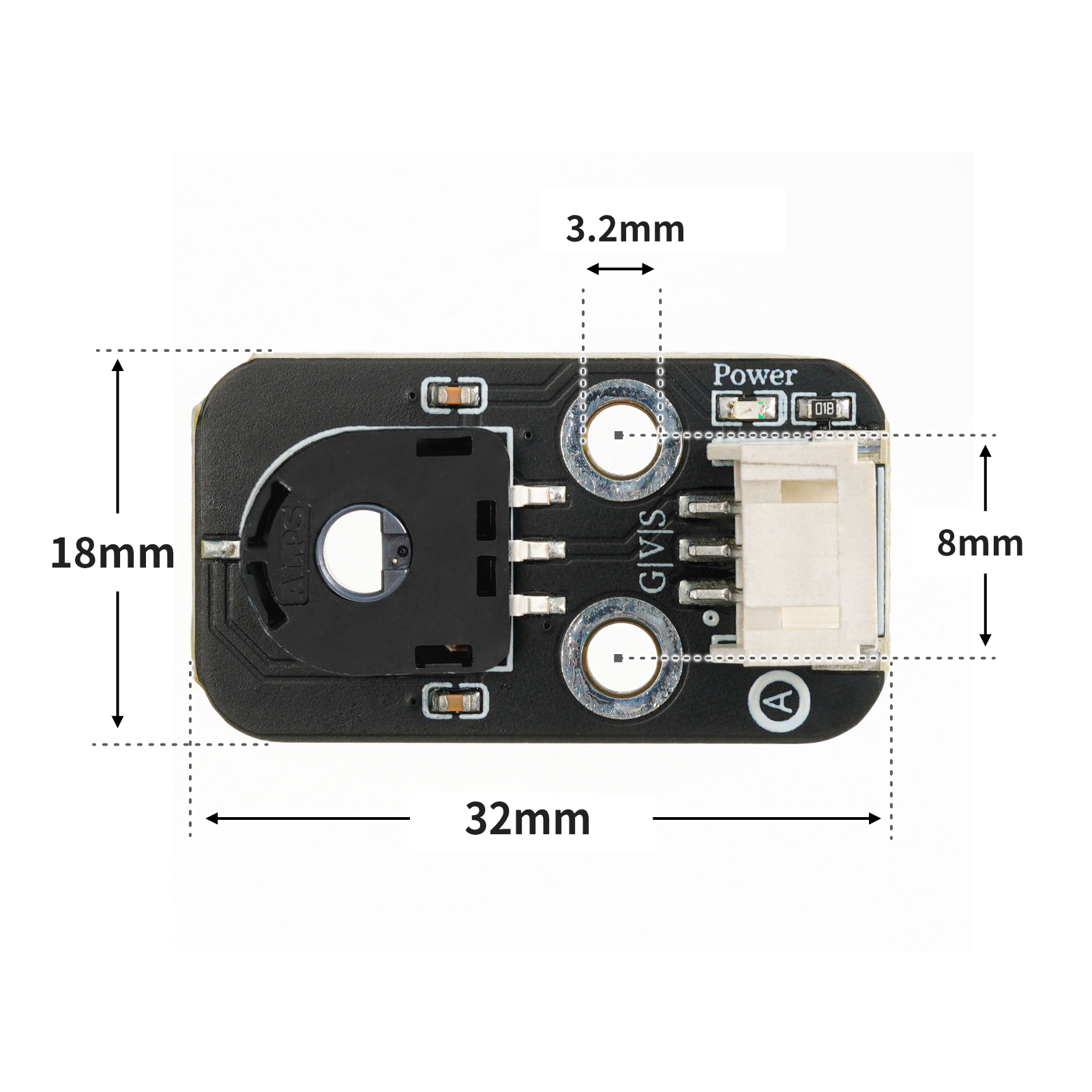

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

volatile float Voltage;
volatile float data;
volatile int light;

void setup(){
  Serial.begin(9600);
  Voltage = 0;
  data = 0;
  light = 0;
  pinMode(6, OUTPUT);
}

void loop(){
  //旋转角度传感器接A0；led灯接D6

  data = analogRead(A0);
  Voltage = (data / 1023) * 5;
  light = (map(analogRead(A0), 0, 1023, 0, 255));
  Serial.print("data：");
  Serial.print(data);
  Serial.print(" Voltage is:");
  Serial.print(Voltage);
  Serial.print("V");
  Serial.print("    light is:");
  Serial.println(light);
  analogWrite(6, light);
  delay(100);

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

待更新...

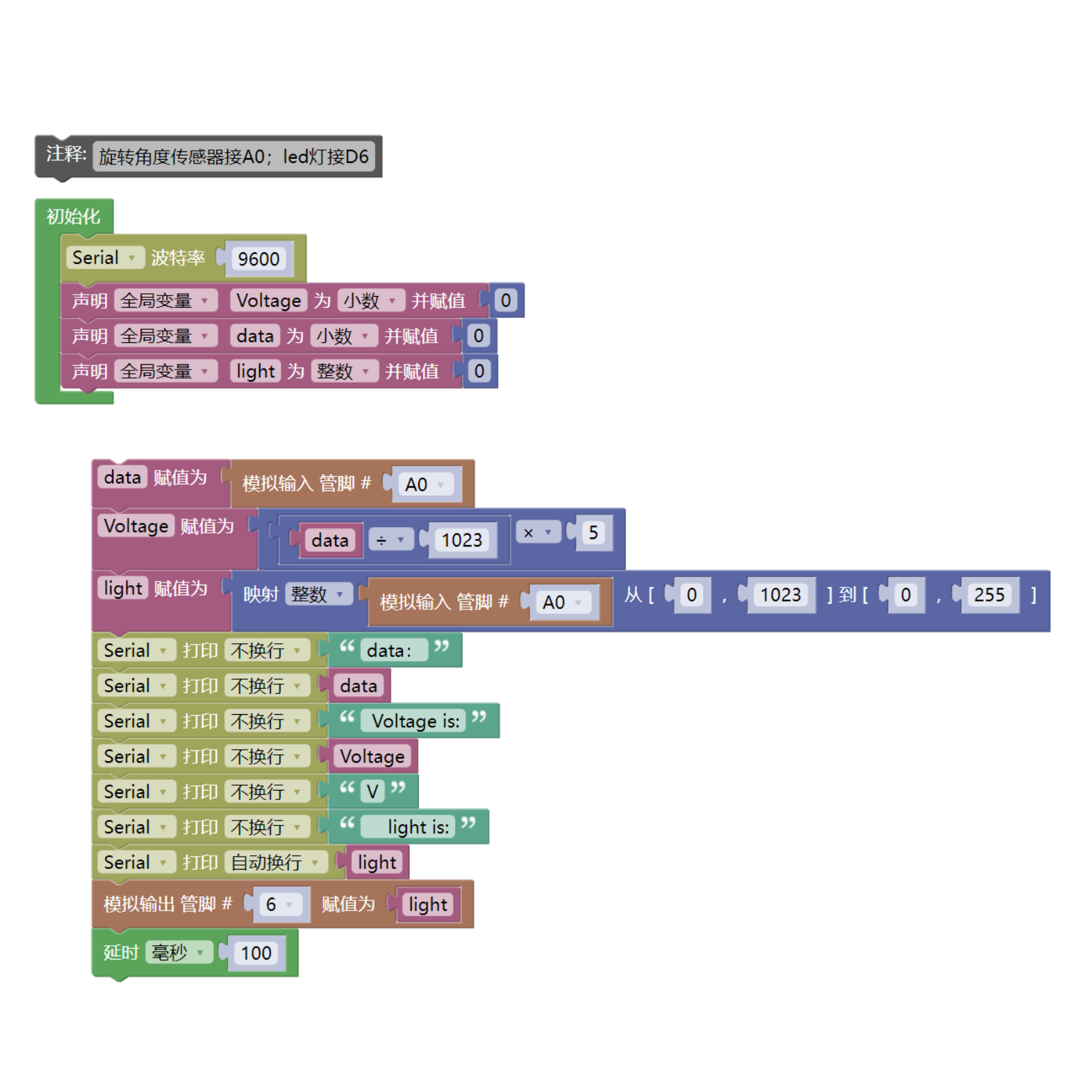

7, Mixly example program (graphical language)

Arduino UNO Graphical Example Program:Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Image pending update...

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO R3 P EXPANSION BOARD *1

• USB TYPE-C DATA CABLE *1

• Angular position sensor (HS-S65P) *1

• LED lamp module (HS-F08-L) *1

• PH2.0 3P dual-head terminal line *2

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Arduino UNO video tutorial:Click to view

ESP32 Python Video Tutorial:Click to view

10, Test results

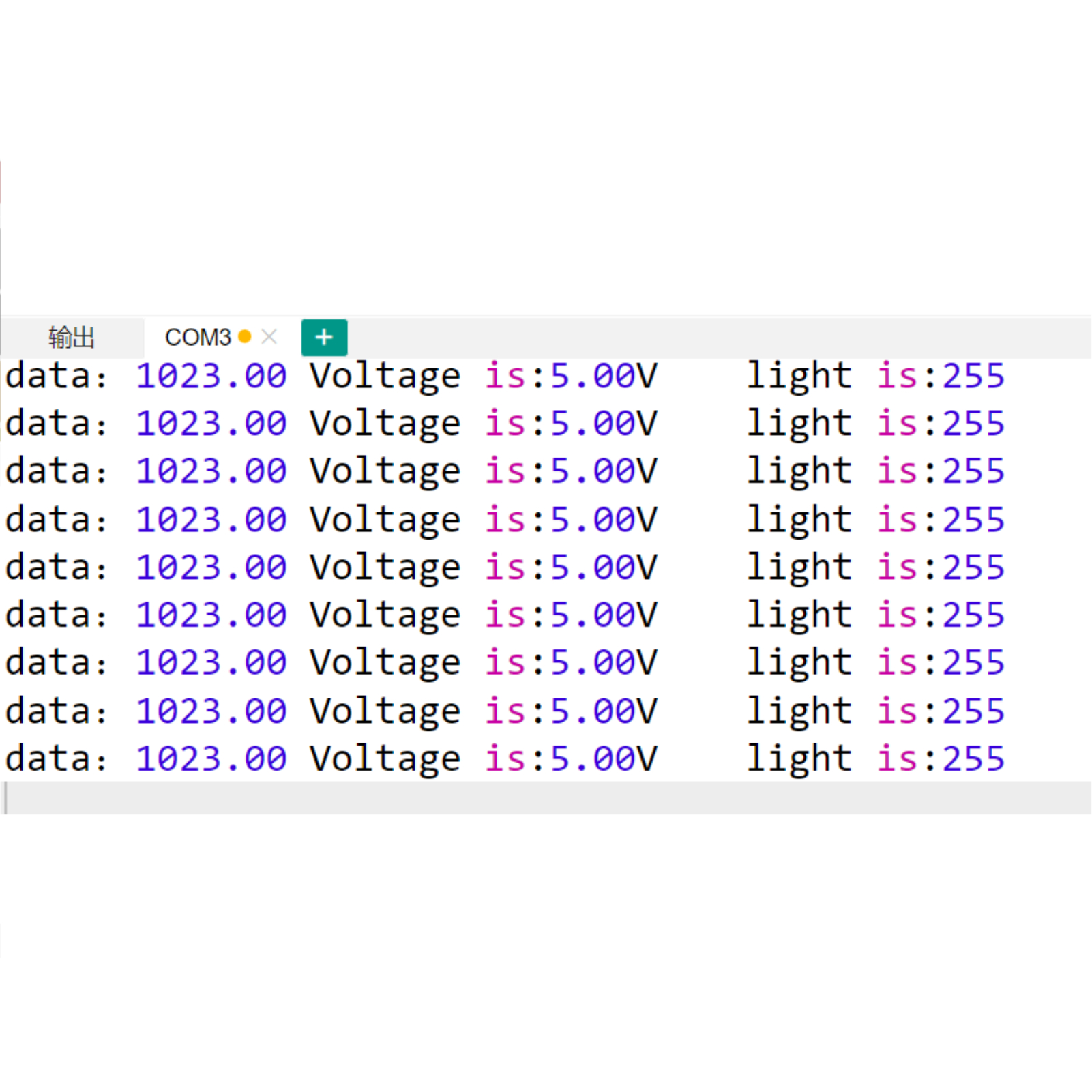

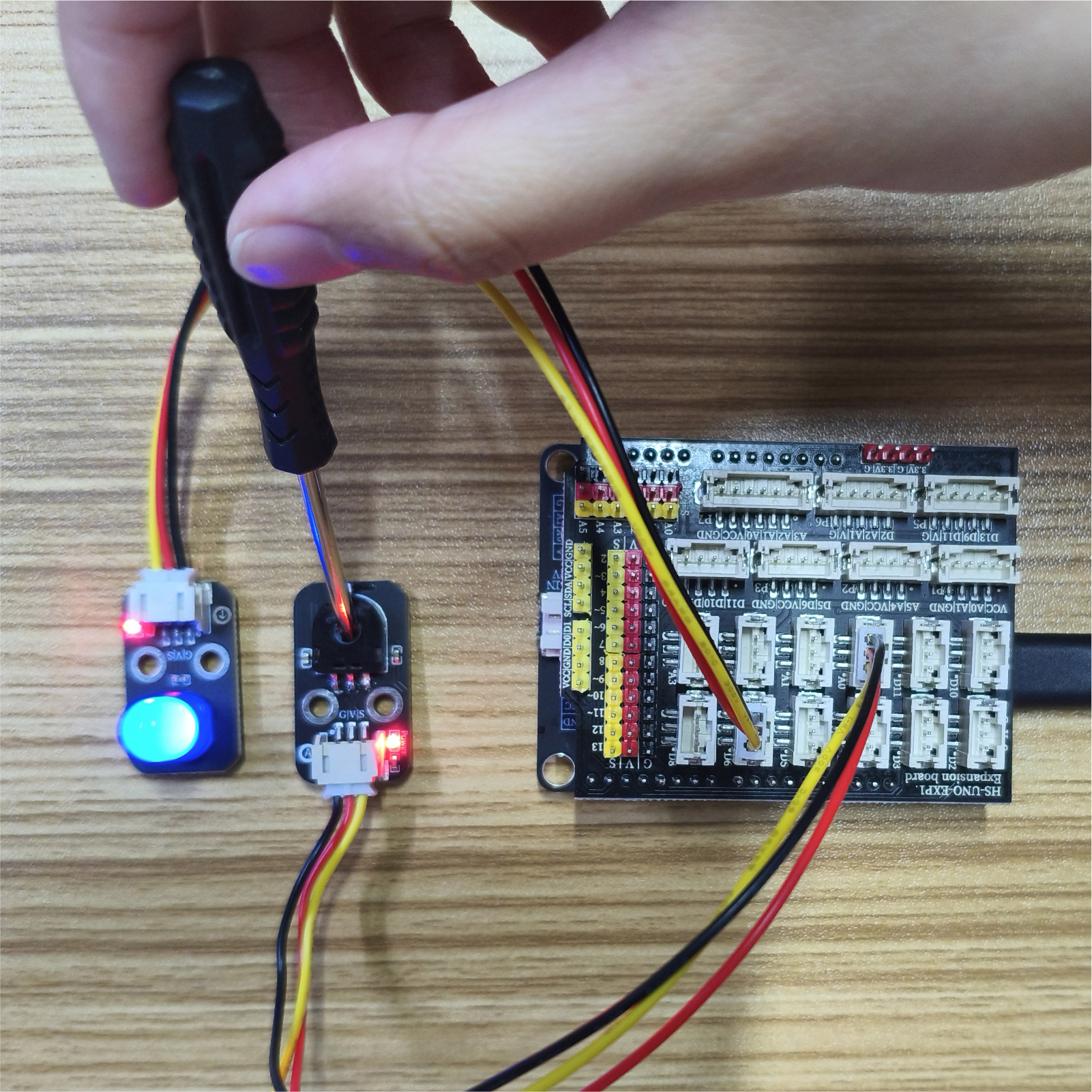

Arduino UNO test results:

ESP32 Test Results:

Pending update...
