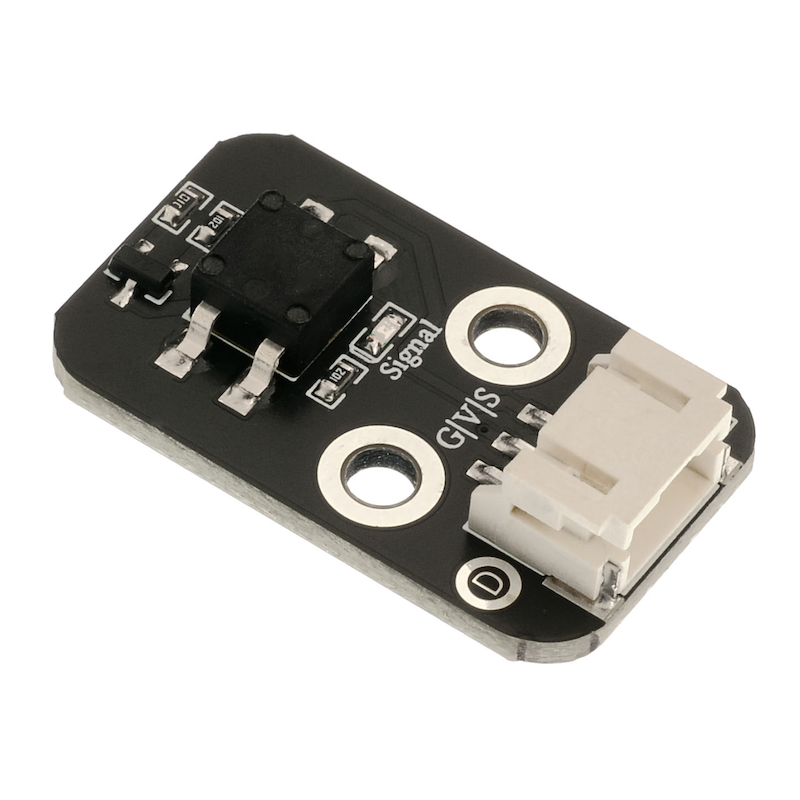

Four-way Tilt Sensor HS-S27P

1. Introduction

2. Schematic

Omnidirectional Tilt Sensor-HS-S27P SchematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection Method: PH2.0 Terminal Wire

• Installation Method: Double Screw Fixed

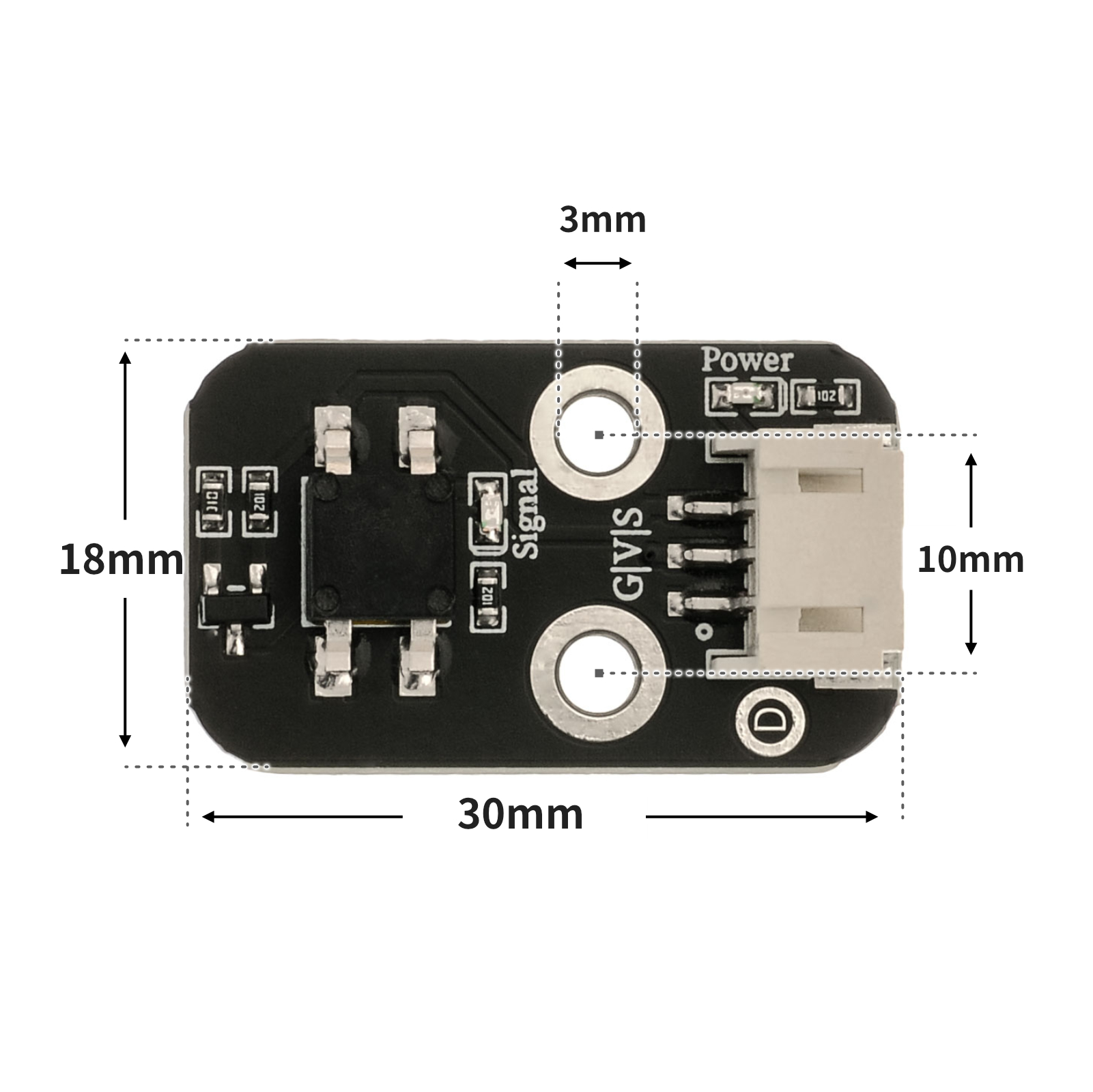

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

 int value = 0;

void setup(){
  Serial.begin(9600);

  pinMode(4, INPUT);
  pinMode(6, OUTPUT);
}

void loop(){
  value = digitalRead(4);
  if (value == 0) {
    digitalWrite(6,HIGH);

  } else {
    digitalWrite(6,LOW);

  }
  delay(100);
  Serial.println(value);

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine
import time


pin2 = machine.Pin(2, machine.Pin.IN)
pin4 = machine.Pin(4, machine.Pin.OUT)
while True:
    if pin2.value() == 0:
        pin4.value(1)
    else:
        pin4.value(0)
    time.sleep_ms(500)

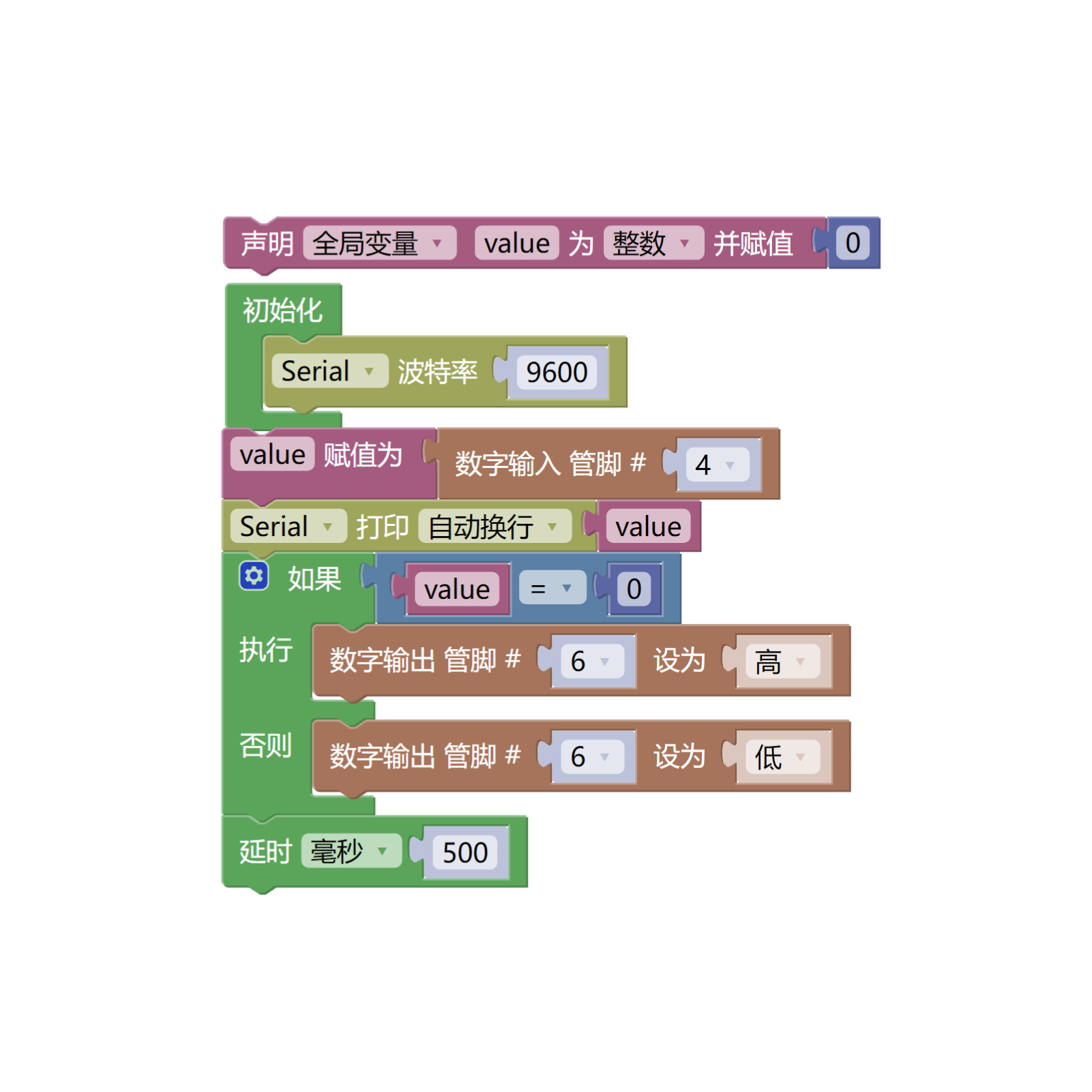

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO R3 P EXPANSION BOARD *1

• USB TYPE-C DATA CABLE *1

• LED module (HS-F08P) *1

• Four-axis tilt sensor module (HS-S27P) *1

• PH2.0 Two-Head Terminal Wire *2 pieces

• PH2.0 Terminal to Dupont Wire *2 pieces

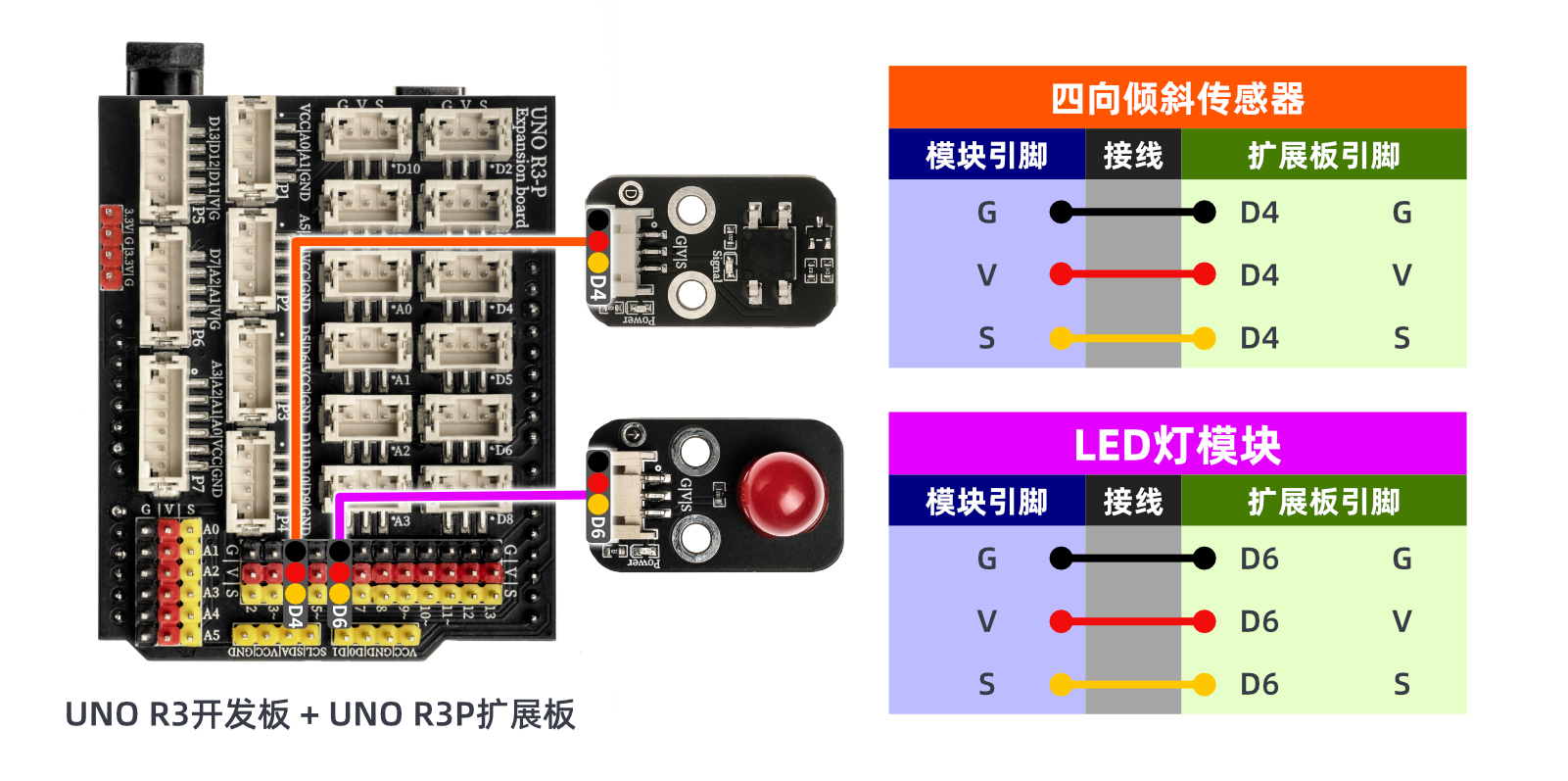

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Video tutorial:Click to view

10, Test results

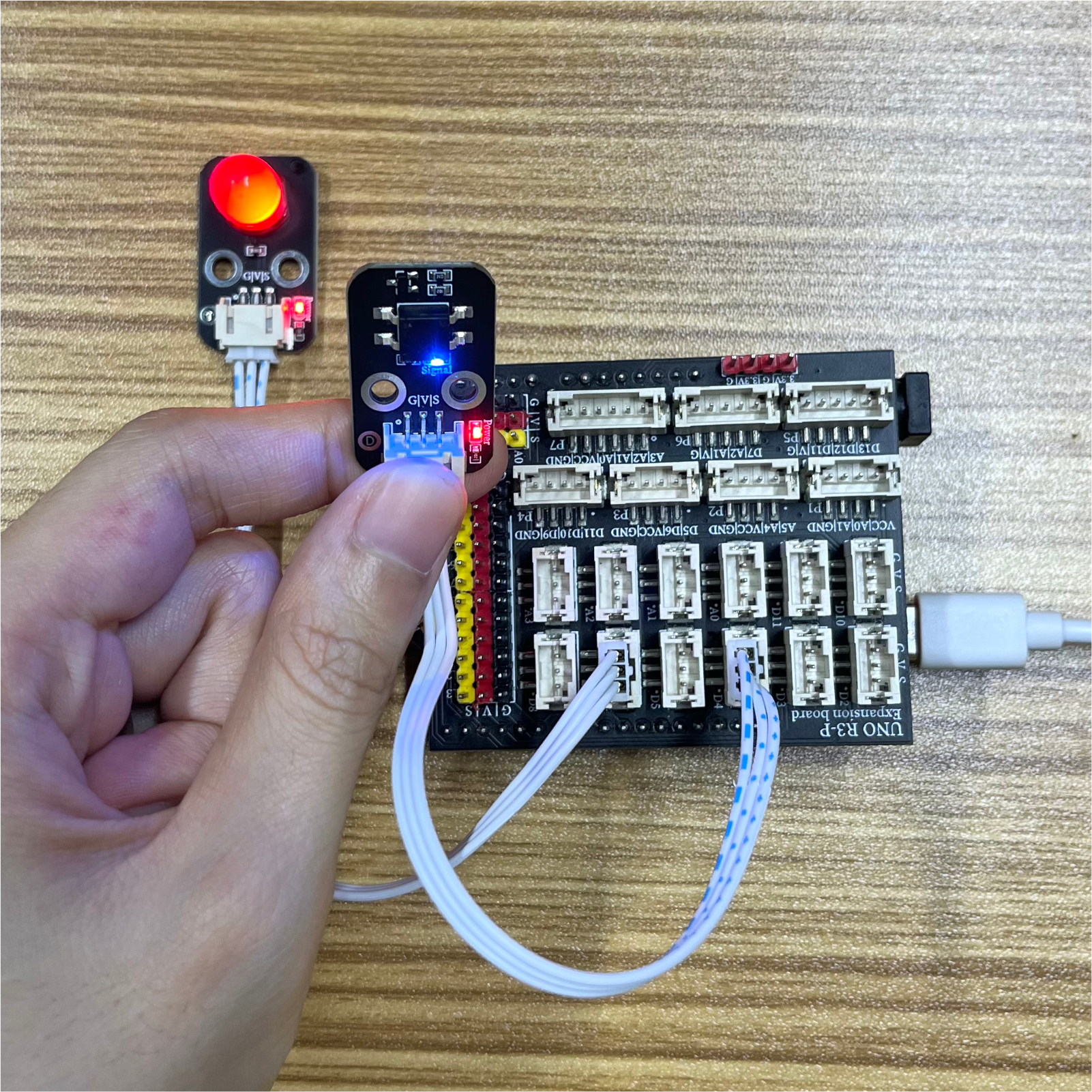

Arduino UNO test results:

ESP32 Test Results:

Pending update...
