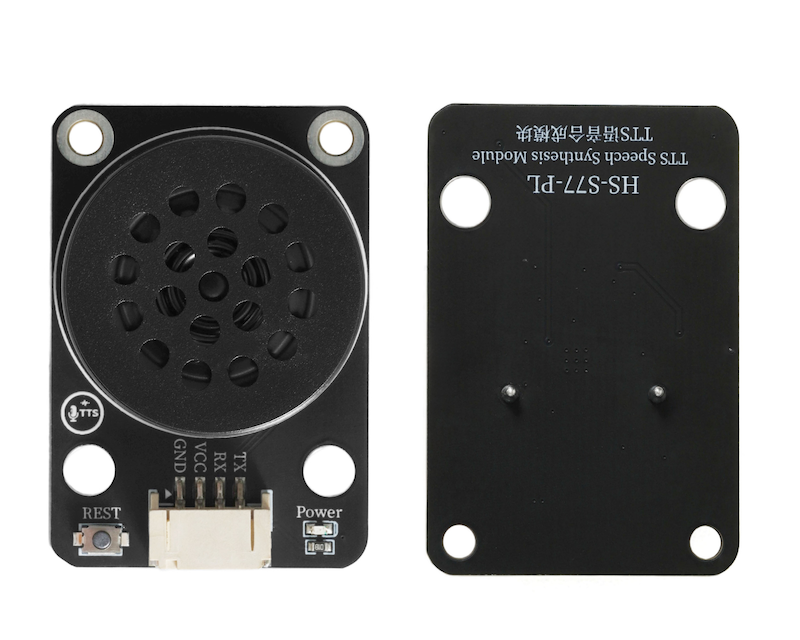

HS-S77-PL TTS Voice Synthesis Module

1. Introduction

Built-in voice synthesis chip of TTS voice synthesis module, receives text data from the main control device (such as a microcontroller) through serial port, analyzes and processes the chip, calls the voice library and algorithm, converts it into voice signals, amplifies it, and drives the speaker to produce sound.Convert text information to speech output.

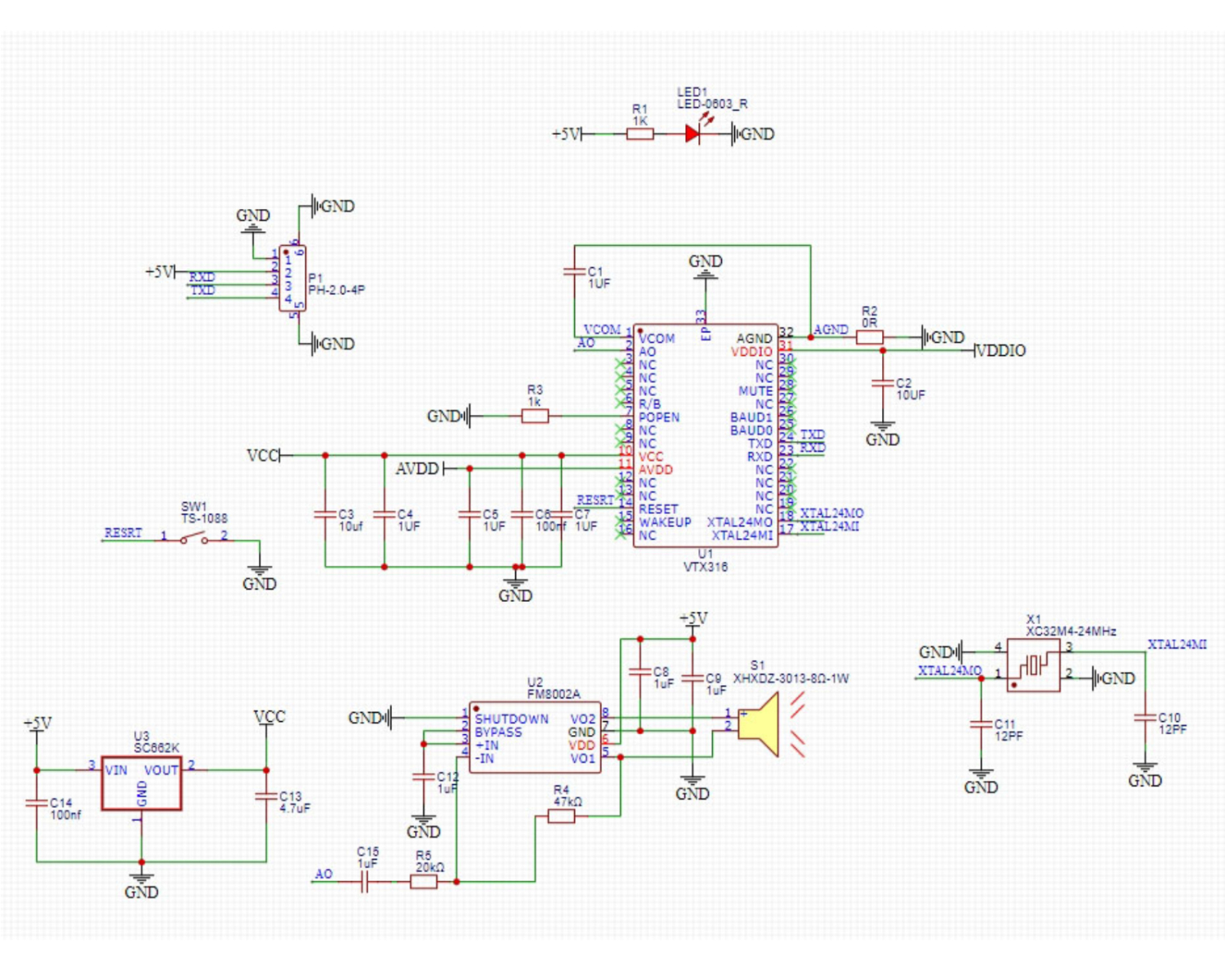

2. Schematic

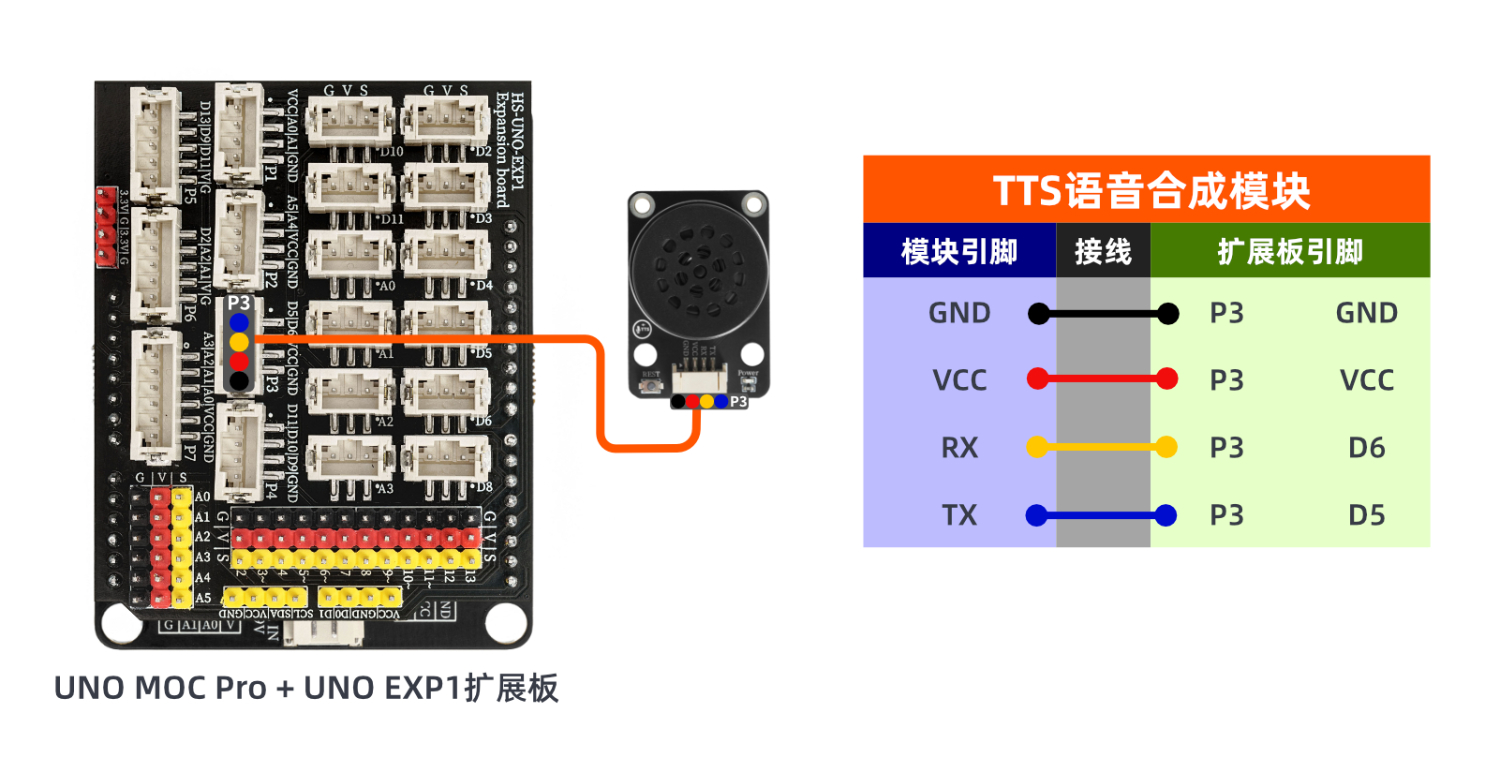

Module Parameters

Pin Name	description
G	GND (Negative Power Input)
V	VCC (Positive Power Input)
RX	Receive Pin
TX	Transmit Pin

Supply voltage: 3.3V-5V
Connection method: PH2.0 4P terminal wire
Installation method: Modular fixed

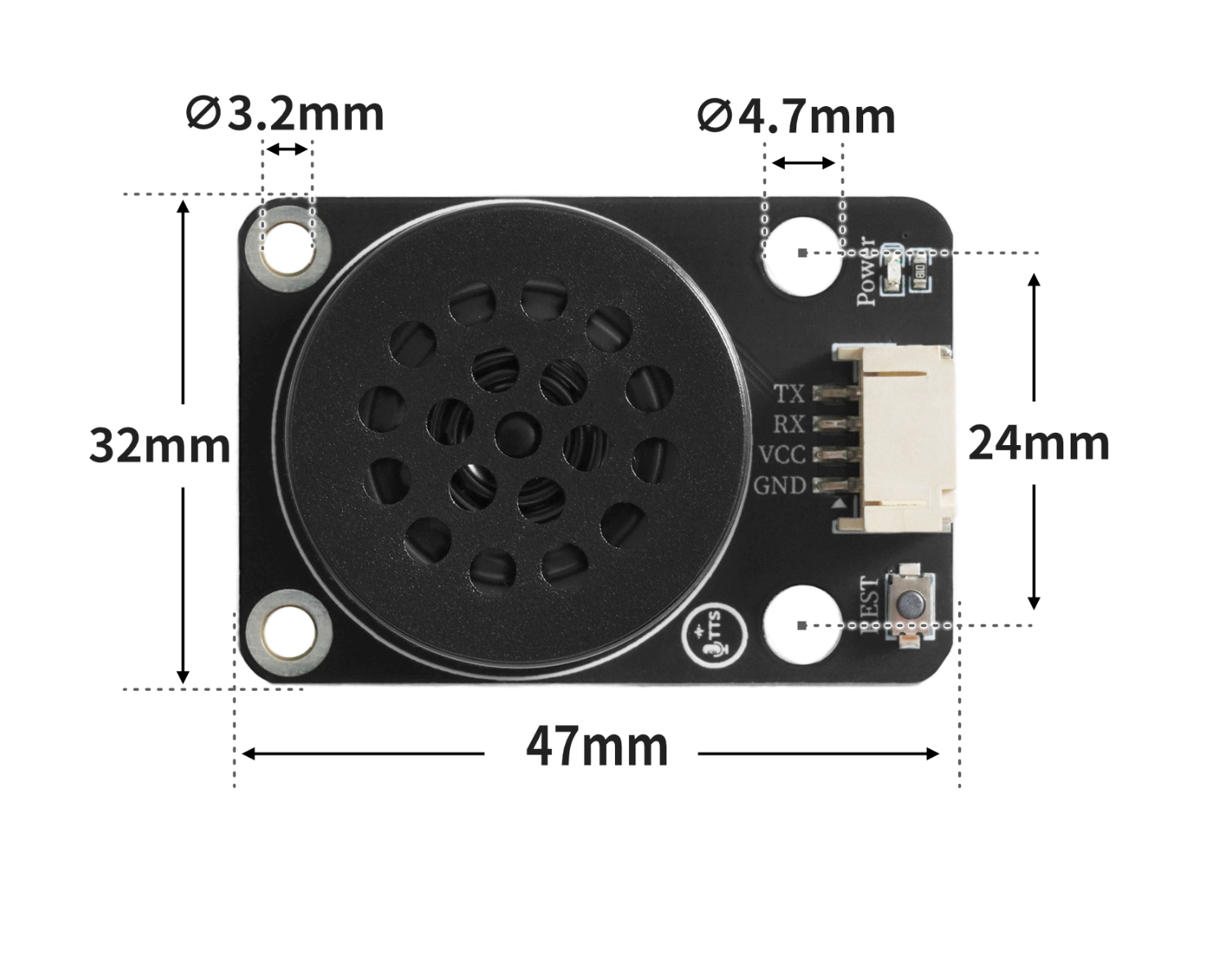

4, Circuit Board Size

Add Arduino Library File

Reference here if you don't know how to use library files:Install and use library files

Download library files: Click to download

Installation steps for the MiQi UNO development board library (download and install the MiQi library before using the code):Reference link

6, Add MicroPython environment library file

MiXin ESP32 development board library download and installation steps (download and install the MiXin library before using the code):Reference link

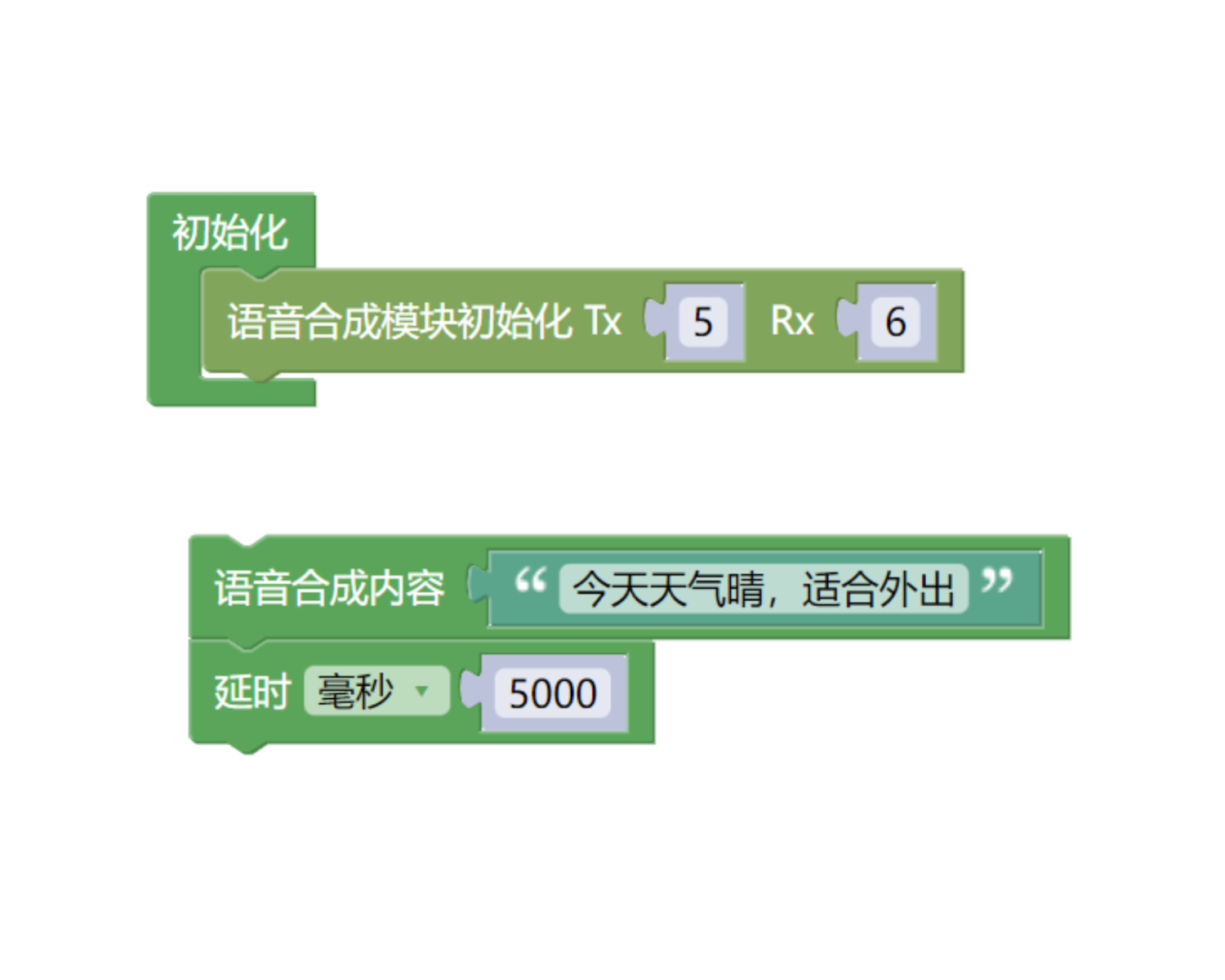

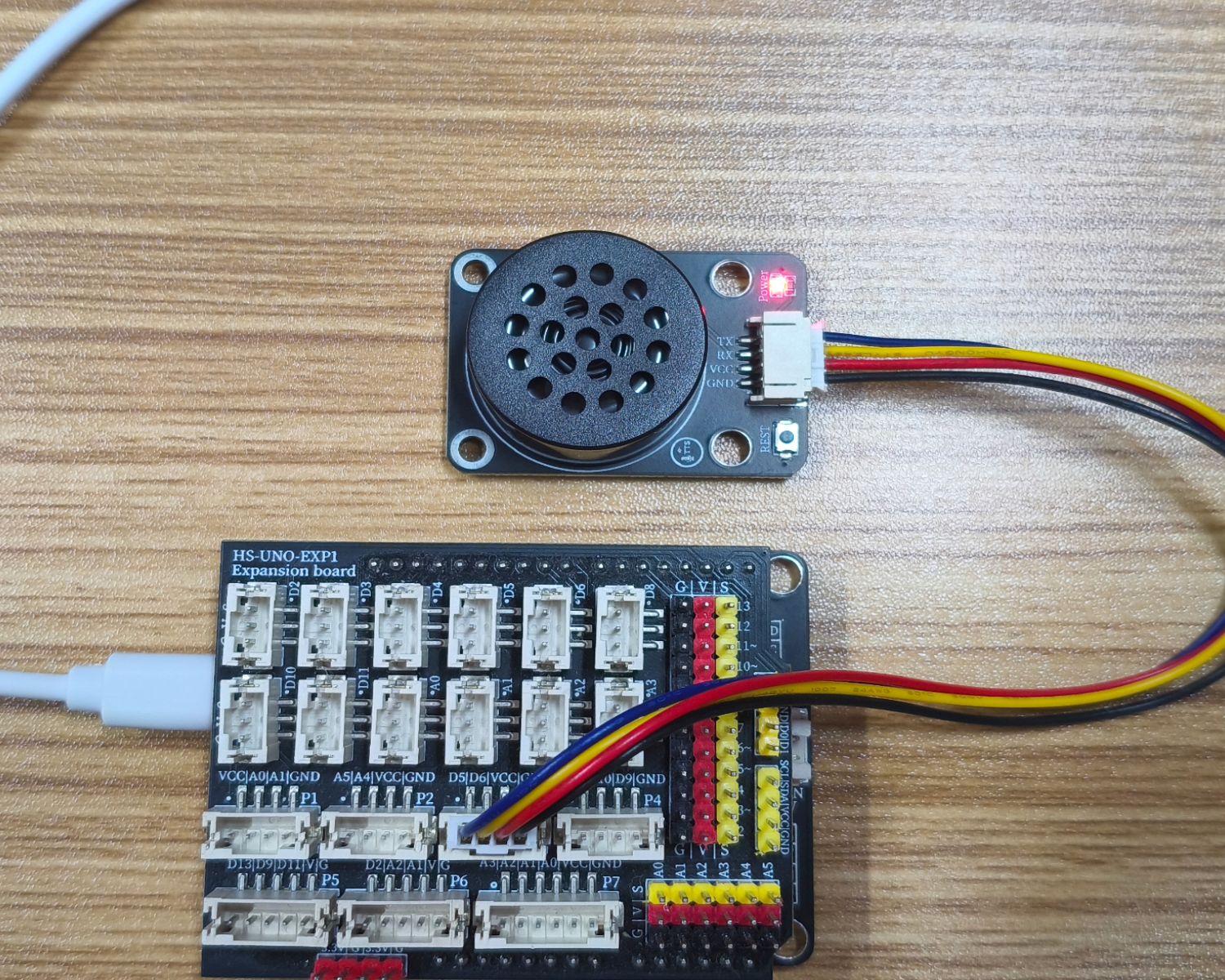

7. Arduino IDE example program

Example Program (UNO Development Board): Click to Download

#include "VTX316.h"

void setup(){
  VTX316_Init(6,5);

}

void loop(){
  Voice_BOBAO("今天天气晴，适合外出");
  delay(5000);

}

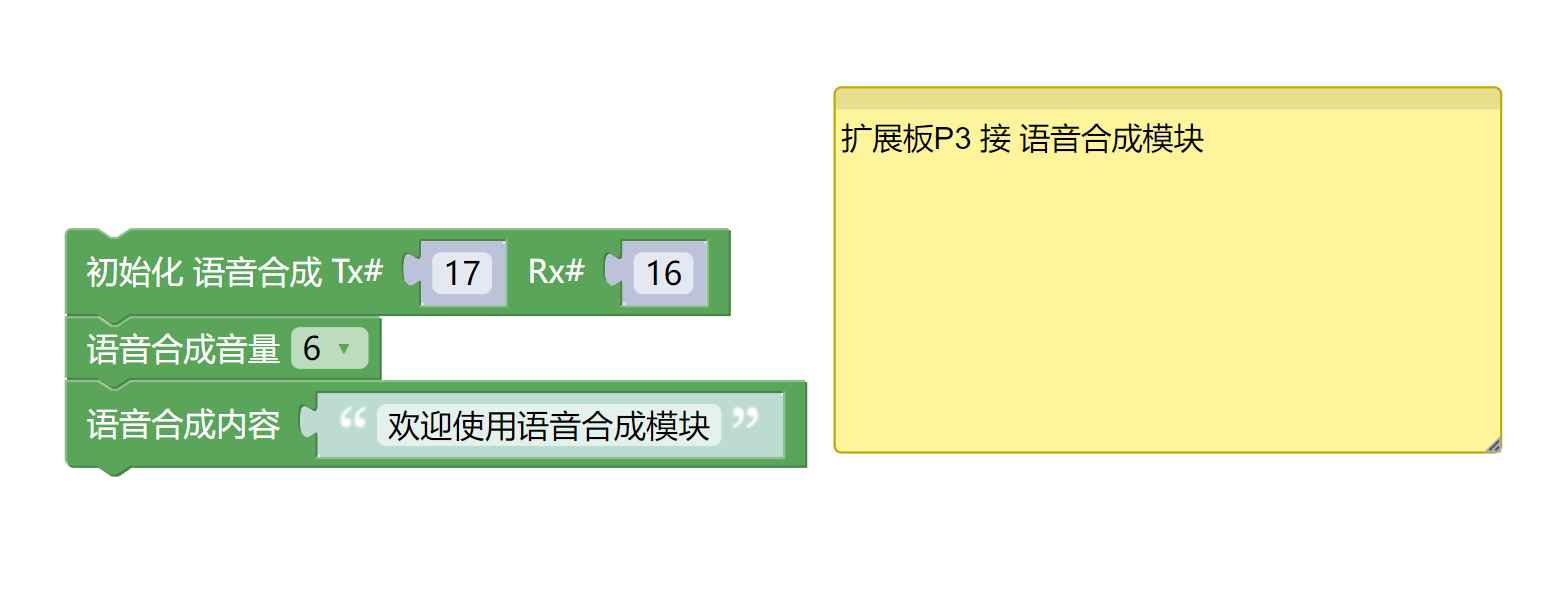

Example Program (ESP32 Development Board):

from machine import UART, Pin
import time
class VTX316:
    def __init__(self, tx_pin: int, rx_pin: int, baudrate=115200, uart_id=2):
        """初始化 VTX316 语音模块"""
        self.uart = UART(uart_id, baudrate=baudrate, tx=Pin(tx_pin), rx=Pin(rx_pin))
        time.sleep_ms(200)

    def _send_bytes(self, data: bytes):
        """发送原始字节"""
        self.uart.write(data)

    def _send_text(self, text: str):
        """发送字符串文本"""
        self.uart.write(text.encode('gbk'))

    def bobo(self, message: str):
        if not message:
            return
        msg_bytes = message.encode('gbk')
        length = len(msg_bytes)
        frame_head = bytes([0xFD, 0x00, length + 2, 0x01, 0x05])
        self._send_bytes(frame_head)
        time.sleep_ms(2)
        self._send_bytes(msg_bytes)
        time.sleep_ms(length + 50)

    def yinliang(self, level: int):
        if level < 0:
            level = 0
        elif level > 10:
            level = 10
        frame = bytes([
            0xFD, 0x00, 0x06,
            0x01, 0x01,
            0x5B, 0x76,
            0x30 + level,
            0x5D
        ])
        self._send_bytes(frame)
        time.sleep_ms(100)

    def zanting(self):
        cmd = bytes([0xFD, 0x00, 0x01, 0x03])
        self._send_bytes(cmd)

    def huifu(self):
        cmd = bytes([0xFD, 0x00, 0x01, 0x04])
        self._send_bytes(cmd)

    def fayanren(self, idx: int):
        if idx < 1 or idx > 7:
            idx = 1
        cmd_str = f"[m5{idx}]"
        msg_bytes = cmd_str.encode('gbk')
        length = len(msg_bytes)

        frame_head = bytes([0xFD, 0x00, length + 2, 0x01, 0x05])
        self._send_bytes(frame_head)
        time.sleep_ms(2)
        self._send_bytes(msg_bytes)
        time.sleep_ms(50)



voice = VTX316(tx_pin=17, rx_pin=16)

voice.yinliang(6)

voice.bobo('欢迎使用语音合成模块')
