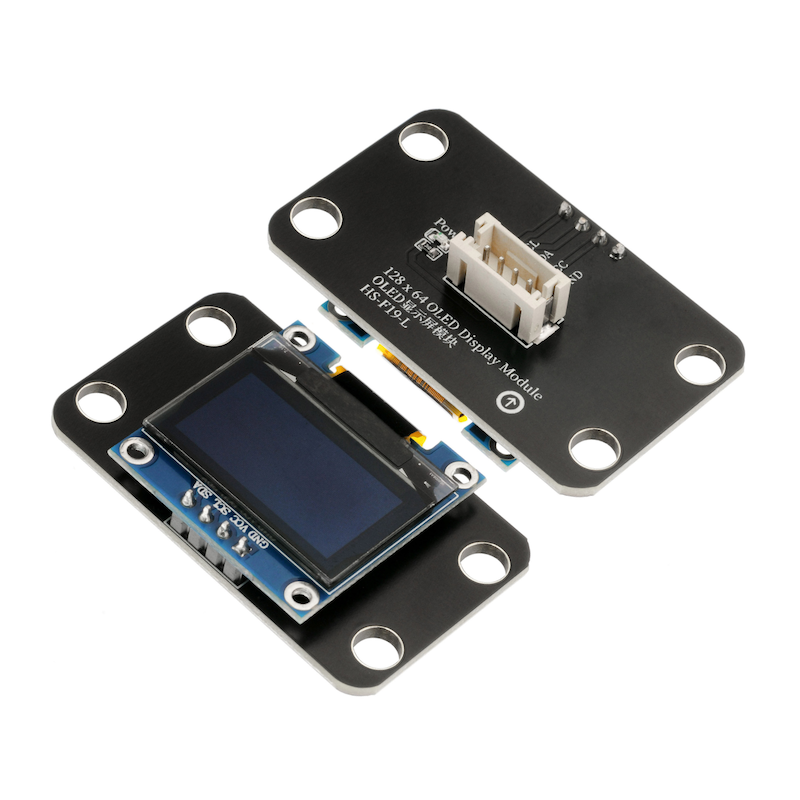

HS-F19-L OLED Display Module

1. Introduction

2. Schematic

OLED display module - HS-F19-L schematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection Method: PH2.0 Terminal Wire

• Installation method: Fixed with four screws (compatible with LEGO)

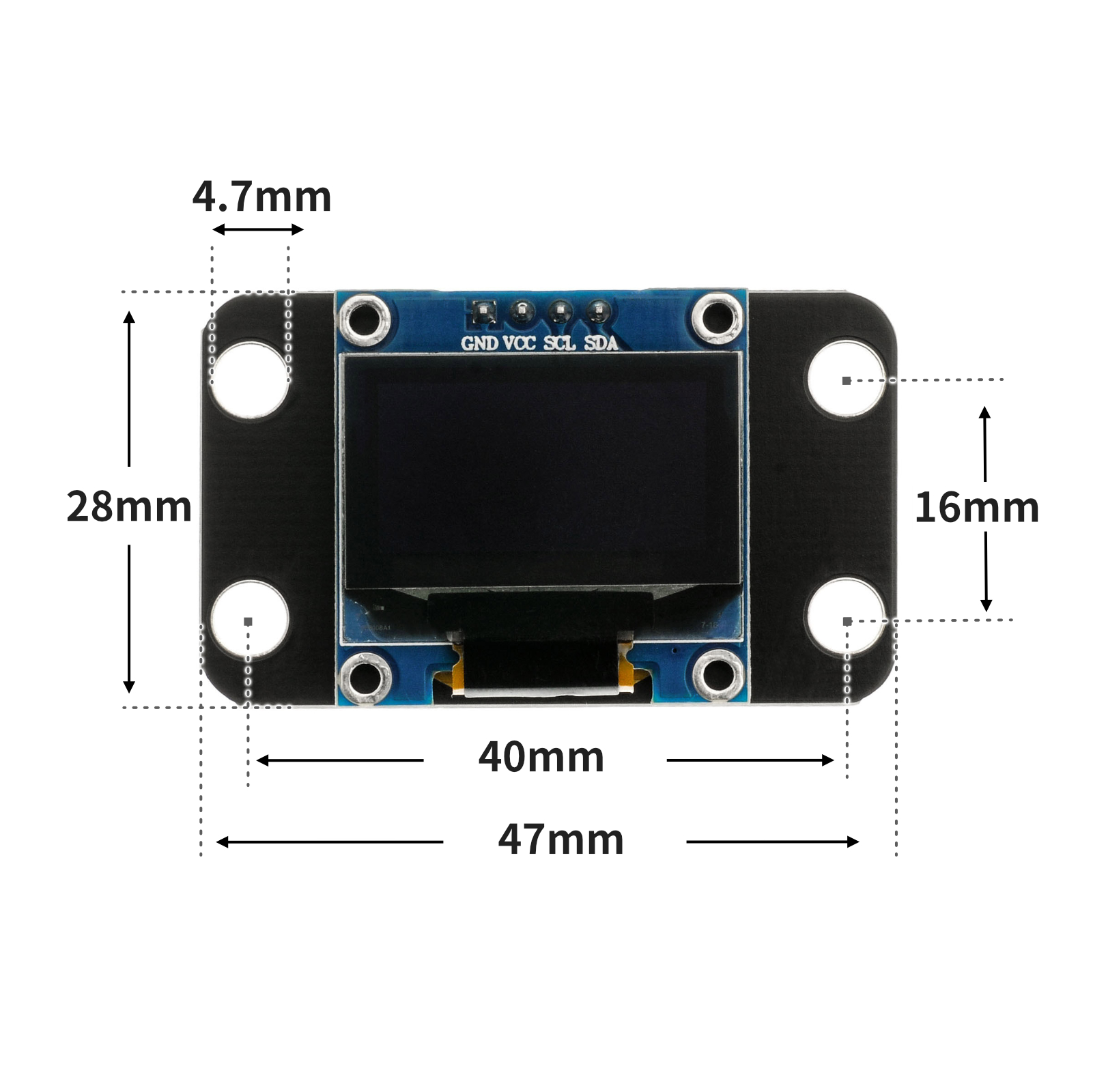

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

#include <U8g2lib.h>
#include <Wire.h>

U8G2_SSD1306_128X64_NONAME_1_HW_I2C u8g2(U8G2_R0, U8X8_PIN_NONE);

void page1() {
  u8g2.setFont(u8g2_font_timR08_tf);
  u8g2.setFontPosTop();
  u8g2.setCursor(0,20);
  u8g2.print("Hello STEM");
}

void setup(){
  u8g2.setI2CAddress(0x3C*2);
  u8g2.begin();
  u8g2.enableUTF8Print();

}

void loop(){
  u8g2.firstPage();
  do
  {
    page1();
  }while(u8g2.nextPage());

}​

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine
import oled128x64


i2c_extend = machine.SoftI2C(scl = machine.Pin(22), sda = machine.Pin(21), freq = 100000)
oled = oled128x64.OLED(i2c_extend,address=0x3c,font_address=0x3A0000)
oled.shows('HelloSTEM')

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

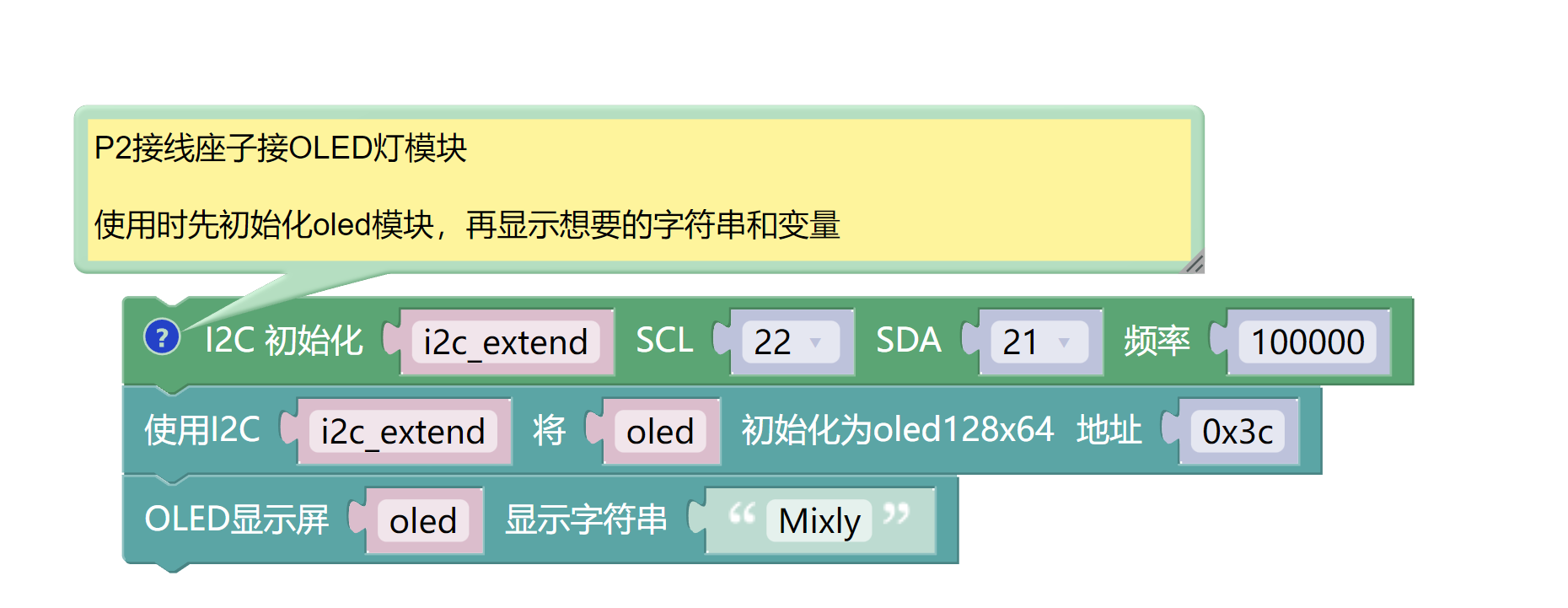

ESP32 Python Graphical Example Program:Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO R3 P EXPANSION BOARD *1

• USB TYPE-C DATA CABLE *1

• OLED display (HS-F19L) *1

• PH2.0 dual-headed terminal line *1 piece

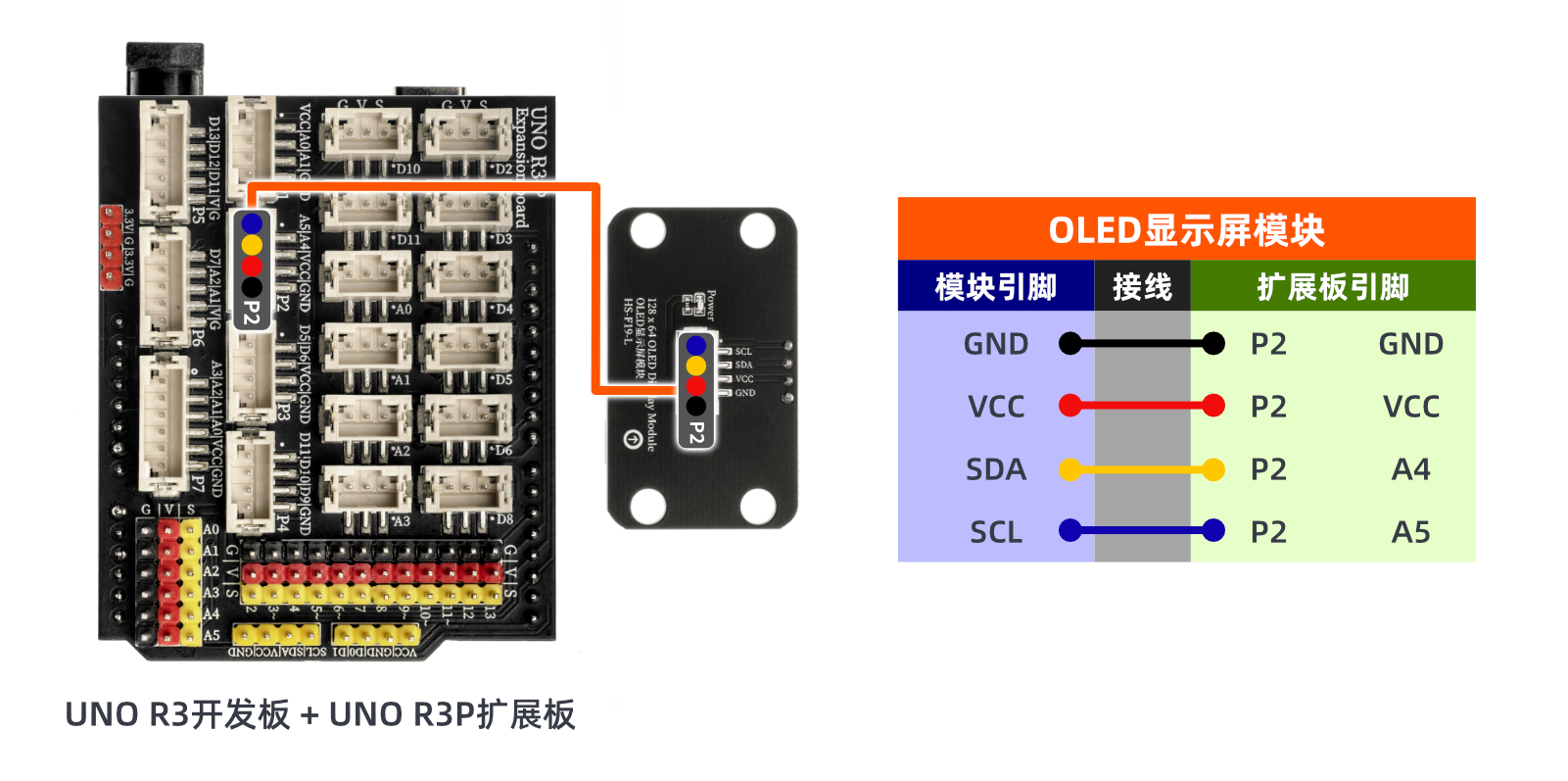

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Arduino UNO video tutorial:Click to view

ESP32 Python Video Tutorial:

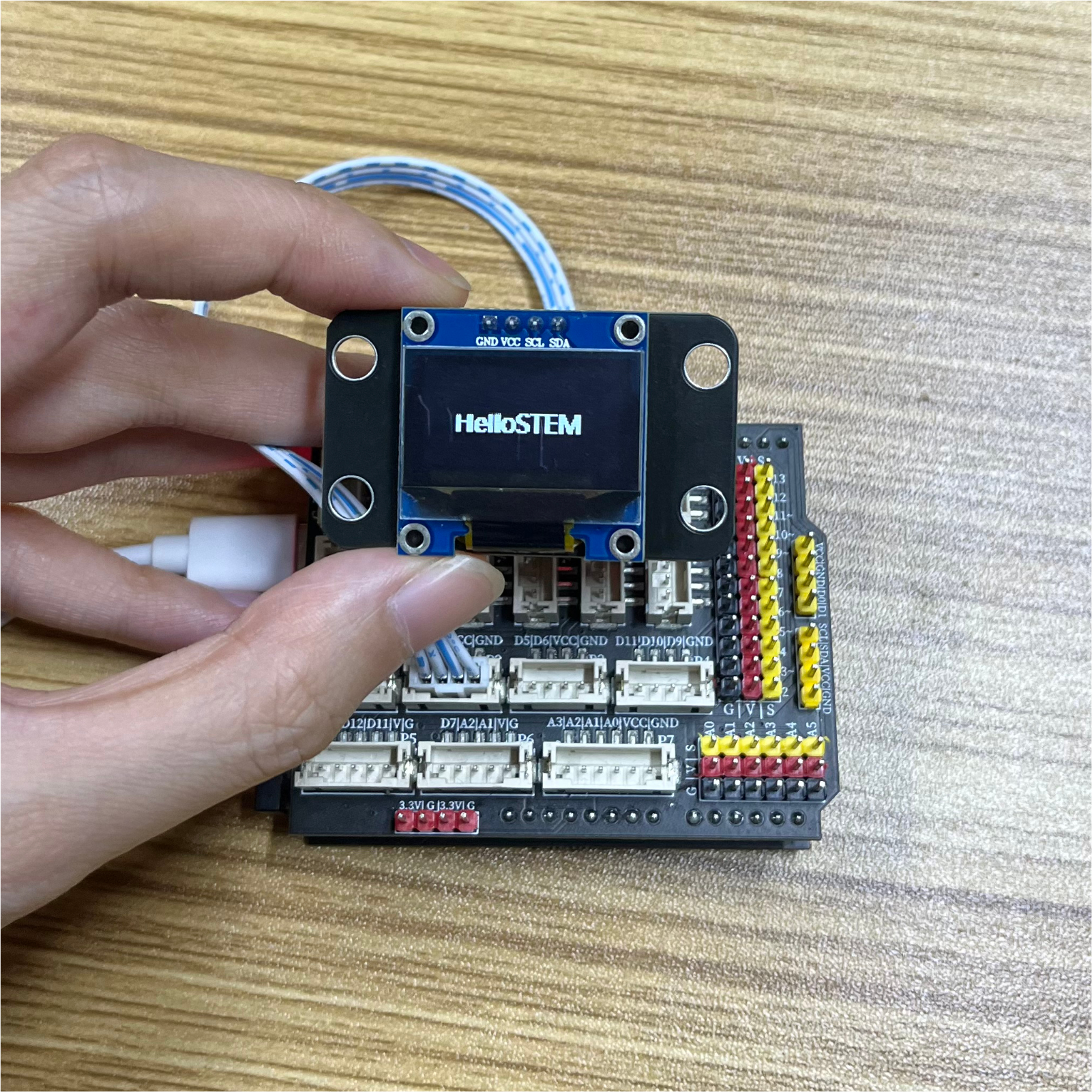

10, Test results

Arduino UNO test results:

Display the text and images set in our program on the OLED screen.

ESP32 Python test conclusion:

Display the text and images set in our program on the OLED screen.
