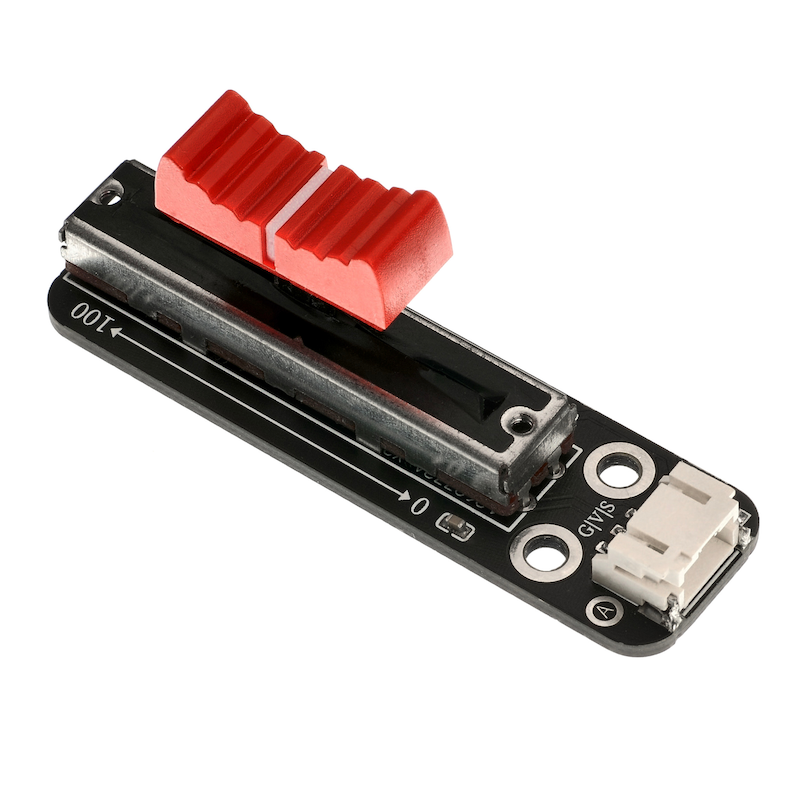

HS-S25P Slider Potentiometer

HS-S25P Slider Potentiometer

1. Introduction

2. Schematic

HS-S25P resistor schematicClick to view

Module Parameters

Pin Name

description

G

GND (Negative Power Input)

V

VCC (Positive Power Input)

S

Analog Signal Pin

  • Power Supply Voltage: 3.3V / 5V

  • Connection method: PH2.0 terminal wire

  • Installation Method: Double Screw Fixed

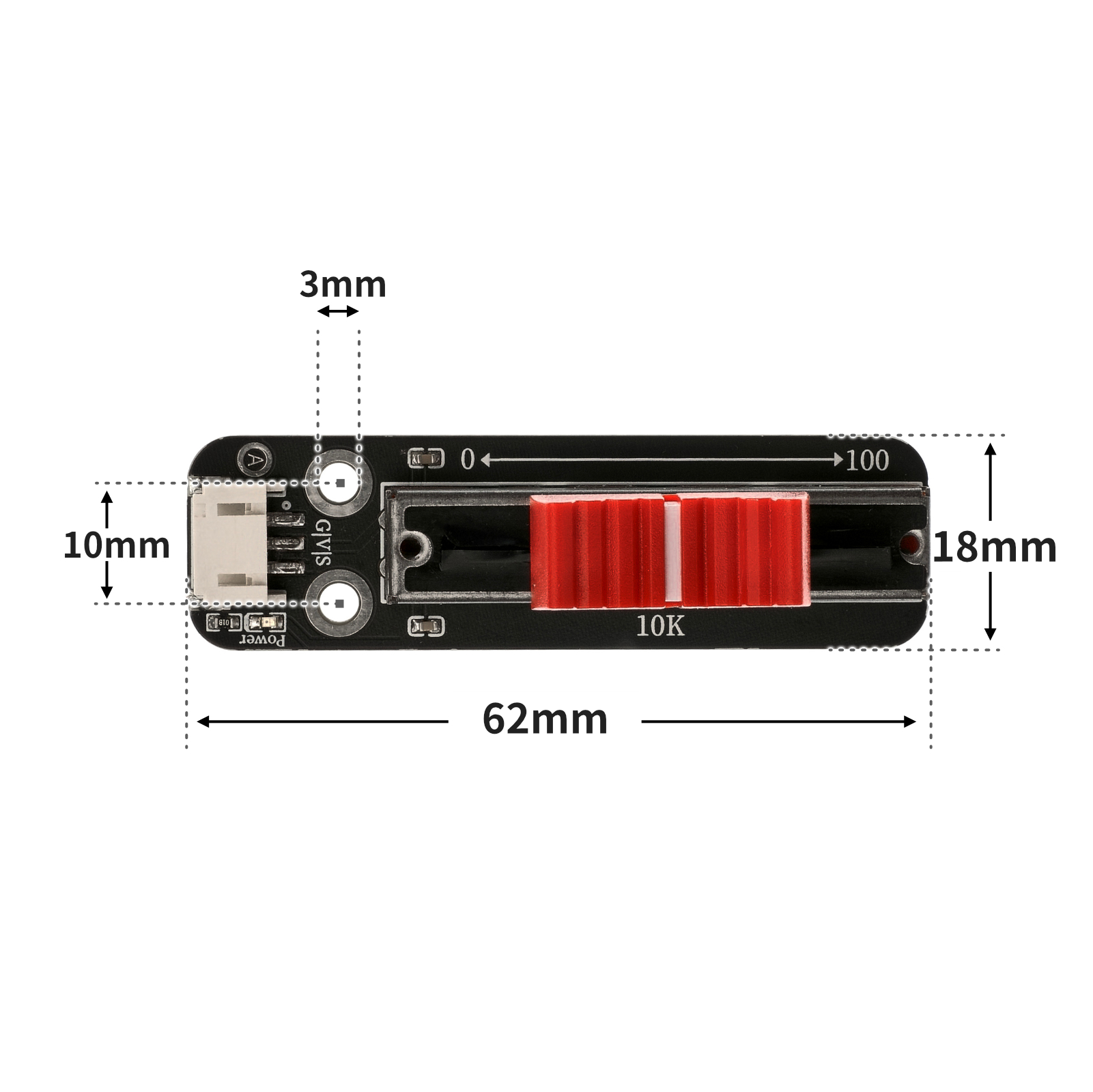

4, Circuit Board Size

5 of Arduino IDE example program

Example program (UNO development board):
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:
Click to view

volatile int sensorValue;

void setup(){
  Serial.begin(9600);
  sensorValue = 0;
  pinMode(A0, INPUT);
}

void loop(){
  //ๆป‘ๅŠจ็”ตไฝๅ™จๆŽฅA0๏ผ›

  sensorValue = analogRead(A0);
  Serial.print("SensorValue is:");
  Serial.println(sensorValue);
  delay(100);

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:
Click to view

Example program (ESP32-Python):

import machine
import time


adc32 = machine.ADC(machine.Pin(32))
while True:
    print(adc32.read_u16())
    time.sleep_ms(100)

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:
Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

  • UNO-R3 Development Board *1

  • UNO-R3 P Expansion Board *1

  • USB TYPE-C DATA CABLE *1

  • Encoder module (HS-S25P) *1

  • PH2.0 3P dual headed terminal line *1

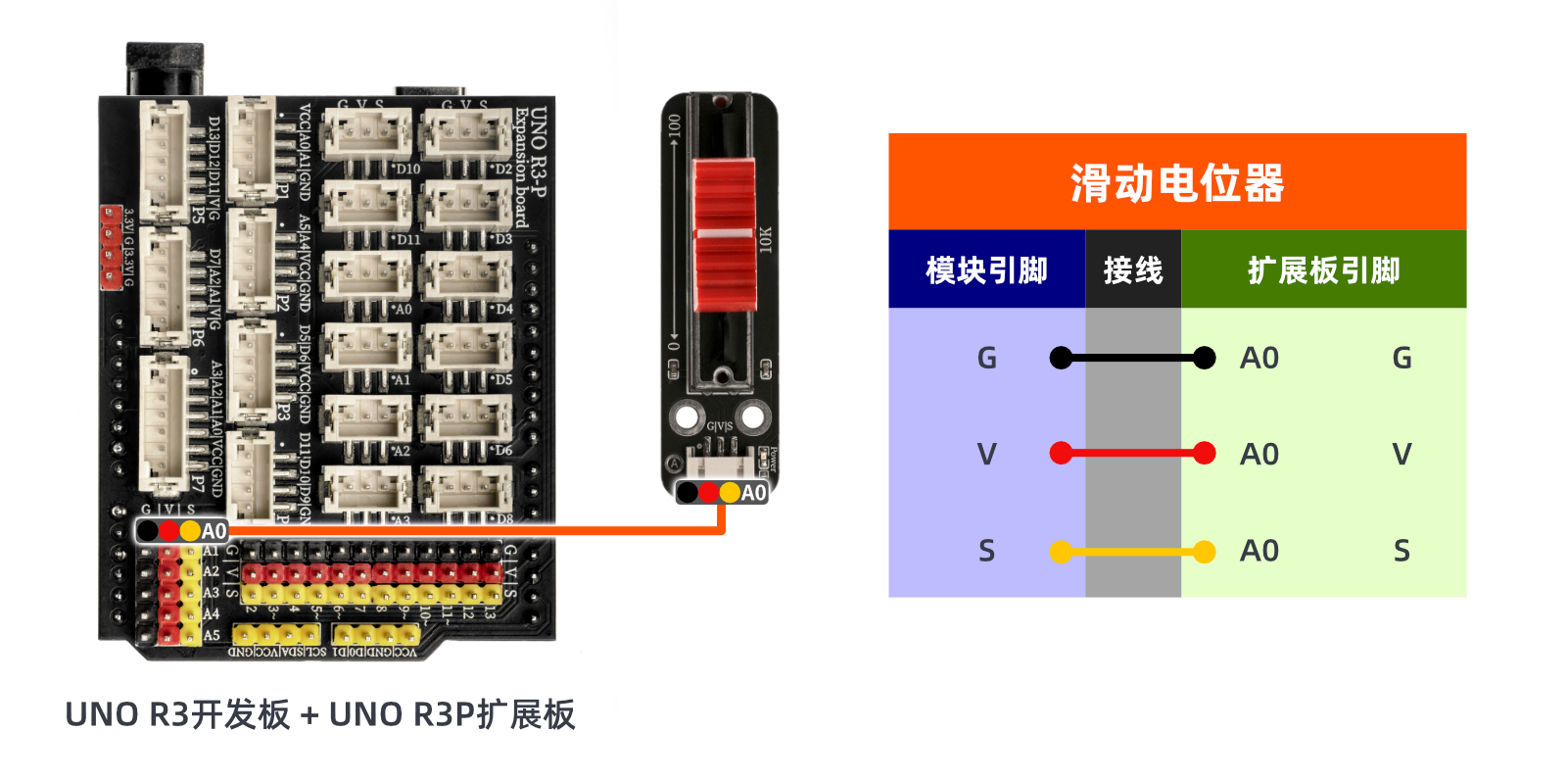

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Video tutorial:Click to view

10, Test results

Arduino UNO test results:

By sliding the wheel of the variable resistor, you can see the simulated value change in the monitoring window.

ESP32 Test Results:

Pending update...
