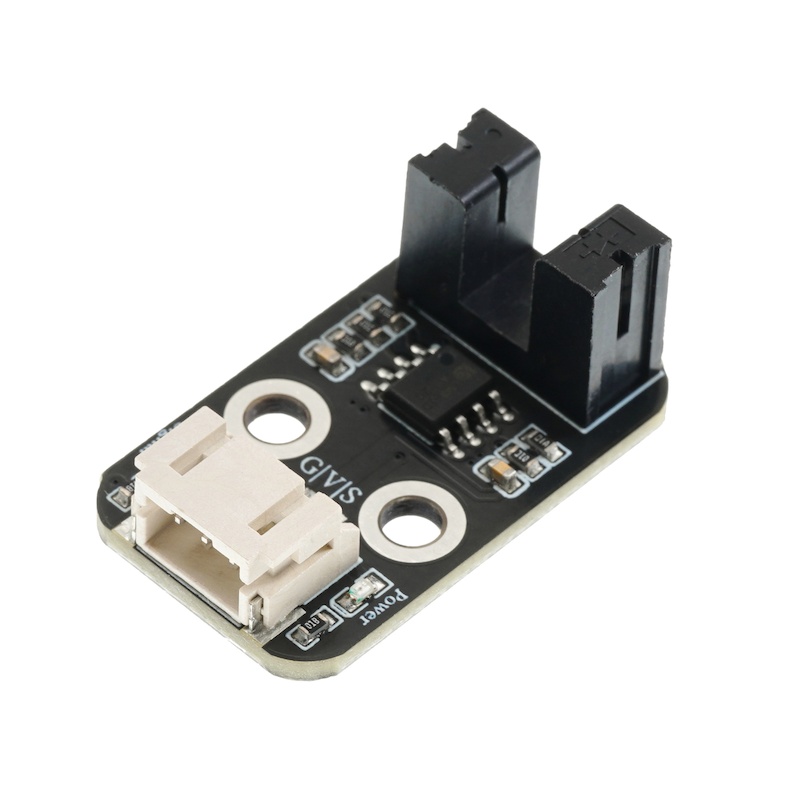

Slot Photoelectric Sensor HS-S59P

1. Introduction

The shaft encoder counting sensor uses a slot type through-beam photoelectric sensor, which is composed of an infrared LED and an NPN photoelectric triode, with a slot width of 5.9MM.As long as the opaque object passes through the slot, it can trigger the output TTL low level.Using a Schmidt trigger to debounce the pulse, it is very stable and can be used for applications such as measuring the speed and distance of small cars, etc.

2. Schematic

Slot Photoelectric Sensor-HS-S59P SchematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection Method: PH2.0 Terminal Wire

• Installation Method: Double Screw Fixed

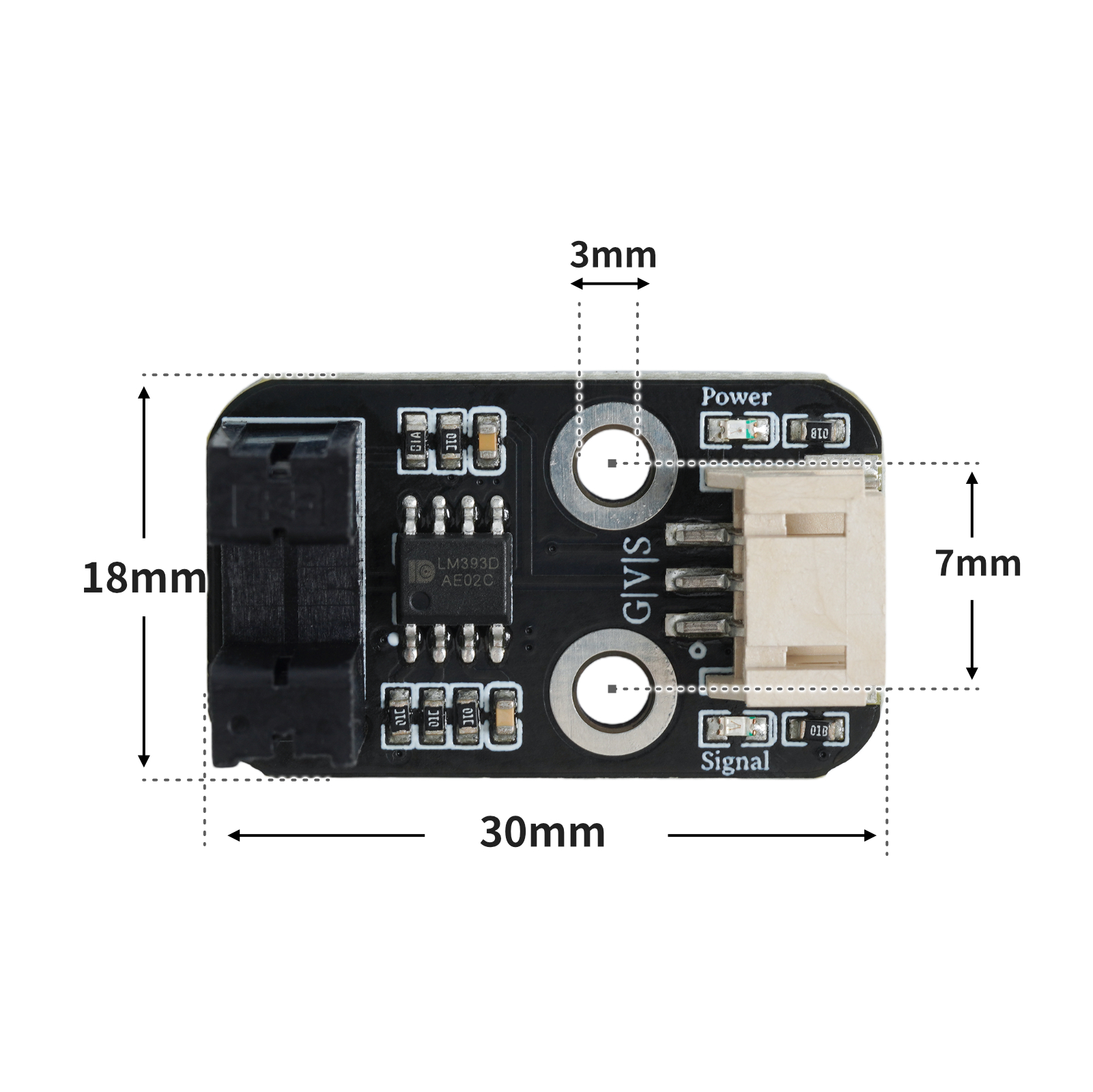

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

void setup(){
  Serial.begin(9600);
  pinMode(3, INPUT);
  pinMode(10, OUTPUT);
}

void loop(){
  if (digitalRead(3) == 0) {
    Serial.println("有物体经过，点亮led");
    digitalWrite(10,HIGH);

  } else if (digitalRead(3) == 1) {
    Serial.println("未检测到物体，熄灭led");
    digitalWrite(10,LOW);
  }

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

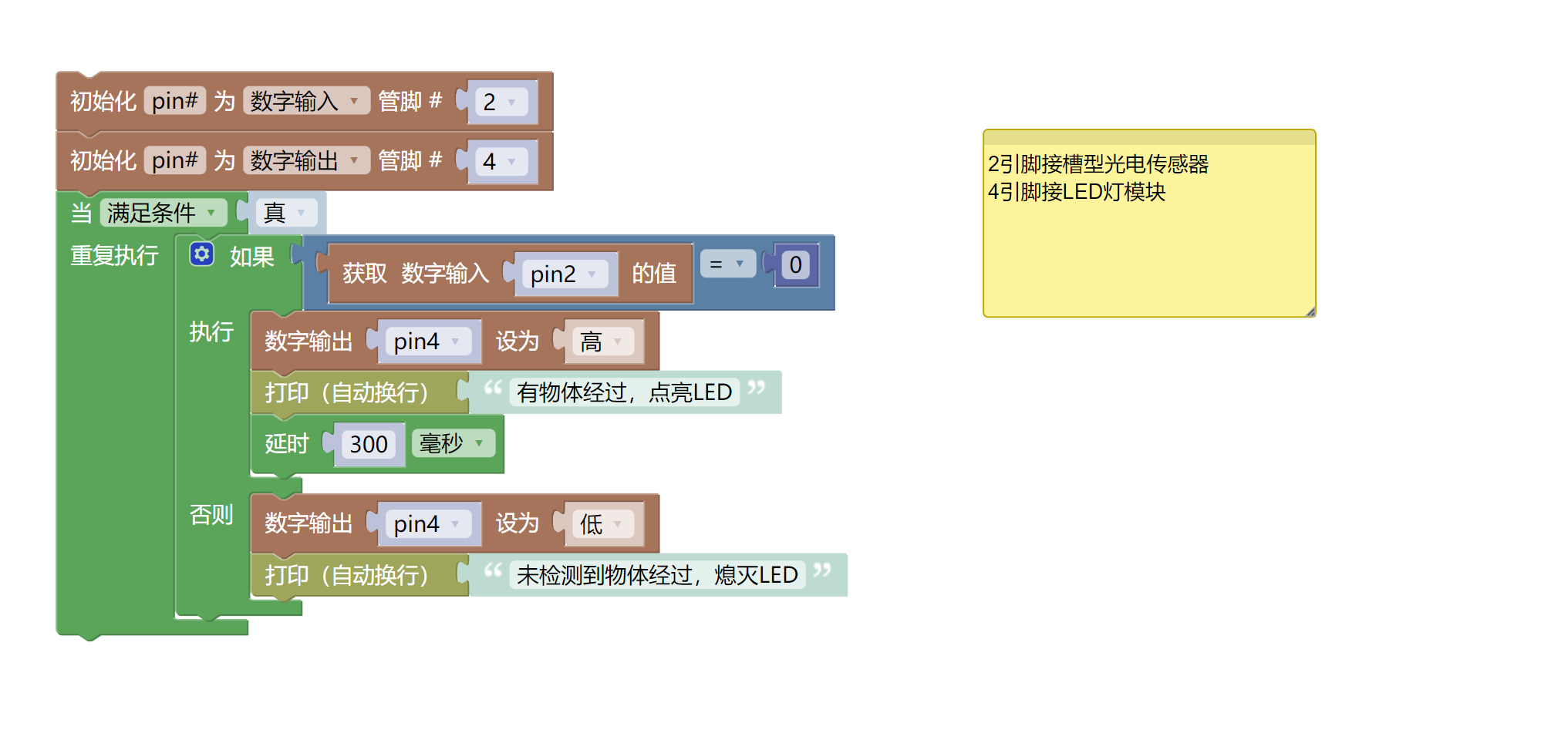

Example program (ESP32-Python):

import machine
import time


pin2 = machine.Pin(2, machine.Pin.IN)
pin4 = machine.Pin(4, machine.Pin.OUT)
while True:
    if pin2.value() == 0:
        pin4.value(1)
        print('有物体经过，点亮LED')
        time.sleep_ms(300)
    else:
        pin4.value(0)
        print('未检测到物体经过，熄灭LED')

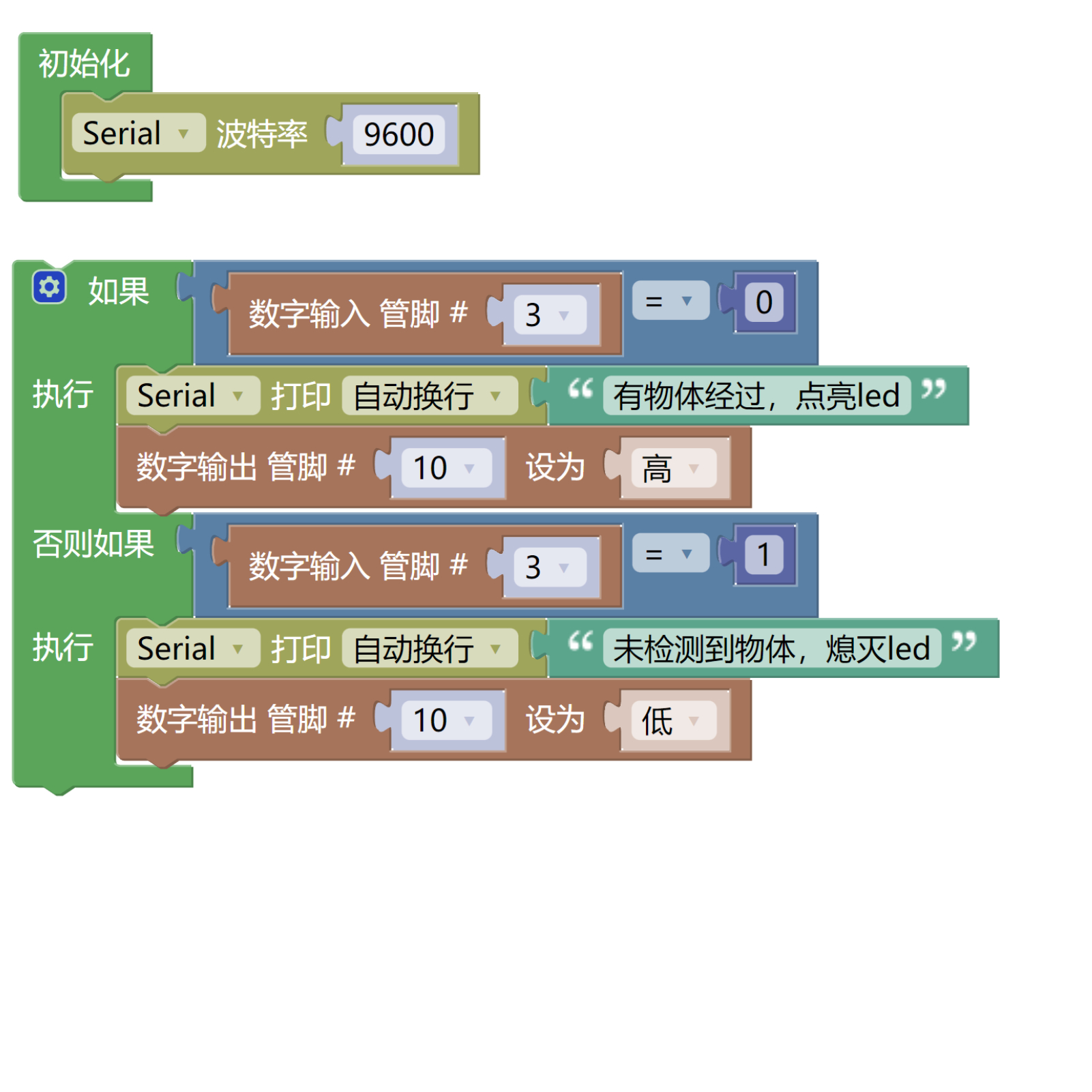

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO EXP1 Expansion Board *1

• USB TYPE-C DATA CABLE *1

• Slot type photoelectric sensor (HS-S59P) *1

• LED light module (HS-F08P) *1

• PH2.0 3P dual-head terminal line *2

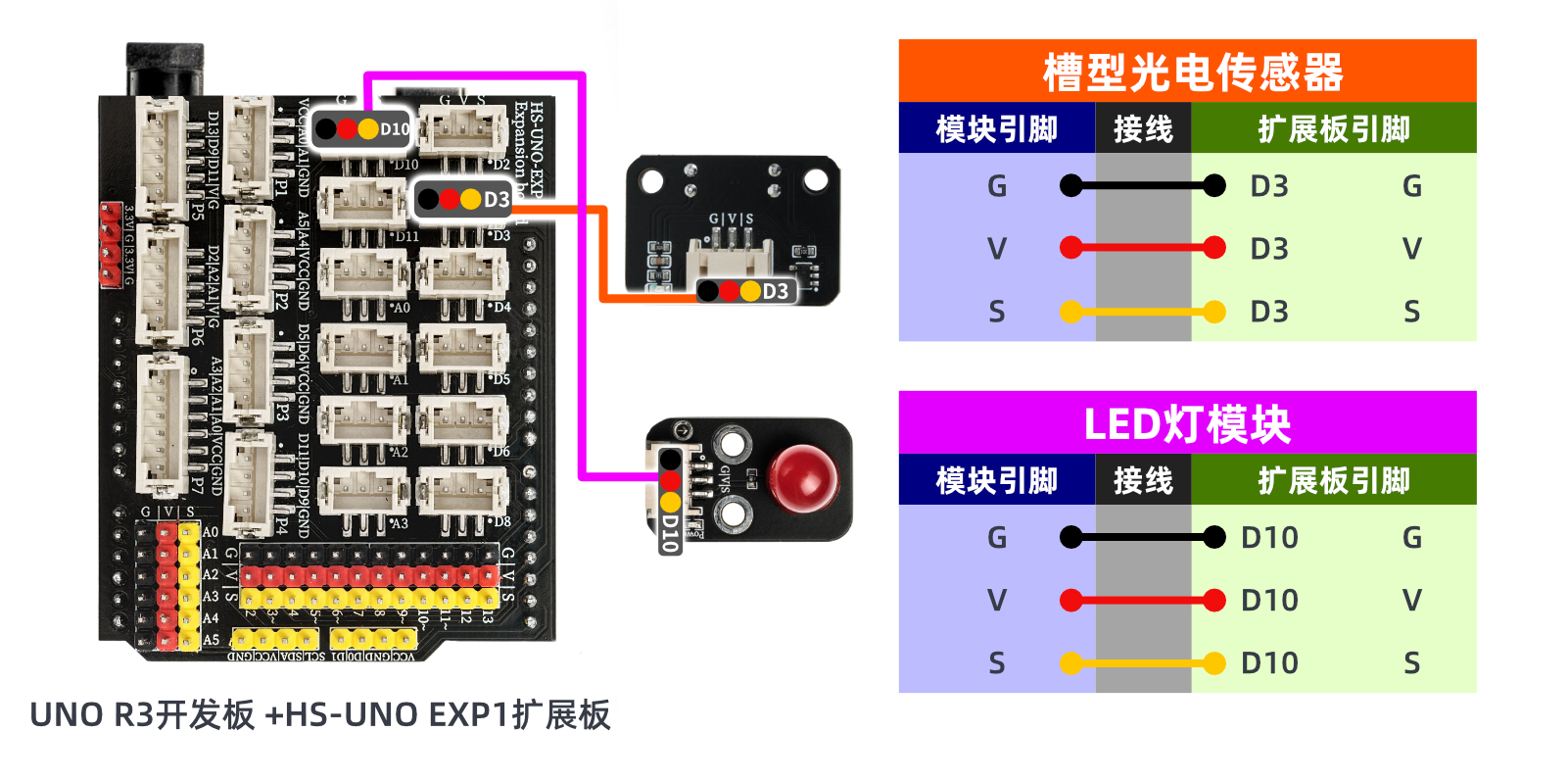

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Video tutorial:Click to view

10, Test results

Arduino UNO test results:

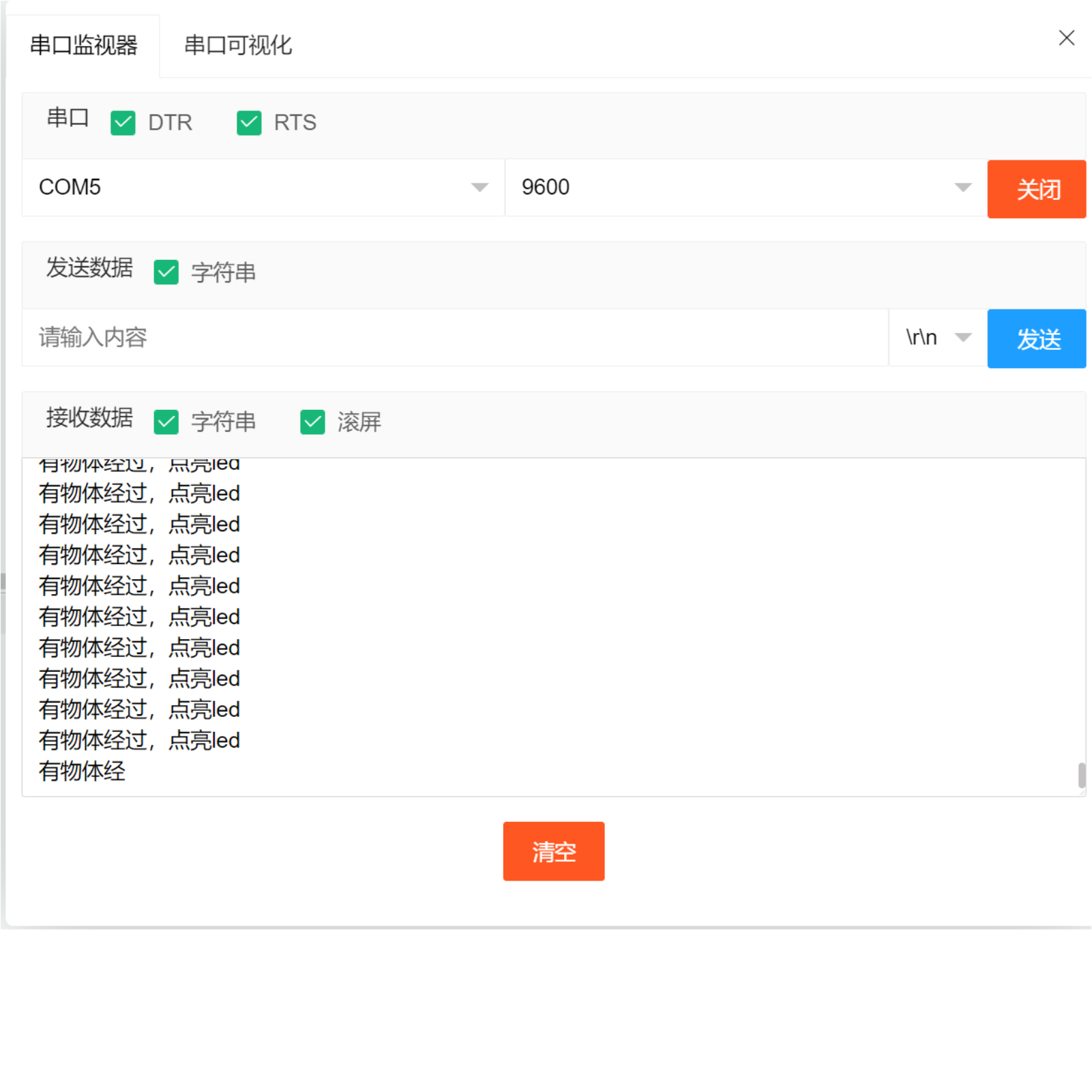

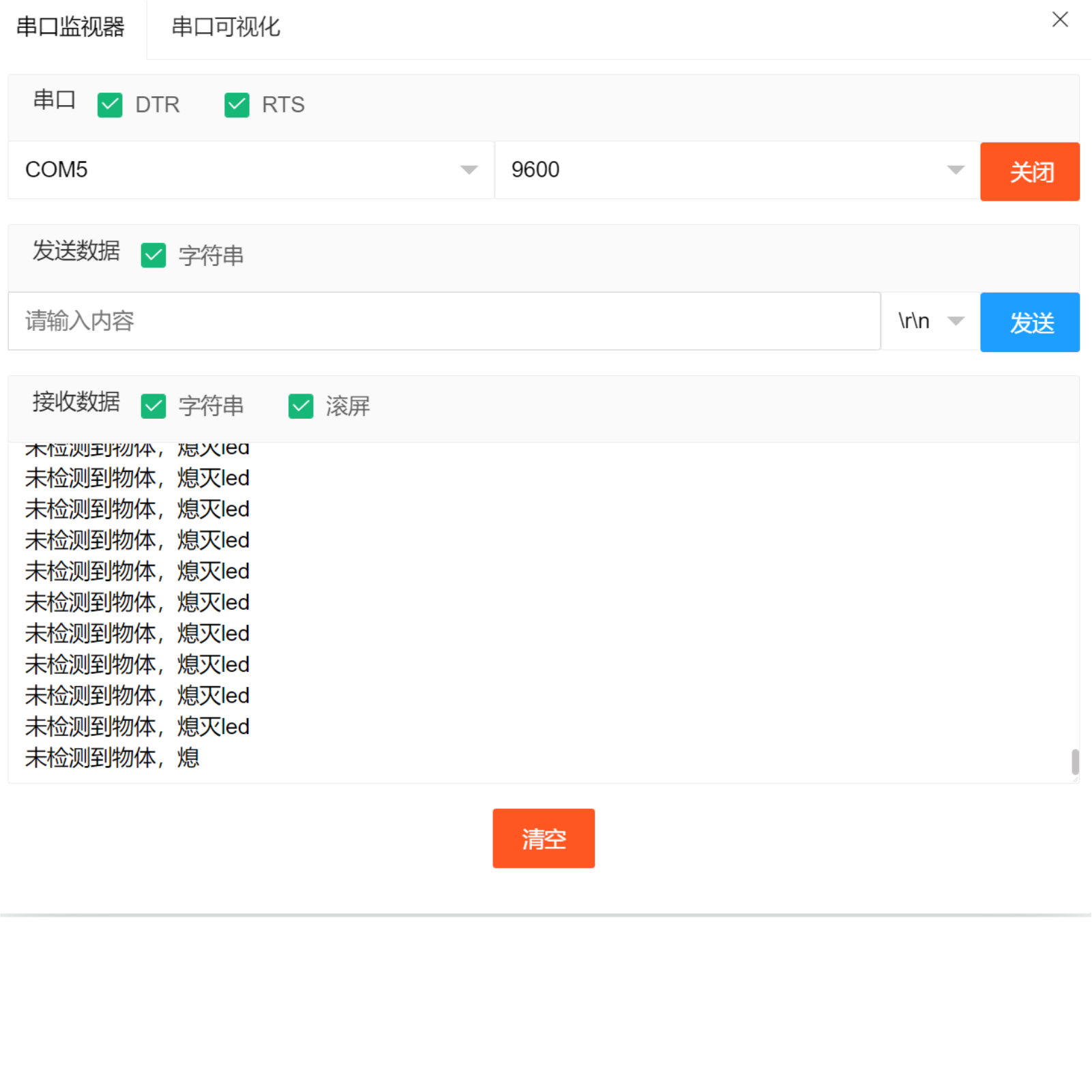

After the device is connected to the wire, burn the above program to the UNO-R3PRO development board and then connect the power supply.Open the serial port monitor. When the slot photoelectric sensor detects an object passing by, turn on the LED. If no object is detected, turn off the LED.

ESP32 Test Results:

Pending update...
