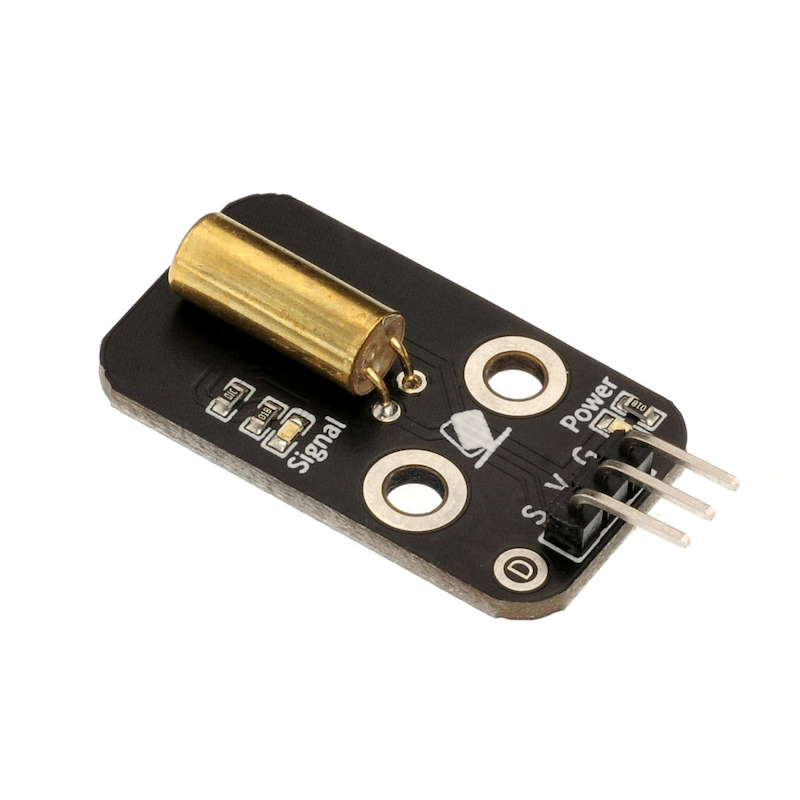

HS-S21A tilt sensor

1. Introduction

2. Schematic

Inclination sensor-HS-S21A schematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection Type: 2.54mm Header

• Installation Method: Double Screw Fixed

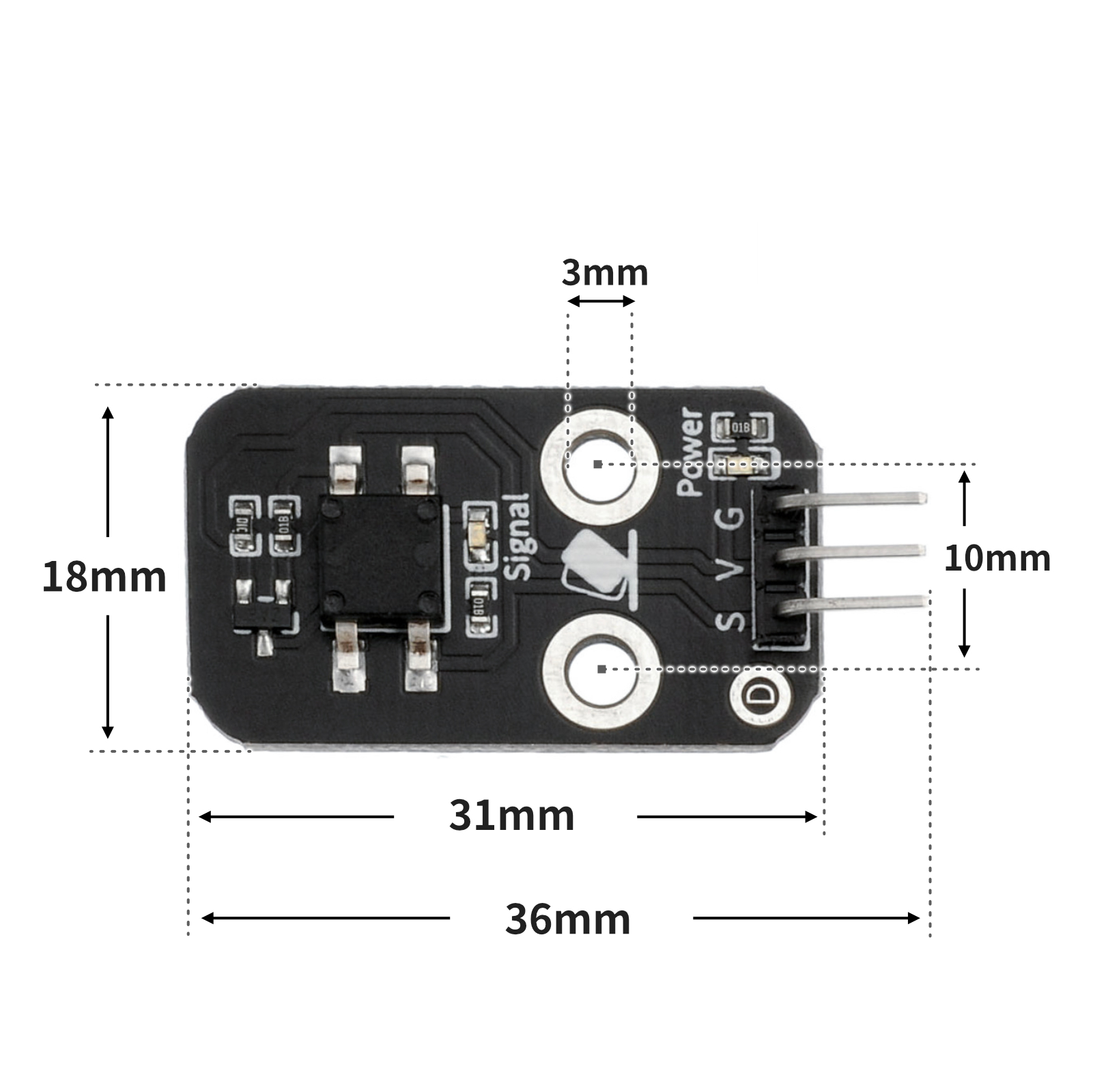

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

volatile int value;

void setup(){
  value = 0;
  Serial.begin(9600);
  pinMode(4, INPUT);
  pinMode(9, OUTPUT);
}

void loop(){
  value = digitalRead(4);
  Serial.println(value);
  if (value == 0) {
    digitalWrite(9,HIGH);

  } else {
    digitalWrite(9,LOW);

  }
  delay(500);

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine
import time


pin2 = machine.Pin(2, machine.Pin.IN)
pin4 = machine.Pin(4, machine.Pin.OUT)
while True:
    if pin2.value() == 0:
        pin4.value(1)
    else:
        pin4.value(0)
    time.sleep_ms(500)

7, Mixly example program (graphical language)

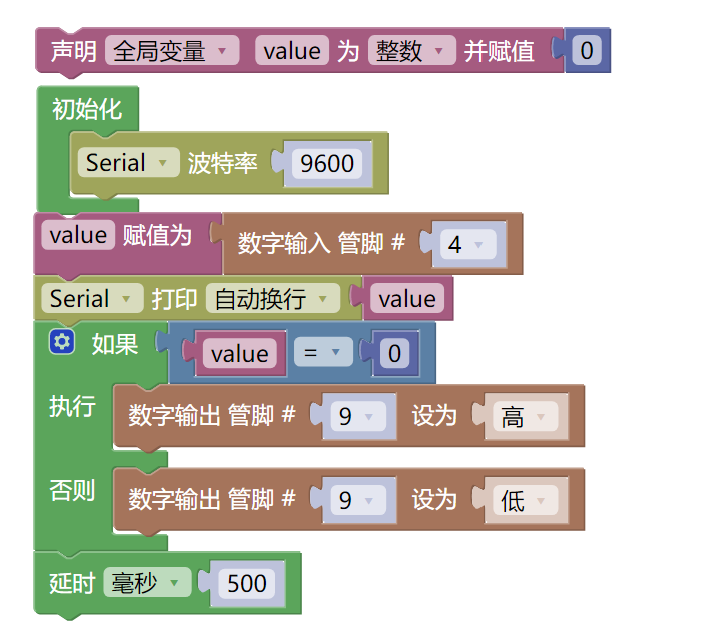

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

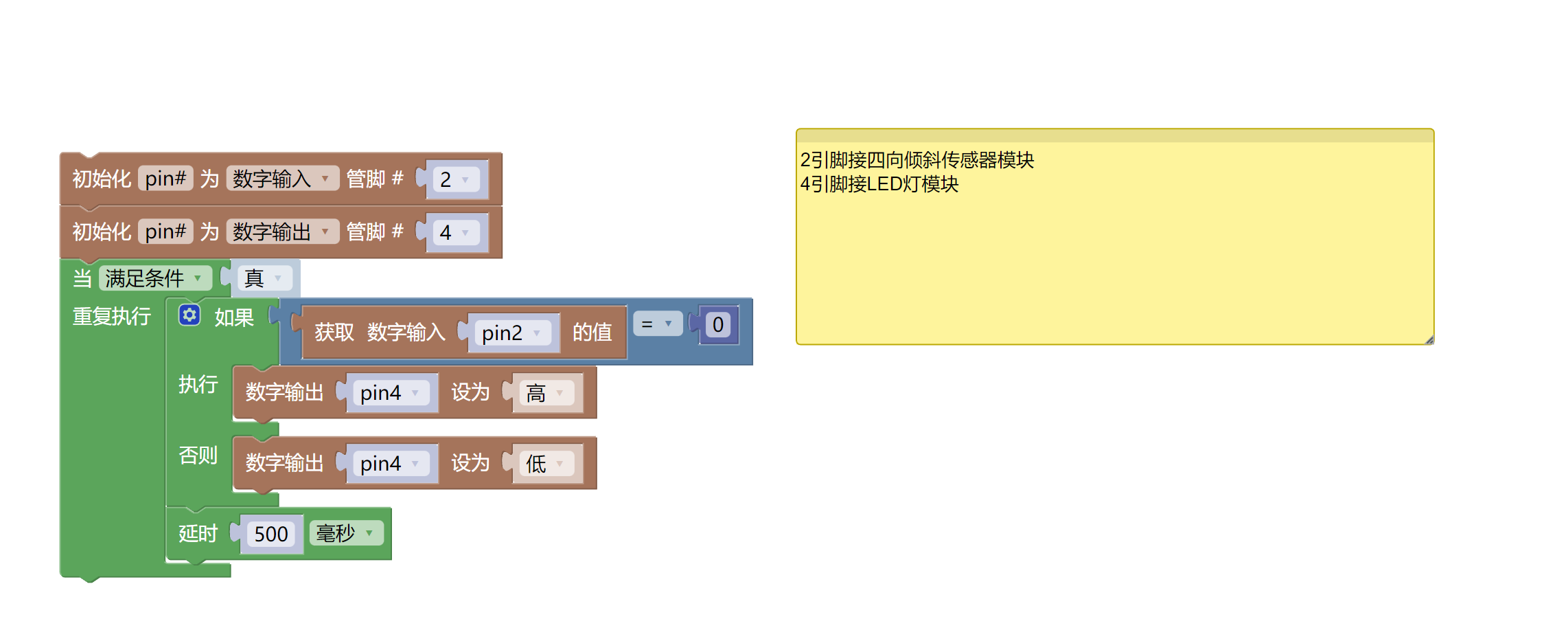

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 PRO DEVELOPMENT BOARD *1

• USB TYPE-C DATA CABLE *1

• LED light module (HS-F08A) *1

• Four-axis Tilt Sensor Module (HS-S27A) *1

• 1P female to female Dupont wire *6 pieces or 3P female to female Dupont wire *2 pieces

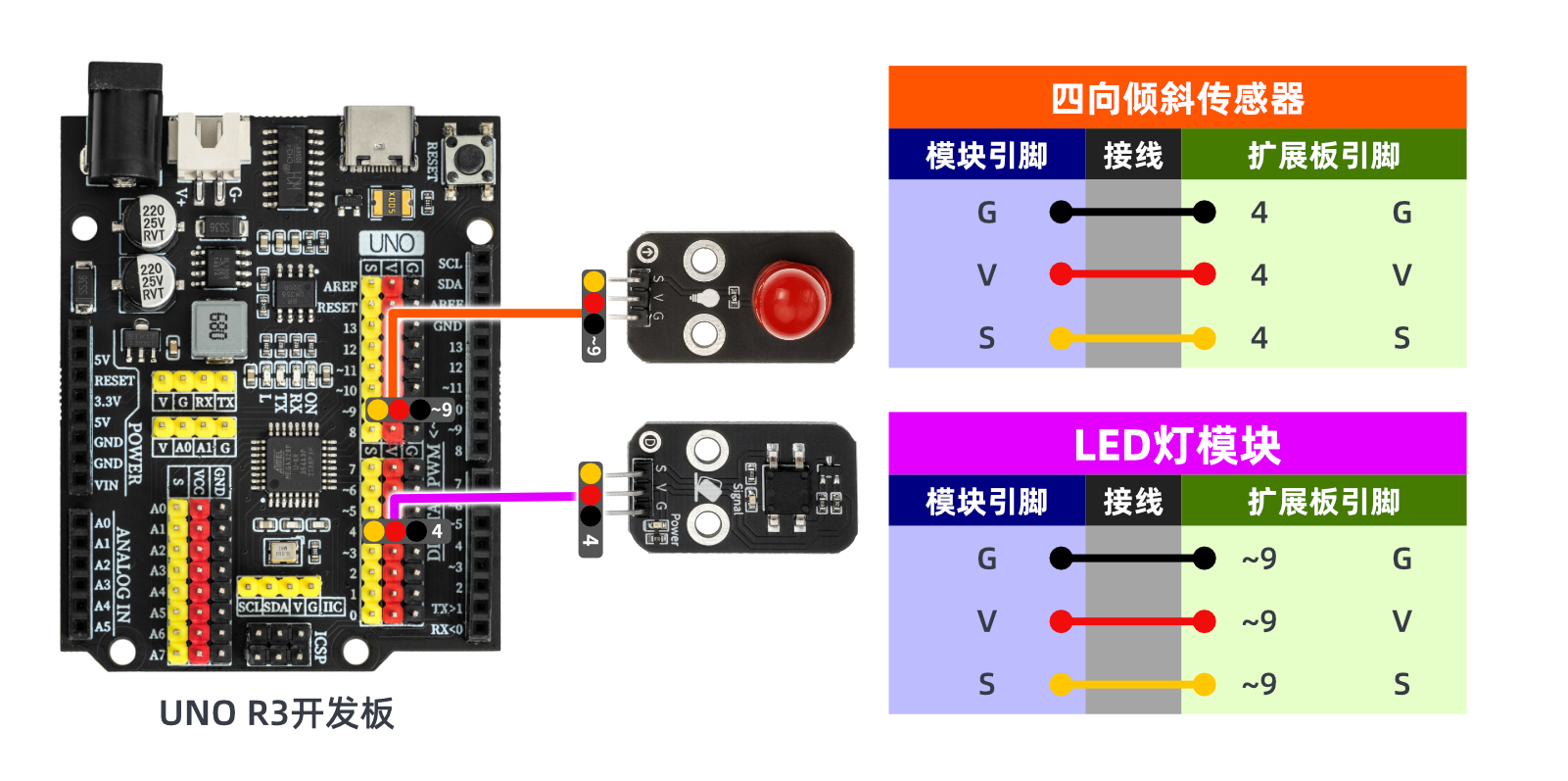

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Video tutorial:Click to view

10, Test results

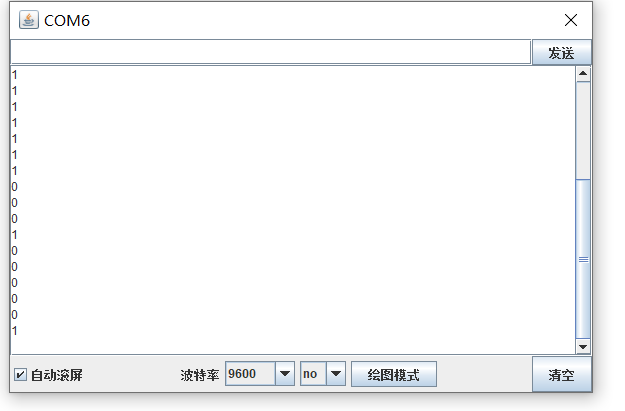

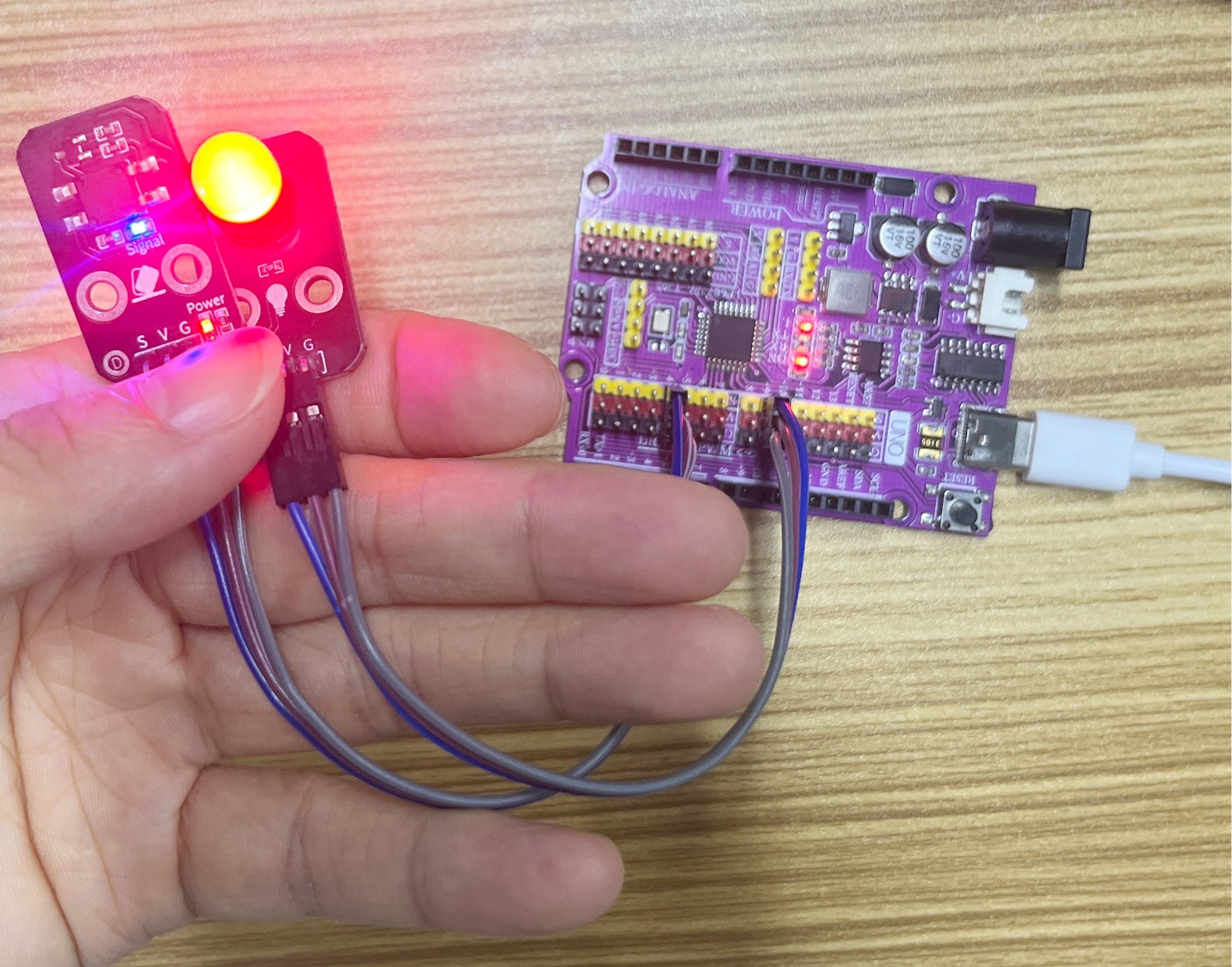

Arduino UNO test results:
