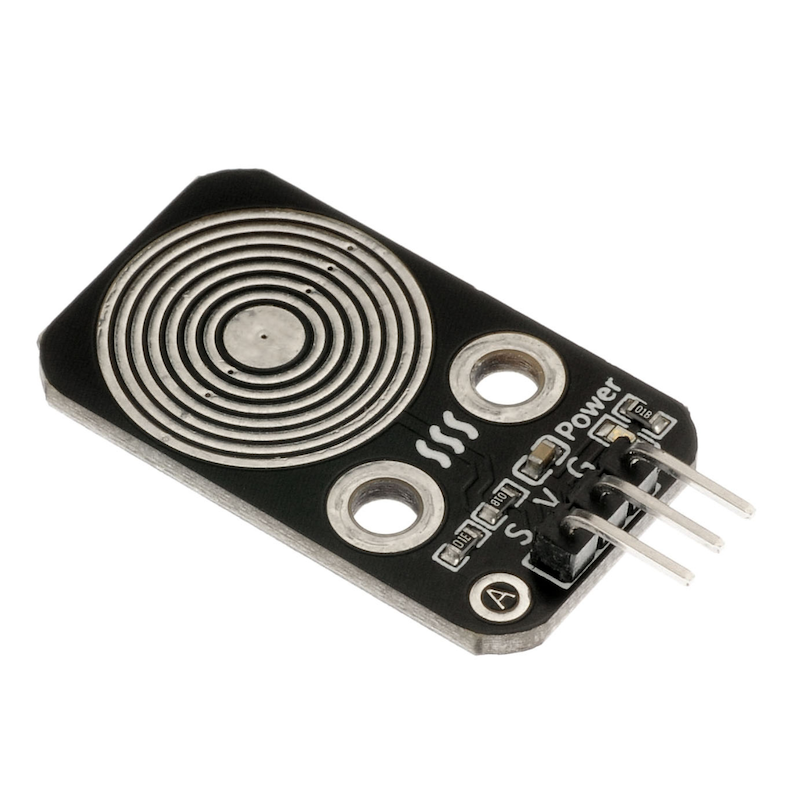

HS-S36A Steam Sensor

1. Introduction

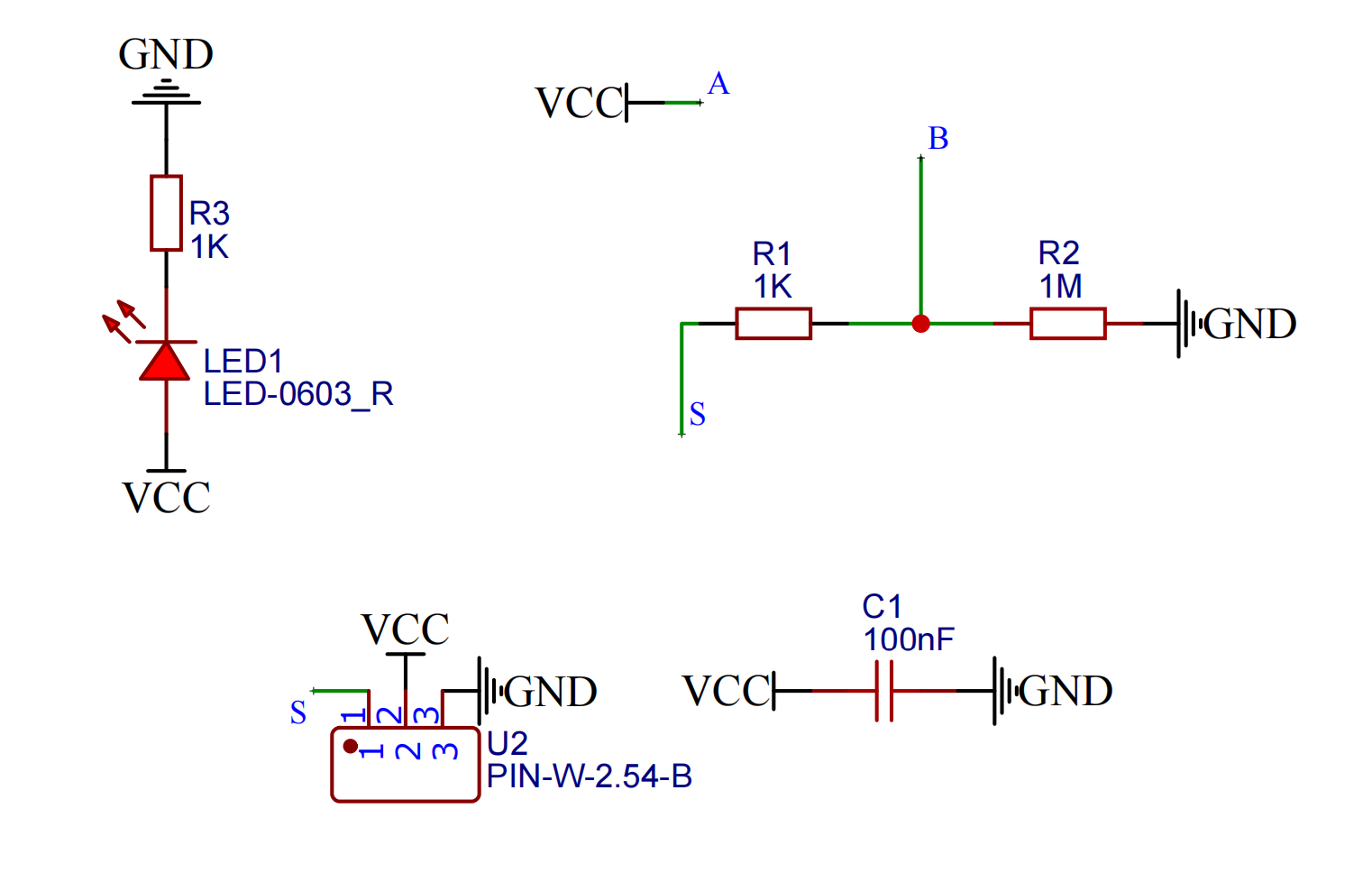

2. Schematic

Module Parameters

• Supply Voltage: 3V3/5V

• Connection Type: 2.54mm Header

• Installation Method: Double Screw Fixed

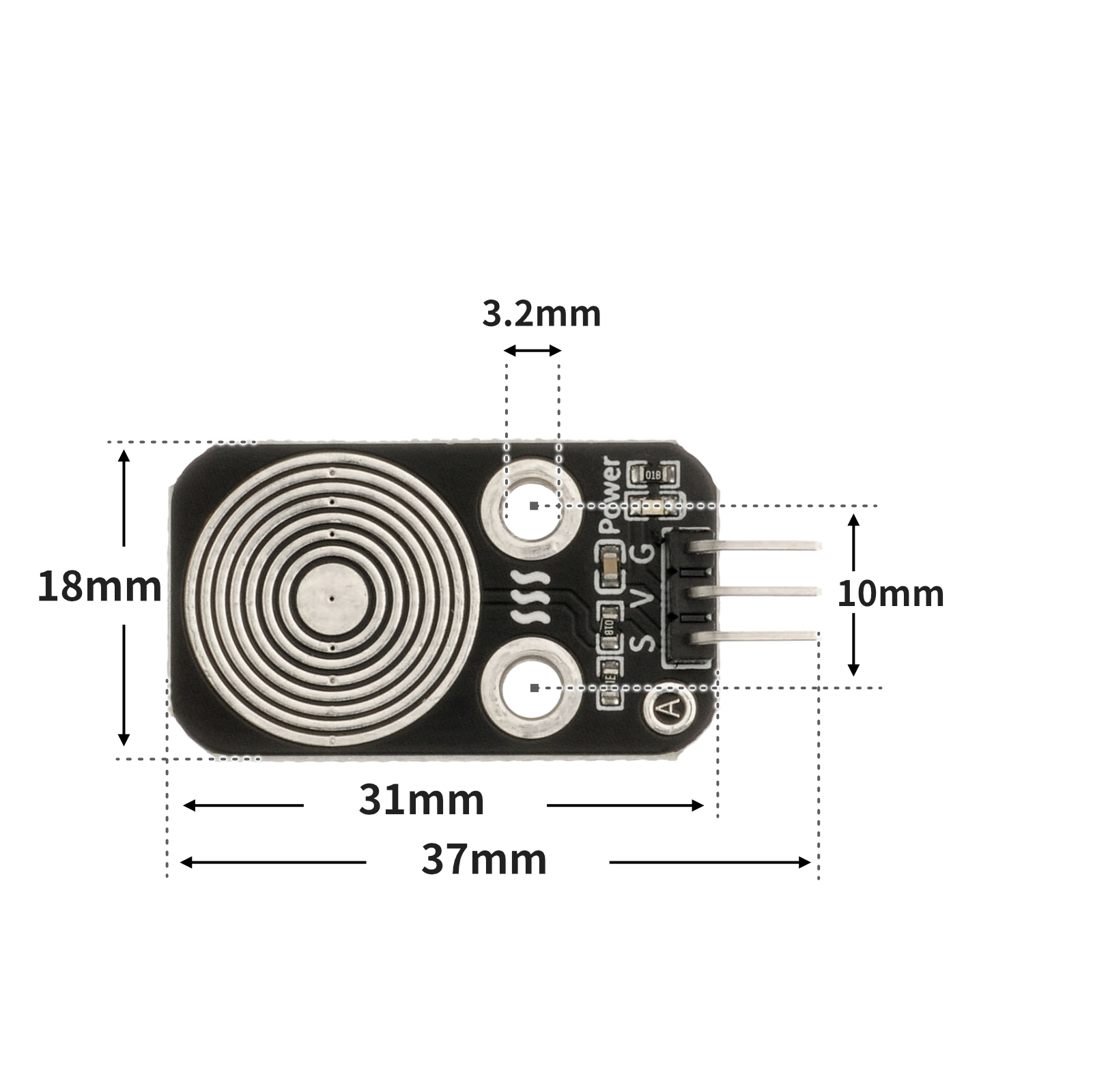

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

volatile int led;
volatile int Water_Vapor_value;

void setup(){
  Serial.begin(9600);
  led = 13;
  Water_Vapor_value = 0;
  pinMode(A0, INPUT);
}

void loop(){
  //led灯模块uno开发板接D13引脚；水蒸气传感器接uno开发板A0引脚

  Water_Vapor_value = analogRead(A0);
  if (Water_Vapor_value > 100) {
    pinMode(led, OUTPUT);
    digitalWrite(led,HIGH);
    delay(500);

  } else {
    pinMode(led, OUTPUT);
    digitalWrite(led,LOW);

  }
  Serial.println(Water_Vapor_value);

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine


adc32 = machine.ADC(machine.Pin(32))
pin4 = machine.Pin(4, machine.Pin.OUT)
while True:
    value = adc32.read_u16()
    print(value)
    if value > 40000:
        pin4.value(1)
    else:
        pin4.value(0)

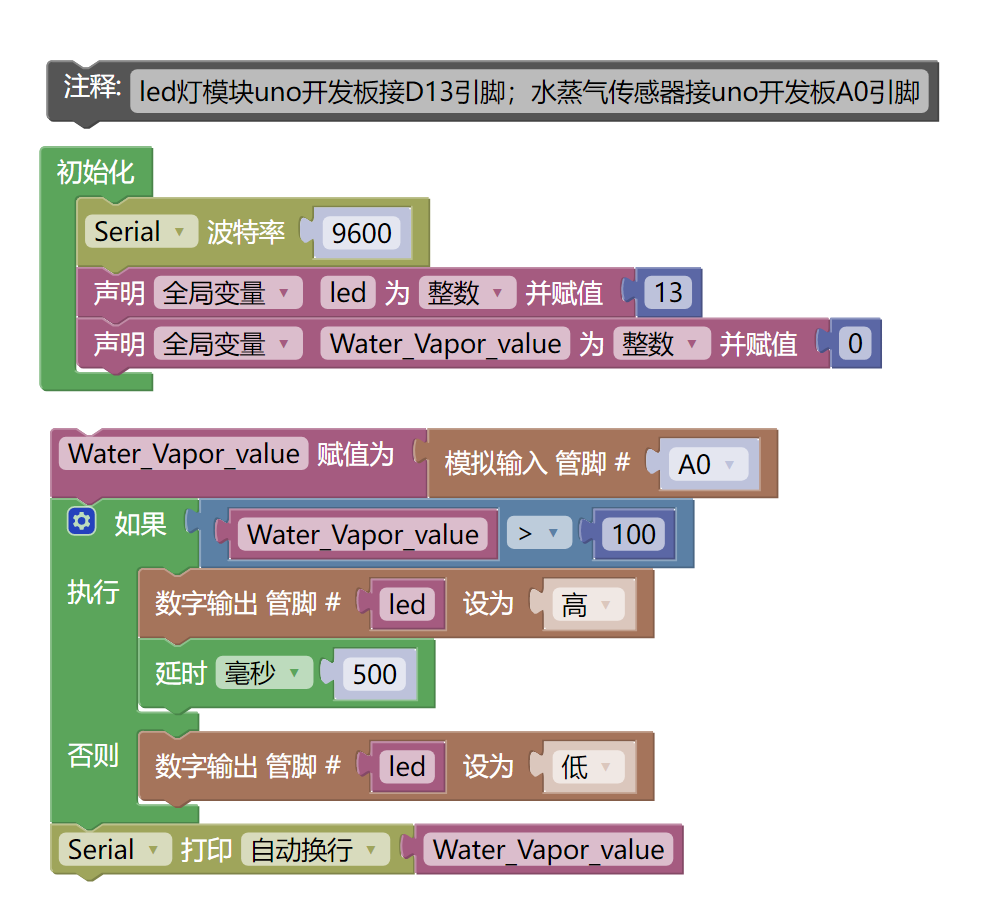

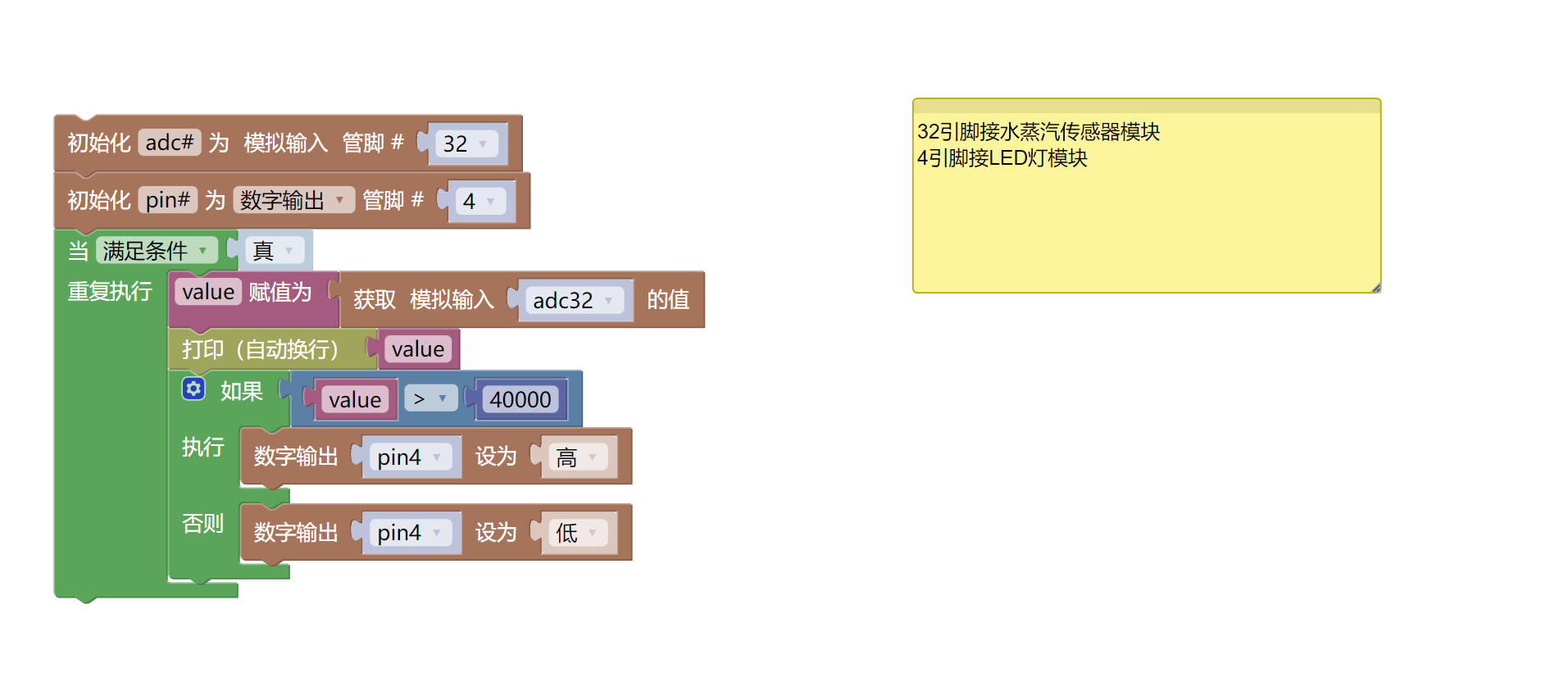

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 PRO DEVELOPMENT BOARD *1

• USB TYPE-C DATA CABLE *1

• HS-S36A Steam Sensor Module *1

• LED light module (HS-F08A) *1

• 1P female to female Dupont wire *6 pieces or 3P female to female Dupont wire *2 pieces

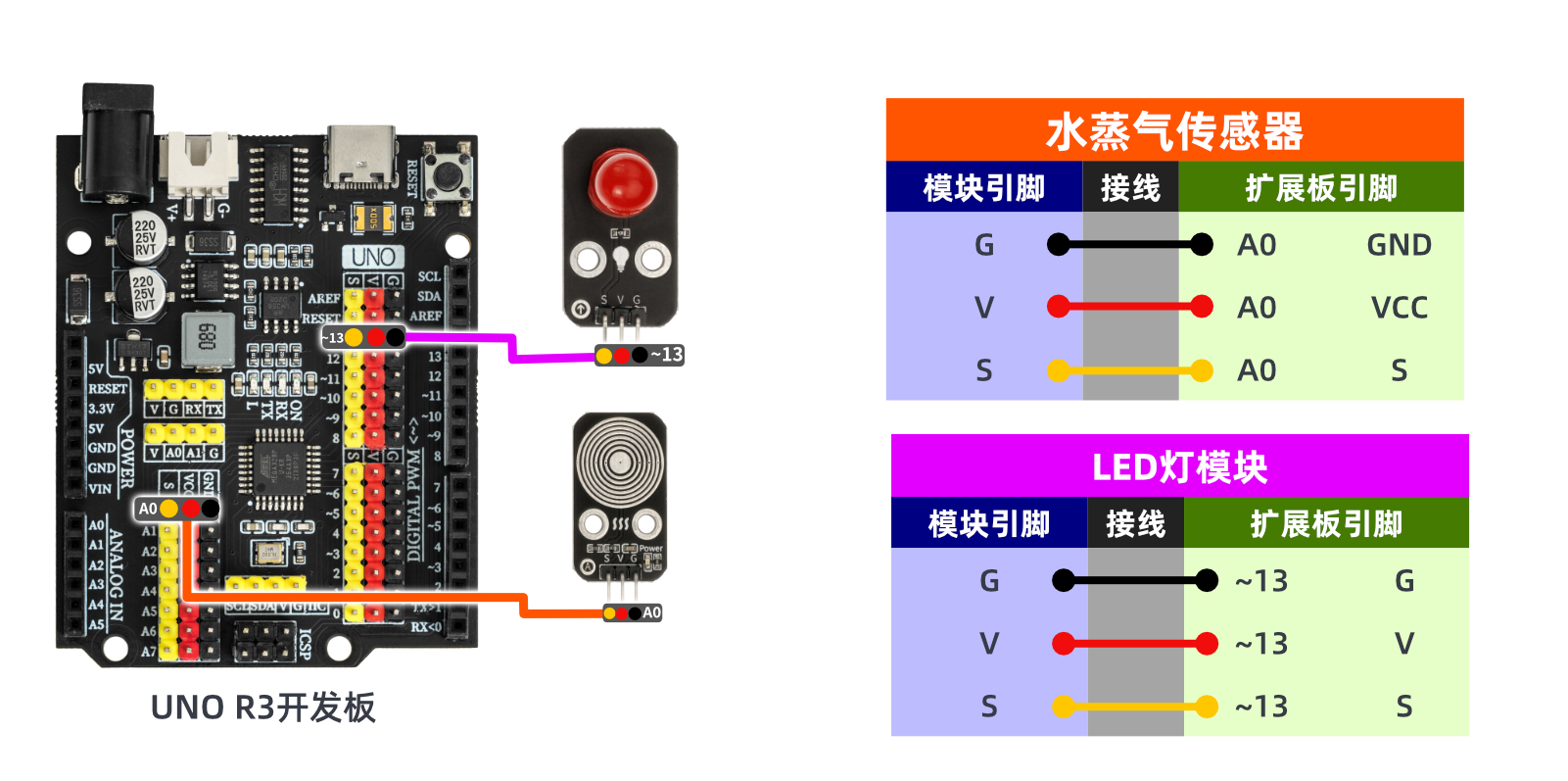

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Video tutorial:Click to view

10, Test results

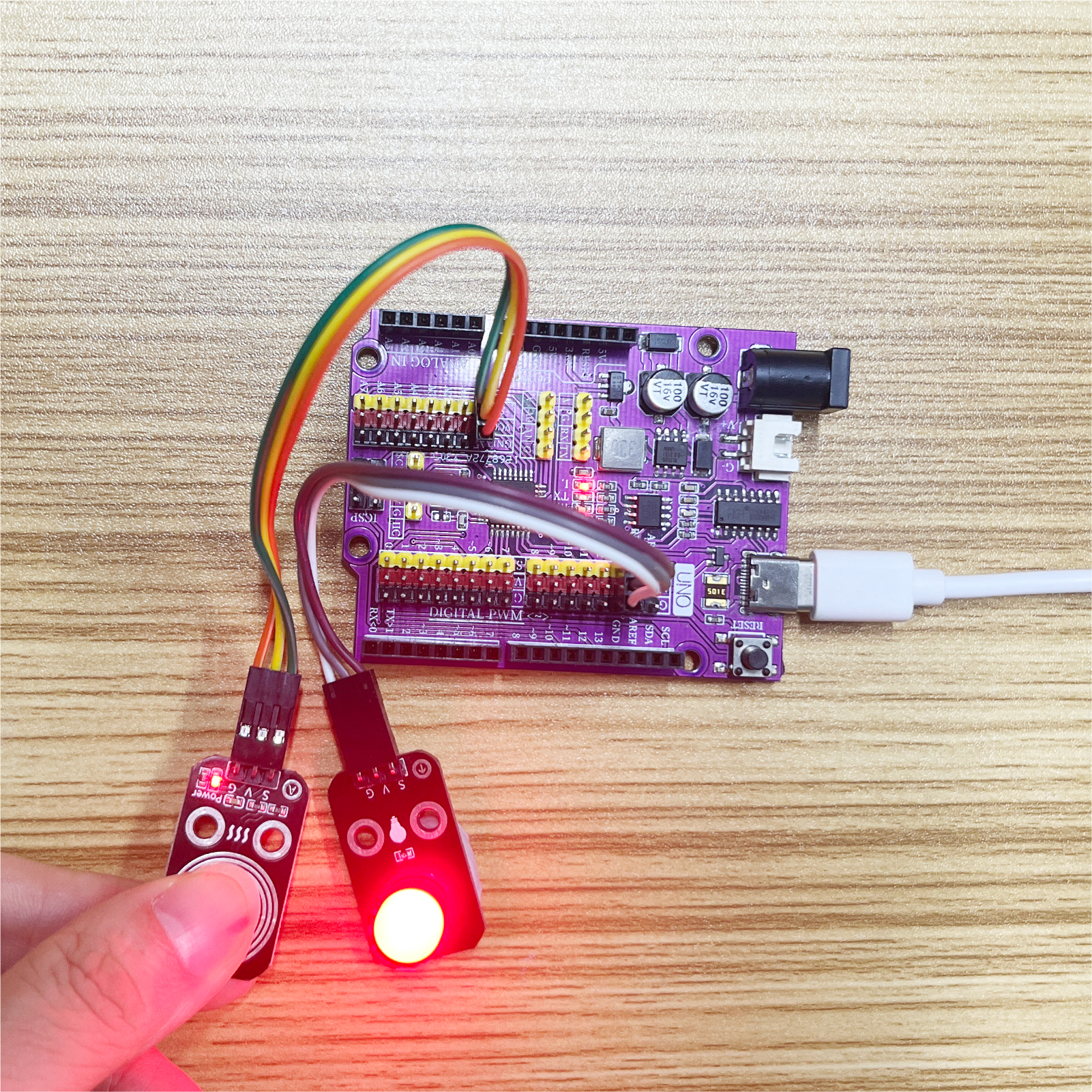

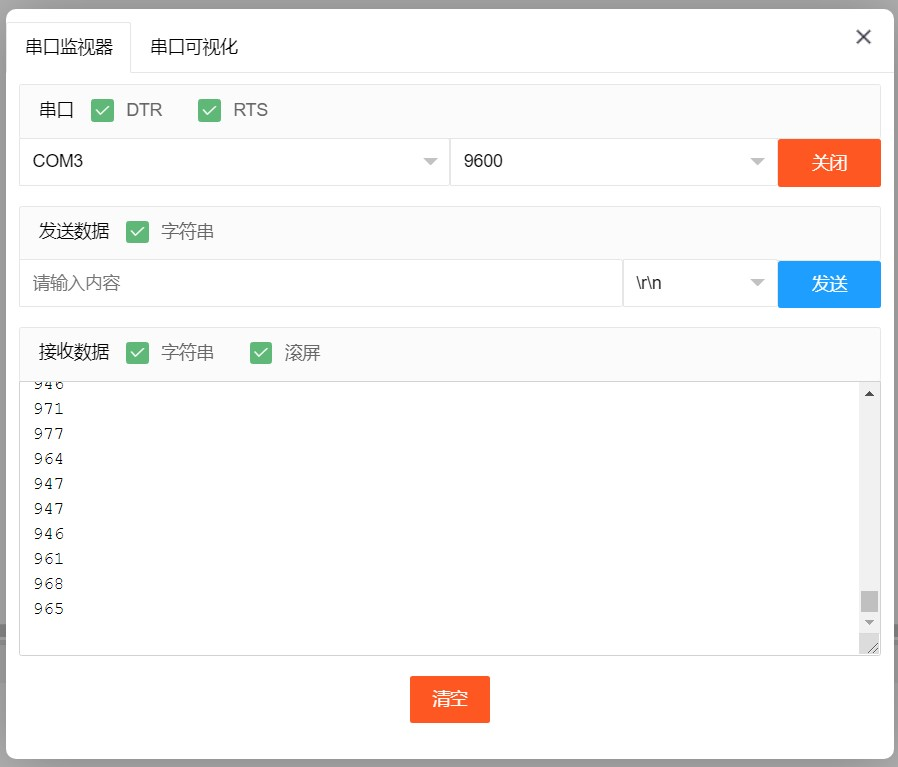

Arduino UNO test results:
