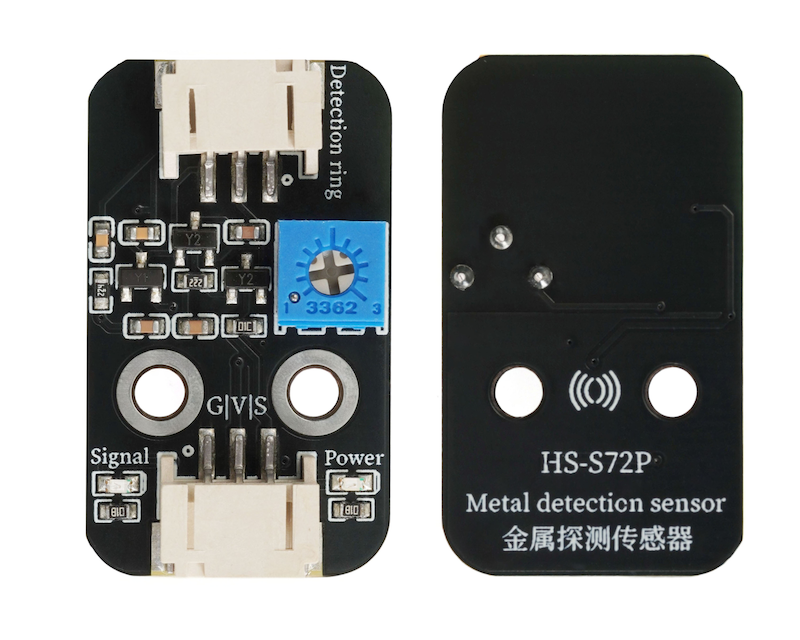

HS-S72P Metal Detector Sensor

1. Introduction

Another set of coils (receiving coil) detects changes in the magnetic field (such as flux, frequency, or phase shift), converts the signal into an electrical signal, and then amplifies and processes it to trigger an alarm or output the detection result.

2. Schematic

Metal Detection Sensor-HS-S72P SchematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection method: PH2.0 3P terminal

• Installation method: Screw fixed

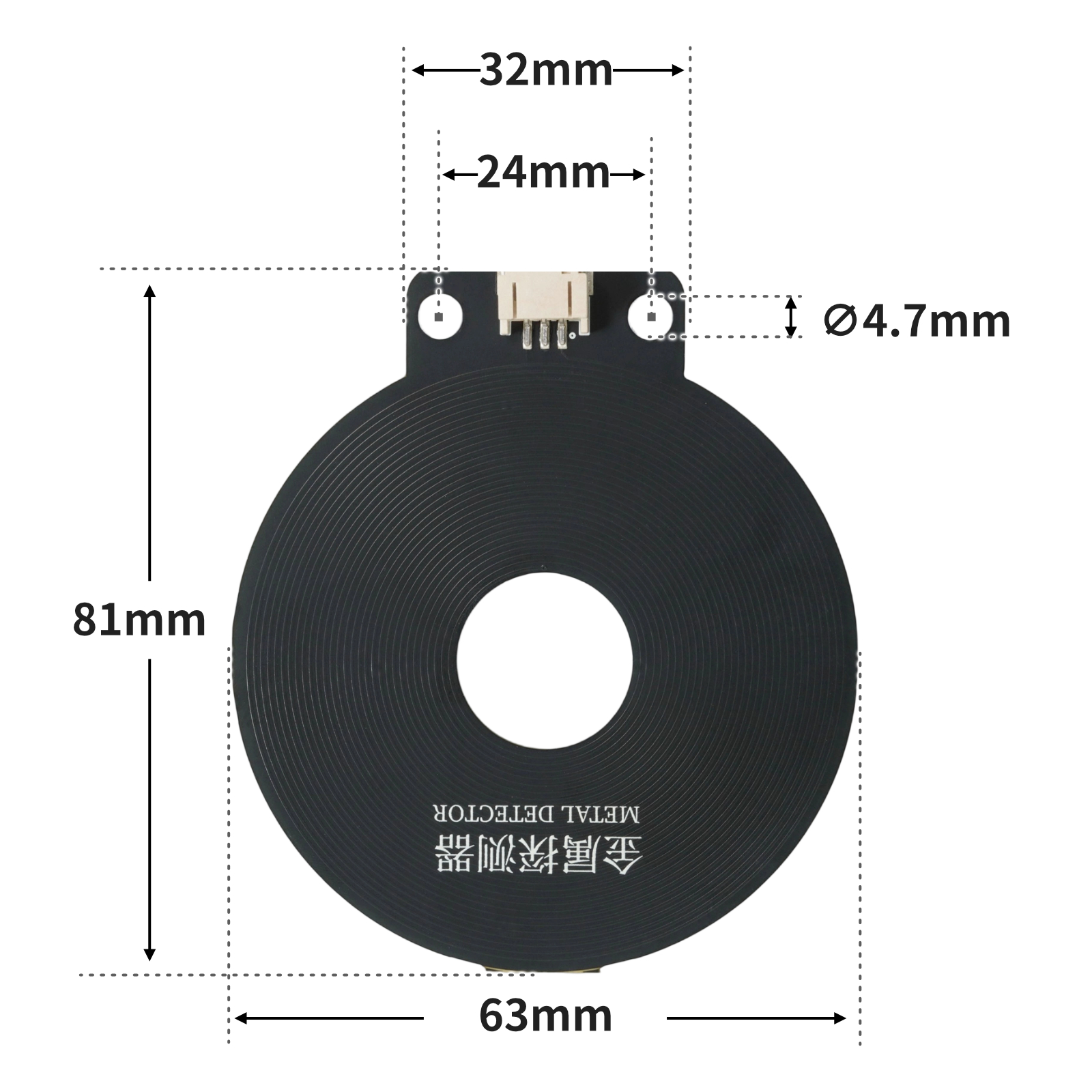

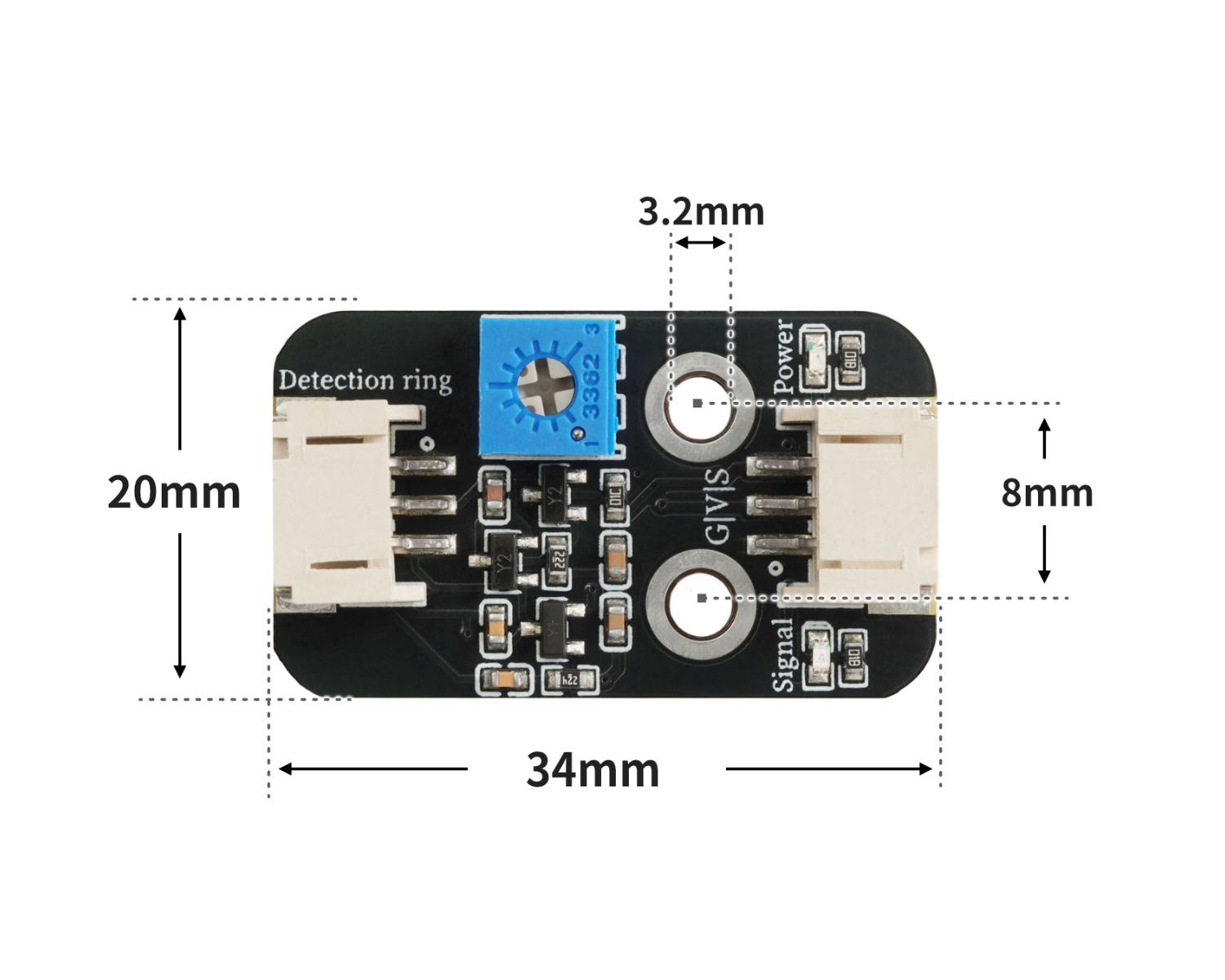

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

void setup(){
  pinMode(2, INPUT);
  pinMode(3, OUTPUT);
}

void loop(){
  if (digitalRead(2) == HIGH) {
    digitalWrite(3,HIGH);

  } else {
    digitalWrite(3,LOW);

  }

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine


pin4 = machine.Pin(4, machine.Pin.IN)
pin12 = machine.Pin(12, machine.Pin.OUT)
while True:
    if pin4.value() == 1:
        pin12.value(1)
    else:
        pin12.value(0)

7, Mixly example program (graphical language)

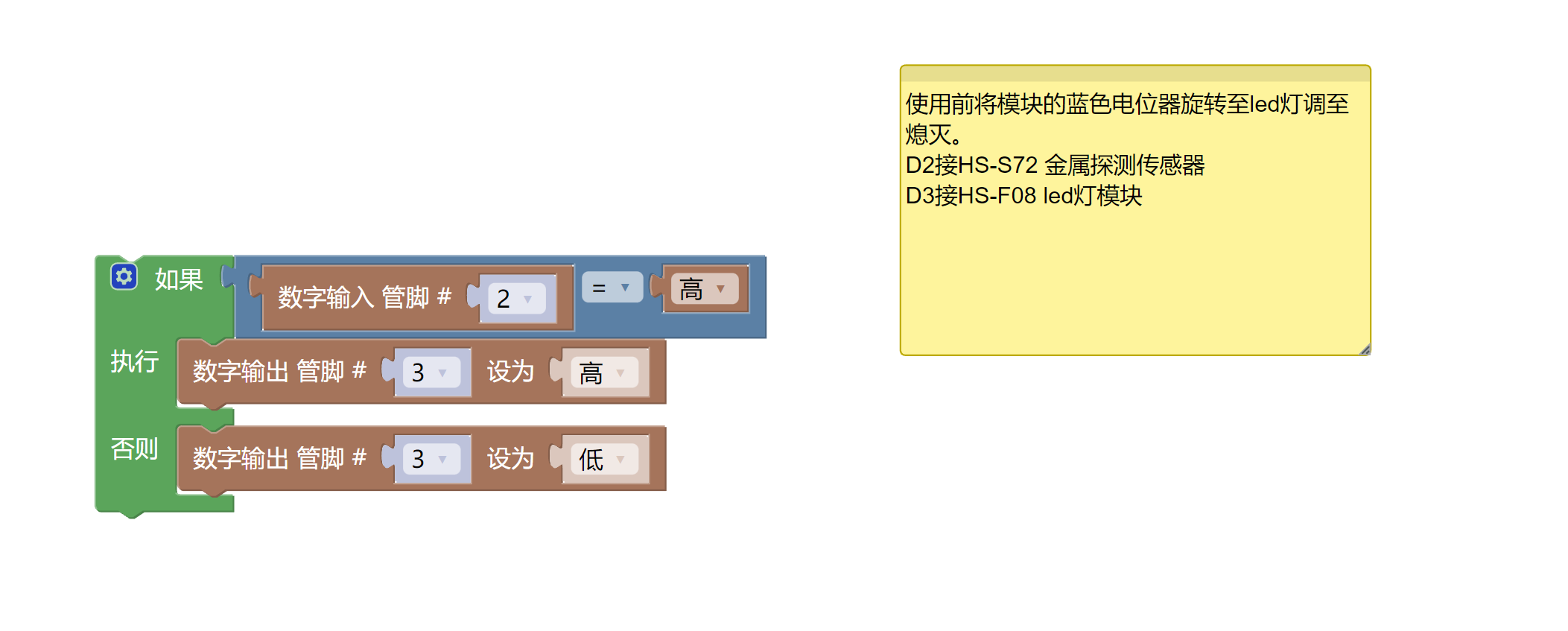

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

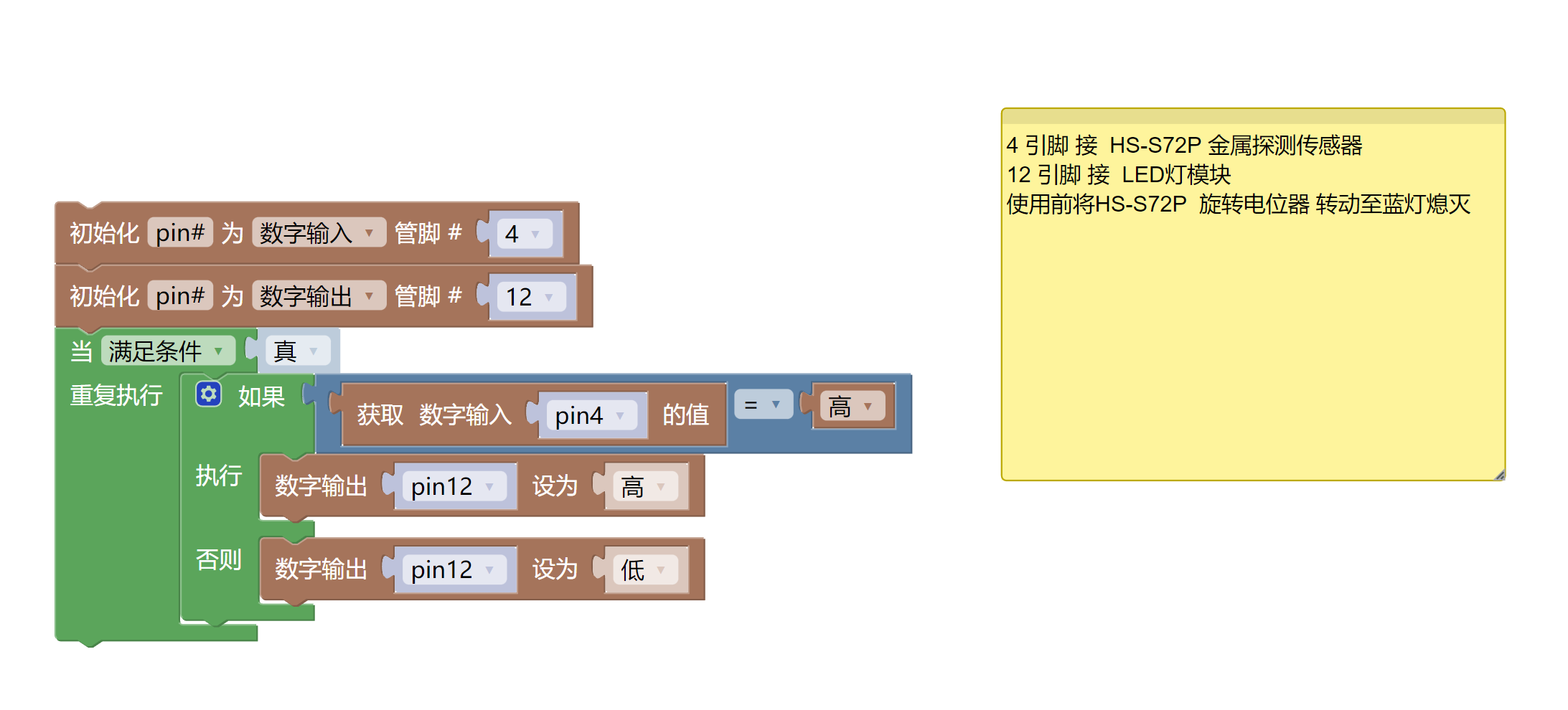

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 PRO DEVELOPMENT BOARD *1

• R3P expansion board *1

• USB TYPE-C DATA CABLE *1

• Metal Detection Sensor (HS-S72-P) *1

• LED Module (HS-F08-P) *1

• PH2.0 3P double-ended terminal line *2 or PH2.0 3P connector to DuPont wire *2

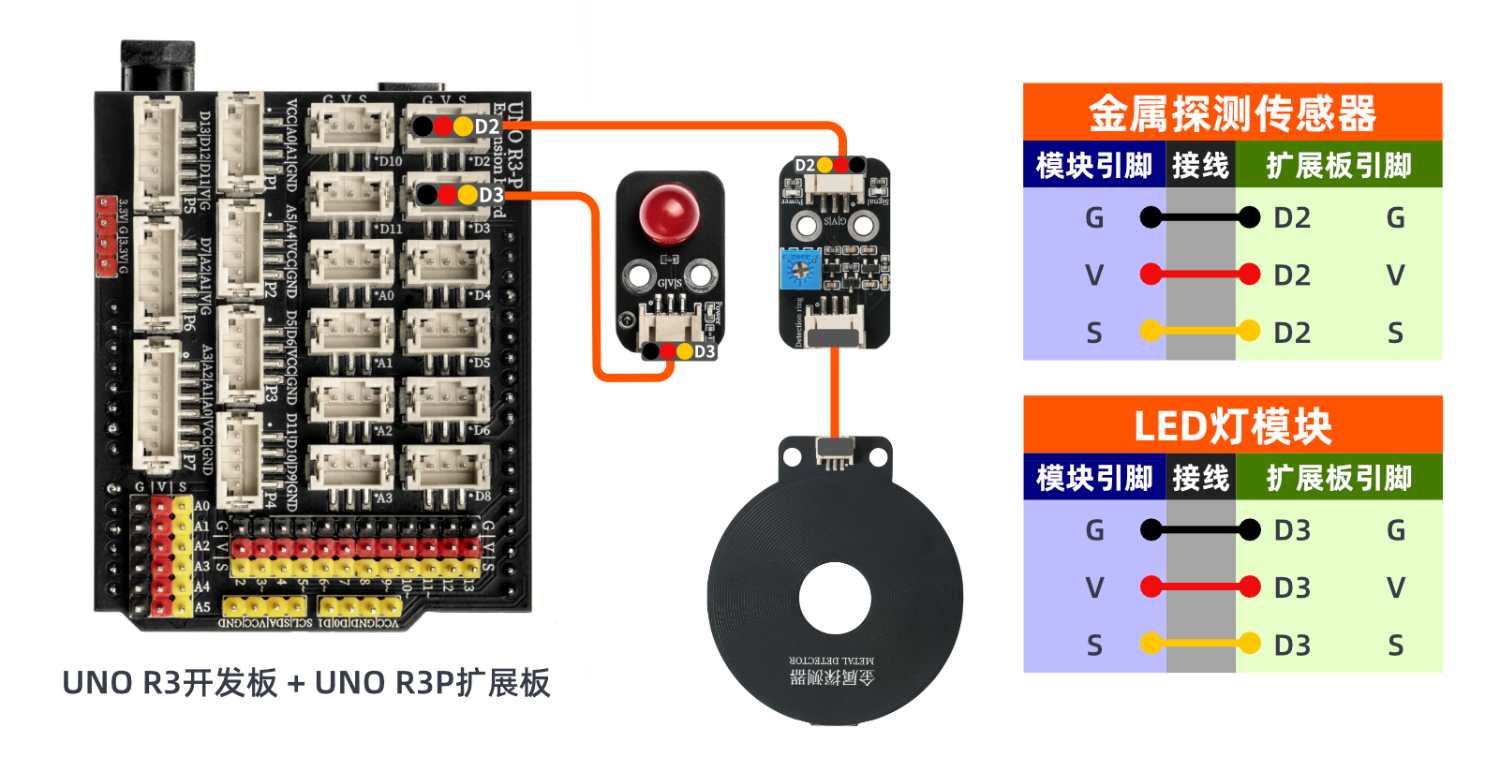

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Video tutorial:Click to view

10, Test conclusion

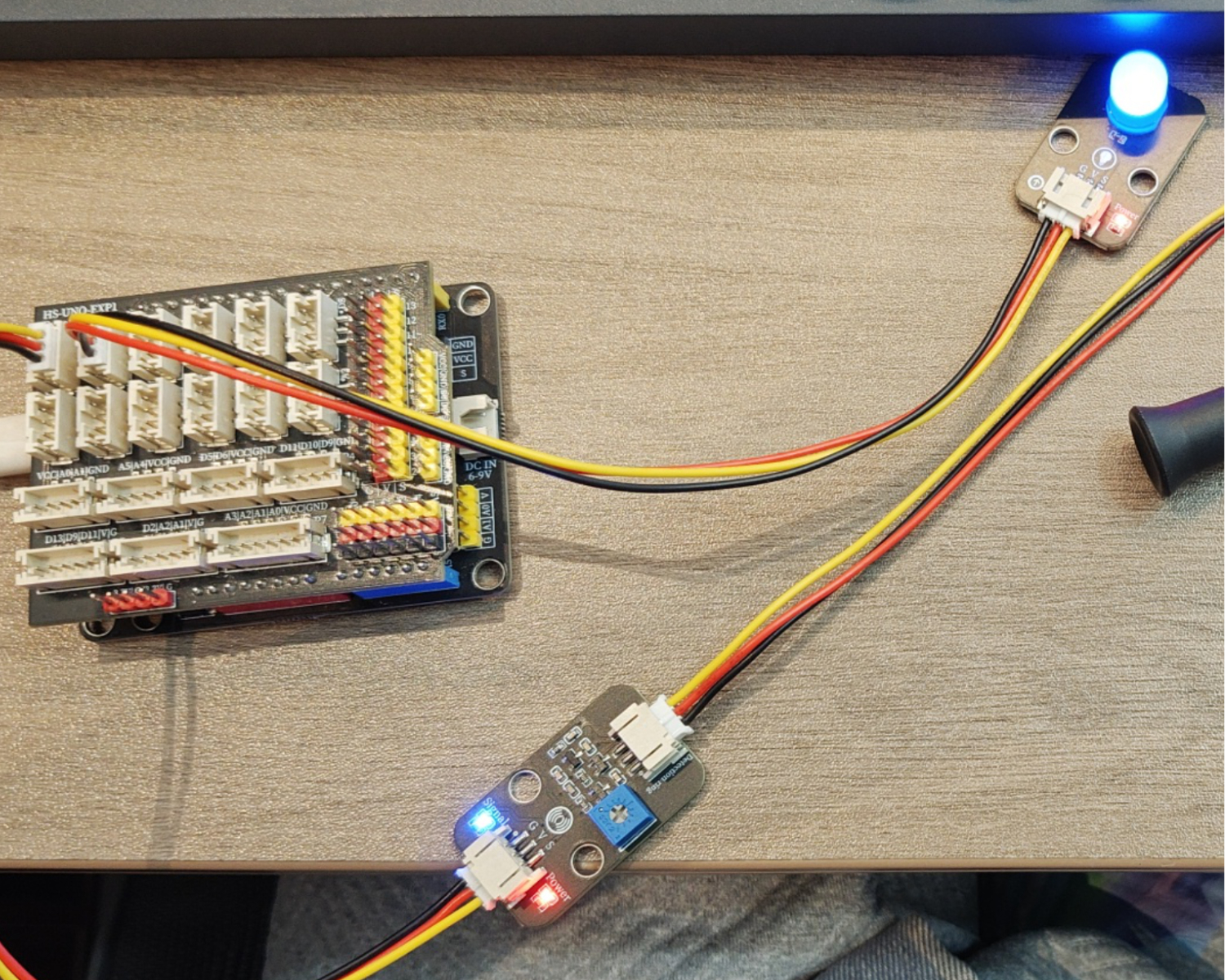

Arduino UNO test results:

After connecting the device, upload the above program to the UNO-R3 PRO development board and then power on.Place a metal object on the detection plate. The LED module will light up when it detects metal, otherwise it will turn off.

ESP32 Test Results:

Pending update...
