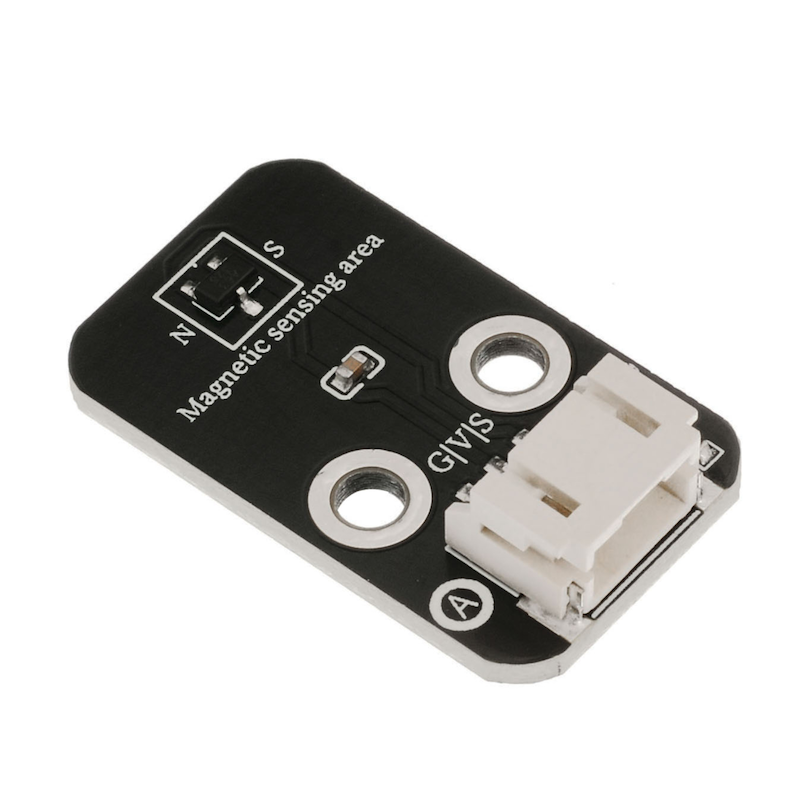

Linear Hall Effect Magnetic Sensor HS-S50P

1. Introduction

The EG49 linear Hall integrated circuit consists of a voltage regulator, a Hall sensor, a linear amplifier, and an emitter follower.

2. Schematic

Linear Hall Magnetic Sensor-HS-S50P SchematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection method: PH2.0 terminal wire

• Installation Method: Double Screw Fixed

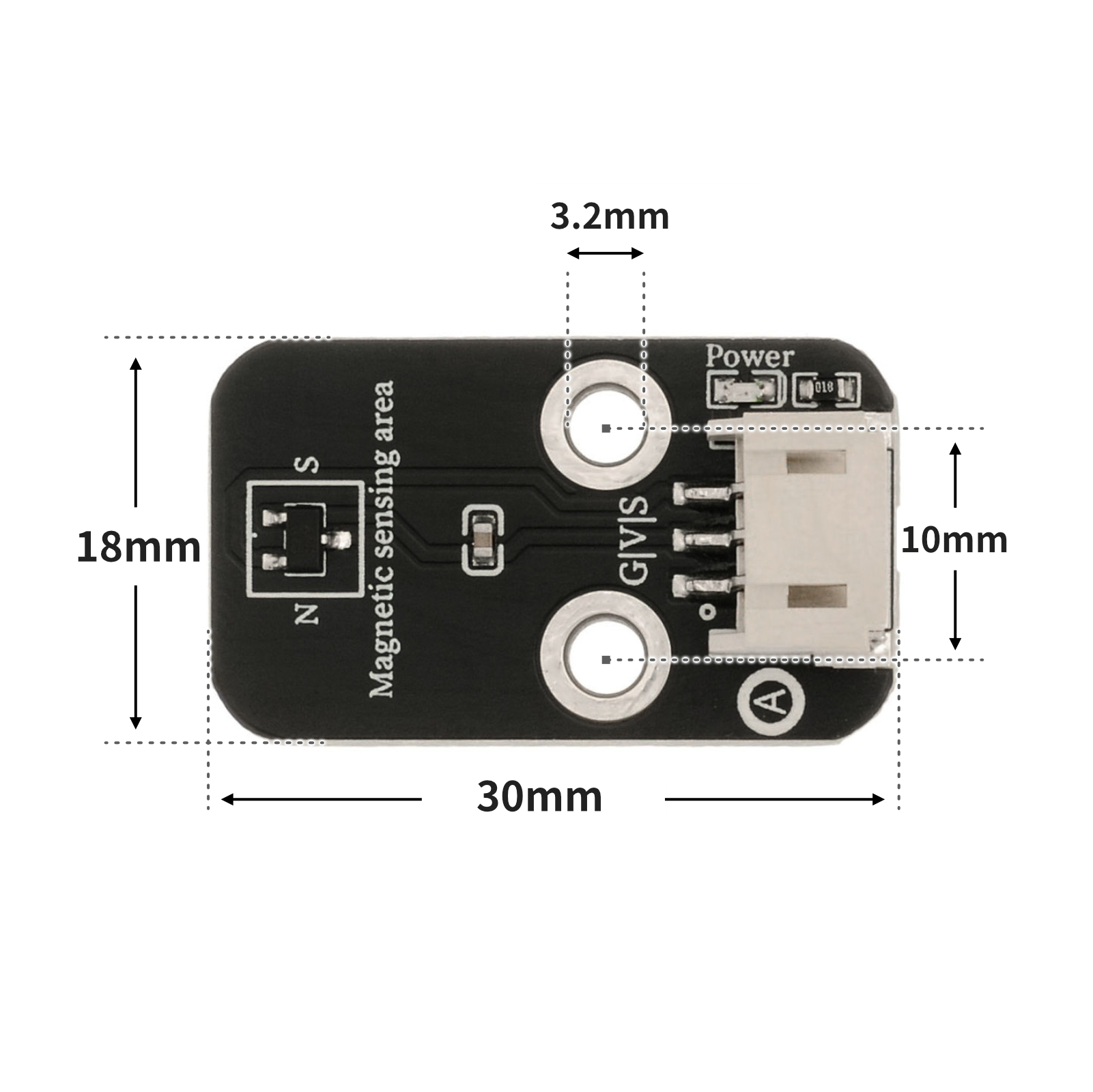

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

void setup(){
  Serial.begin(9600);
  pinMode(A0, INPUT);
  pinMode(A0, INPUT);
  pinMode(6, OUTPUT);
}

void loop(){
  //线性磁力传感器接A0，D6接led灯，。
  //传感器如果当作数字量开关，只N极能触发，输出低电平。
  if (digitalRead(A0) == 1 && analogRead(A0) > 540) {
    Serial.println(String("检测到s（南）磁极：数字低电平（1）  ") + String(digitalRead(A0)) + String("输出模拟值变大 ") + String(analogRead(A0)));
    analogWrite(6, 255);

  } else if (digitalRead(A0) == 0) {
    Serial.println(String("检测到N（北）磁极：数字低电平（0）  ") + String(digitalRead(A0)) + String("输出模拟值变小 ") + String(analogRead(A0)));
    analogWrite(6, 10);
  } else {
    Serial.println("未检测到磁场");
    analogWrite(6, 0);

  }

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine


pin32 = machine.Pin(32, machine.Pin.IN)
adc32 = machine.ADC(machine.Pin(32))
pin2 = machine.Pin(2, machine.Pin.OUT)
while True:
    if pin32.value() == 1 and adc32.read_u16() > 40000:
        pin2.value(1)
    else:
        pin2.value(0)

7, Mixly example program (graphical language)

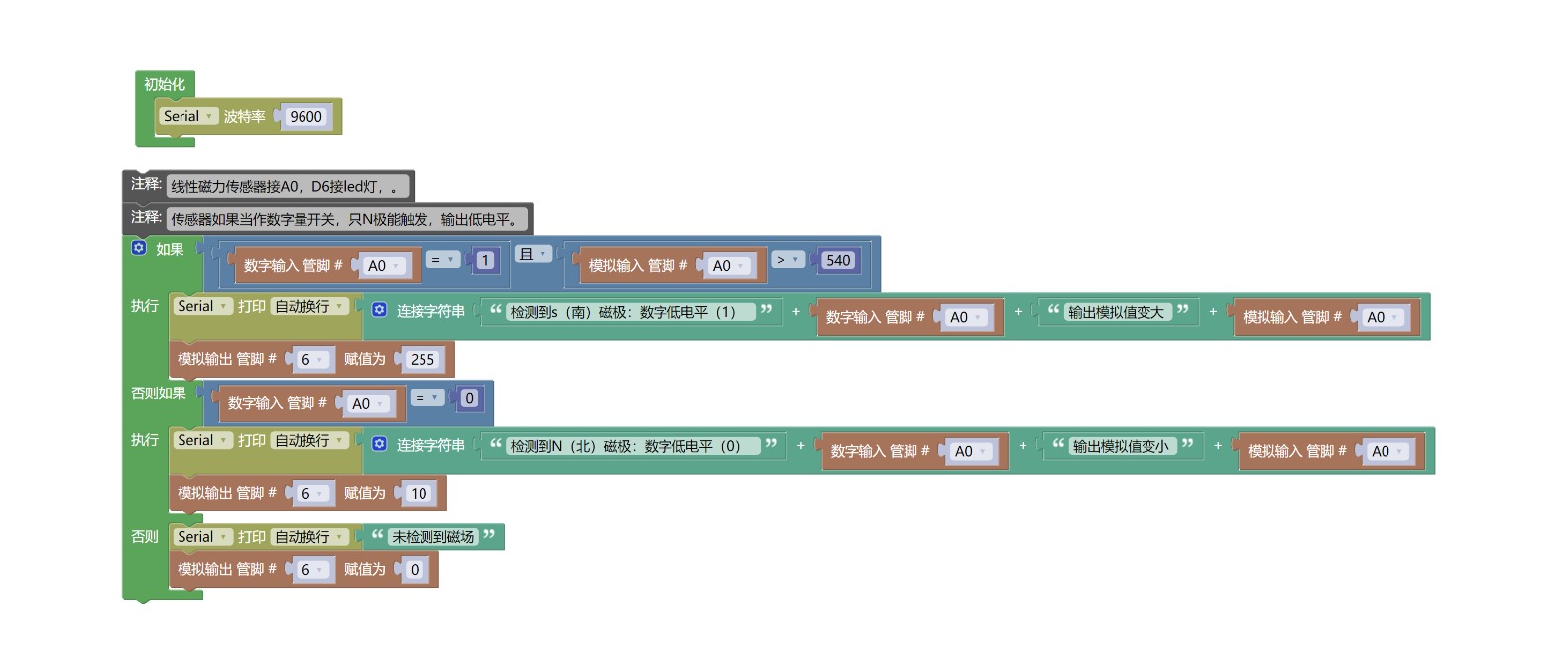

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

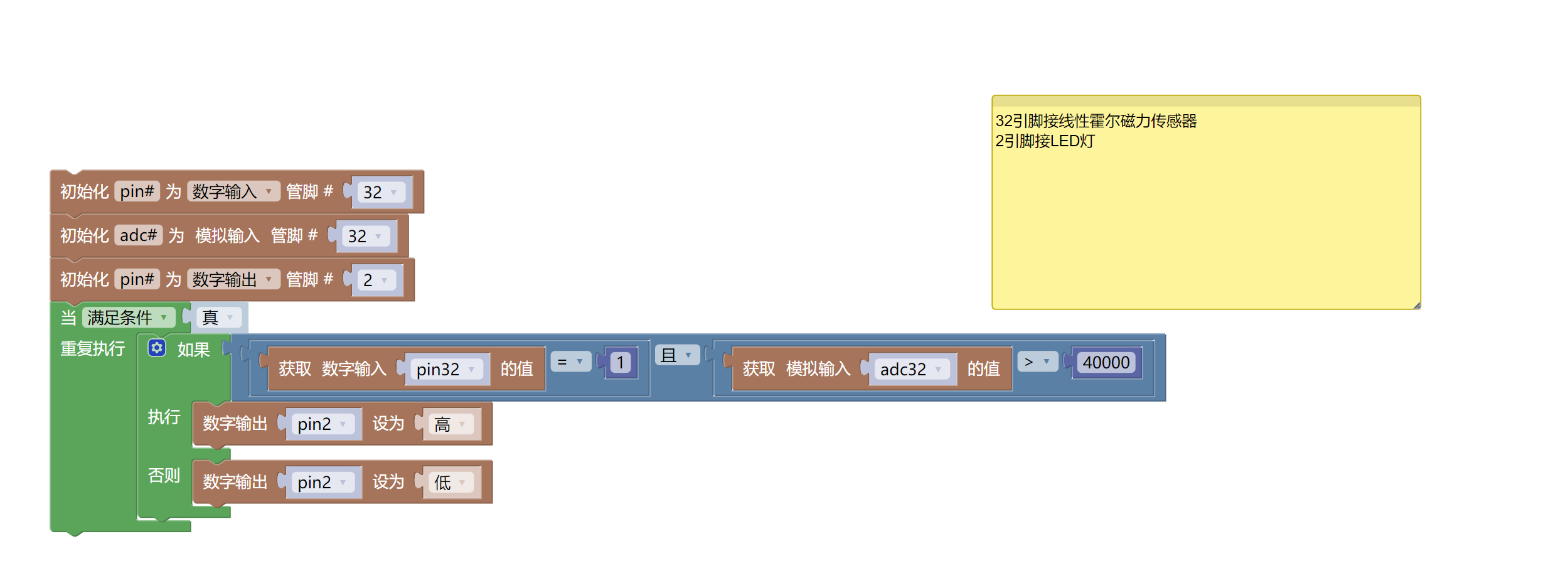

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• UNO-R3 Development Board *1

• UNO-R3 P Expansion Board *1

• USB TYPE-C DATA CABLE *1

• LED module (HS-F08P) *1

• Linear Hall Magnetic Sensor (HS-S50P) *1

• PH2.0 3P double-ended terminal line *2 or PH2.0 3P connector to DuPont wire *2

• Magnet (self-provided) *1

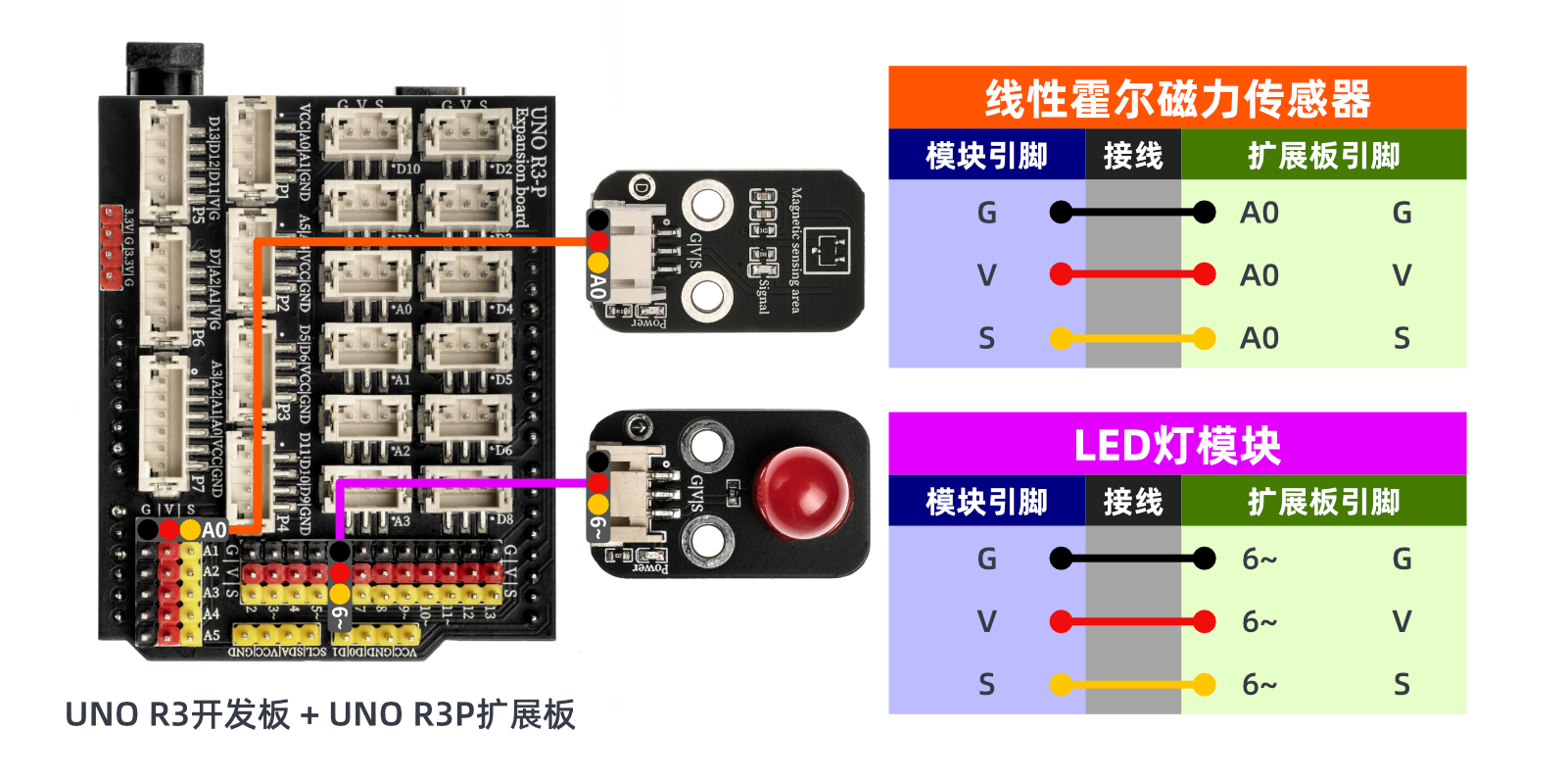

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Video tutorial:Click to view

10, Test results

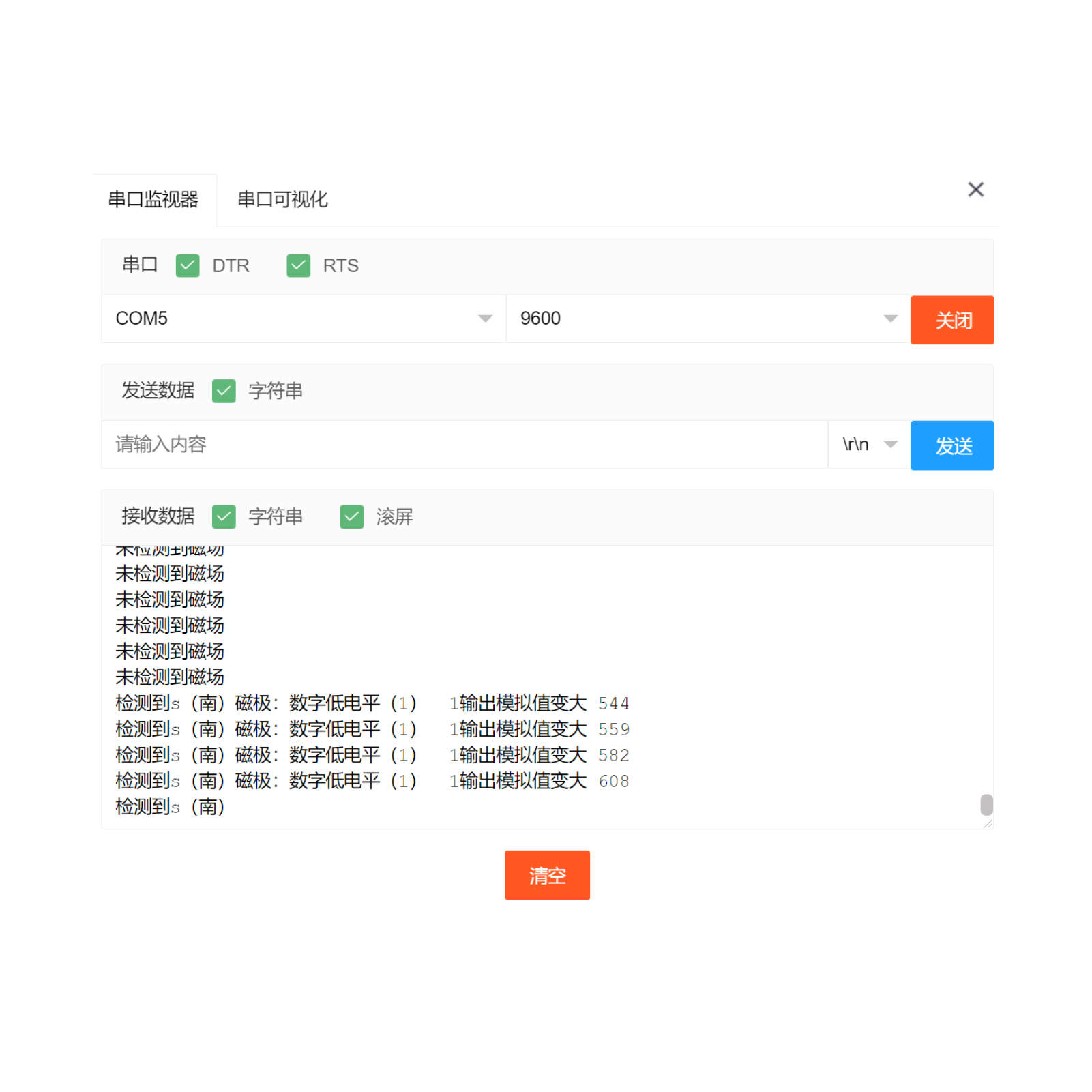

Arduino UNO test results:

ESP32 Test Results:

Pending update...
