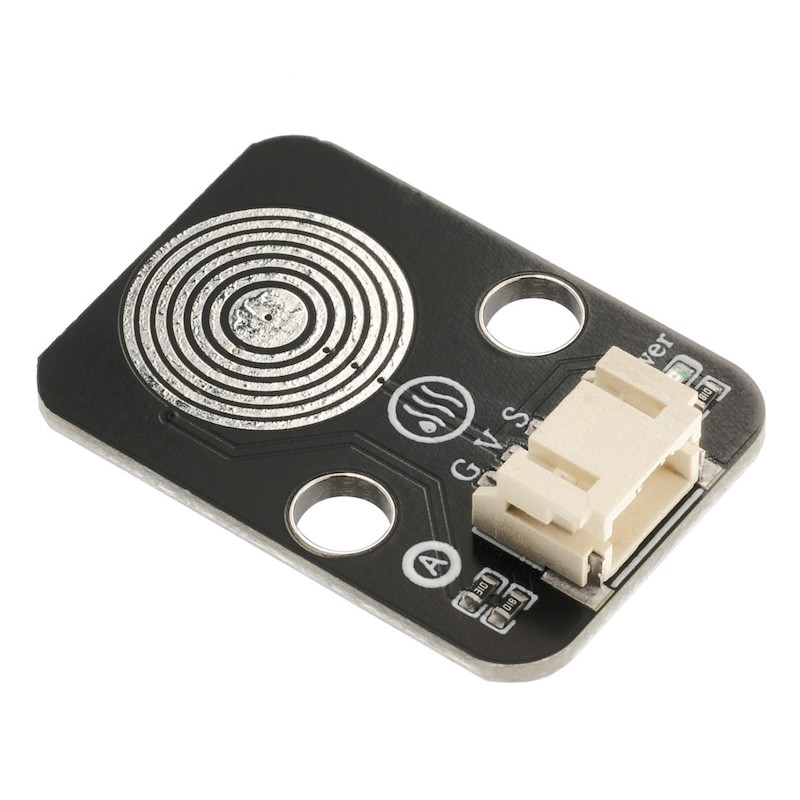

HS-S36-L Steam Sensor

1. Introduction

2. Schematic

Module Parameters

• Supply Voltage: 3V3/5V

• Connection method: PH2.0 3P terminal

• Installation method: double screw fixing/Lego assembly

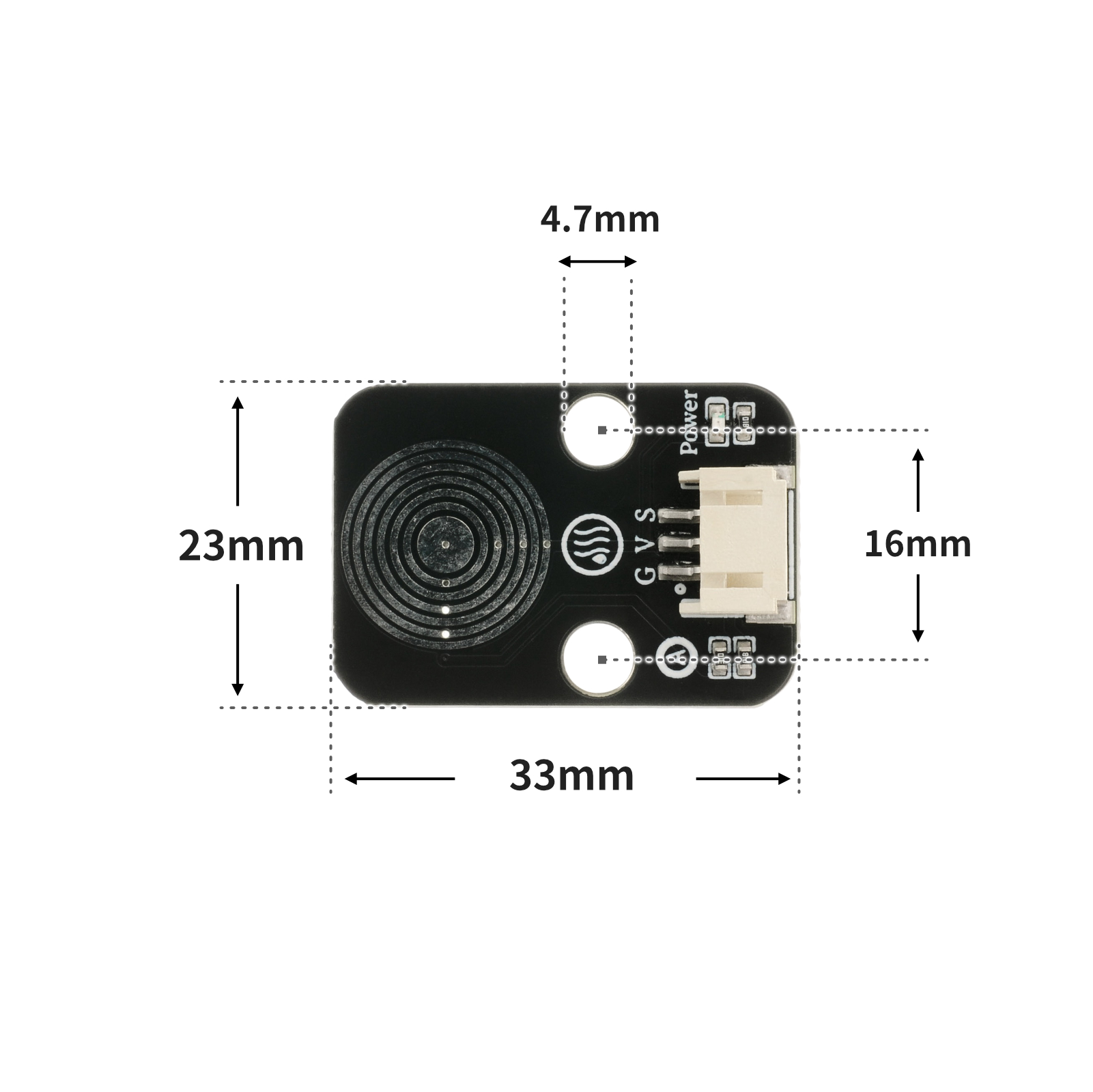

4, Circuit Board Size

5 of Arduino IDE example program

Arduino UNO Example (for Mixly IDE, Arduino IDE):

 int led= 6;;
 int Water_Vapor_value = 0;

void setup(){
  Serial.begin(9600);

  pinMode(A0, INPUT);
}

void loop(){
  //led灯模块uno开发板接D6引脚；水蒸气传感器接uno开发板A0引脚

  Water_Vapor_value = analogRead(A0);
  if (Water_Vapor_value > 100) {
    pinMode(led, OUTPUT);
    digitalWrite(led,HIGH);
    delay(500);

  } else {
    pinMode(led, OUTPUT);
    digitalWrite(led,LOW);

  }
  Serial.println(Water_Vapor_value);

}

ESP32 Python Example (for Mixly IDE / Micskit)
(Choose the Python ESP32 [ESP32 Generic(4MB)] to switch to code mode upload):

import machine


adc32 = machine.ADC(machine.Pin(32))
pin4 = machine.Pin(4, machine.Pin.OUT)
while True:
value = adc32.read_u16()
print(value)
if value > 40000:
pin4.value(1)
else:
pin4.value(0)

6, Miciqi Mixly Example Program (Graphical Language)

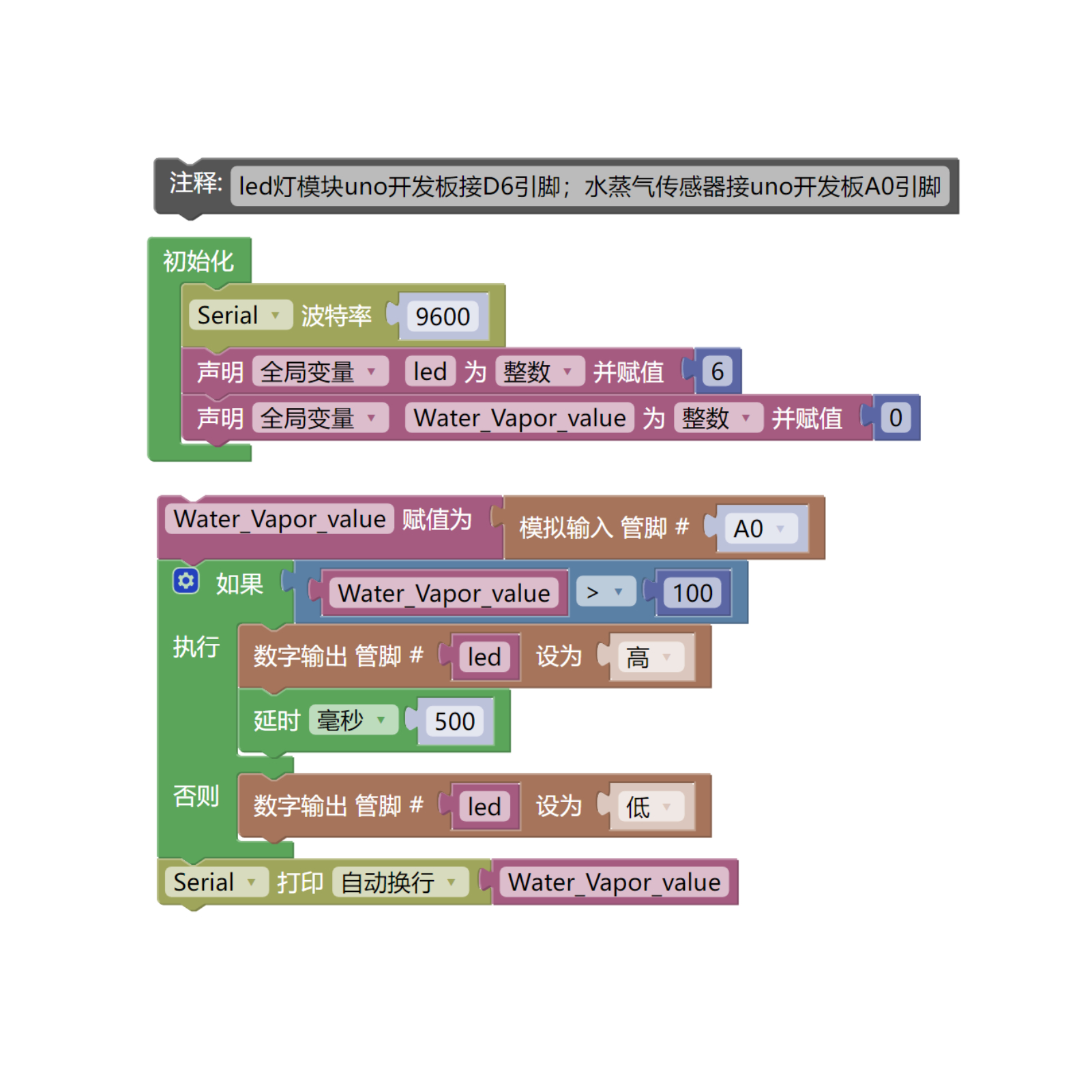

Arduino UNO Graphical Example Program:Click to download

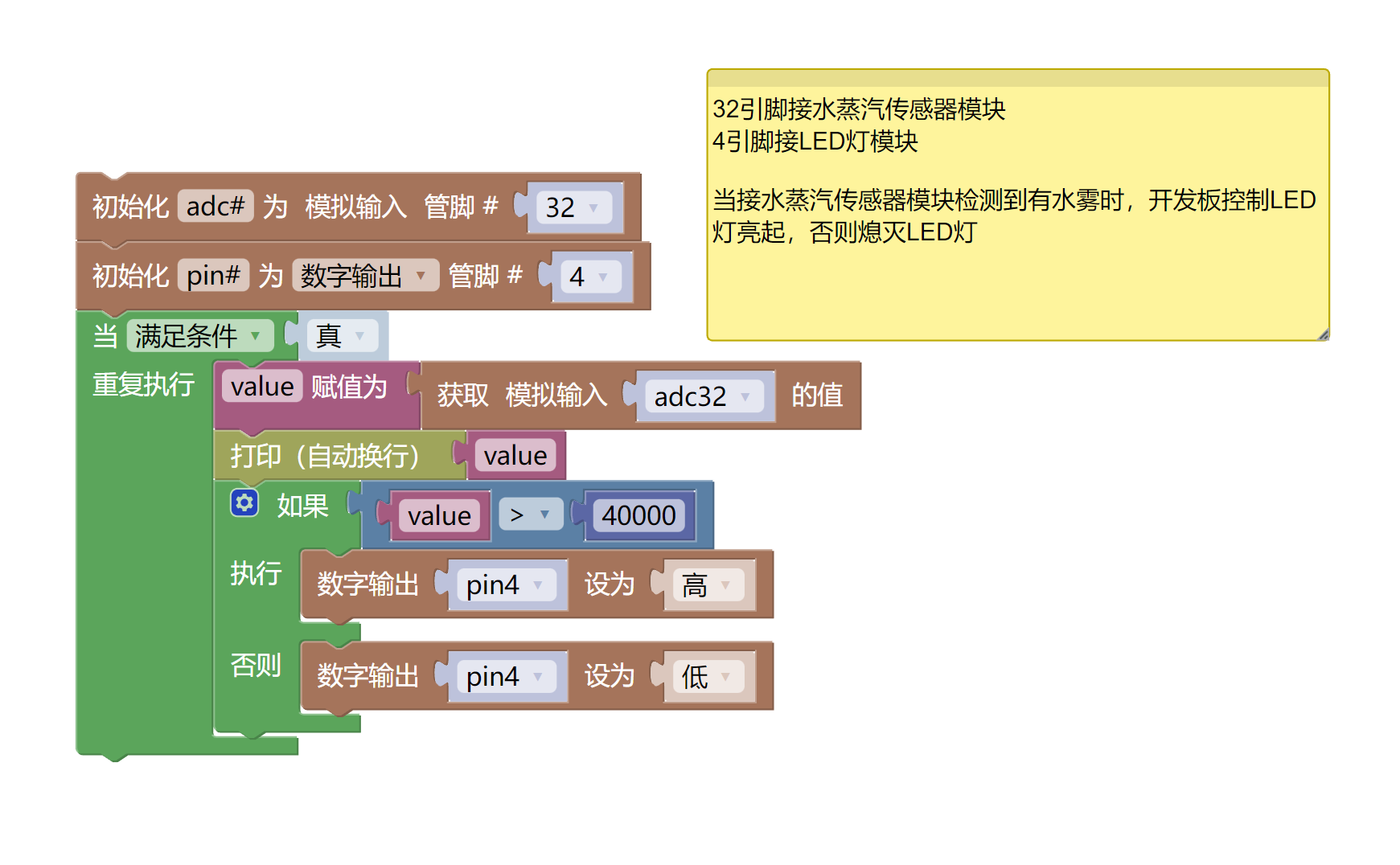

ESP32 Python Graphical Example Program:Click to download

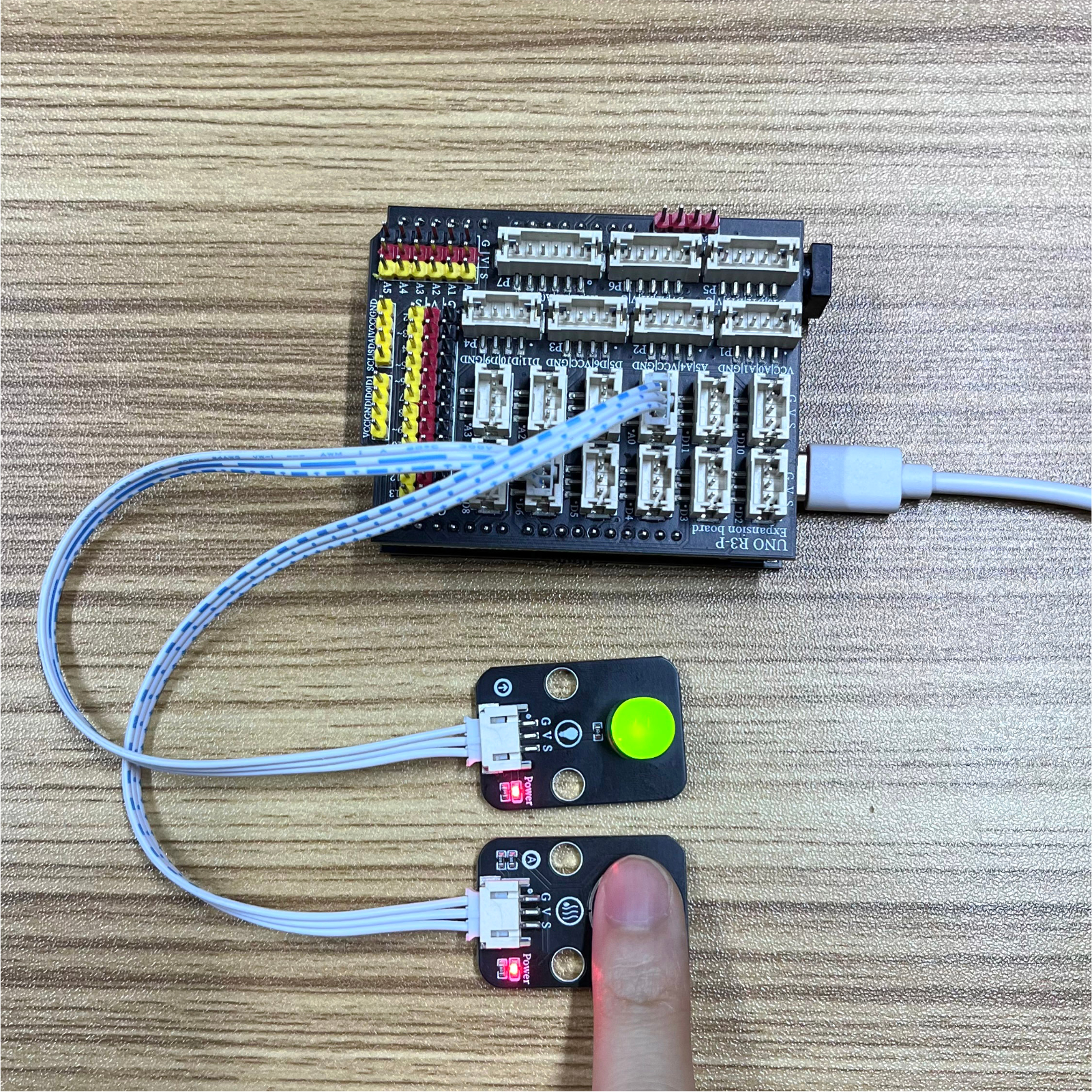

7, Test Environment Setup

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO R3 P EXPANSION BOARD *1

• USB TYPE-C DATA CABLE *1

• Steam Sensor Module (HS-S36L) *1

• LED module (HS-F08L) *1

• PH2.0 3P dual-head terminal line *2

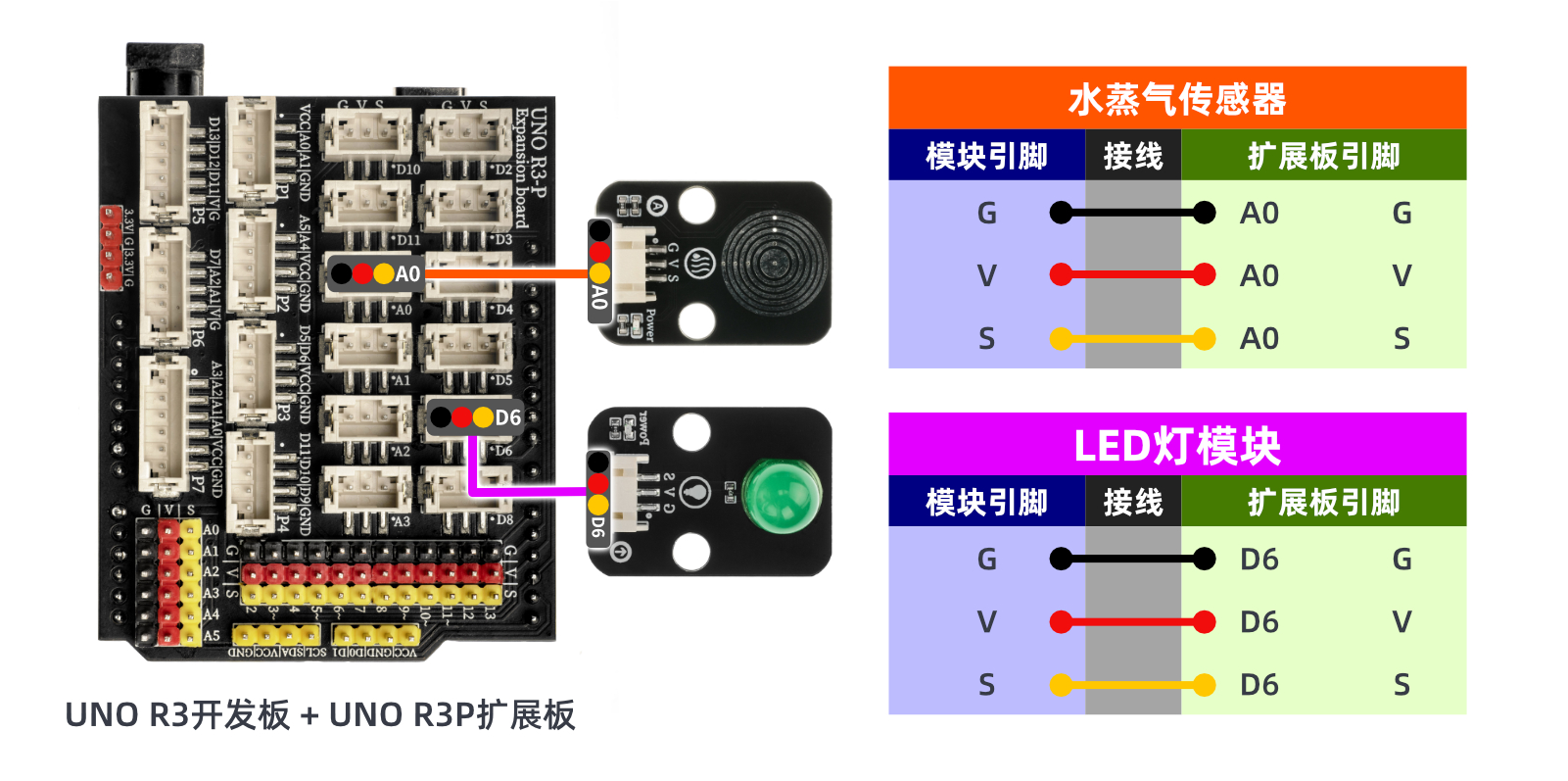

Circuit wiring diagram:

ESP32 Python test environment setup

8. Video tutorial

Arduino UNO video tutorial:Click to view

ESP32 Python Video Tutorial:

9. Test conclusion

Arduino UNO Test Conclusion:

ESP32 Python test conclusion:
