1. Introduction

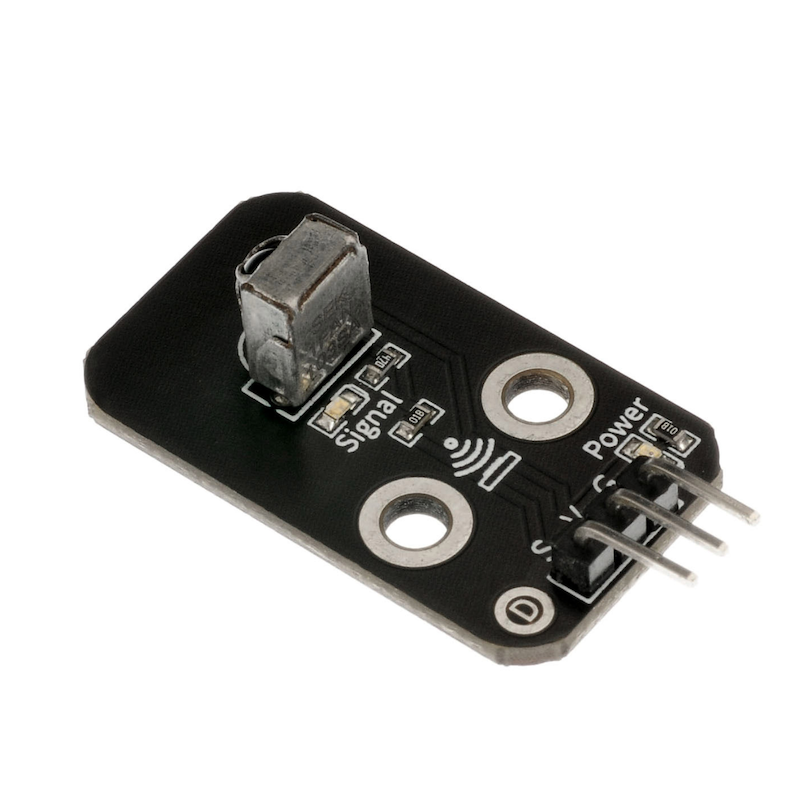

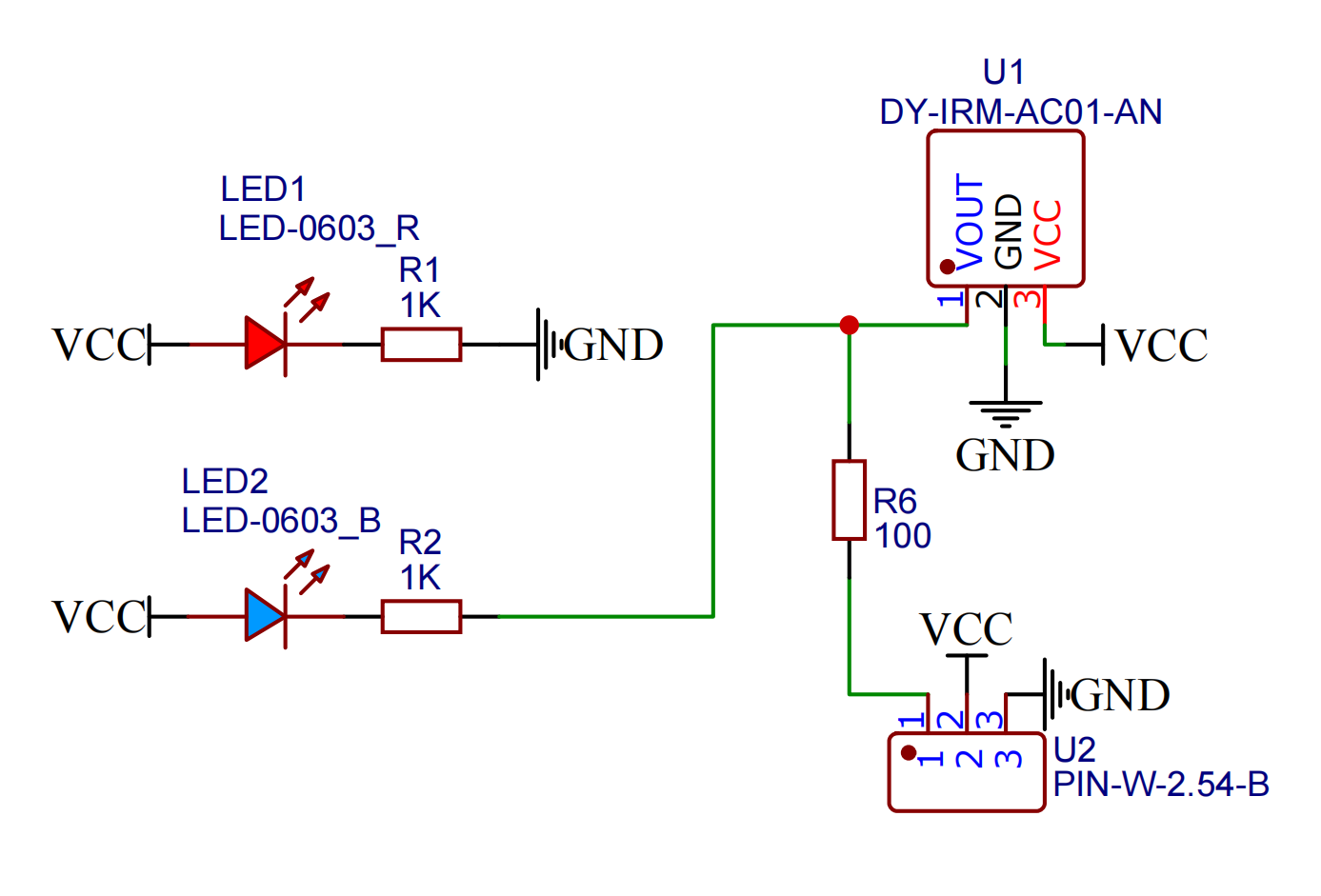

2. Schematic

Module Parameters
Pin Name | description |
|---|---|
G | GND (Negative Power Input) |
V | VCC (Positive Power Input) |
S | Digital Signal Pin |
Power Supply Voltage: 3.3V / 5V
Connection Type: 2.54mm Header
Installation Method: Double Screw Fixed

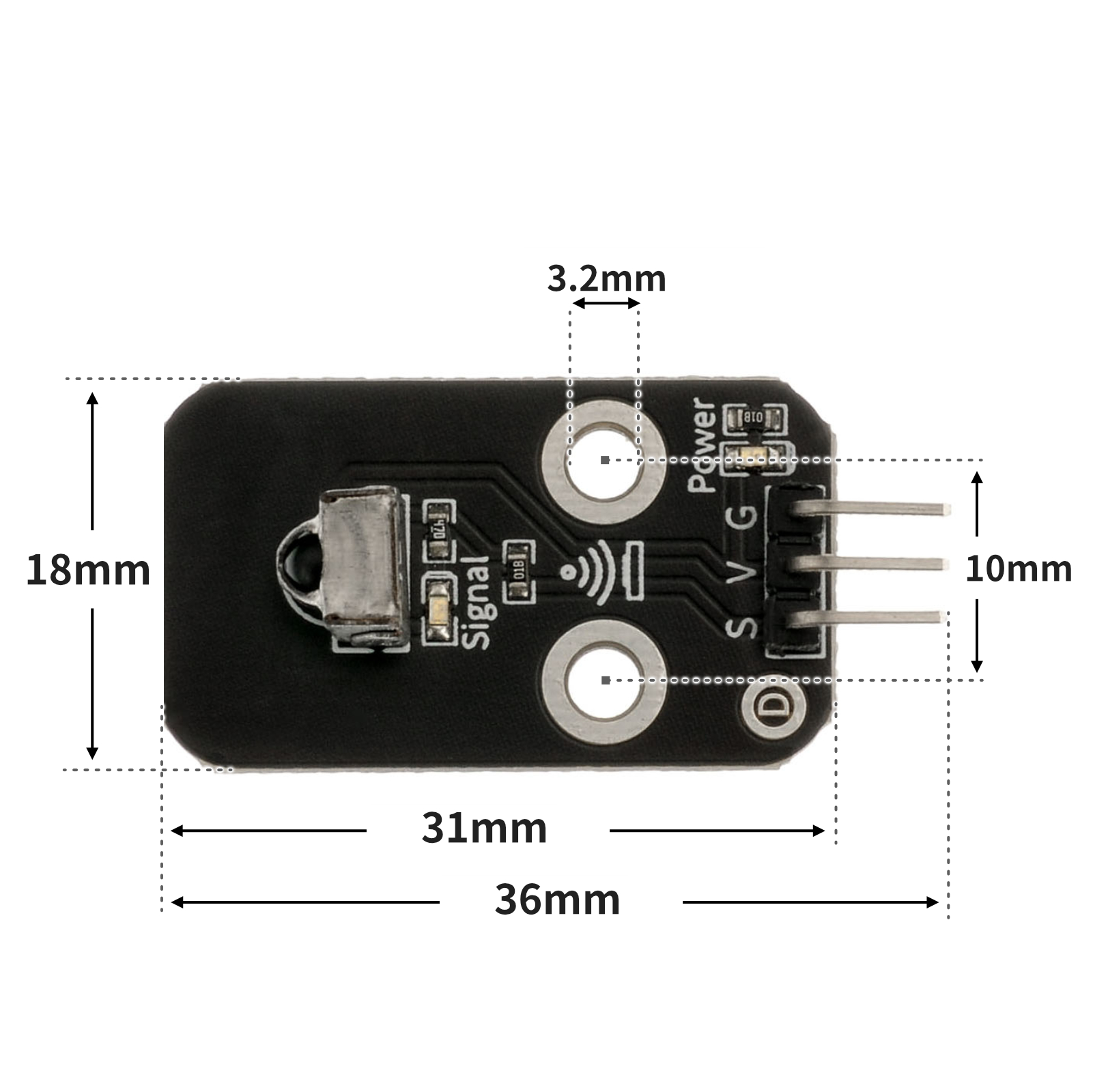

4, Circuit Board Size

5 of Arduino IDE example program
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view
Example program (UNO development board):
#include <IRremote.h>
volatile int red;
volatile int yellow;
volatile int green;
const String IR_PROTOCOL_TYPE[] = {
"UNKNOWN",
"PULSE_DISTANCE",
"PULSE_WIDTH",
"DENON",
"DISH",
"JVC",
"LG",
"LG2",
"NEC",
"PANASONIC",
"KASEIKYO",
"KASEIKYO_JVC",
"KASEIKYO_DENON",
"KASEIKYO_SHARP",
"KASEIKYO_MITSUBISHI",
"RC5",
"RC6",
"SAMSUNG",
"SHARP",
"SONY",
"ONKYO",
"APPLE",
"BOSEWAVE",
"LEGO_PF",
"MAGIQUEST",
"WHYNTER"
};
IRrecv irrecv_4(4);
void setup(){
red = 9;
yellow = 10;
green = 11;
Serial.begin(9600);
irrecv_4.enableIRIn();
}
void loop(){
if (irrecv_4.decode()) {
struct IRData *pIrData = &irrecv_4.decodedIRData;
long ir_item = pIrData->decodedRawData;
String irProtocol = IR_PROTOCOL_TYPE[pIrData->protocol];
Serial.print("IR TYPE:" + irProtocol + "\tVALUE:");
Serial.println(ir_item, HEX);
irrecv_4.resume();
Serial.println(ir_item,HEX);
switch (ir_item) {

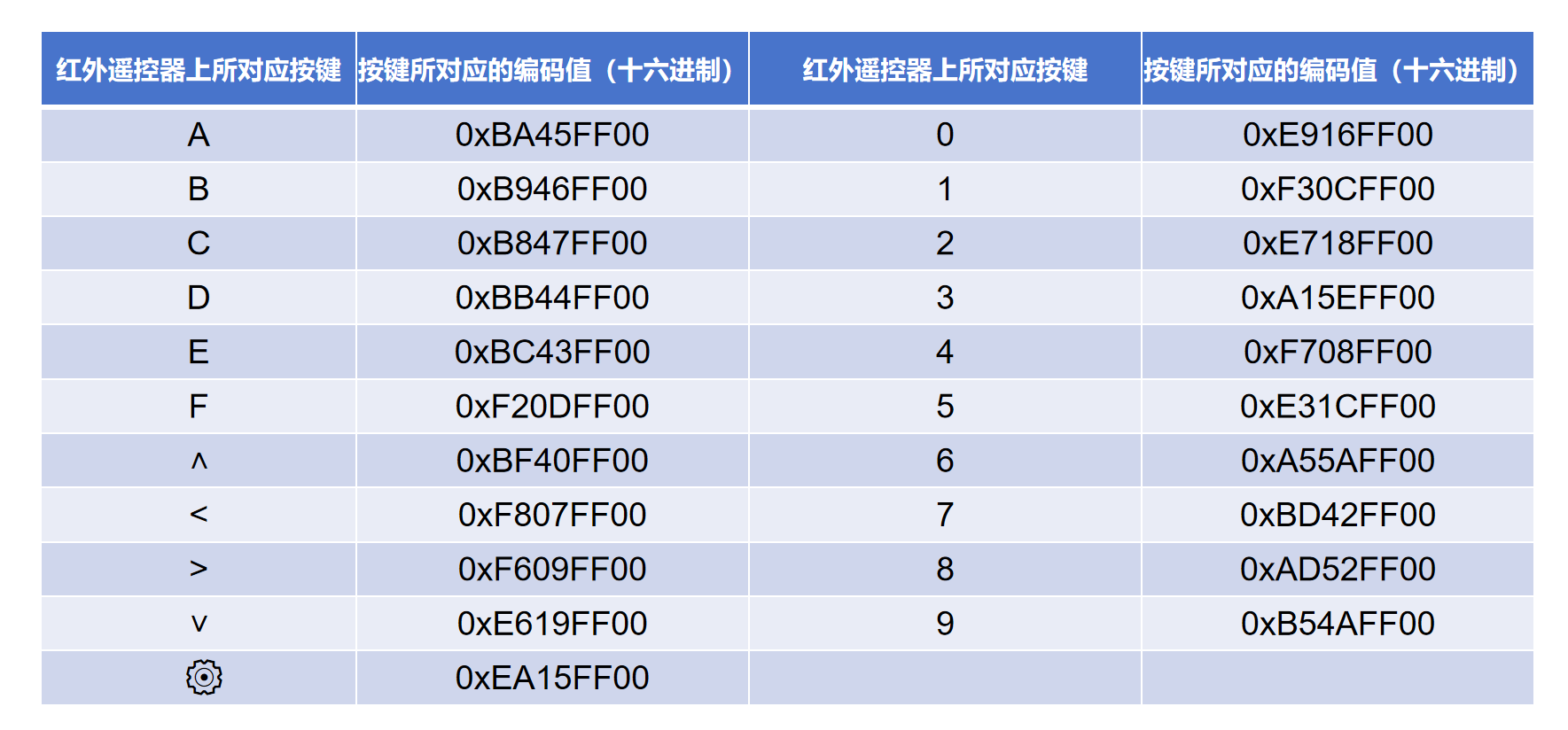

case 0xF30CFF00:
//ๆไธ้ฅๆงๅจโ1โ้ฎ็ผ็ ๅผ๏ผF30CFF00ใ็บข็ฏไบฎใ
pinMode(red, OUTPUT);
digitalWrite(red,HIGH);
pinMode(yellow, OUTPUT);
digitalWrite(yellow,LOW);
pinMode(green, OUTPUT);
digitalWrite(green,LOW);
break;
case 0xE718FF00:
//ๆไธ้ฅๆงๅจโ2โ้ฎ็ผ็ ๅผ๏ผE718FF00ใ้ป็ฏไบฎใ
pinMode(yellow, OUTPUT);
digitalWrite(yellow,HIGH);
pinMode(red, OUTPUT);
digitalWrite(red,LOW);
pinMode(green, OUTPUT);
digitalWrite(green,LOW);
break;
case 0xA15EFF00:
//ๆไธ้ฅๆงๅจโ3โ้ฎ็ผ็ ๅผ๏ผA15EFF00ใ็ปฟ็ฏไบฎใ
pinMode(green, OUTPUT);
digitalWrite(green,HIGH);
pinMode(red, OUTPUT);
digitalWrite(red,LOW);
pinMode(yellow, OUTPUT);
digitalWrite(yellow,LOW);
break;
case 0xBA45FF00:
//ๆไธ้ฅๆงๅจโAโ้ฎ็ผ็ ๅผ๏ผBA45FF00ใๆไปฅ็ฏ็็ญใ
pinMode(red, OUTPUT);
digitalWrite(red,LOW);
pinMode(yellow, OUTPUT);
digitalWrite(yellow,LOW);
pinMode(green, OUTPUT);
digitalWrite(green,LOW);
break;
default:
break;
}
} else {
}
}6, ESP32 Python Example (for Mixly IDE/Misashi)
Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view
Example program (ESP32-Python):
ๅพ

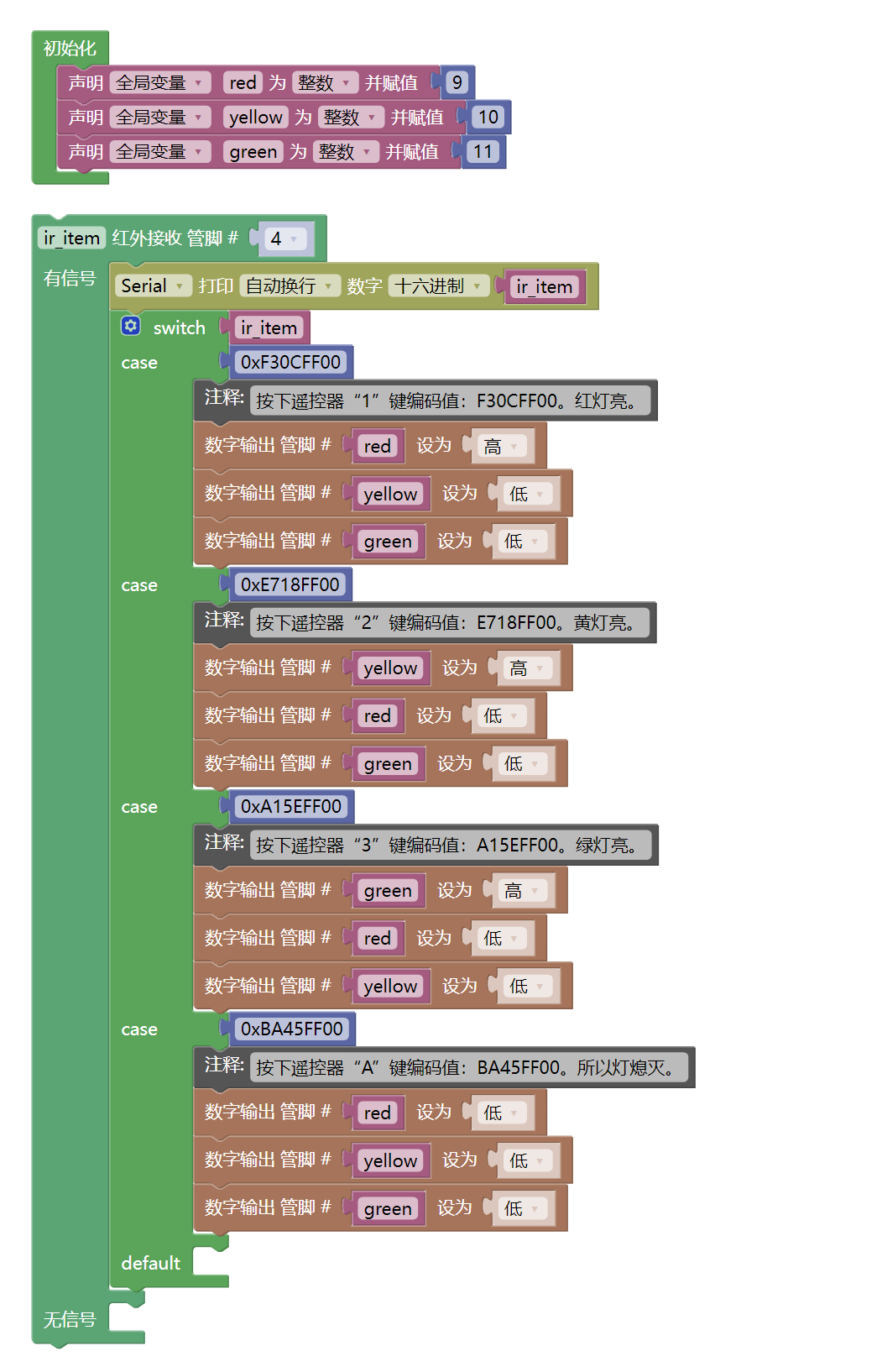

ๆดๆฐ...7, Mixly example program (graphical language)
Example program (UNO development board):Click to download

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view
Image pending update...
8. Setting up the Test Environment
Arduino UNO Test Environment Setup
Prepare Components:
HELLO STEM UNO R3 PRO DEVELOPMENT BOARD *1
USB TYPE-C DATA CABLE *1
Traffic light module (HS-F05A) *1
Infrared receiver module (HS-S23A) *1
1P female-to-female Dupont wire *7 pieces or 3P female-to-female Dupont wire *2 pieces and 1P female-to-female Dupont wire *1 piece
Infrared remote control*1

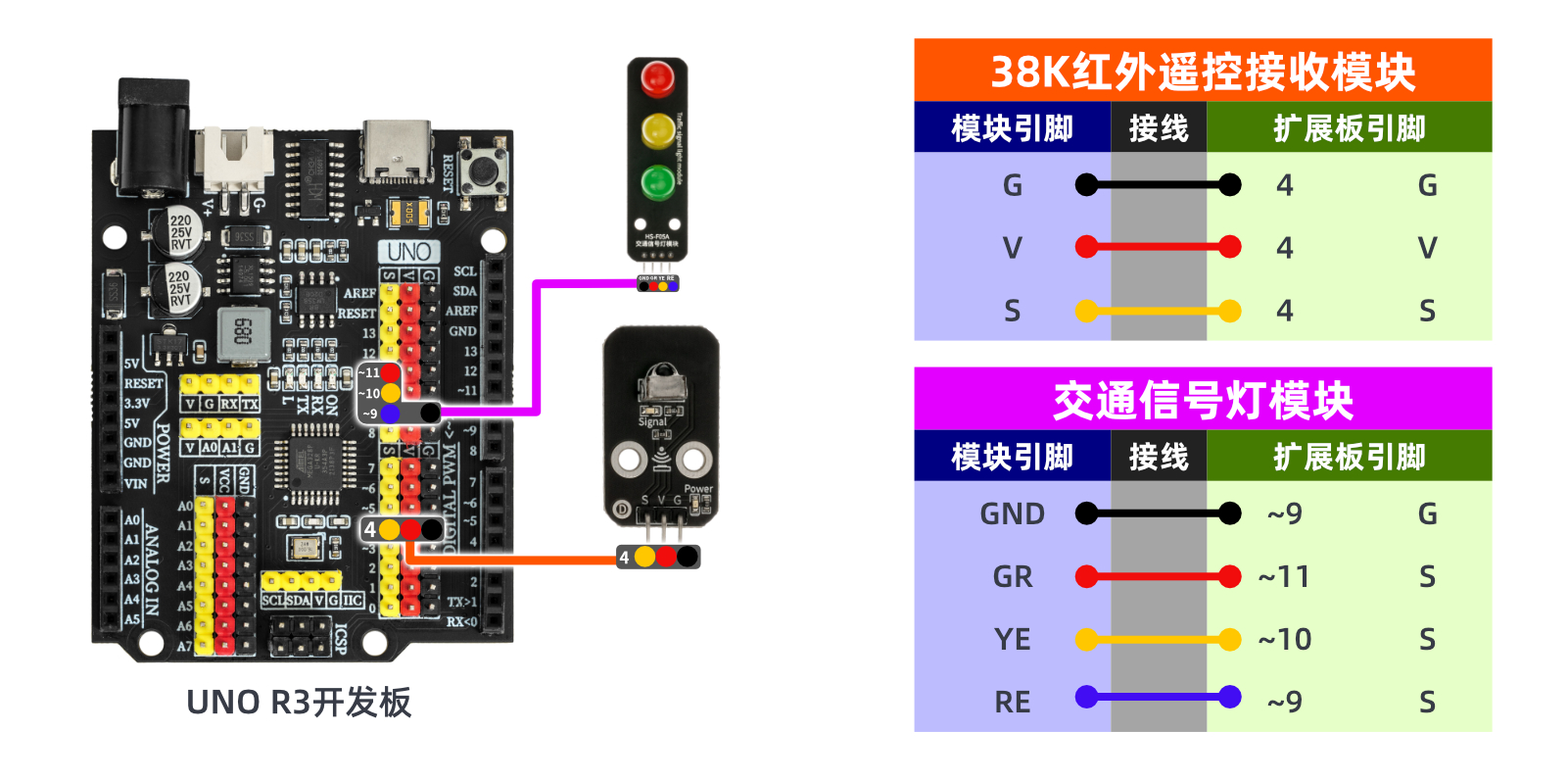

Circuit wiring diagram:

ESP32 Test Environment Setup
Prepare Components:Pending update...
Circuit wiring diagram:Pending update...
9, Video tutorial
Video tutorial:Click to view
10, Test results
Arduino UNO test results:


ESP32 Test Results:
Pending update...
