1. Introduction
2, Characteristics
1, digital IO pins (pins from D2 to D13) and analog IO (pins from A0 to A5) pins are provided. (It can meet the need of connecting extension modules with Dupont wires.)
3, there are D0/D1 pin headers that can be used for communication with the outside.

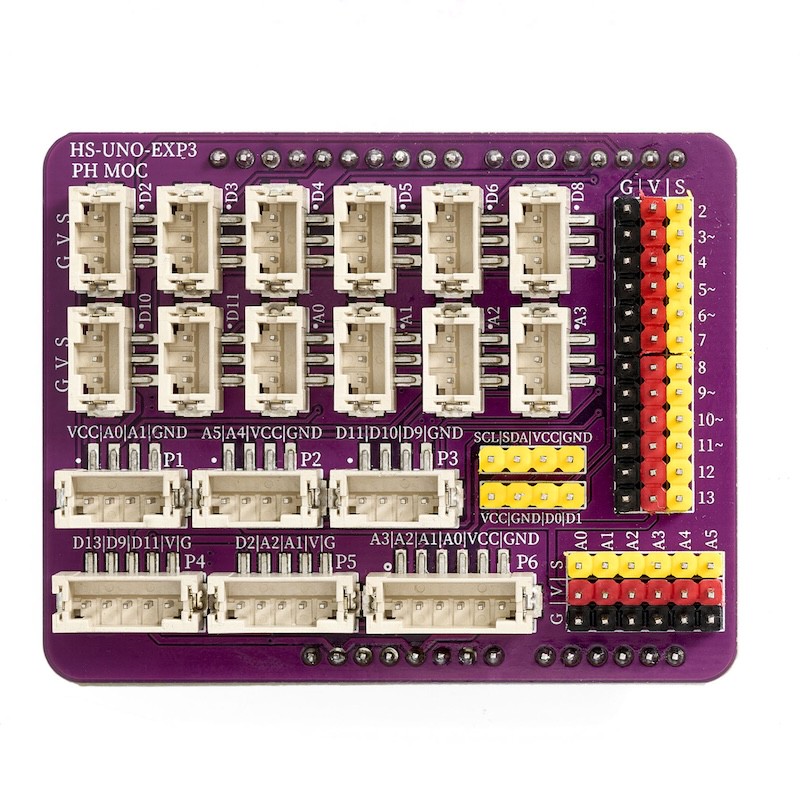

3, Expansion Board Parsing
Digital IO port PH2.0 3P socket (D2-D11) and digital IO port pin header (D2-D13)
You can specify these IO ports as digital outputs, that is, output high level or low level.Among (D2 and D3 pins can be used as hardware interrupt pins.)D3,D5,D6,D9,D10,D11 pins can output analog signals).
Simulated IO port PH2.0 3P socket (A0-A3) and simulated IO port pin header (A0-A5)
You can specify these IO ports for simulated input and simulated input. The simulated input returns a value of (0-1023). The simulated output value is (0-255).
P1 socket
This socket circuit is designed as VCC/A0/A1/GND for easy connection with some modules using PH2.0 4P interfaces. (Adaptable module: HS-SR04L)Ultrasonic Sensor)
P2 Socket
This socket circuit is designed as A5/A4/VCC/GND for easy connection with some modules that use the PH2.0 4P interface. (Compatible module: HS-S63-LTCS342 color sensor, HS-F14LTM1650 four-digit LED digital tube module, HS-F15LTM637 four-digit clock digital tube module, HS-F19LOLED display, HS-F21LLCD1602 display, )
P3 bracket
The subcircuit design is for D11/D10/D9/GND for easy connection with some modules using a PH2.0 4P interface. (Adaptable module: HS-F05LTraffic Signal Module, HS-F01LRGB LED Module)
P4 socket
This subcircuit design is for D13/D9/D11/V/G to facilitate mating with some modules using a PH2.0 5P interface. (For example, HS-F13L)8x8 dot matrix display moduleHS-F24-L1-digit digital tube)
P5 Socket
The sub-circuit design is for D2/A2/A1/V/G for easy connection with some modules using the PH2.0 5P interface. (Compatible module: HS-S34L)Dual-axis joystick moduleHS-S32LRotary encoder)
P6 seat
The subcircuit is designed as A3/A2/A1/A0/V/G for convenient connection with some modules using a PH2.0 6P interface.4P button module)
