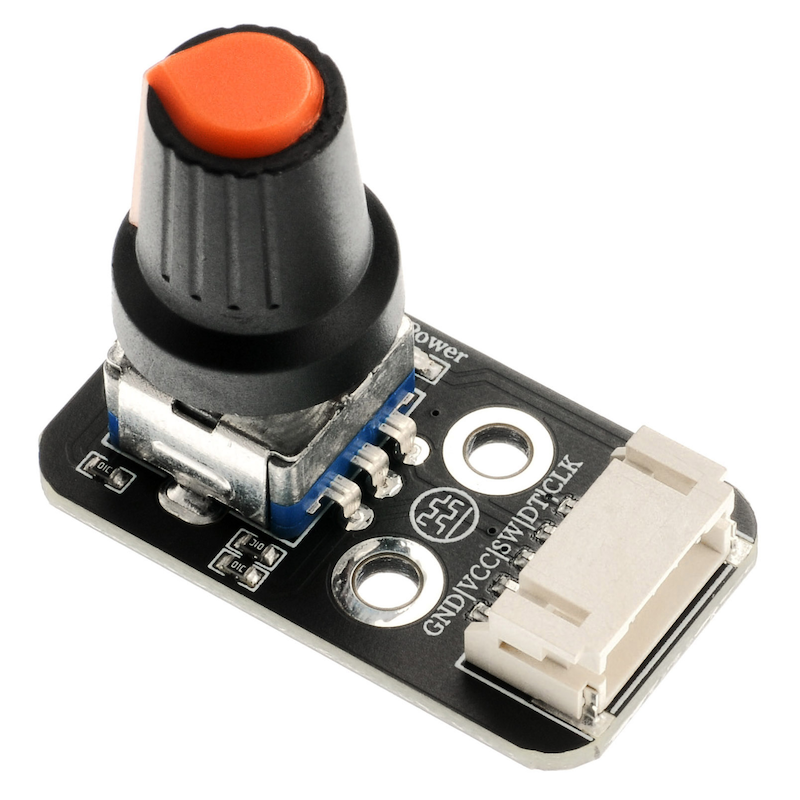

HS-S32P Rotary Encoder

HS-S32P Rotary Encoder

1. Introduction

An encoder is a rotating type of sensor that converts rotational displacement into a series of digital pulse signals. By rotating, it can count the number of pulses output during the rotation process in both the positive and negative directions. The rotation count is unlike potentiometers, as this rotation count is unlimited.Cooperate with the buttons on the rotary encoder to enable certain specific functions.The reading system usually adopts a differential method, that is, two waveforms with the same shape but a phase difference of 180ยฐ are compared to improve the quality and stability of the output signal.Encoders are widely used in applications such as car volume and air conditioning adjustment.

2. Schematic

HS-S32P Encoder SchematicClick to view

Module Parameters

Pin Name

description

G

GND (Negative Power Input)

V

VCC (Positive Power Input)

SW

Switch Pin

DT

Data pin

CLK

clock pin

  • Power Supply Voltage: 3.3V / 5V

  • Connection method: PH2.0 terminal wire

  • Installation Method: Double Screw Fixed

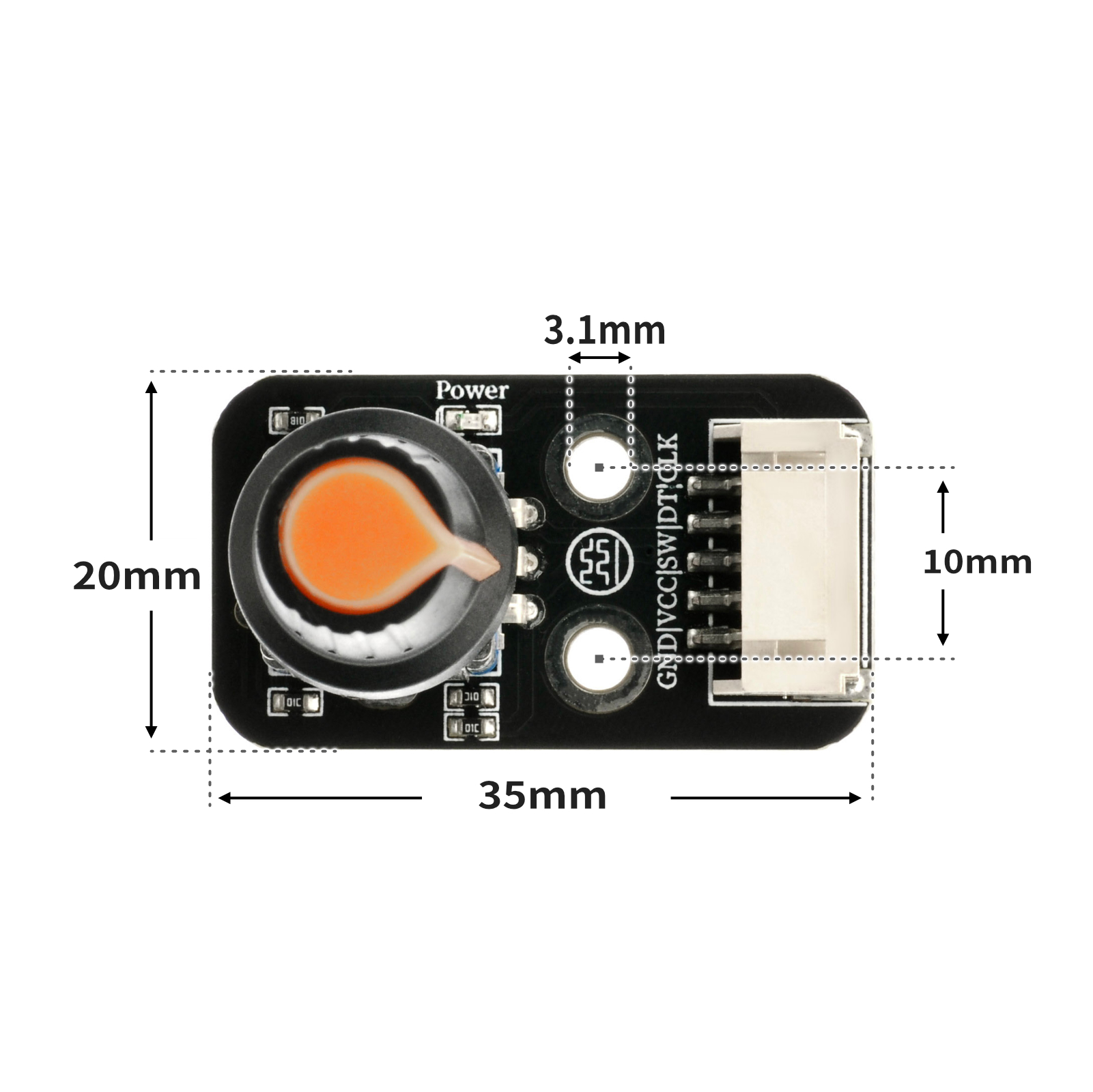

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:
Click to view

Example program (UNO development board):

volatile int lastCLK;
volatile int count;

void attachInterrupt_fun_RISING_2() {
  procedure();
}

void procedure() {
  int clkstate = digitalRead(2);
  int dtstate = digitalRead(A2);
  if (lastCLK != clkstate) {
    lastCLK = clkstate;

  }
  count = count + ((clkstate != dtstate)?-1:(1));
  Serial.println(count);
}

void setup(){
  lastCLK = 0;
  count = 0;
  Serial.begin(9600);
  pinMode(2, INPUT);
  attachInterrupt(digitalPinToInterrupt(2),attachInterrupt_fun_RISING_2,RISING);
  pinMode(A1, OUTPUT);
  digitalWrite(A1,HIGH);
  pinMode(A2, INPUT);
}

void loop(){
  //็ผ–็ ๅ™จCLKๆŽฅๆ‰ฉๅฑ•ๆฟD2๏ผŒdtๅผ•่„šๆŽฅA2๏ผŒswๅผ•่„šๆŽฅA1

  if (digitalRead(A1) == 0) {
    count = 0;
    Serial.println(count);

  }

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:
Click to view

Example program (ESP32-Python):

ๅพ…ๆ›ดๆ–ฐ...

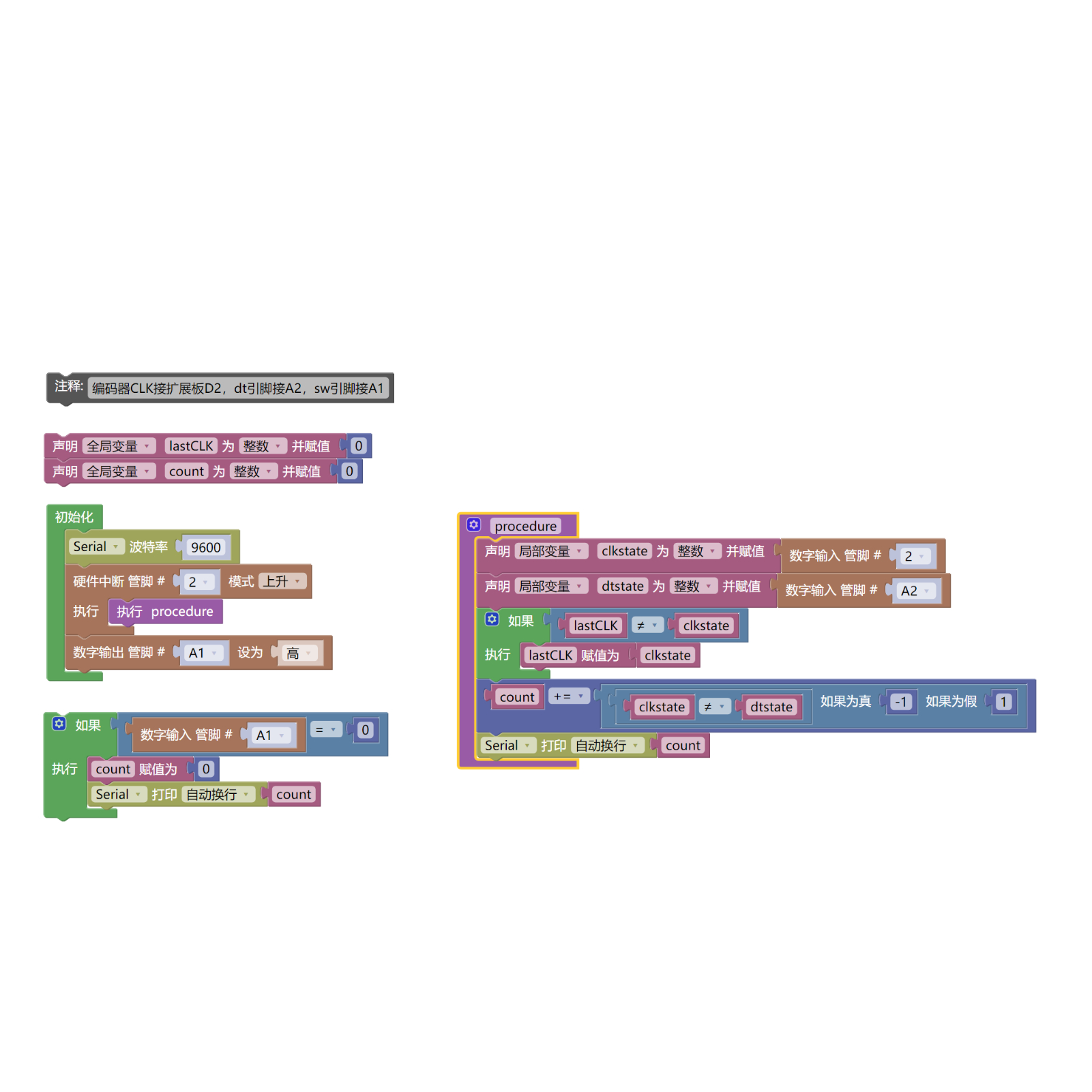

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:
Click to view

Image pending update...

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

  • HELLO STEM UNO R3 DEVELOPMENT BOARD *1

  • HELLO STEM UNO R3 P EXPANSION BOARD *1

  • USB TYPE-C DATA CABLE *1

  • Encoder module (HS-S32P) *1

  • PH2.0 5P connector to Dupont wire *1 or PH2.0 5P double-ended connector wire *1

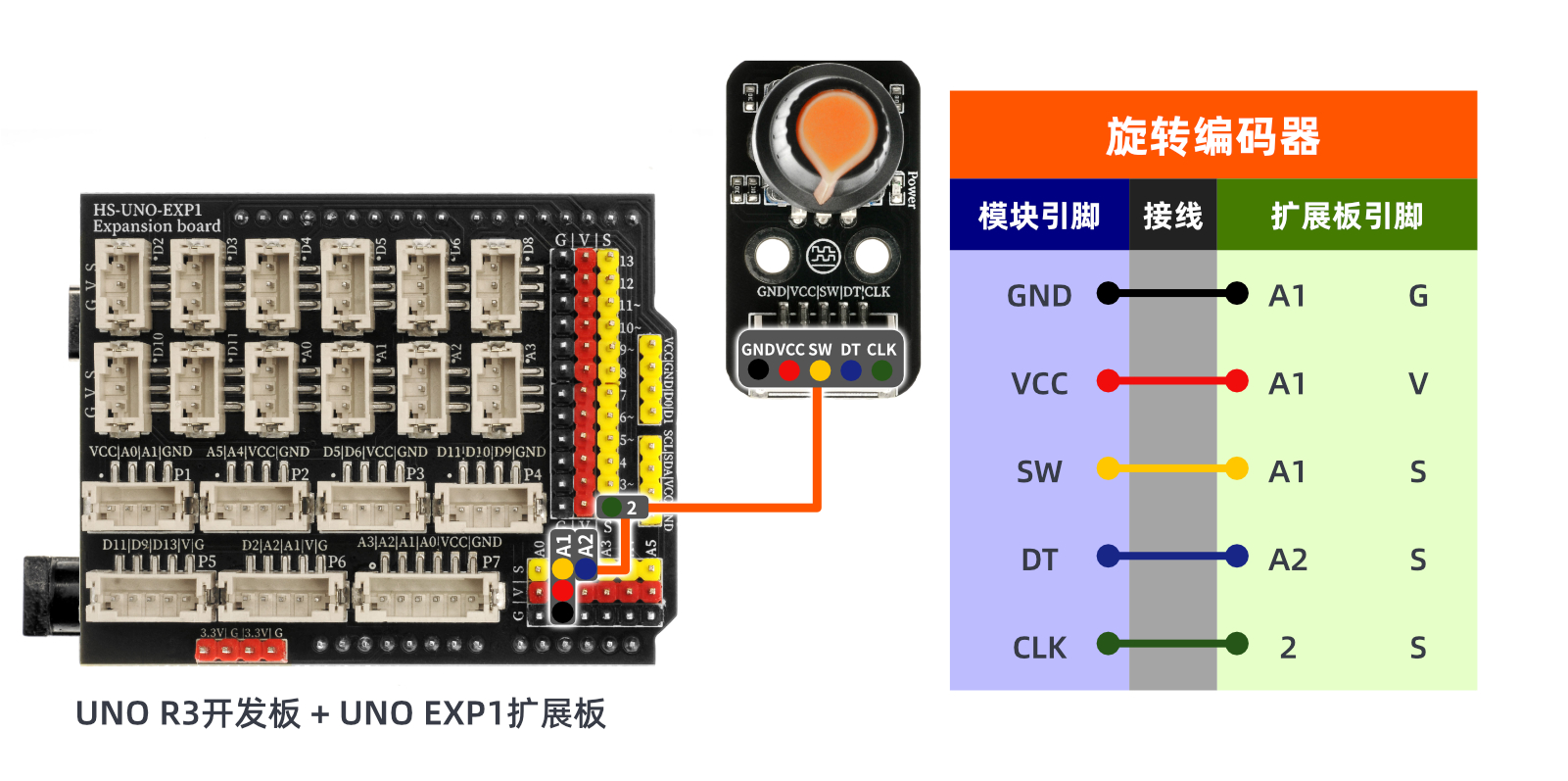

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Video tutorial:Click to view

10, Test conclusion

Arduino UNO test results:

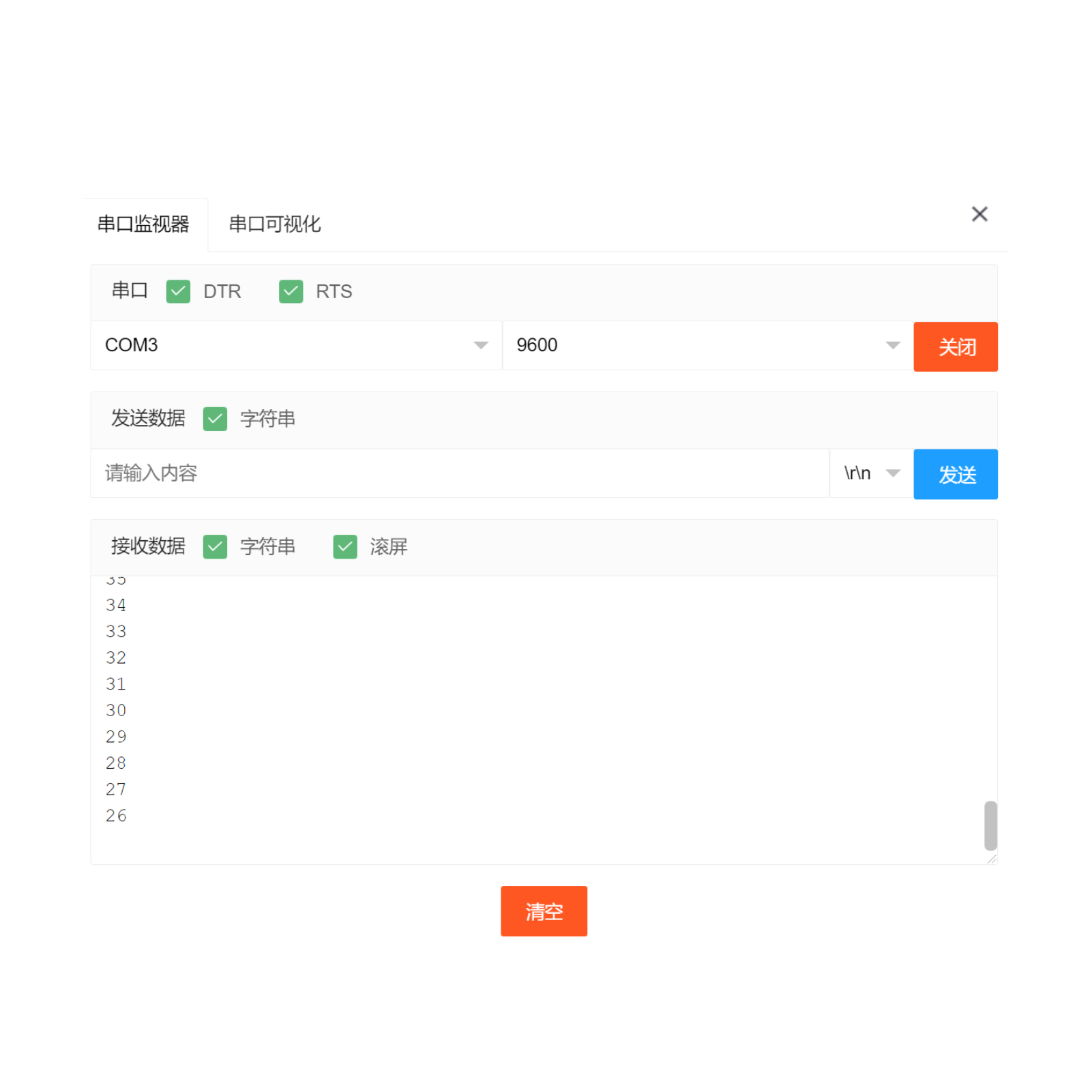

Through experimental analysis, the rotary encoder is a unrestricted rotating device, the count increases with clockwise rotation, the count decreases with counterclockwise rotation, and the count resets to zero when the rotary encoder button is pressed.As shown in the figure: Open the Mxily serial port monitor, turn the rotary encoder knob, and the serial port outputs numbers.

ESP32 Test Results:

Pending update...
