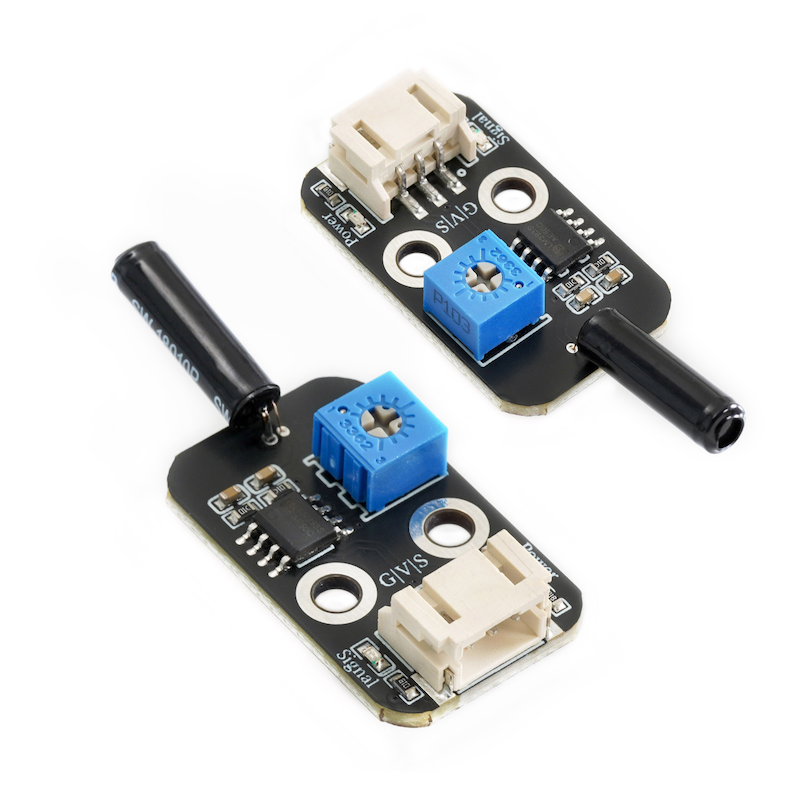

HS-S61P vibration sensor module

1. Introduction

A vibration sensor is a sensor module designed based on the principle of spring oscillation.It can detect vibration signals and then output switch signals to Arduino. When the product is not vibrating, the vibration switch is in the open state, the output terminal outputs a high level, and the blue indicator light is not lit; when the product is vibrating, the vibration switch conducts instantaneously, the output terminal outputs a low level, and the blue indicator light is on; the module uses the PH2.0 interface and can be easily connected to the sensor expansion board with a digital connection line.It can perceive weak vibration signals and can realize interactive works related to vibration.Used for various vibration triggering functions, alarm reporting, smart cars, electronic bricks, etc.

2. Schematic

Vibration Sensor Module-HS-S61P SchematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection method: PH2.0 3P terminal

• Installation method: Screw fixed

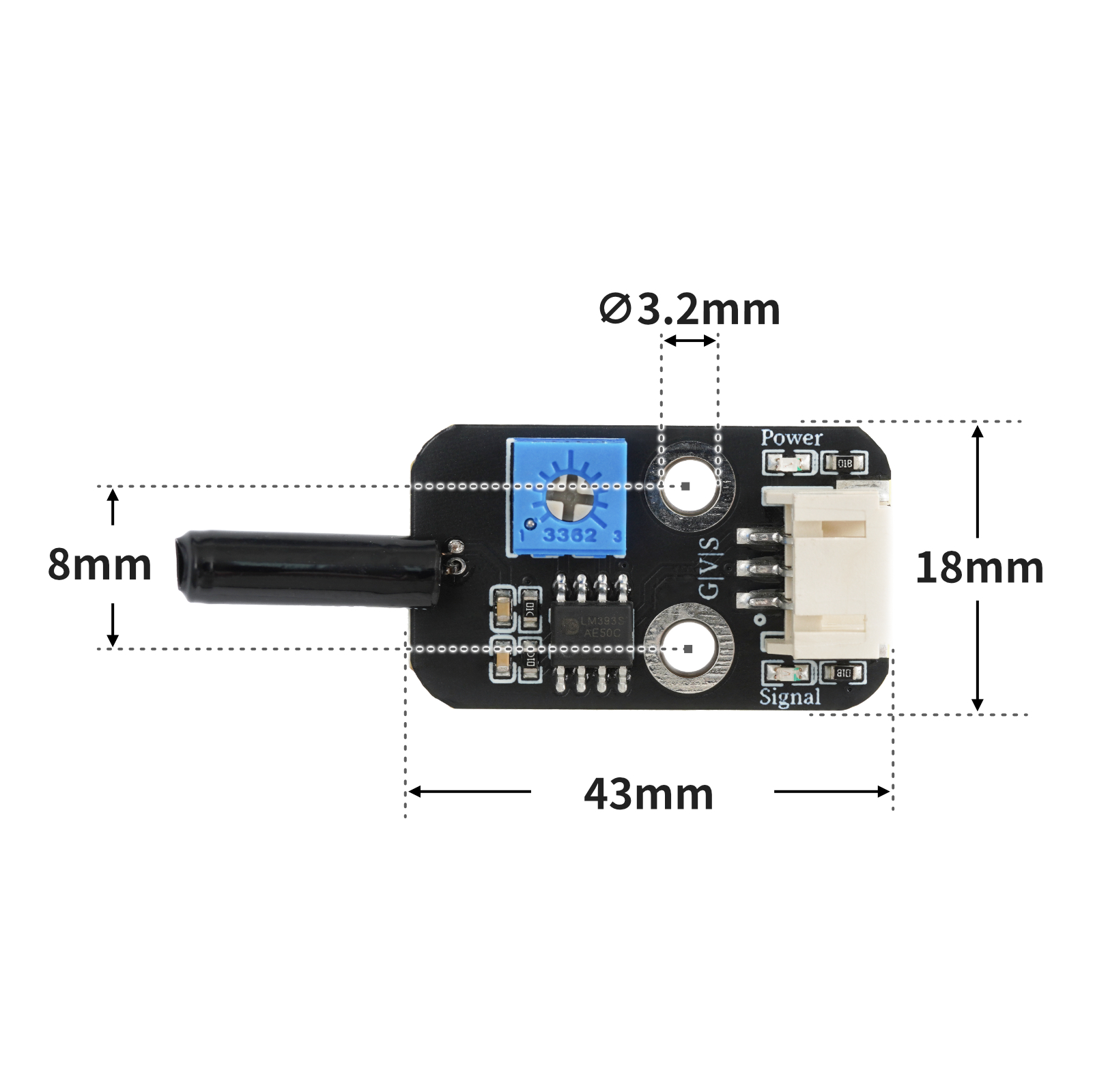

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

void setup(){
  Serial.begin(9600);
  pinMode(A0, INPUT);
  pinMode(4, OUTPUT);
}

void loop(){
  //A0接敲击传感器，D4接led灯，晃动敲击传感器，led闪烁。
  if (digitalRead(A0) == 1) {
    Serial.println("未检测到冲击");
    digitalWrite(4,LOW);

  } else if (digitalRead(A0) == 0) {
    delay(300);
    digitalWrite(4,HIGH);
    Serial.println("传感器检测到冲击");
  }

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine
import time


pin2 = machine.Pin(2, machine.Pin.IN)
pin4 = machine.Pin(4, machine.Pin.OUT)
while True:
    if pin2.value() == 1:
        pin4.value(0)
        print('未检测到冲击')
    else:
        pin4.value(1)
        print('传感器检测到冲击')
        time.sleep(1)

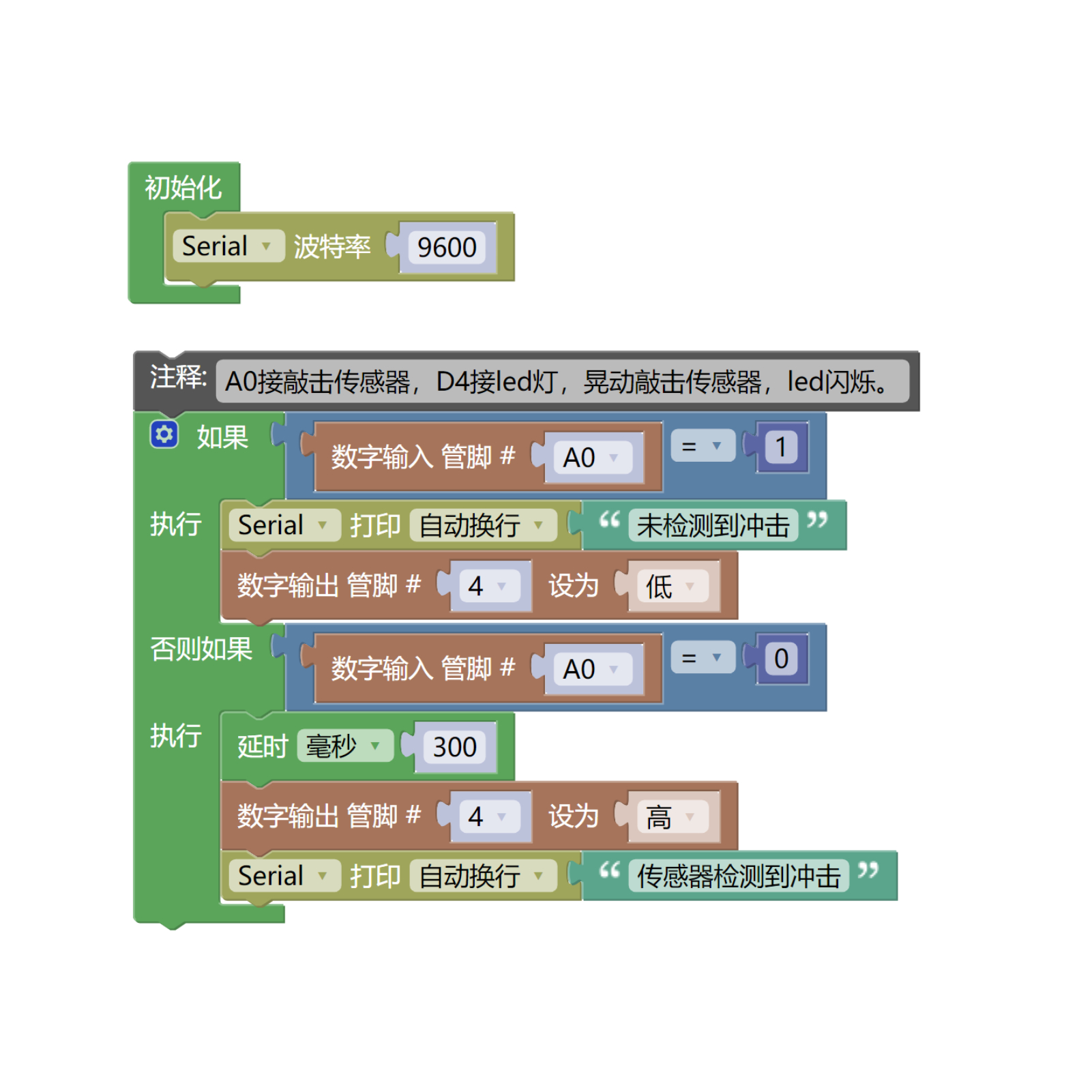

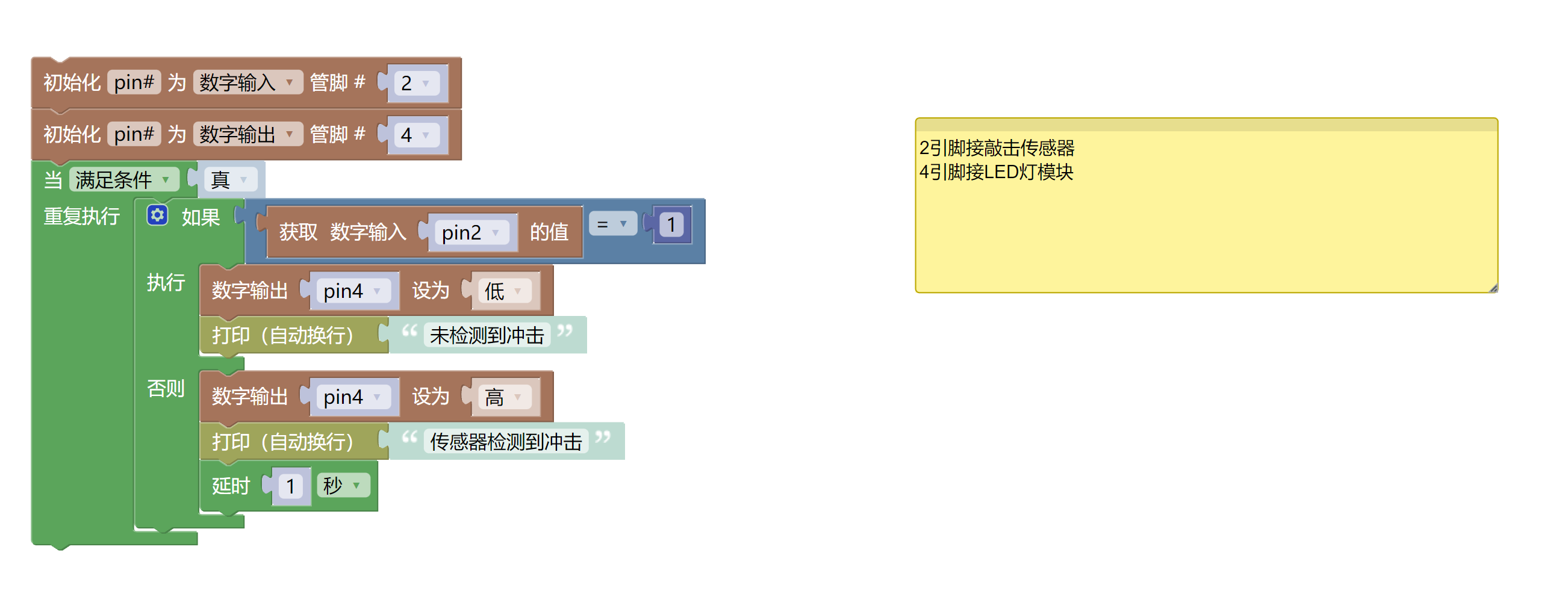

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 PRO DEVELOPMENT BOARD *1

• R3P expansion board *1

• USB TYPE-C DATA CABLE *1

• Tapping sensor (HS-S61-P) *1

• LED light module (HS-F08P) *1

• PH2.0 3P double-ended terminal line *2 or PH2.0 3P connector to DuPont wire *2

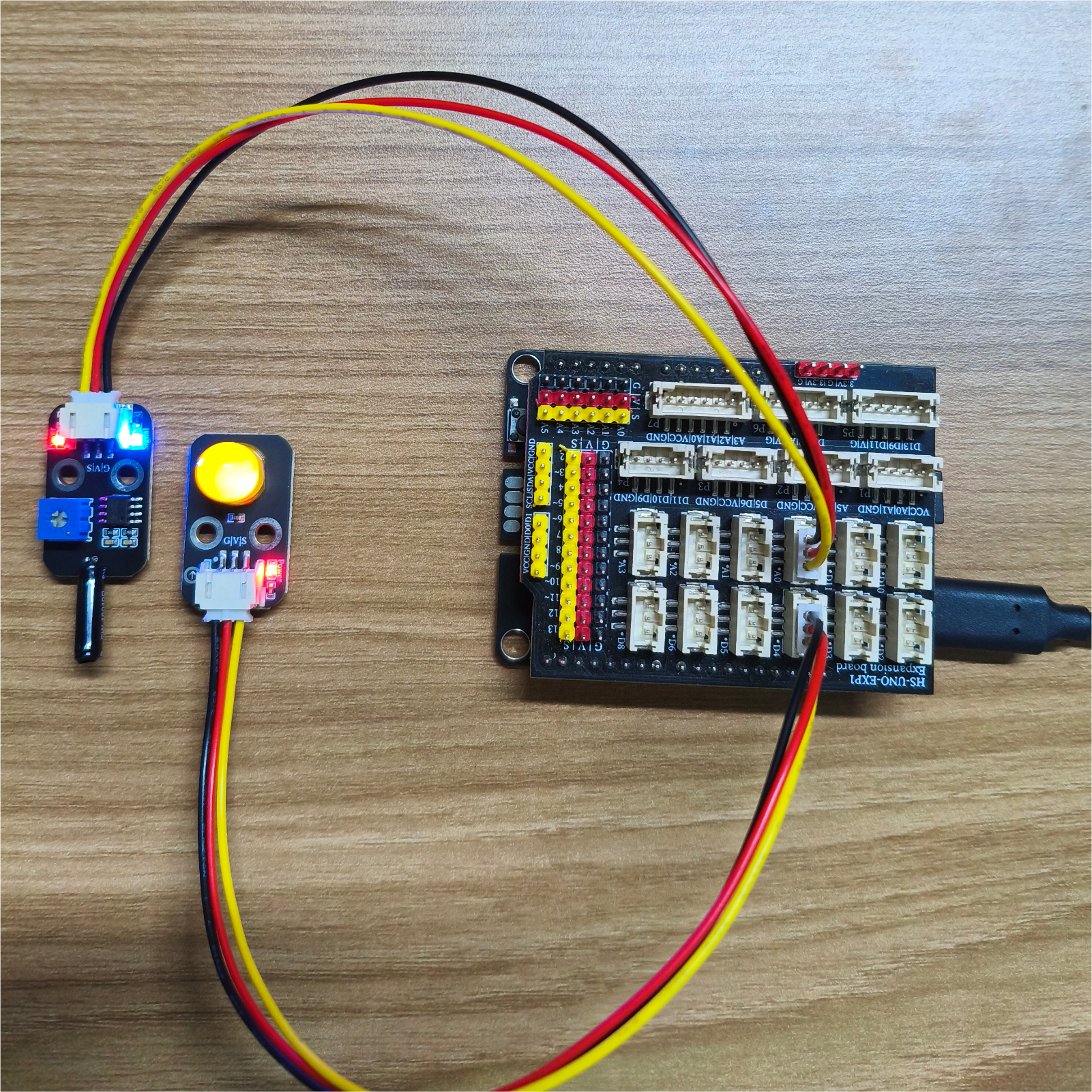

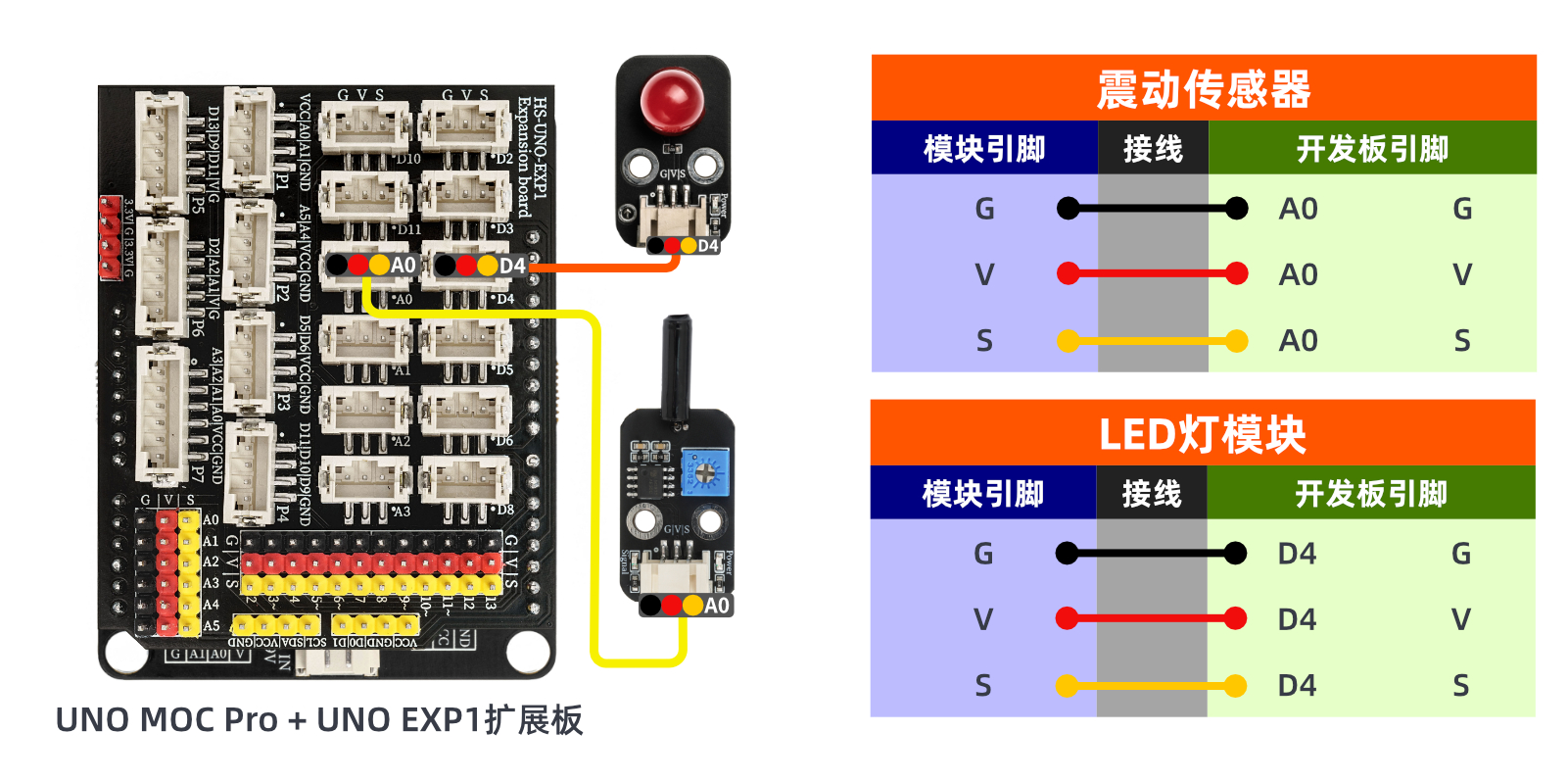

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Pending update...

Circuit wiring diagram:Pending update...

9, Video tutorial

Video tutorial:Click to view

10, Test results

Arduino UNO test results:

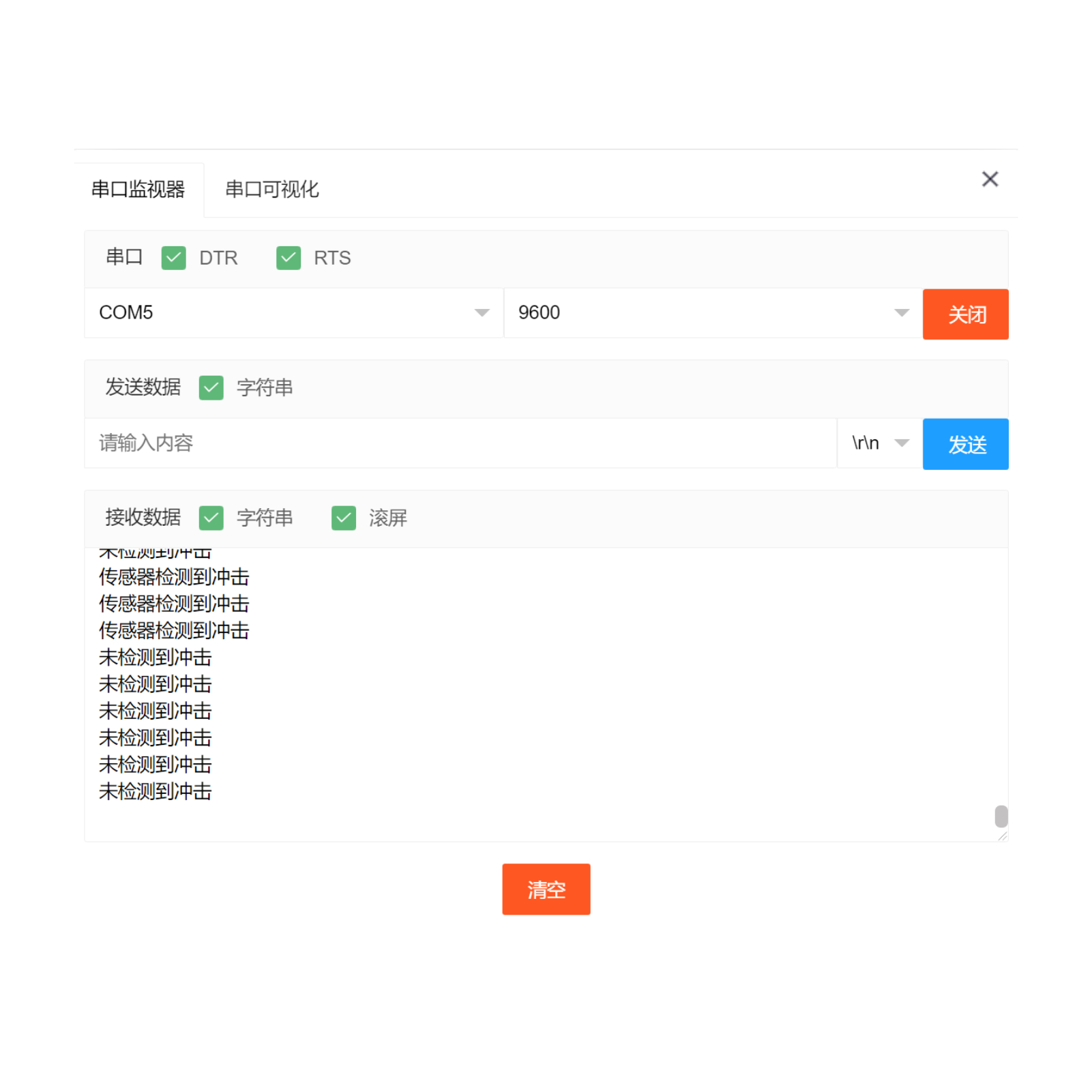

After the device is connected to the wire, burn the above program to the UNO-R3 PRO development board, and then connect the power supply.Open the serial port monitor, set the baud rate to 9600.When the sensor detects an impact signal, the input is low level (0), and the LED flashes and illuminates; otherwise, the LED extinguishes.

ESP32 Test Results:

Pending update...
