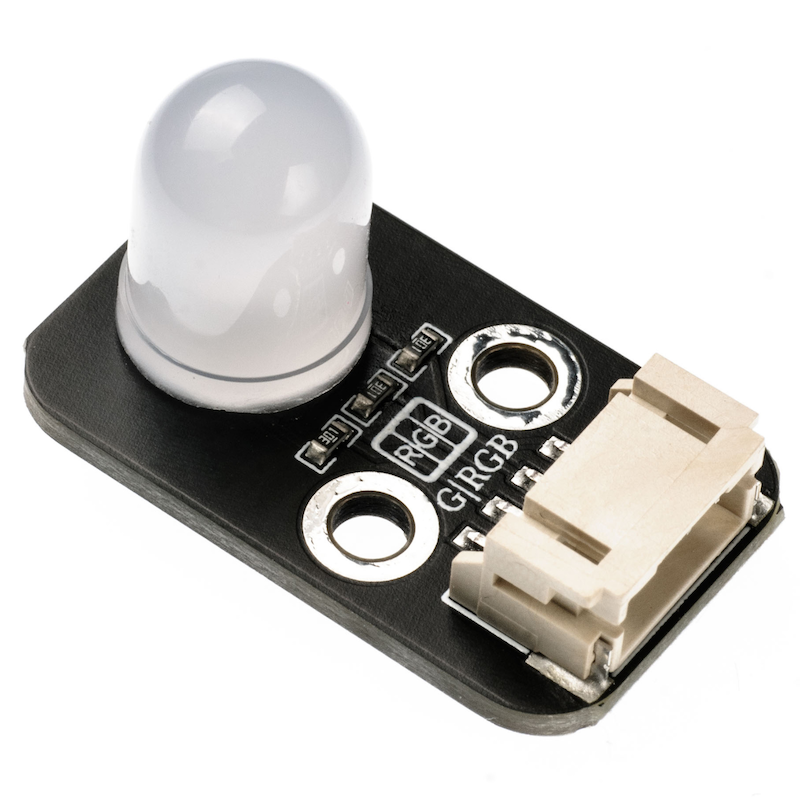

HS-F01P RGB LED light module

1. Introduction

2. Schematic

RGB-LED-HS-F01P schematicClick to view

Module Parameters

• Power Supply Voltage: 3.3V / 5V

• Connection method: PH2.0 4P terminal wire

• Installation Method: Double Screw Fixed

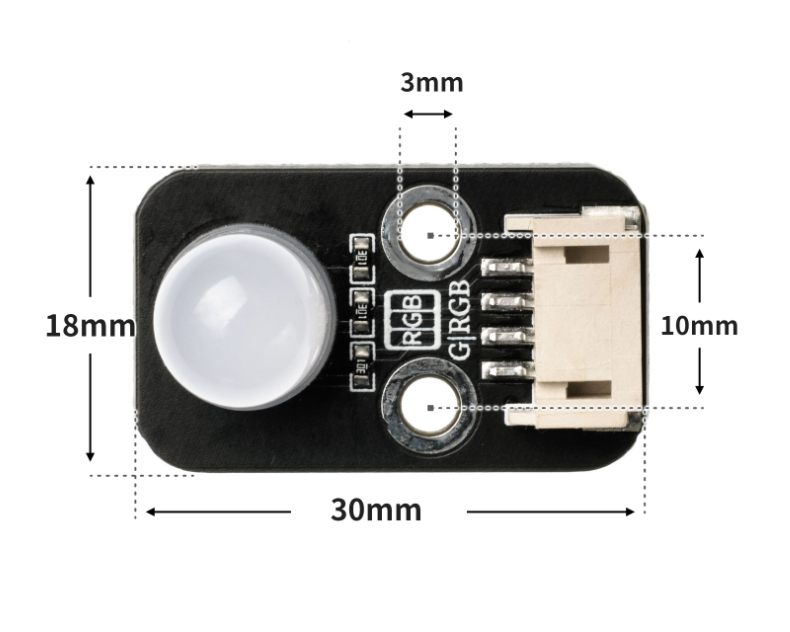

4, Circuit Board Size

5 of Arduino IDE example program

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Arduino IDE Library Download and Import Tutorial:Click to view

Example program (UNO development board):

/***********************************************************
  文件名：15_RGB_led.ino
  描述：实现RGB led灯颜色的切换。
  作者：陈志强
  日期：2022.11.10
***********************************************************/
//RGB led 模块RGB分别引脚接D9,D10,D11口，GND引脚接控制板GND

int R = 9;//定义数字常量，RGB led 模块R接9口
int G = 10;//定义数字常量，RGB led 模块G接10口
int B = 11;//定义数字常量，RGB led 模块B接11口

void RGB_Value(int rshu, int gshu, int bshu) {//亮灯函数
  analogWrite(R, rshu);
  analogWrite(G, gshu);
  analogWrite(B, bshu);
}

void setup() {

  RGB_Value(0, 0, 0);//灯熄灭
}

void loop() {

  RGB_Value(255, 0, 0);//亮红色
  delay(1000);//延时1s
  RGB_Value(0, 255, 0);//亮绿色
  delay(1000);//延时1s
  RGB_Value(0, 0, 255);//亮蓝色
  delay(1000);//延时1s

}

6, ESP32 Python Example (for Mixly IDE/Misashi)

Choose the development board Python ESP32 [ESP32 Generic(4MB)] and upload in code mode

Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

Example program (ESP32-Python):

import machine
import time


pin25 = machine.Pin(25, machine.Pin.OUT)
pin26 = machine.Pin(26, machine.Pin.OUT)
pin27 = machine.Pin(27, machine.Pin.OUT)
while True:
    pin25.value(1)
    time.sleep(1)
    pin25.value(0)
    pin26.value(1)
    time.sleep(1)
    pin26.value(0)
    pin27.value(1)
    time.sleep(1)
    pin27.value(0)

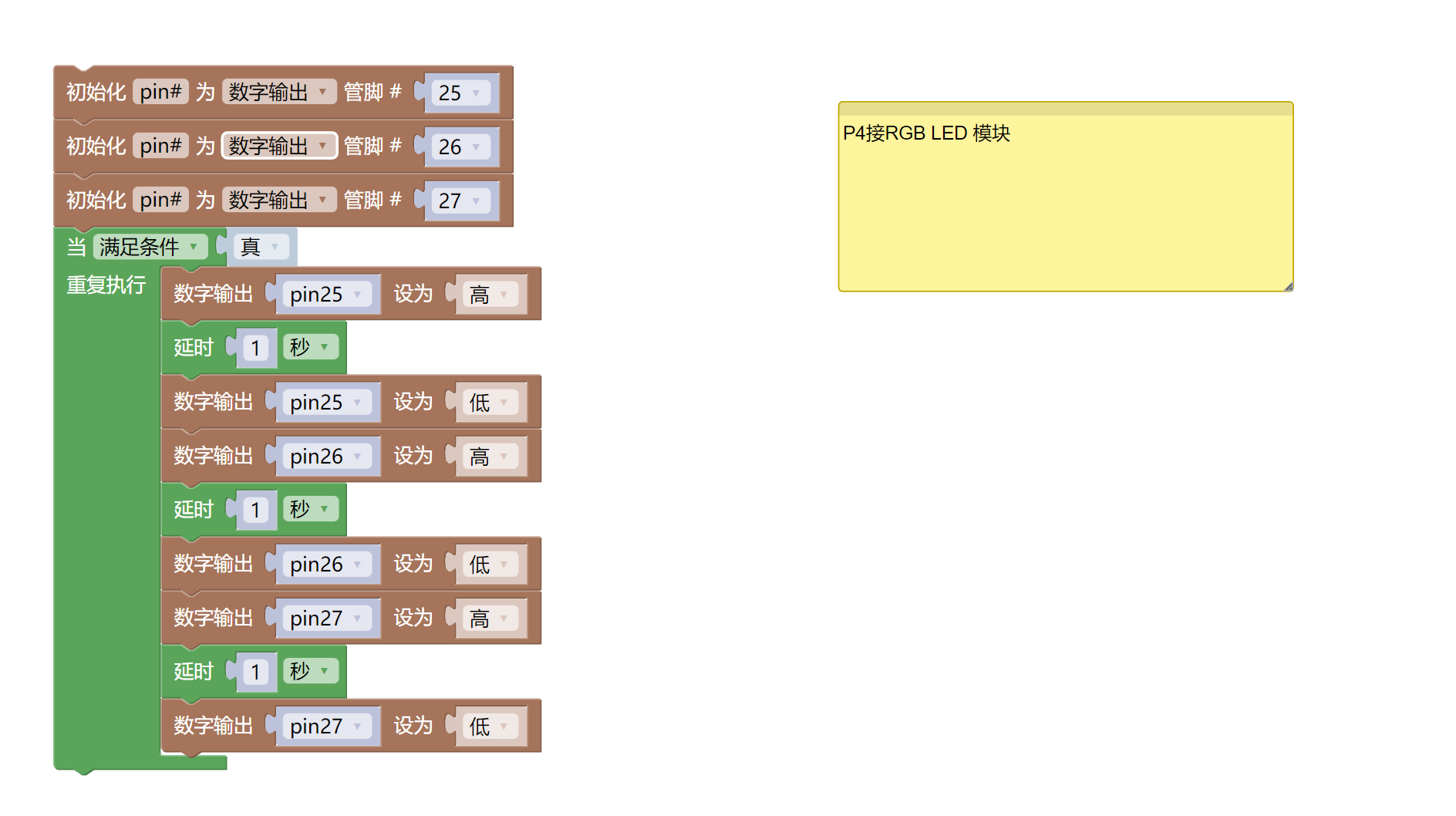

7, Mixly example program (graphical language)

Example program (UNO development board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial of Mixly IDE Arduino library:Click to view

Example Program (ESP32 Development Board):Click to download
Attention: If prompted with an error message about the library file during program upload, please import the library file first!
Download and import tutorial for Mixly IDE ESP32 library:Click to view

8. Setting up the Test Environment

Arduino UNO Test Environment Setup

Prepare Components:

• HELLO STEM UNO R3 DEVELOPMENT BOARD *1

• HELLO STEM UNO R3 P EXPANSION BOARD *1

• USB TYPE-C DATA CABLE *1

• RGB LED module (HS-F01P) *1

• PH2.0 4P socket to Dupont wire *1 or PH2.0 4P double-ended socket wire *1

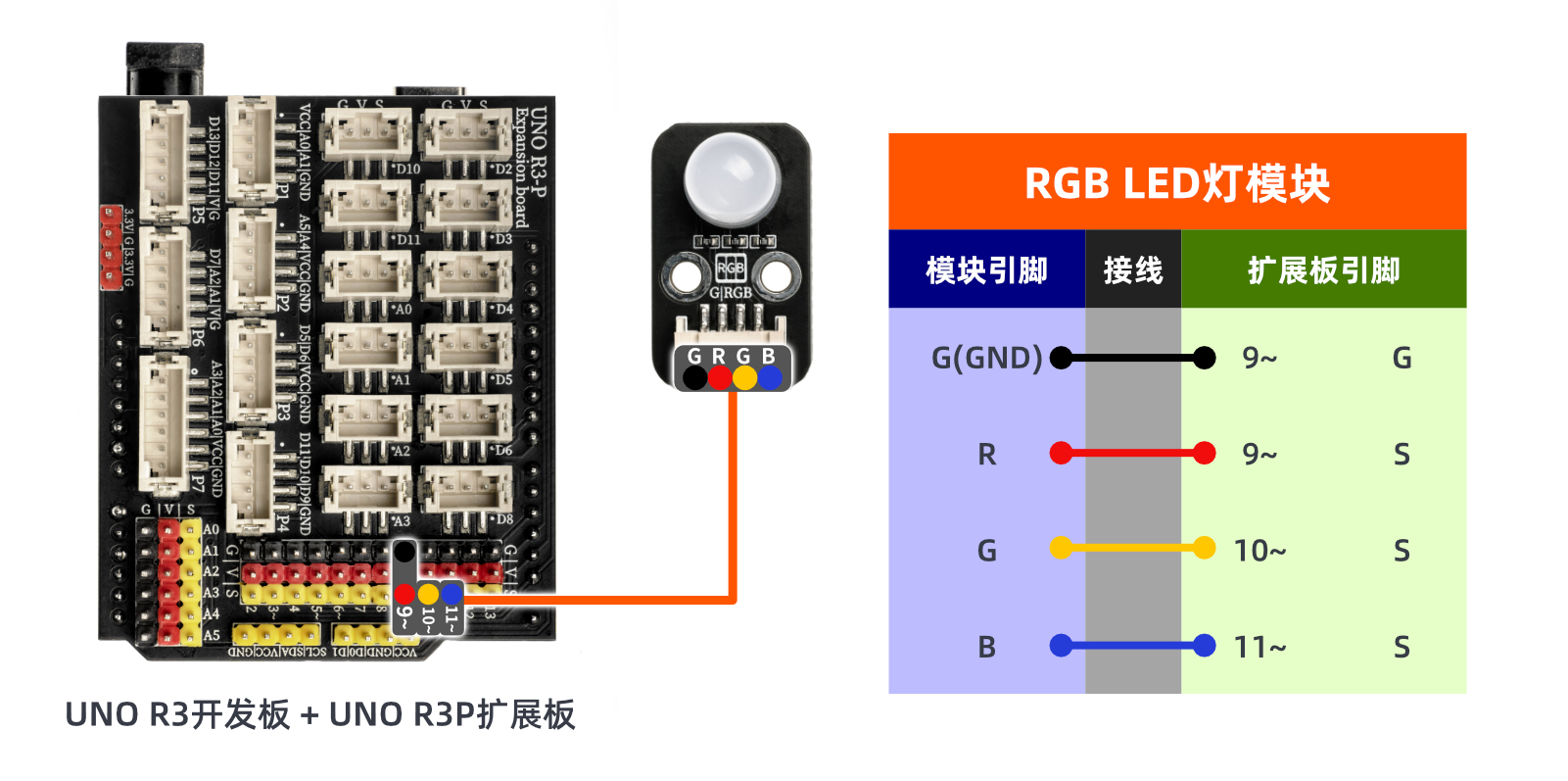

Circuit wiring diagram:

ESP32 Test Environment Setup

Prepare Components:Updated with...

Circuit wiring diagram:Updated with...

9, Video tutorial

Video tutorial:Click to view

10, Test results

Arduino UNO test results:

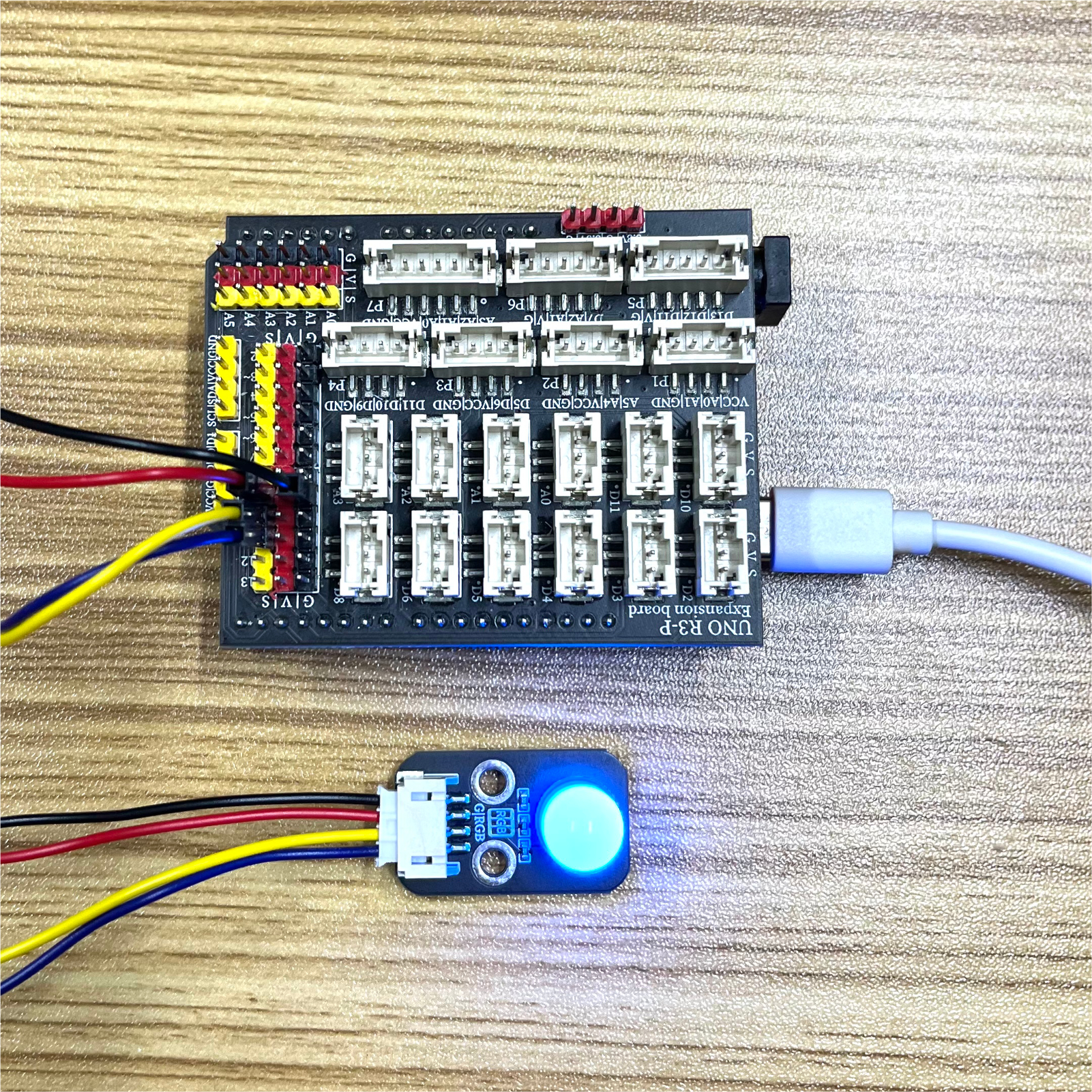

After the device is connected to the wires, burn the above program to the Arduino UNO development board, and then proceed with the color ratio according to the above ratio chart.We can see the RGB LED light change colors every second (red, green, blue).

ESP32 Test Results:

Pending update...
