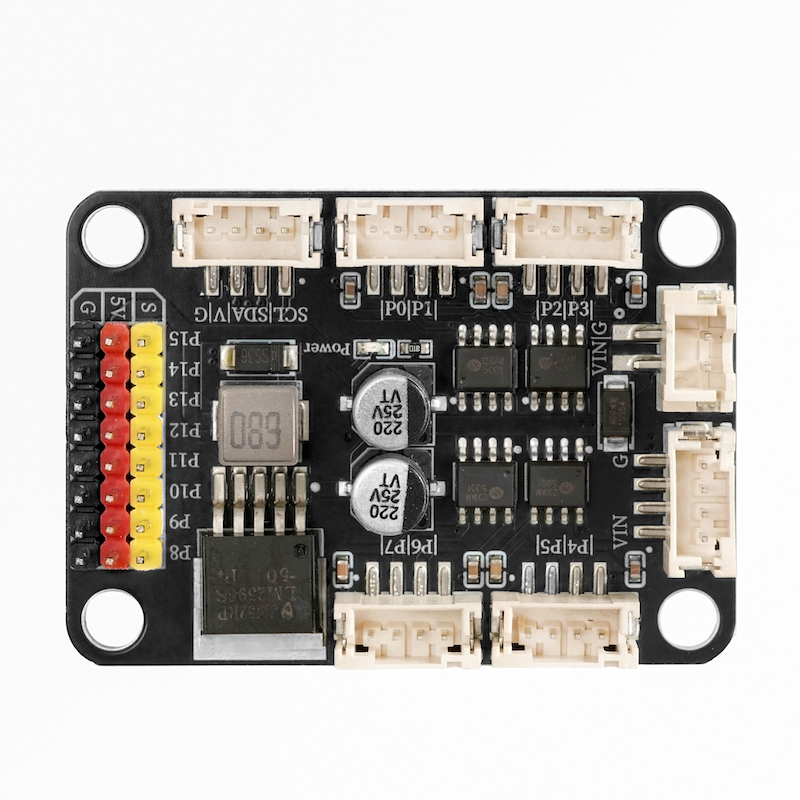

HS-F27-L 4-Kanal-Motor-8-Kanal-Servo-Erweiterungsplatte

HS-F27-L 4-Kanal-Motor-8-Kanal-Servo-Erweiterungsplatte

1、Einführung


Bordnetzverwaltung: Es wird in der Regel ein Stromanschluss integriert, um dem angeschlossenen Motor und dem Chip selbst angemessenen Strom bereitzustellen.Ein Teil der Erweiterungsplatten verfügt auch über einen Entgegengewärtsschutzschalter, um Schäden am电路 durch falsches Anschließen der Polen des Stromversorgers zu verhindern.

2、Schemazeichnung

3、Modulparameter

Pinbezeichnung

Beschreibung

G

GND（Spannungsversorgungsminus）

V

VCC（Spannungsversorgungsplus）

SDA

Datenpin

SCL

Zeitpin

  • Spannungsversorgung: 3.3V-5V

  • Verbindungsmethode: PH2.0 4P Steckerkabel

  • Montagemethode: Lego-Baukasten

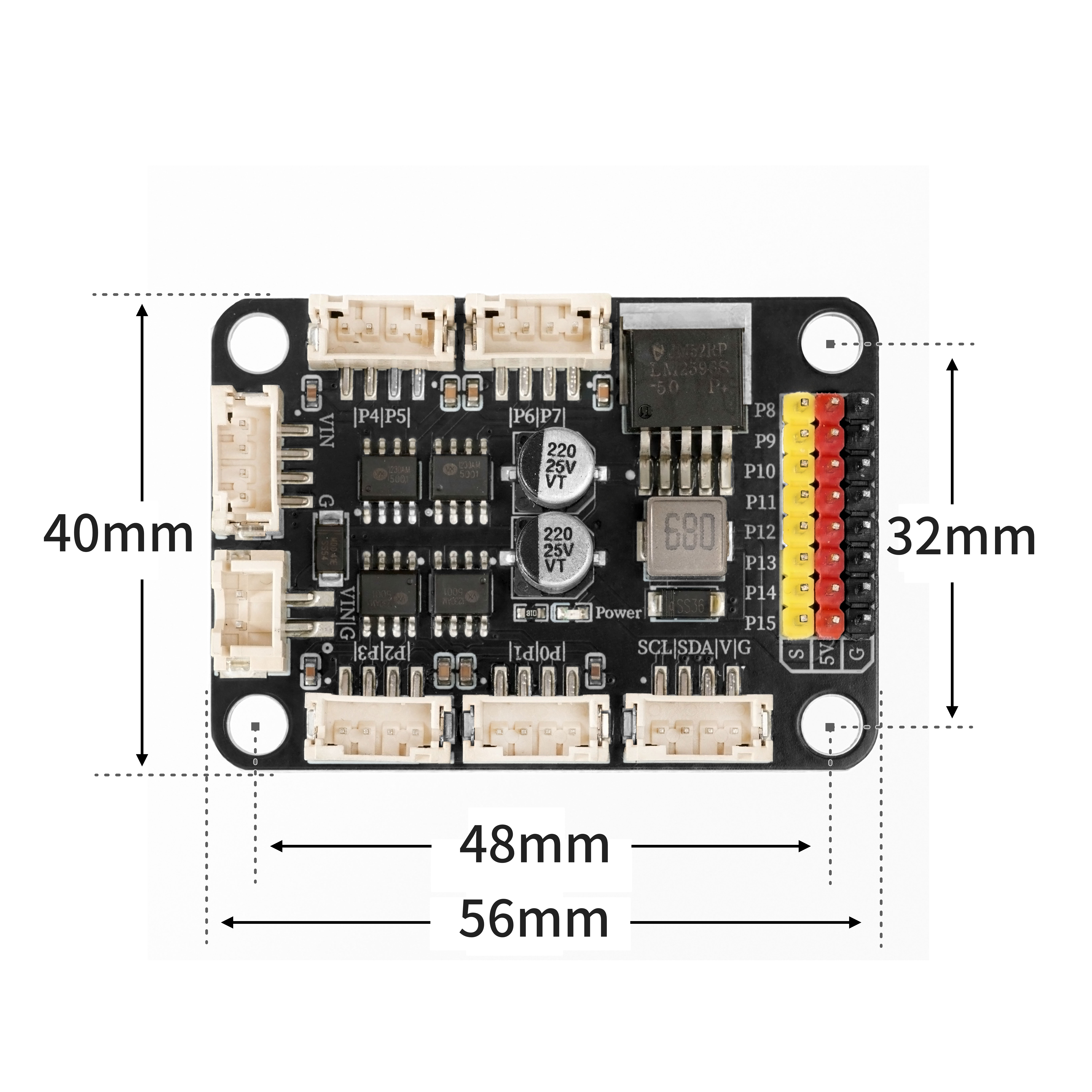

4, Platinegröße

5、Arduino Bibliothek hinzufügen

Schritte zur Installation der Arduino-Umgebungsbibliothek:参考链接

Arduino-Umgebungsbibliothekdatei: Klicken Sie zum Herunterladen

米思齐UNO开发板库文件安装步骤（使用代码前先下载安装米思齐库文件）：参考链接

6、添加MicroPython环境库文件

米思齐ESP32开发板库文件下载安装步骤（使用代码前先下载安装米思齐库文件）：参考链接

7、Arduino IDE Beispielprogramm

Beispielprogramm (UNO-Entwicklungsboard): Klicken Sie zum Herunterladen

#include "Wire.h"
#include "Adafruit_PWMServoDriver.h"
Adafruit_PWMServoDriver PWM = Adafruit_PWMServoDriver(0x40);

void setup(){
  PWM.begin();
  PWM.setPWMFreq(85);
}

void loop(){
  PWM.setPWM(0,0,0);
  PWM.setPWM(1,0,2048);
  PWM.setPWM(2,0,0);
  PWM.setPWM(3,0,2048);
  PWM.setPWM(4,0,0);
  PWM.setPWM(5,0,2048);
  PWM.setPWM(6,0,0);
  PWM.setPWM(7,0,2048);
  for (int i = 0; i <= 180; i = i + (1)) {
    PWM.setPWM(8,0,(map(i, 0, 180, 140, 680)));
    PWM.setPWM(9,0,(map(i, 0, 180, 140, 680)));
    PWM.setPWM(10,0,(map(i, 0, 180, 140, 680)));
    PWM.setPWM(11,0,(map(i, 0, 180, 140, 680)));
    delay(50);
  }

}

示例程序（ESP32开发板）：

from machine import I2C, Pin
import time
from mixpy import math_map


PCA9685_MODE1      = 0x00
PCA9685_MODE2      = 0x01
PCA9685_LED0_ON_L  = 0x06
PCA9685_LED0_ON_H  = 0x07
PCA9685_LED0_OFF_L = 0x08
PCA9685_LED0_OFF_H = 0x09
PCA9685_ALLLED_ON_L  = 0xFA
PCA9685_ALLLED_ON_H  = 0xFB
PCA9685_ALLLED_OFF_L = 0xFC
PCA9685_ALLLED_OFF_H = 0xFD
PCA9685_PRESCALE     = 0xFE

MODE1_ALLCAL  = 0x01
MODE1_SUB3    = 0x02
MODE1_SUB2    = 0x04
MODE1_SUB1    = 0x08
MODE1_SLEEP   = 0x10
MODE1_AI      = 0x20
MODE1_EXTCLK  = 0x40
MODE1_RESTART = 0x80

MODE2_OUTNE_0 = 0x01
MODE2_OUTNE_1 = 0x02
MODE2_OUTDRV  = 0x04
MODE2_OCH     = 0x08
MODE2_INVRT   = 0x10


PCA9685_I2C_ADDRESS       = 0x40
FREQUENCY_OSCILLATOR_HZ   = 25_000_000
PRESCALE_MIN = 3
PRESCALE_MAX = 255


class PCA9685:
    def __init__(self, i2c: I2C, addr: int = PCA9685_I2C_ADDRESS):
        self.i2c = i2c
        self.addr = addr
        self._oscillator_freq = FREQUENCY_OSCILLATOR_HZ

    def _write8(self, reg: int, val: int):
        self.i2c.writeto_mem(self.addr, reg, bytes([val & 0xFF]))

    def _read8(self, reg: int) -> int:
        return self.i2c.readfrom_mem(self.addr, reg, 1)[0]

    def _write4(self, base_reg: int, on: int, off: int):
        buf = bytearray(4)
        buf[0] = on & 0xFF
        buf[1] = (on >> 8) & 0x0F
        buf[2] = off & 0xFF
        buf[3] = (off >> 8) & 0x0F
        self.i2c.writeto_mem(self.addr, base_reg, buf)

    def begin(self):
        self.reset()
        mode1 = self._read8(PCA9685_MODE1)
        self._write8(PCA9685_MODE1, mode1 | MODE1_AI)
        self.set_output_mode(True)

    def reset(self):
        self._write8(PCA9685_MODE1, MODE1_RESTART)  # 写 RESTART
        time.sleep_ms(10)

    def sleep(self):
        m1 = self._read8(PCA9685_MODE1)
        self._write8(PCA9685_MODE1, m1 | MODE1_SLEEP)
        time.sleep_ms(5)

    def wakeup(self):
        m1 = self._read8(PCA9685_MODE1)
        self._write8(PCA9685_MODE1, m1 & (~MODE1_SLEEP))
        time.sleep_ms(5)

    def set_output_mode(self, totempole: bool = True):
        m2 = self._read8(PCA9685_MODE2)
        if totempole:
            m2 |= MODE2_OUTDRV
        else:
            m2 &= ~MODE2_OUTDRV
        self._write8(PCA9685_MODE2, m2)

    def set_oscillator_frequency(self, freq_hz: int):
        self._oscillator_freq = int(freq_hz)

    def get_oscillator_frequency(self) -> int:
        return self._oscillator_freq

    def set_pwm_freq(self, freq_hz: float):
        if freq_hz < 1.0:
            freq_hz = 1.0
        if freq_hz > 3500.0:
            freq_hz = 3500.0

        prescaleval = ((self._oscillator_freq / (freq_hz * 4096.0)) + 0.5) - 1.0
        if prescaleval < PRESCALE_MIN:
            prescaleval = PRESCALE_MIN
        if prescaleval > PRESCALE_MAX:
            prescaleval = PRESCALE_MAX
        prescale = int(prescaleval)

        oldmode = self._read8(PCA9685_MODE1)
        newmode = (oldmode & ~MODE1_RESTART) | MODE1_SLEEP
        self._write8(PCA9685_MODE1, newmode)
        self._write8(PCA9685_PRESCALE, prescale)
        self._write8(PCA9685_MODE1, oldmode)
        time.sleep_ms(5)
        self._write8(PCA9685_MODE1, oldmode | MODE1_RESTART | MODE1_AI)

    def read_prescale(self) -> int:
        return self._read8(PCA9685_PRESCALE)

    def set_pwm(self, ch: int, on: int, off: int):
        base = PCA9685_LED0_ON_L + 4 * ch
        self._write4(base, on & 0x1FFF, off & 0x1FFF)

    def set_pin(self, ch: int, val: int, invert: bool = False):
        if val < 0:
            val = 0
        if val > 4095:
            val = 4095

        if invert:
            if val == 0:
                self.set_pwm(ch, 4096, 0)   # fully ON
            elif val == 4095:
                self.set_pwm(ch, 0, 4096)  # fully OFF
            else:
                self.set_pwm(ch, 0, 4095 - val)
        else:
            if val == 4095:
                self.set_pwm(ch, 4096, 0)  # fully ON
            elif val == 0:
                self.set_pwm(ch, 0, 4096)  # fully OFF
            else:
                self.set_pwm(ch, 0, val)

    def write_microseconds(self, ch: int, us: int):
        prescale = self.read_prescale() + 1
        us_per_bit = (1_000_000.0 * prescale) / float(self._oscillator_freq)
        ticks = int(us / us_per_bit + 0.5)
        if ticks < 0:
            ticks = 0
        if ticks > 4095:
            ticks = 4095
        self.set_pwm(ch, 0, ticks)


i2c = I2C(0, scl=Pin(22), sda=Pin(21), freq=400000)

PWM = PCA9685(i2c, addr=0x40)

PWM.begin()

PWM.set_pwm_freq(50)
while True:
    PWM.set_pwm(0,1,4095)
    PWM.set_pwm(1,1,2000)
    PWM.set_pwm(2,1,4095)
    PWM.set_pwm(3,1,2000)
    PWM.set_pwm(4,1,4095)
    PWM.set_pwm(5,1,2000)
    PWM.set_pwm(6,1,4095)
    PWM.set_pwm(7,1,2000)
    PWM.set_pwm(8,  0, int(math_map(90, 0, 180, 140, 680)))
    time.sleep(5)
    PWM.set_pwm(0,1,2000)
    PWM.set_pwm(1,1,2000)
    PWM.set_pwm(2,1,2000)
    PWM.set_pwm(3,1,2000)
    PWM.set_pwm(4,1,2000)
    PWM.set_pwm(5,1,2000)
    PWM.set_pwm(6,1,2000)
    PWM.set_pwm(7,1,2000)
    PWM.set_pwm(8,  0, int(math_map(0, 0, 180, 140, 680)))
    time.sleep(5)

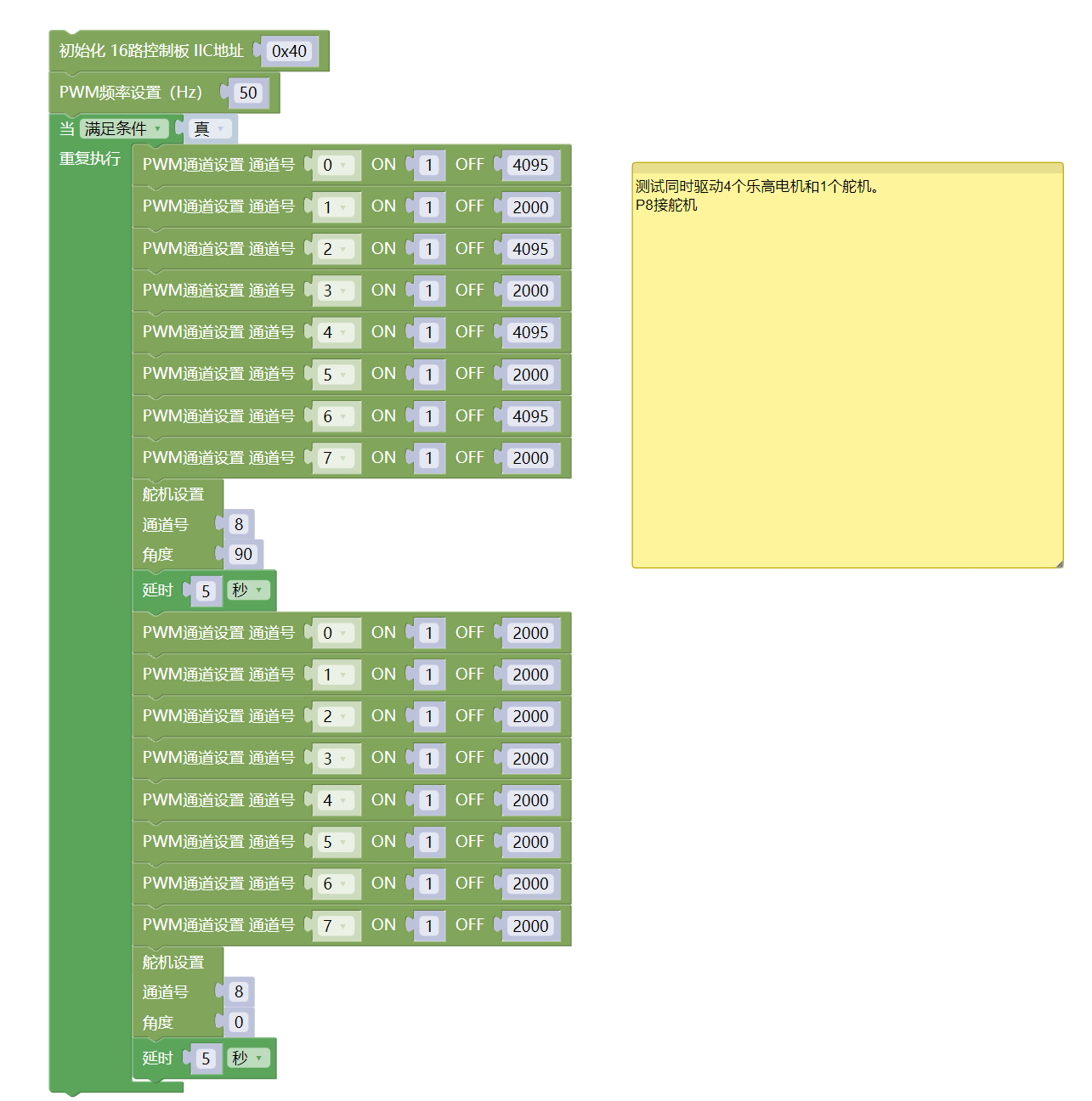

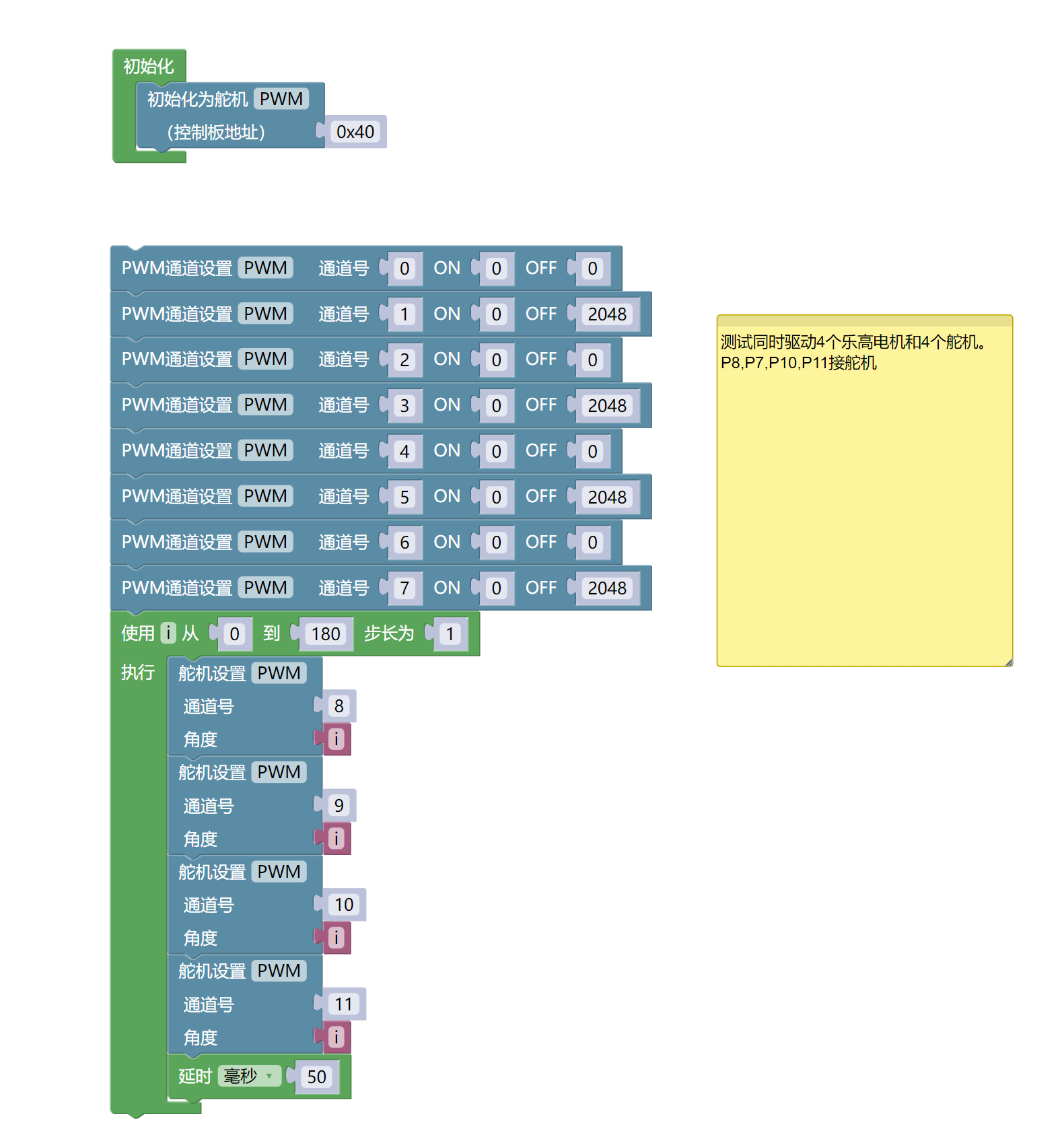

8, Mixly-Beispielprogramm (Graphische Sprache)

Beispielprogramm (UNO-Board):2、第二步将UNO开发板的库文件下载后解压在桌面。

示例程序(ESP32开发板)：2、第二步将UNO开发板的库文件下载后解压在桌面。

9, Testumgebung aufbauen

Testumgebung für Arduino UNO einrichten

Vorbereiten Sie die Komponenten:

  • UNO-R3 Entwicklungsboard *1

  • UNO-R3 EXP-Erweiterungsplatte *1

  • USB type-c Datenkabel *1

  • HS-F27 4路电机8路舵机扩展板*1

  • PH2.0 4P-Doppelkopfsteckerleitung *1

  • 6-9V Akkuhalter*1

  • Lego Motor*4

  • Servo*4

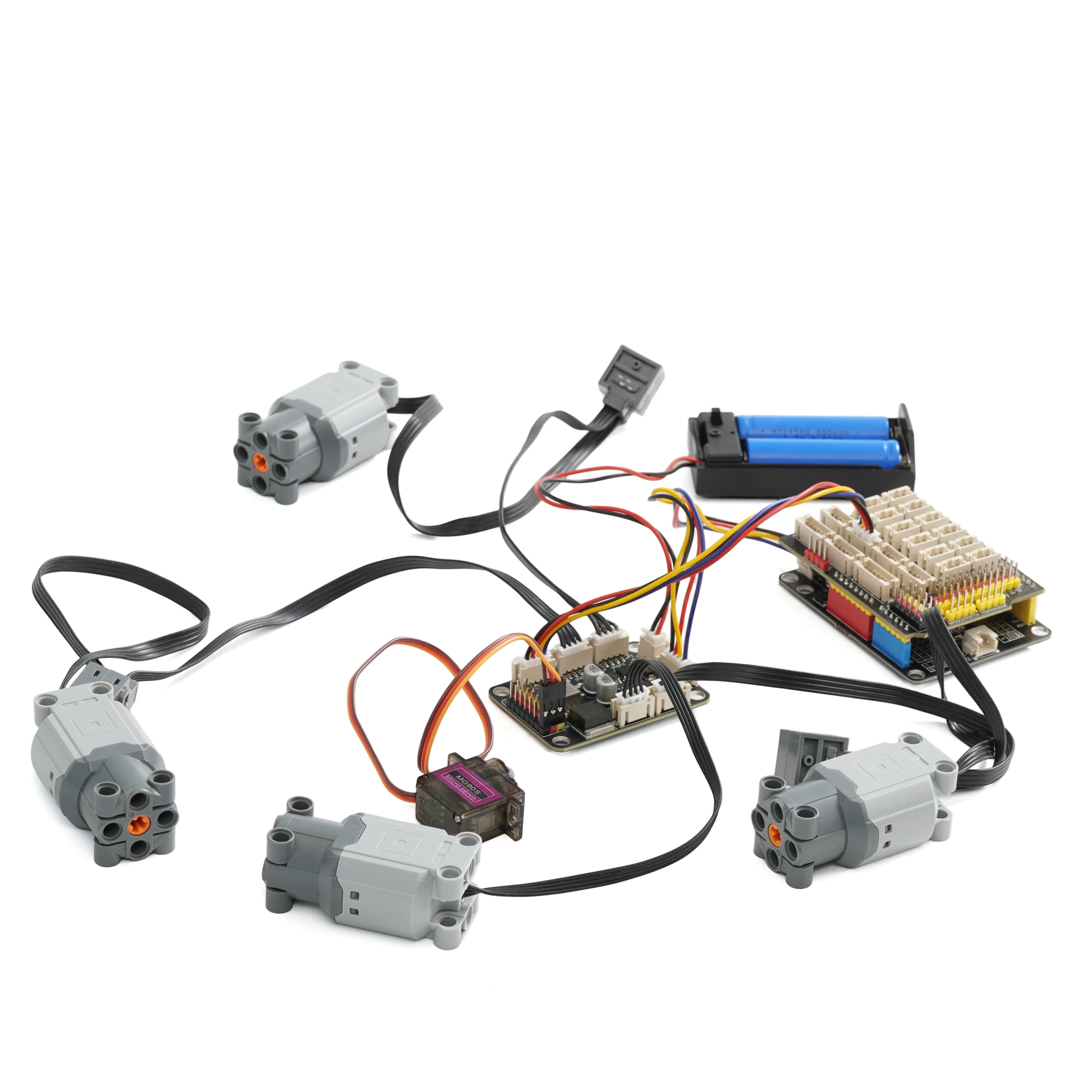

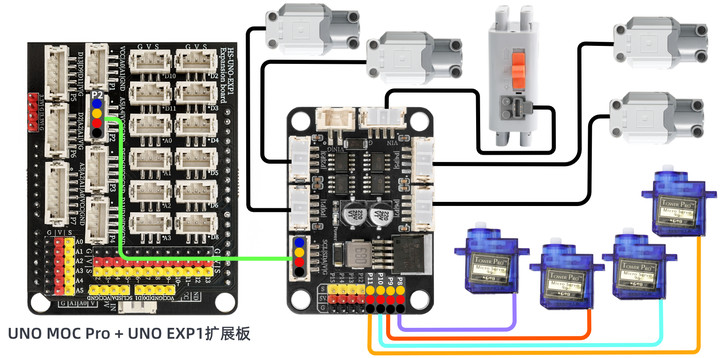

Schaltplan der Leitung:

ESP32 Python Testumgebung Einrichtung

10、Video-Tutorial

Arduino UNO Video-Tutorial：Klicken, um anzuzeigen

ESP32 Python Videoanleitung:

11、Testergebnis

Arduino UNO Testergebnis:

Geben Sie den Code ein, schließen Sie die Module an, schalten Sie den Strom ein, dann drehen sich der Motor und der Servo gleichzeitig.
